1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1 / 5
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module

Send Inquiry

Product Description

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
📋 Products Description
Item 25G SFP28 Transceiver
Part No. LS-BL312725-40C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1310nm-TX/1270nm-RX
Max Cable Distance 40km
Media SMF
Connector Simplex LC
Optical Component DFB/APD
TX Power 0~6dBm
Receiver Sensitivity <-18dBm
Receiver Overload 2dBm
Power Consumption 1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
💡 VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

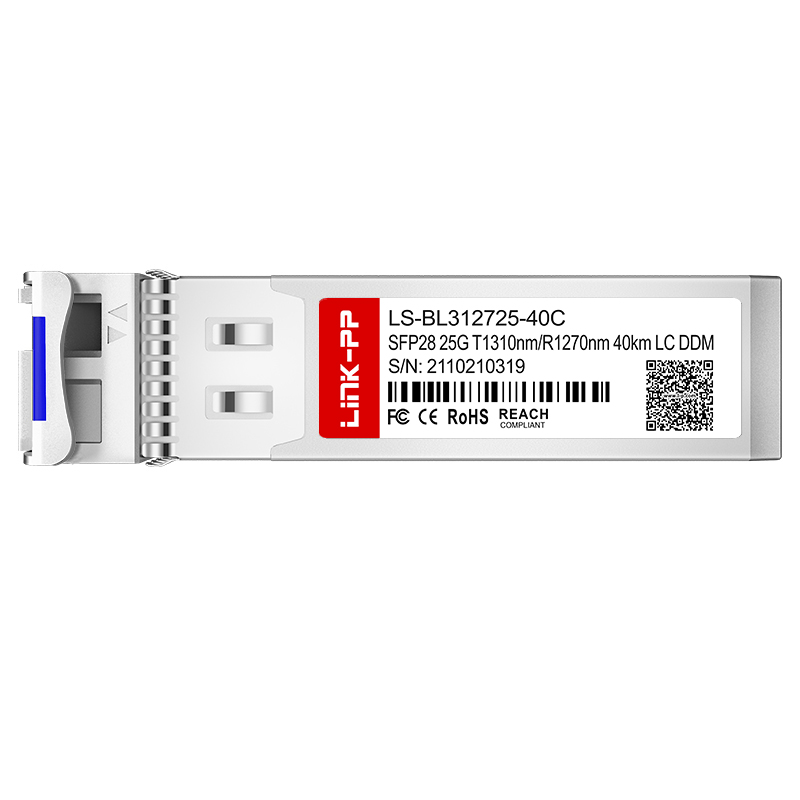

Optical Transceiver Module View 1

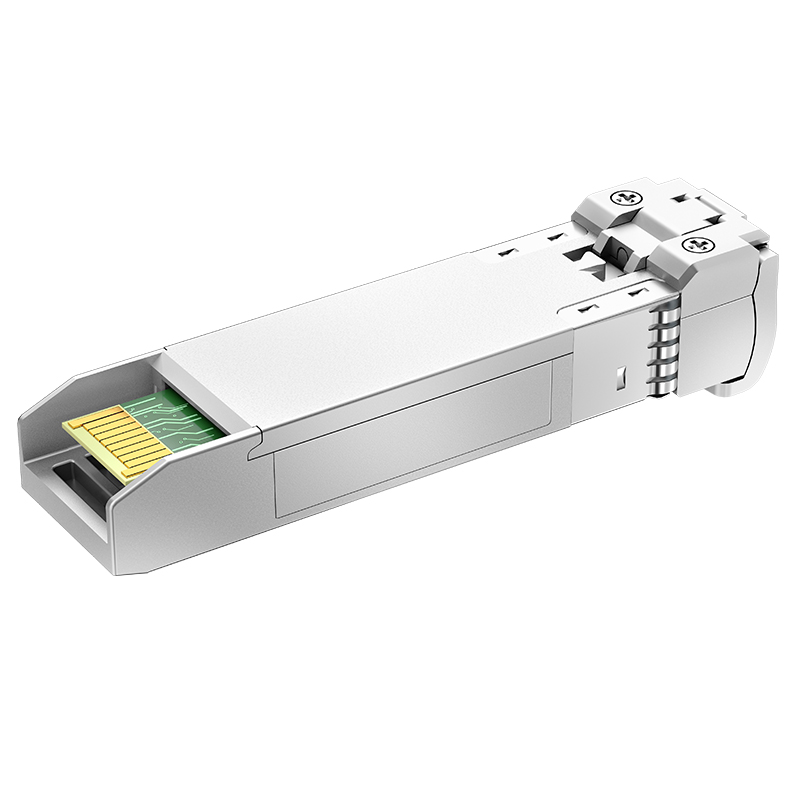

Optical Transceiver Module View 2

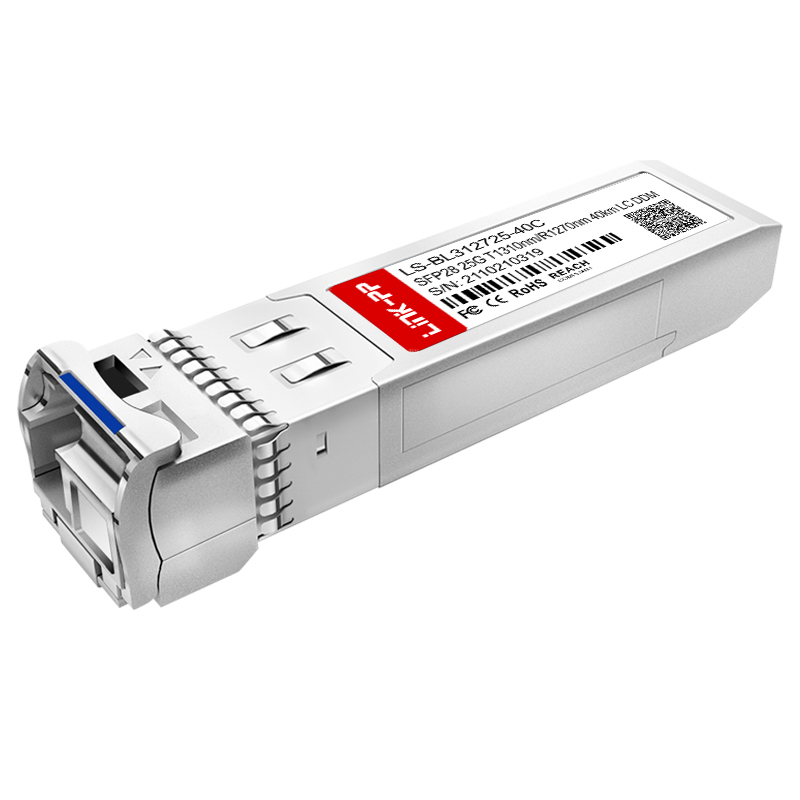

Optical Transceiver Module View 3

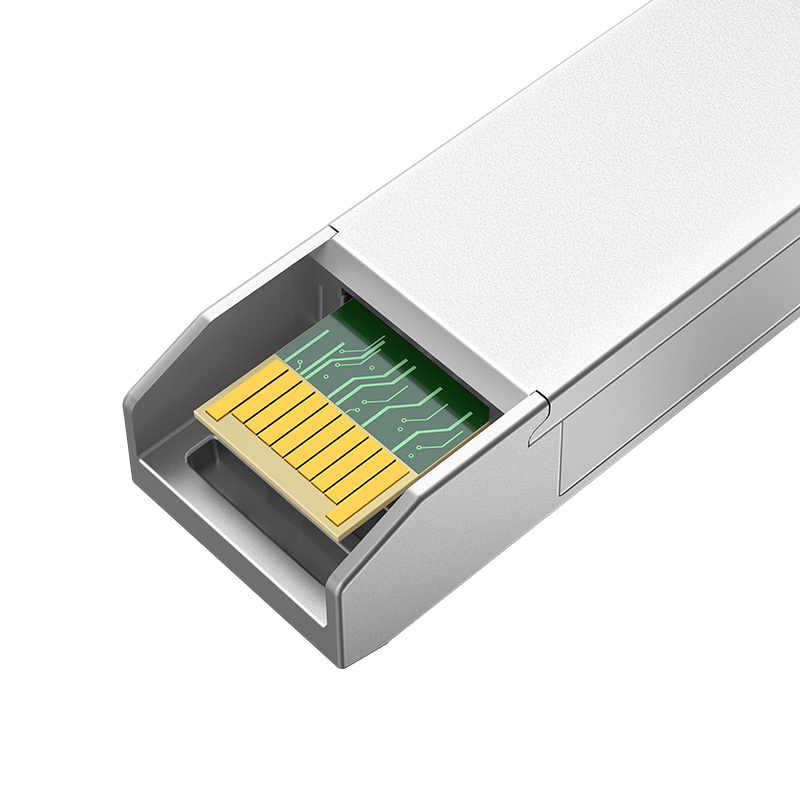

Optical Transceiver Module View 4

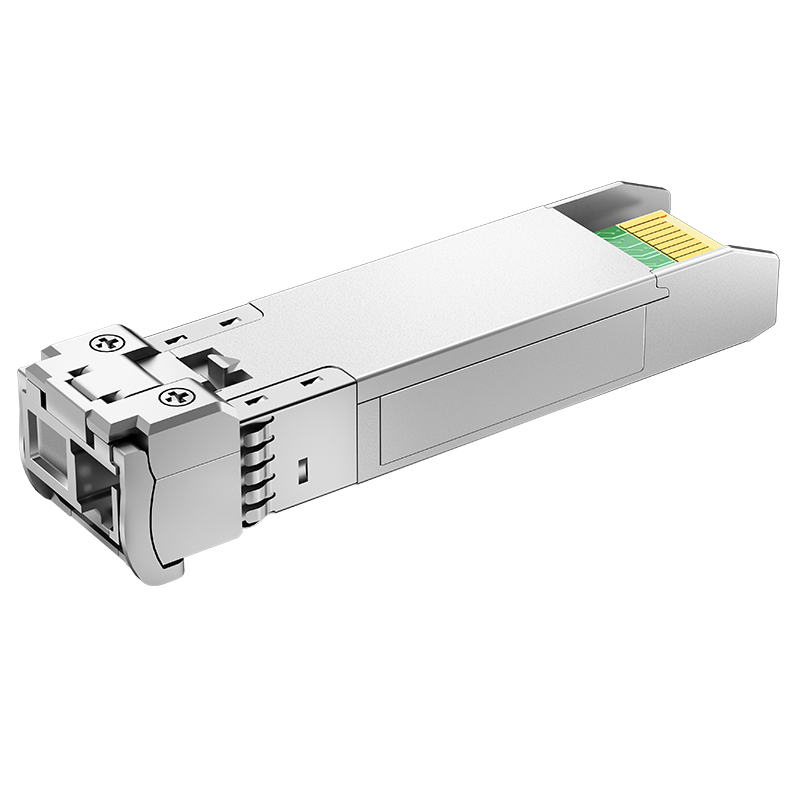

Optical Transceiver Module View 5
🌐 Application Scenarios
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, total FTTx optical fiber access solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Solution Overview Diagram
⛓️ Related Products SFP Cage
SFP Cage Related Products
⭐ Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
❓ FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, with shipping costs covered by the buyer.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
What after-service do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please contact us with your requirements so we can discuss the details.
What is your advantage?
Over 19 years of manufacturing experience, supplying high-quality networking solutions globally.
