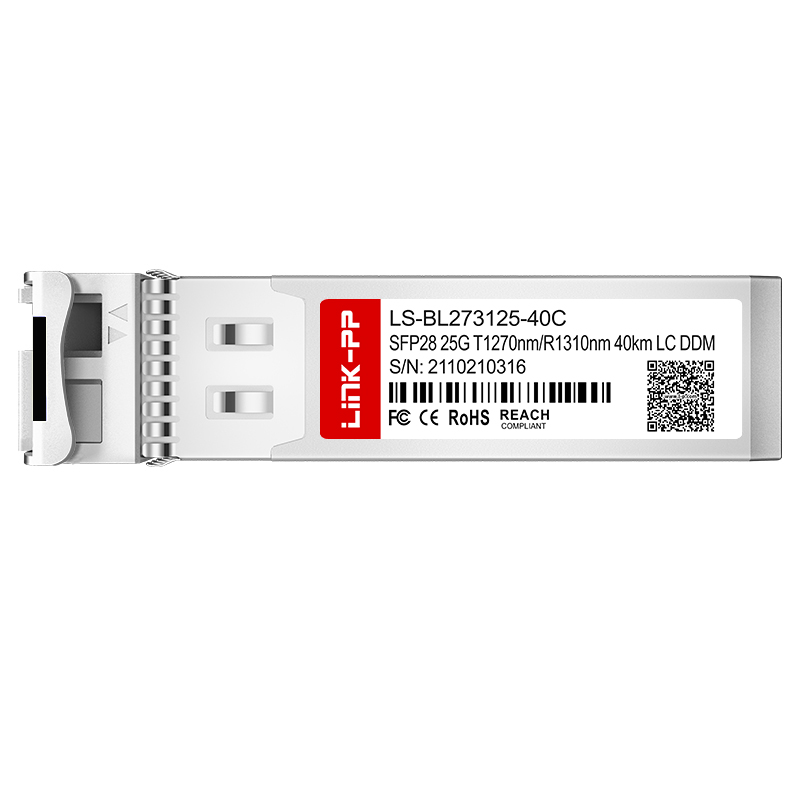

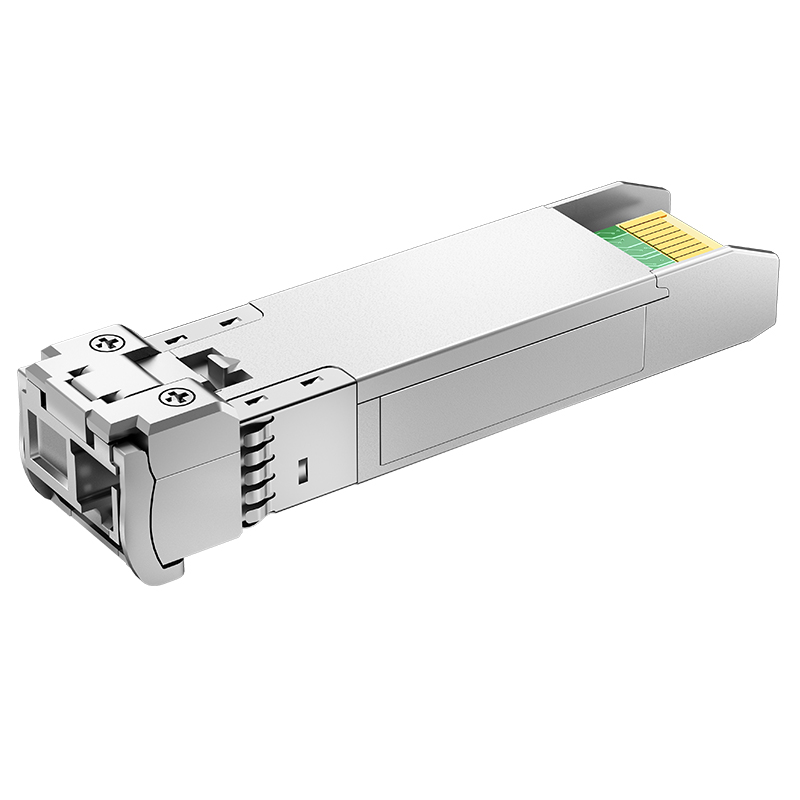

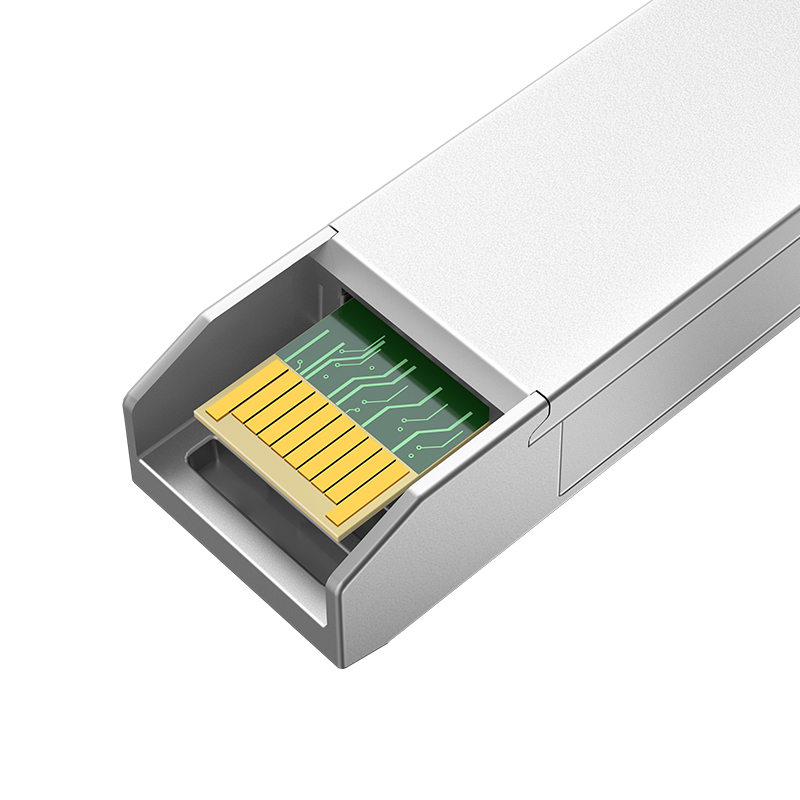

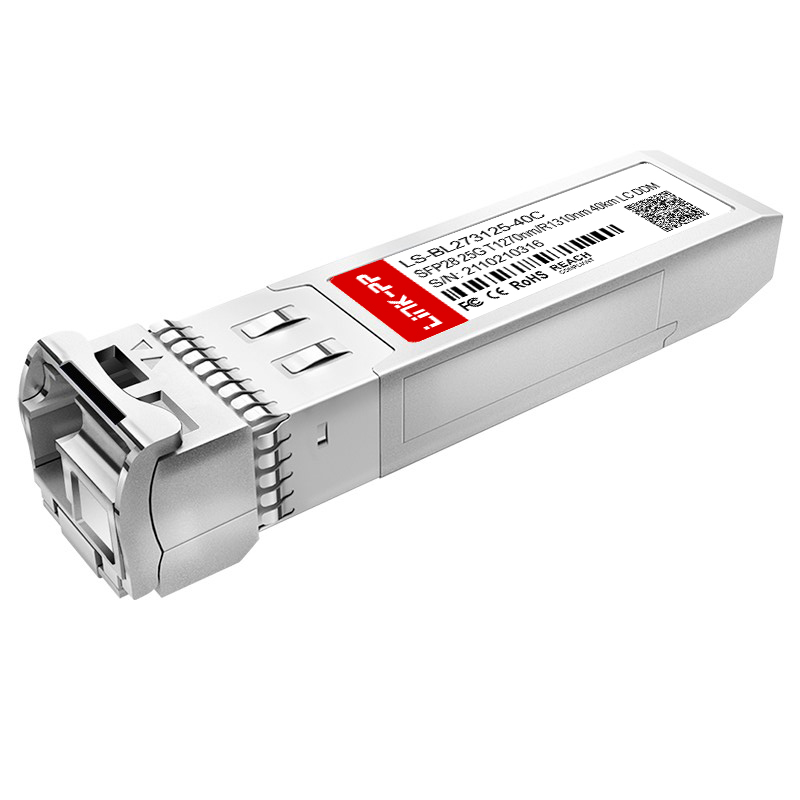

Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
1 / 5
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module

Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module

Send Inquiry

Product Description

Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Product Specifications
Item 25G SFP28 Transceiver
Part No. LS-BL273125-40C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1270nm-TX/1310nm-RX
Max Cable Distance 40km
Media SMF
Connector Simplex LC
Optical Component DFB/APD
TX Power 0~6dBm
Receiver Sensitivity <-18dBm
Receiver Overload 2dBm
Power Consumption 1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Overview
Product Range Map
Optical Transceiver Detail 1
Optical Transceiver Detail 2
Optical Transport Networks
Optical Transport Networks
We provide end-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, total FTTx optical fiber access solutions are provided, covering from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems Quality
Related Products: SFP Cage
SFP Cage Product Line
Why Choose Us
Quality Standard
Testing Equipment
Advanced Assembly
Fast Shipping
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you samples to test the quality, with shipping costs covered by the buyer.
What is your delivery time?
Items that are in stock are ready to ship immediately. For mass production orders, the delivery time ranges from 15 to 30 days.
What after-sales service and support do you offer?
We provide a warranty period on all products and offer online technical support to assist you.
Can you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please send your inquiries to us so that we can have a detailed discussion based on your technical needs.
What are your main advantages?
With over 19 years of production experience, we implement rigorous testing procedures and utilize advanced manufacturing facilities to deliver top-tier networking components globally.
