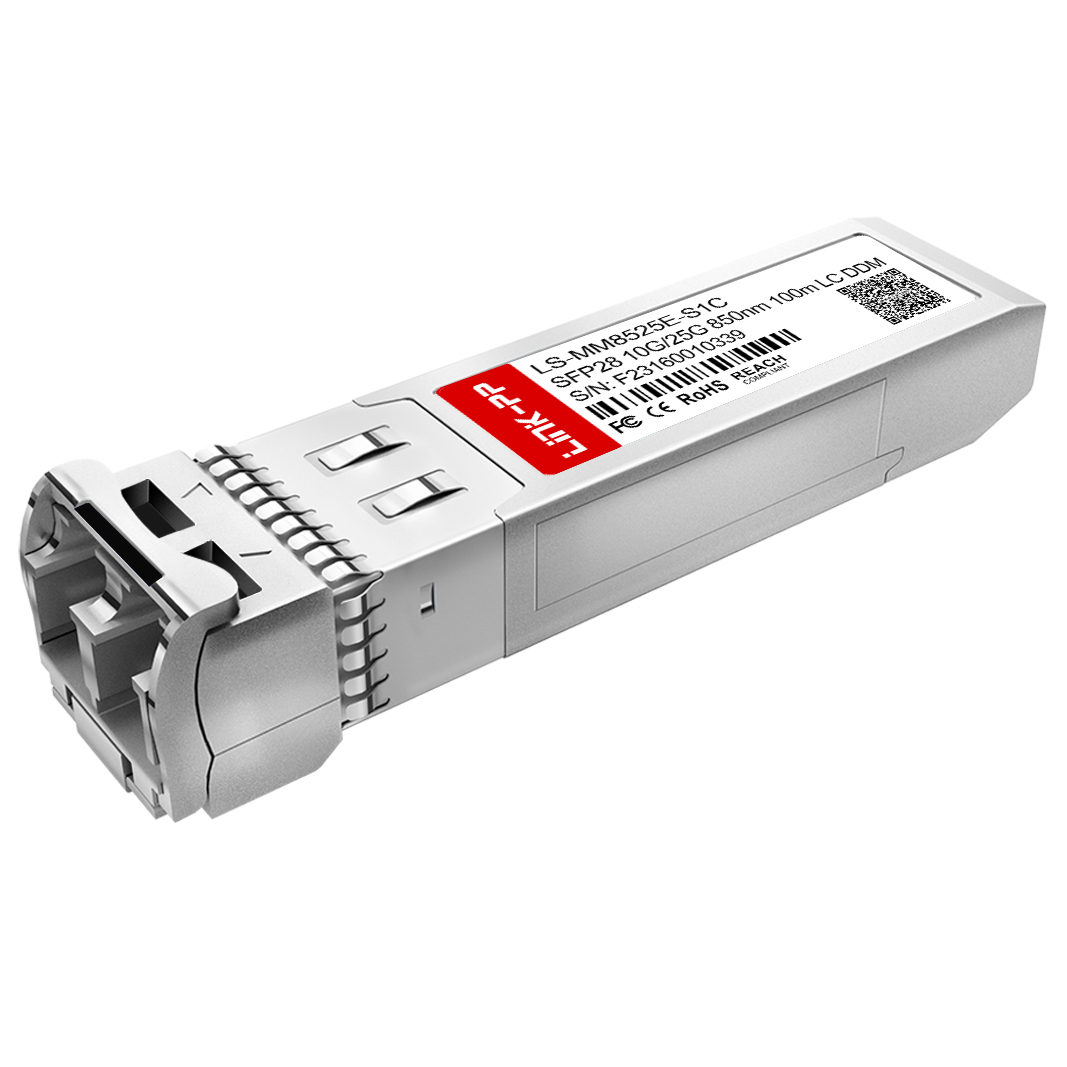

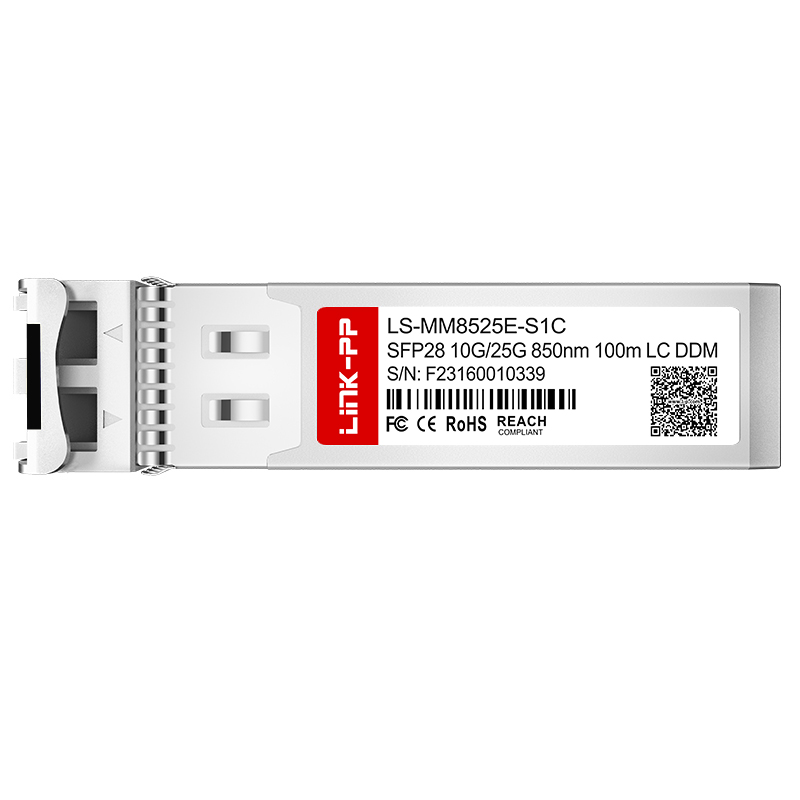

| Item | 25G SFP28 Transceiver |
| Part No. | LS-MM8525E-S1C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 10G/25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 100m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -6.4~2.4dBm |
| Receiver Sensitivity | <-6dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1.2W |
| Extinction Ratio | 2dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
Ready to ship for stock items, and 15-30 days for mass production.
We offer a one-year warranty period and online technical support 24 hours a day.
Yes, please send us an inquiry so we can have a detailed discussion regarding your specific requirements.
We have over 19 years of professional manufacturing experience and have partnered with major global enterprises for many years.
