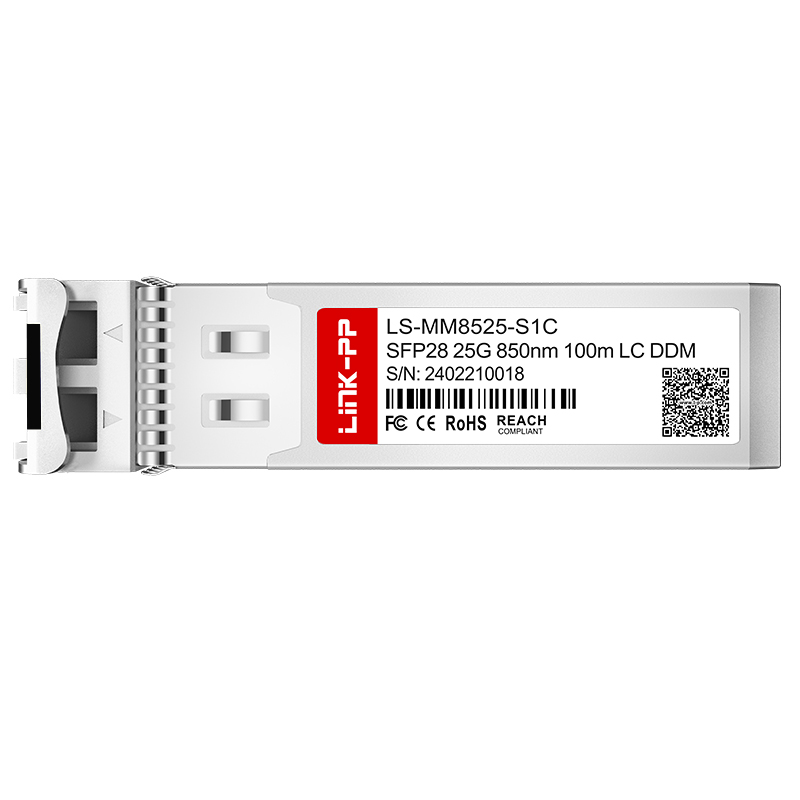

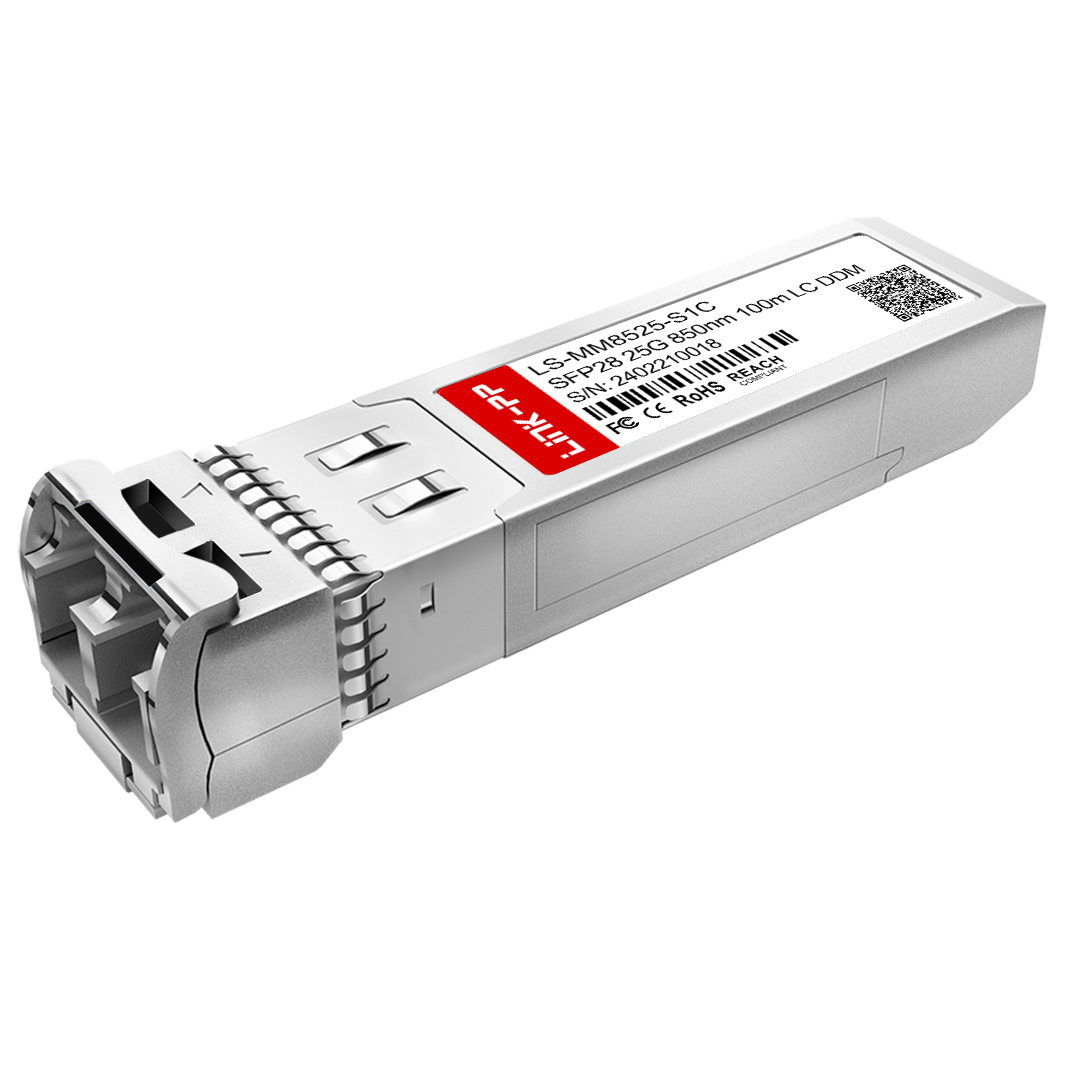

| Item | 25G Optical Modules |
| Replaceable Part | Cisco, HW, Arista, Juniper, Brocade, Intel, etc |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25.78Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 100m@OM4/70m@OM3 |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -7.9~1.9dBm |
| Receiver Sensitivity | < -6dBm |
| Powerbudget | -1.9dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >2dB |
| DDM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
