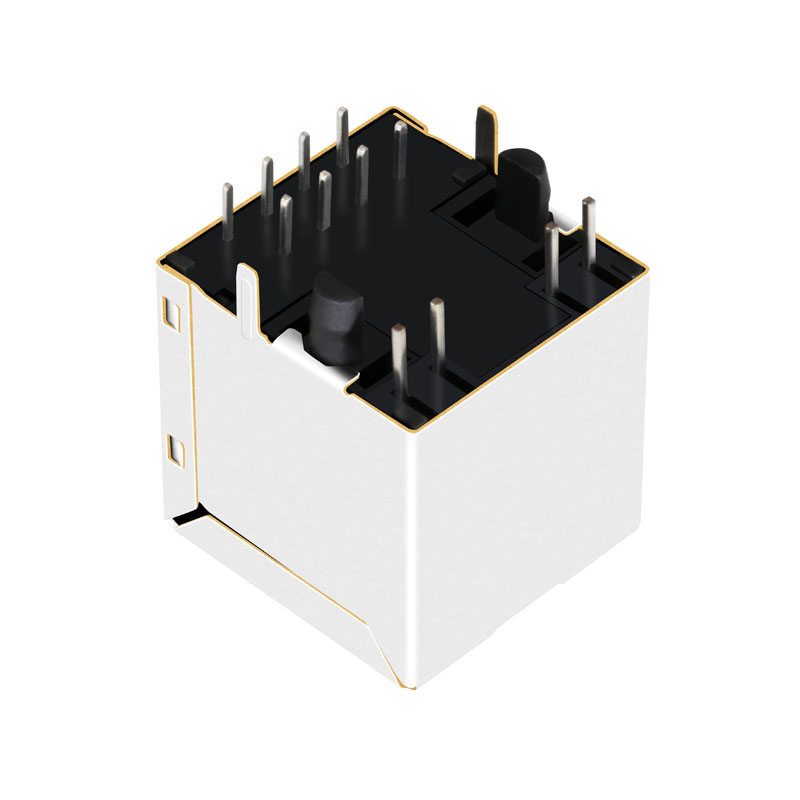

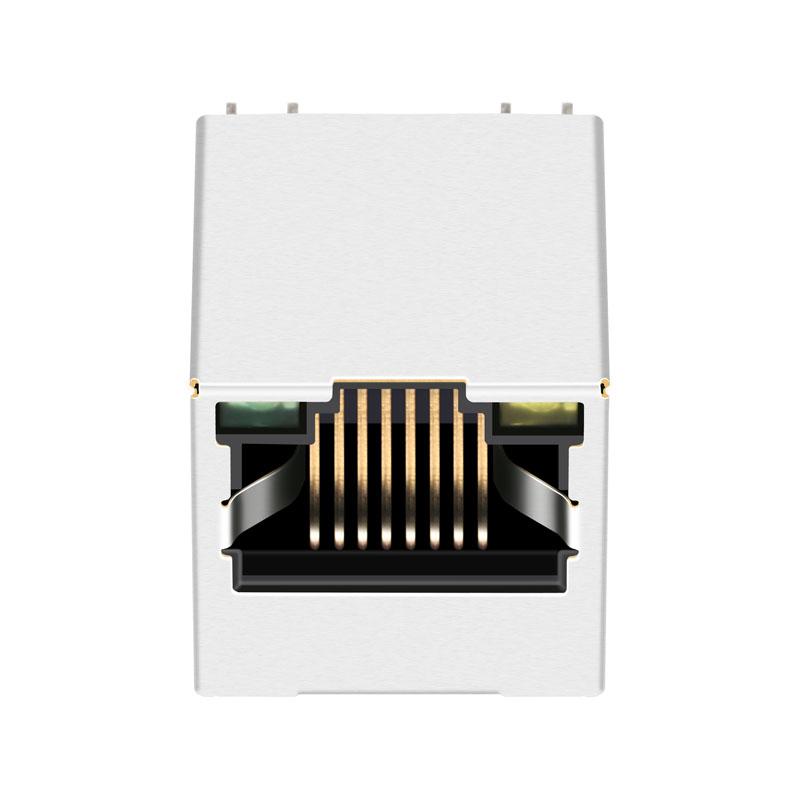

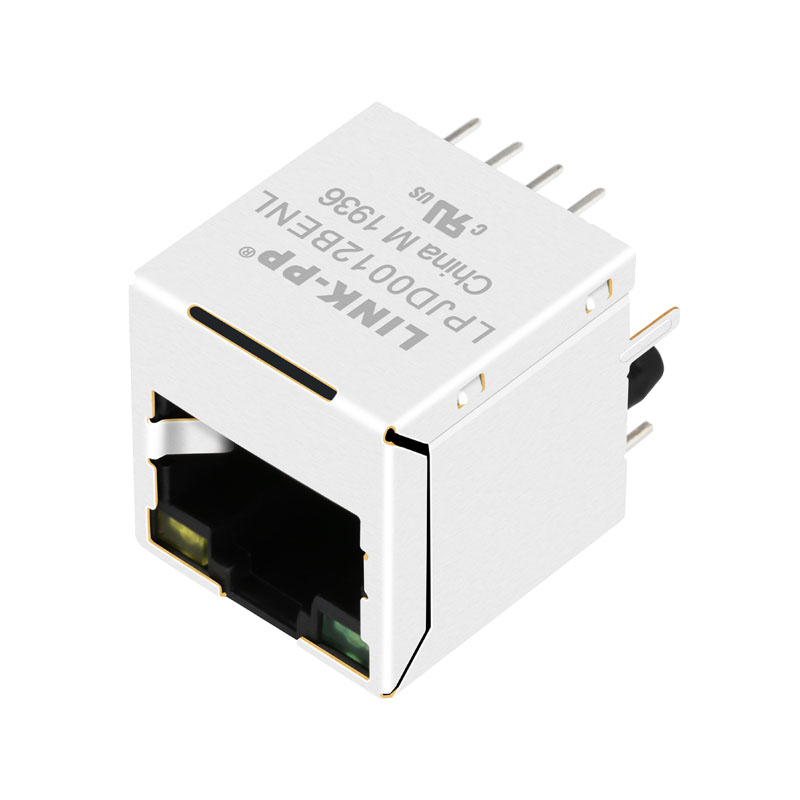

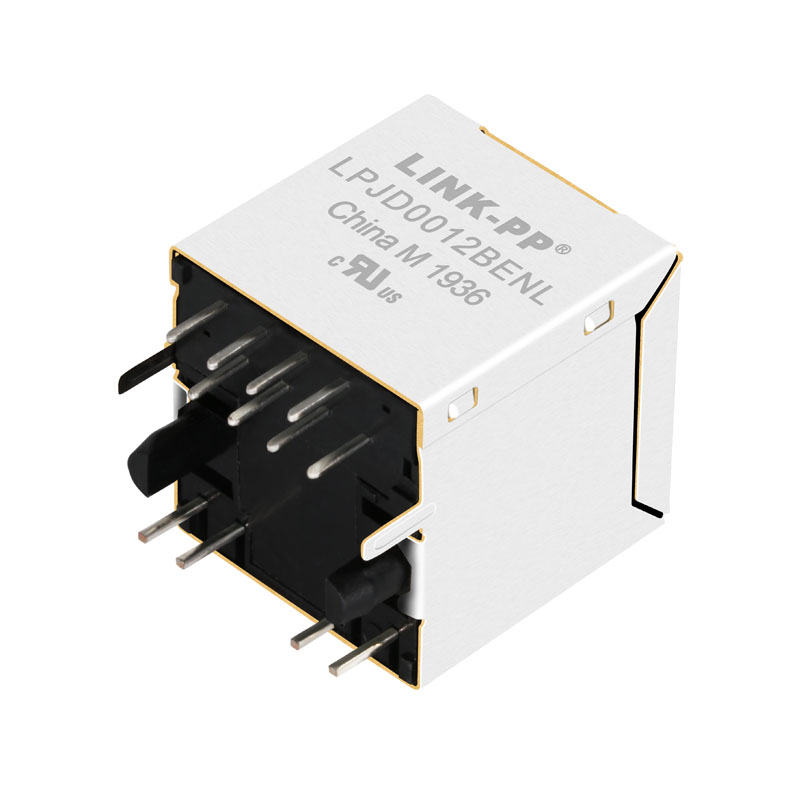

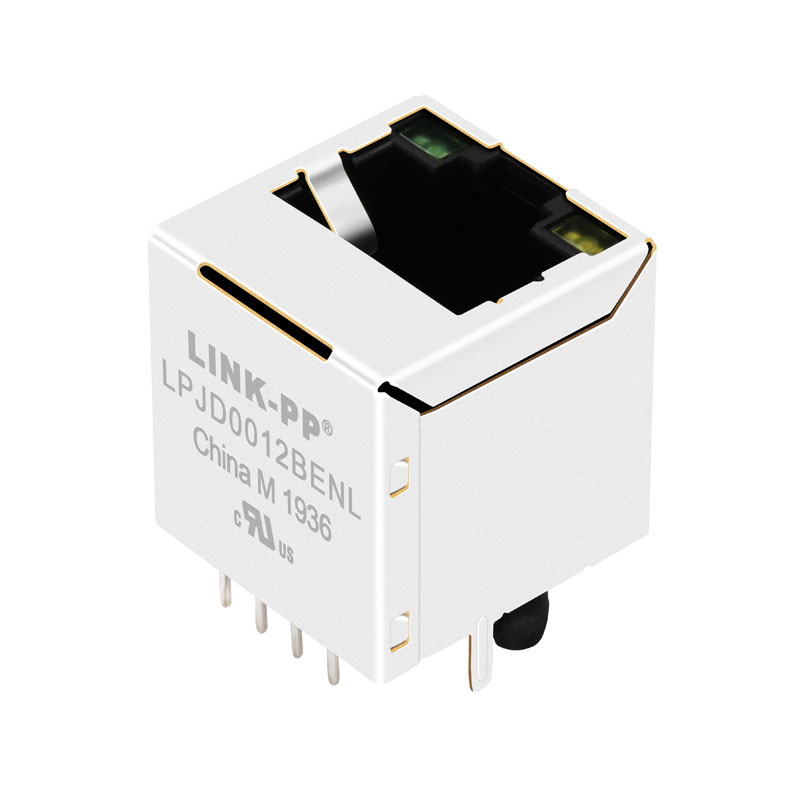

10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
1 / 5
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds

10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds

Send Inquiry

Product Description

RJ45 Connectors
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0012BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Divider
Discover More Products Below
Product Showcase Grid
Product Dimensions Sheet
Technical Specifications Sheet
Electrical Parameters
Detailed Schematic
Product Certification
Quality Standards
Factory Testing Parameters
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Company Building
Manufacturing Line
Quality Inspection Center
Frequently Asked Questions
Q1Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, with shipping fees covered by the customer.
Q3What is your delivery time?
For in-stock items, products are ready to ship immediately. For mass production, lead times range from 15 to 30 days.
Q4What after-sale service do you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Q5Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM customized orders. Please contact us to discuss the details.
Q6What is your core advantage?
We possess over 19 years of professional production experience and have been a trusted partner of leading global technology brands for many years.
