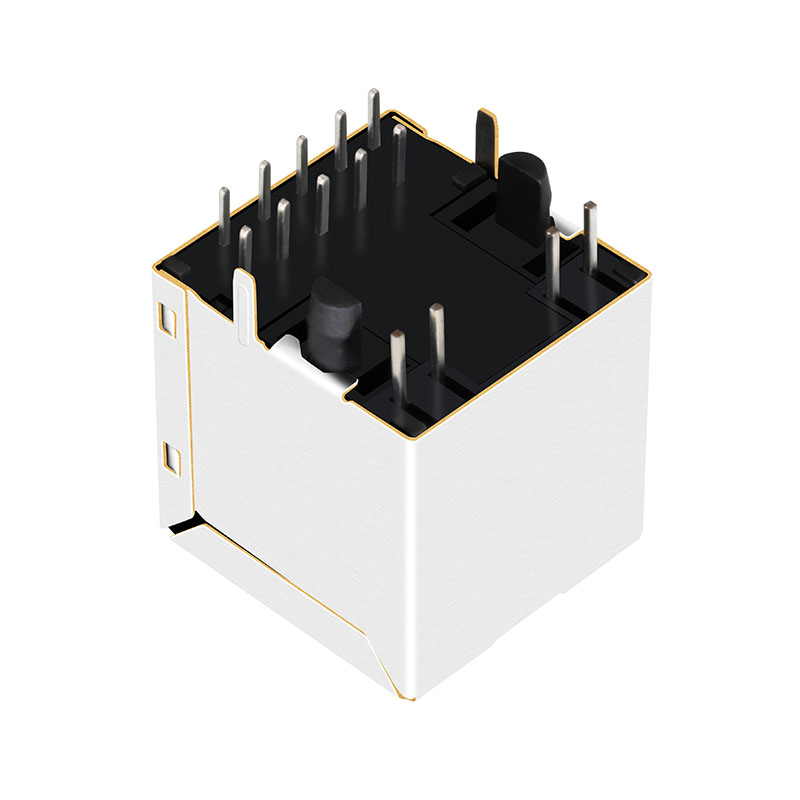

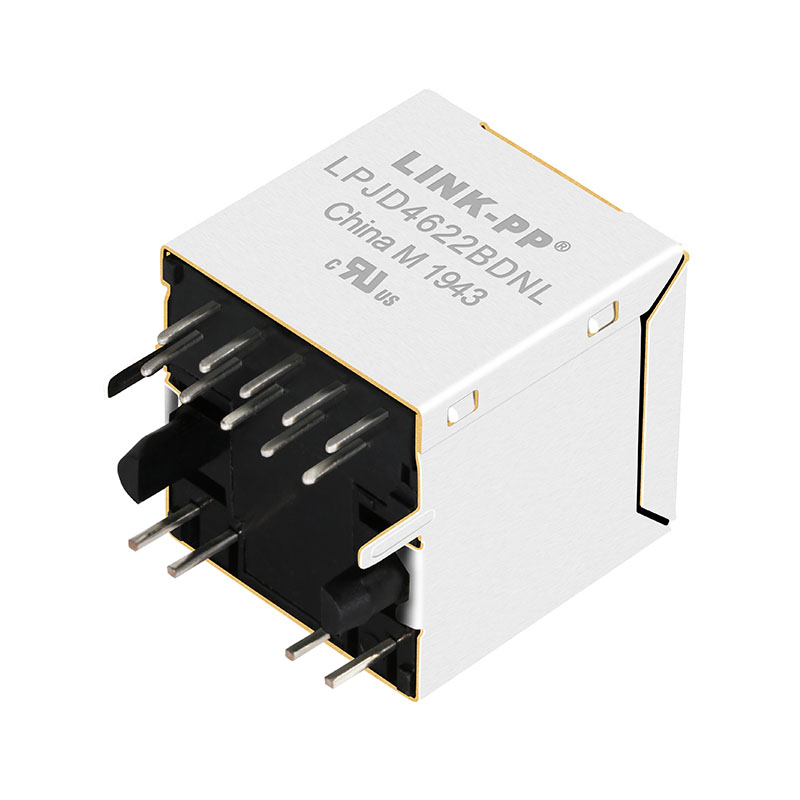

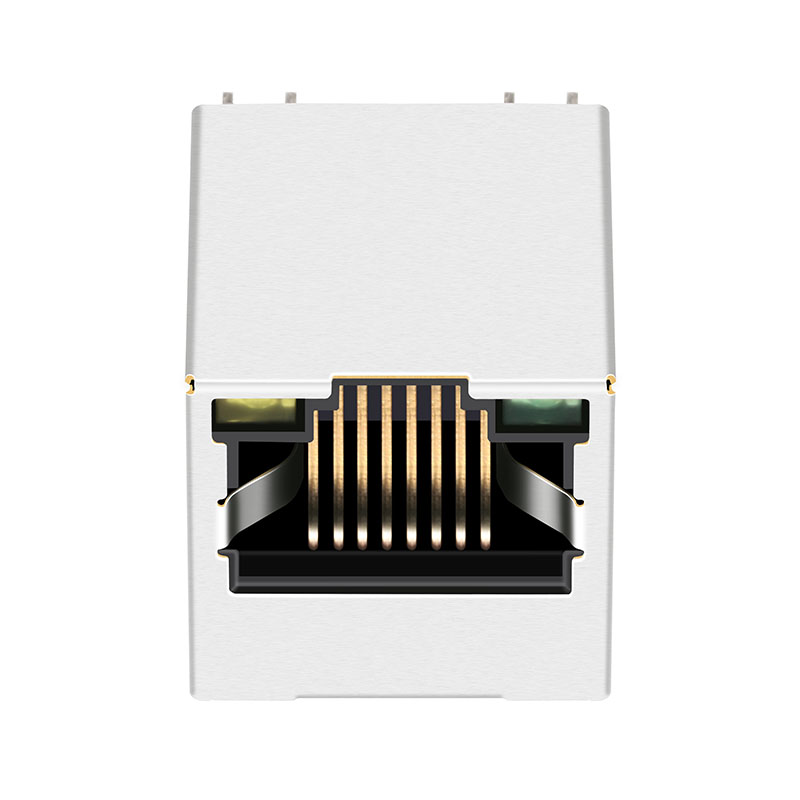

1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector

Product Description

1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
RJ45 Connector Display
Products Description
Item RJ45 Female Connector
Part Number LPJD4622BDNL
Alternative Part Number 1840472-1 7499110120A JXD2-0015NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

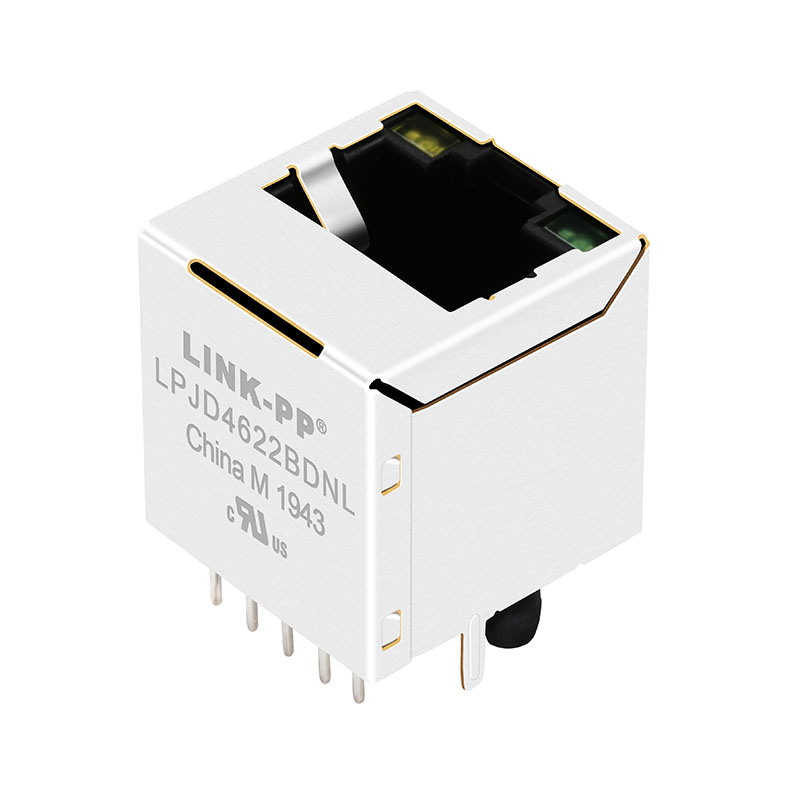

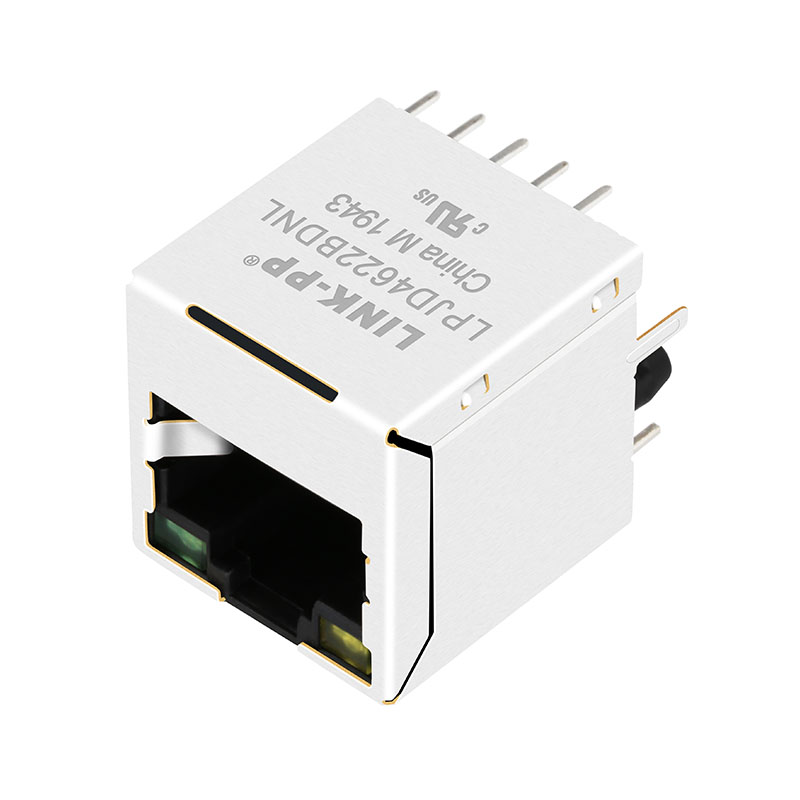

Connector Detail 1 Connector Detail 2
Production Process 1 Production Process 2 Production Process 3 Production Process 4
Product Ranges Available Below
Product Categorization
Product View A Product View B Product View C Product View D Product View E Product View F
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Factory Facility Testing Laboratory
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees should be covered.
3. What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15-30 days.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiries and specifications to us so we can discuss the details of your project.
6. What is your advantage?
We possess over 19 years of professional production experience and have maintained partnerships with leading global technology brands for many years.
