Product Description

RJ45 Female Connector
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Female Connector With Led Lights
Products Description
Item RJ45 Female Connector
Bothhand Part Number LPJM0608BANL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 2.5g Base-T
Latch Up
Cores per Port 8
Orientation 180° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

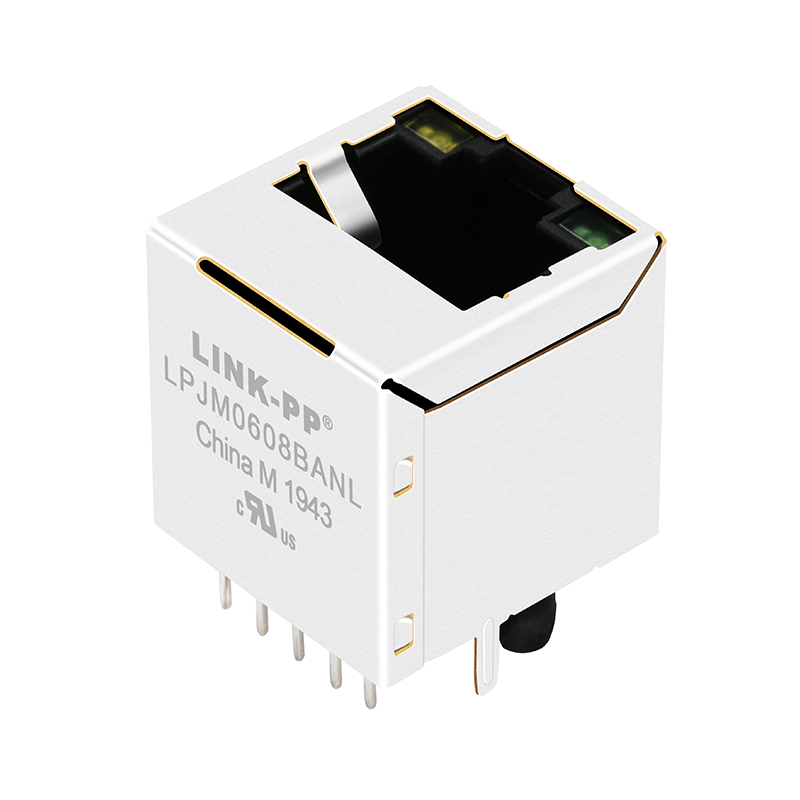

Product View 1
Product View 2
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
