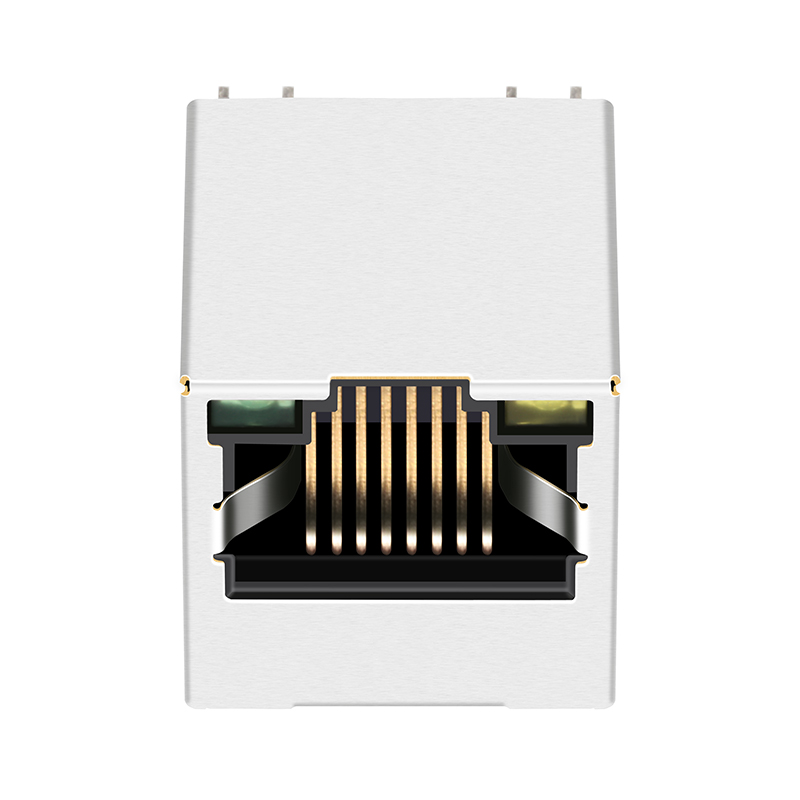

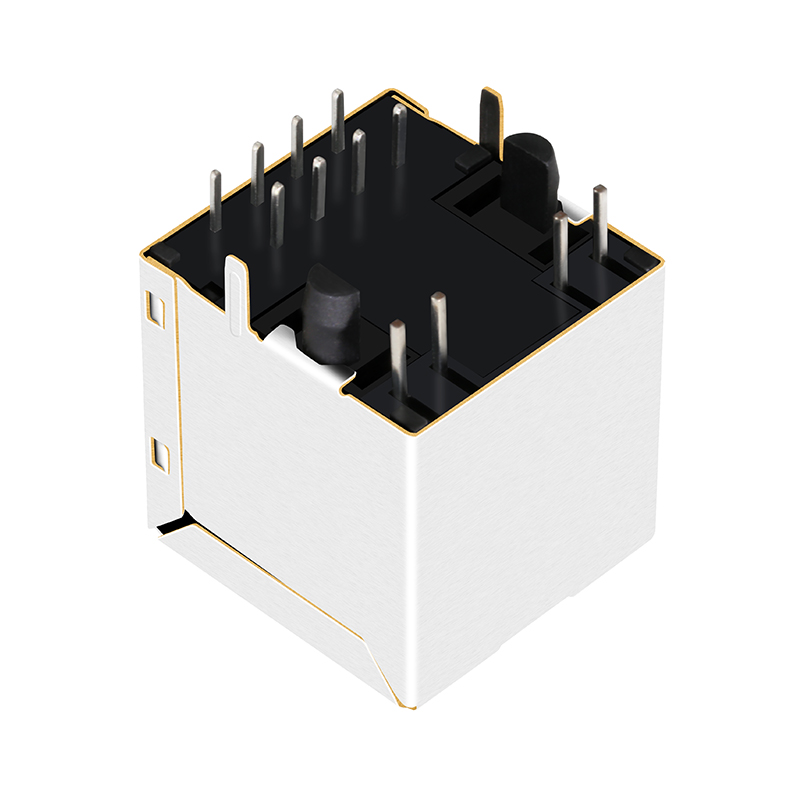

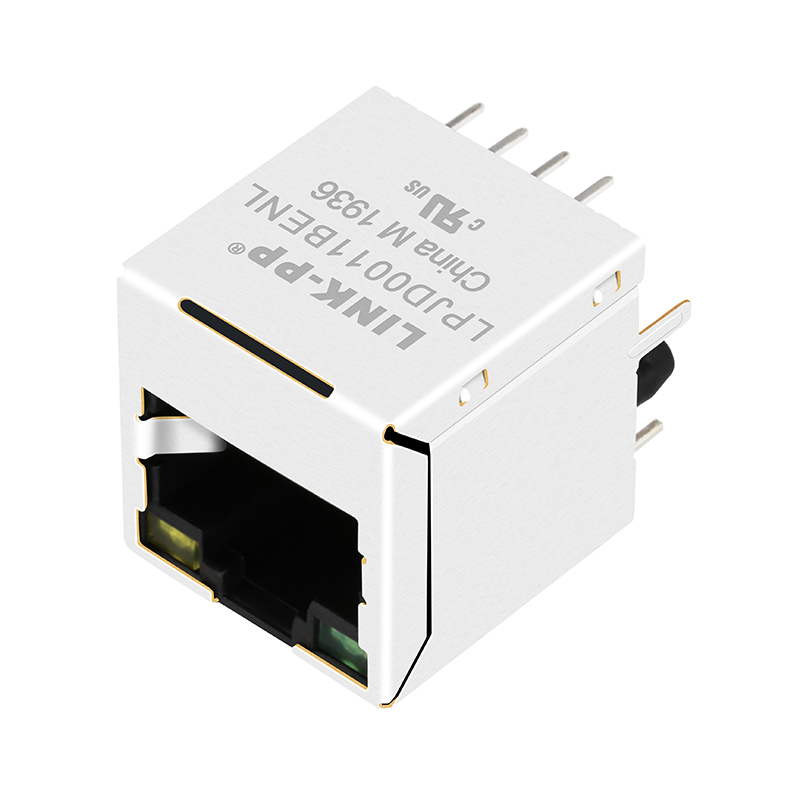

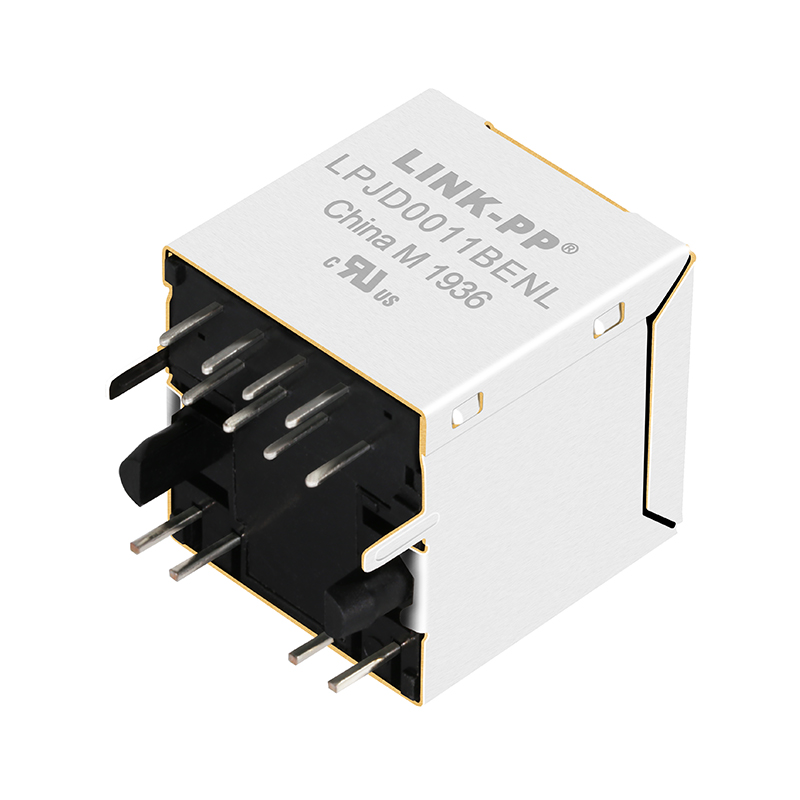

RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
1 / 5
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds

RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds

Send Inquiry

Product Description

Ethernet Magnetic RJ45 Connector Overview
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Technical Specifications and Dimensions
Click Below Products Link To Get More
Product Categories Grid
Connector Detailed View 1
Connector Detailed View 2
Connector Detailed View 3
Testing Process 1
Testing Process 2
Manufacturing Area 1
Manufacturing Area 2
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components of OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Office and Facility
Production Department
Quality Inspection Center
Frequently Asked Questions
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
