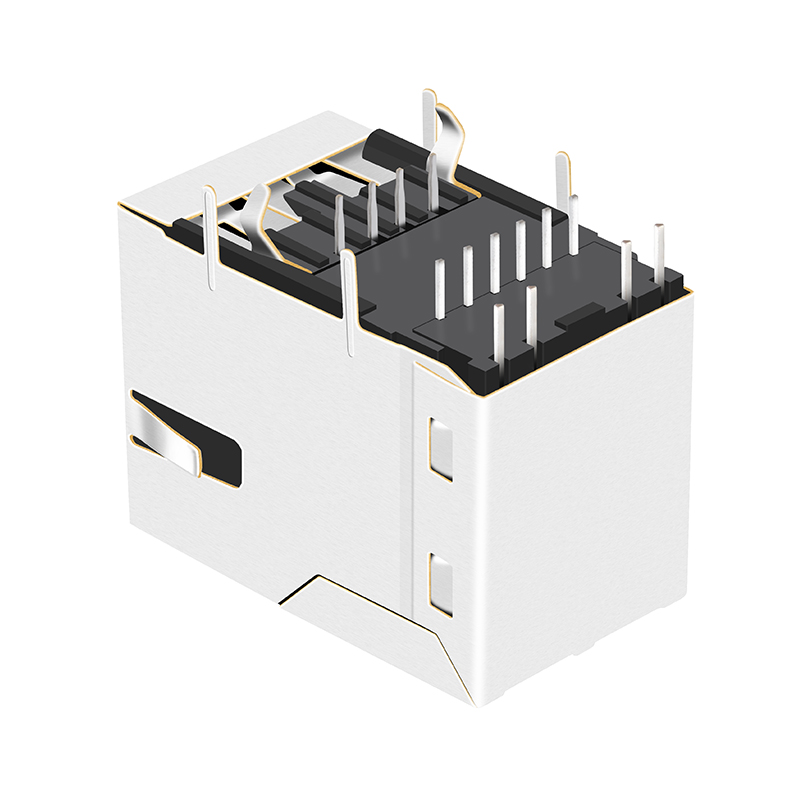

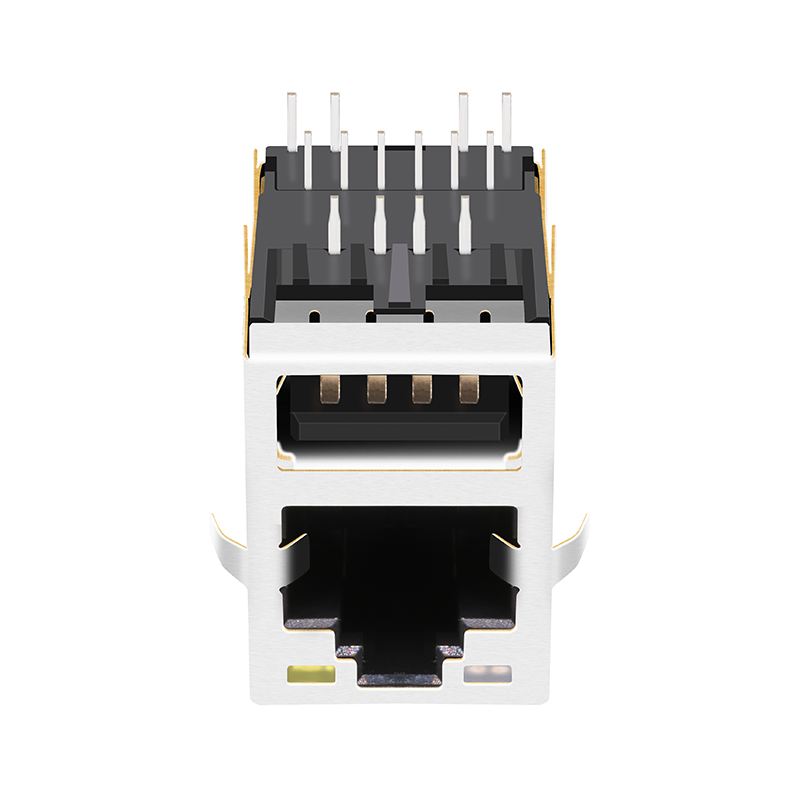

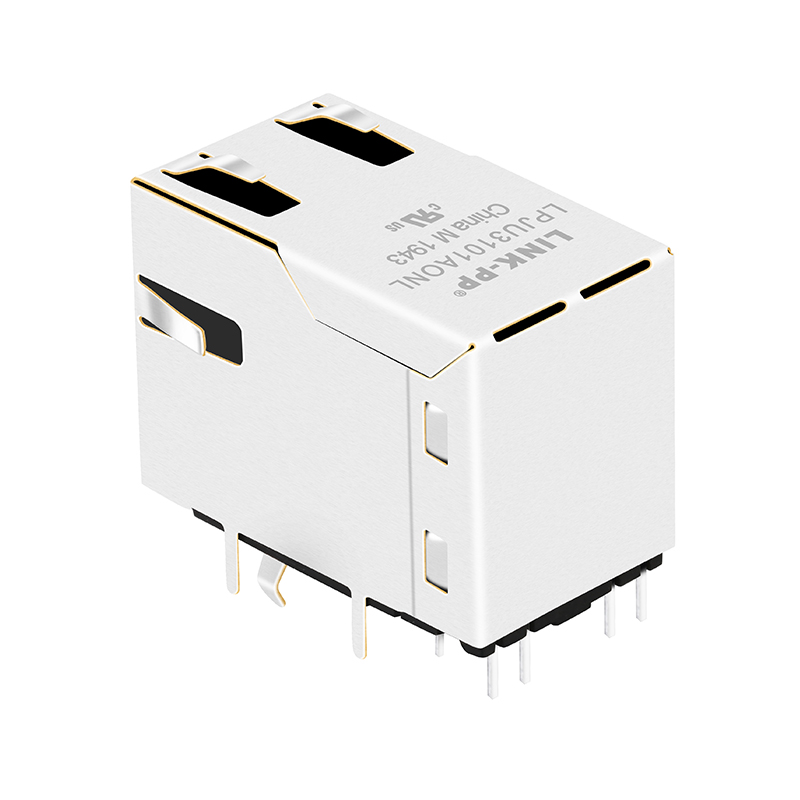

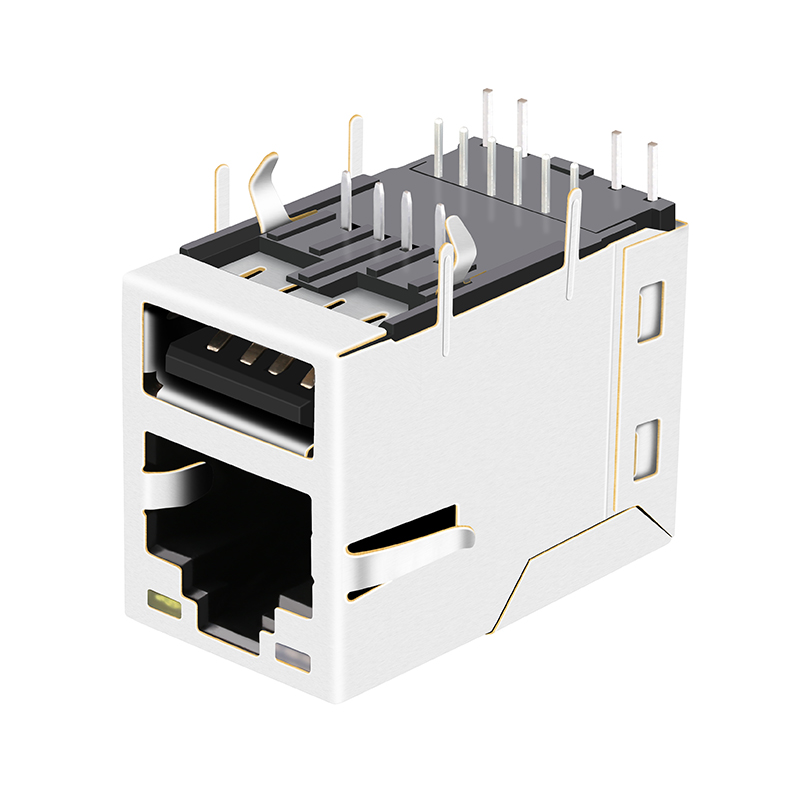

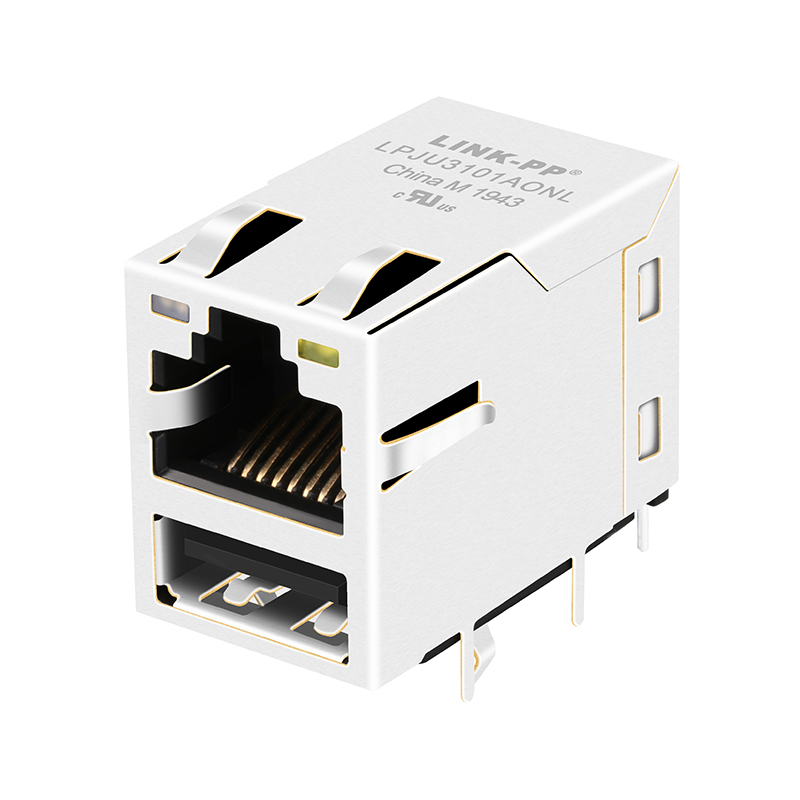

8211-1X1T-36-F 10/100 Base-T RJ45 Female Connector With Single USB

Product Description

RJ45 Connectors Overview
LAN Transformer Overview
Send Inquiry To Get Latest Price List
Product Diagram
Product Drawing
8211-1X1T-36-F 10/100 Base-T RJ45 Connector with Single USB

Products Description

Item RJ45 Female Connector
Part Number LPJU3101AONL
Cross Part Number 43F-1201DYD2NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port With 1 USB
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange & Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Connector Detail 1
Connector Detail 2
Connector Detail 3
Connector Detail 4
Connector Detail 5
Connector Detail 6
Connector Detail 7
Connector Detail 8
Connector Detail 9
Internal Schematic

Why Choose Us

Quality Certificate
Advanced Equipment
Testing Process
Reliability Test

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Our factory is equipped with advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we currently employ approximately 2,000 staff members. With an abundant monthly production capacity of 3,000K units, we are capable of delivering goods within short lead times. Moreover, we provide professional, comprehensive solutions for magnetic components alongside robust technical support.

Main Products: 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL, and VDSL interface line transformers and splitters. Our products are widely integrated into networking and communication equipment such as HUBS, PC cards, switches, routers, PC mainboards, SDH, PDH, IP phones, and xDSL modems. We have exported our components to over 30 countries and regions worldwide, including Germany, France, the UK, the USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing optimal solutions customized to unique customer requirements.

Manufacturing Plant 1
Manufacturing Plant 2
Production Line 1
Production Line 2

FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, though the shipping fee must be covered.

3. What is your delivery time?

Stock items are ready to ship immediately, while mass production typical lead time is 15-30 days.

4. What after-service can you offer?

We offer a one-year warranty period and technical support online 24 hours.

5. Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so we can proceed with a detailed discussion regarding your custom requirements.

6. What is your advantage?

We offer over 19 years of dedicated production experience, and have been a trusted component partner for numerous global companies for many years.
