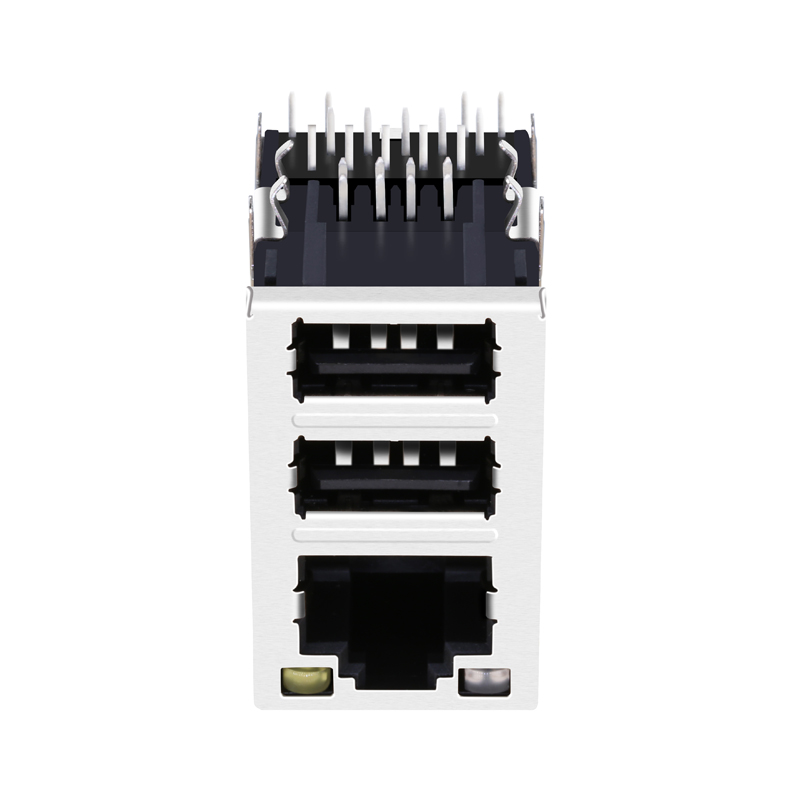

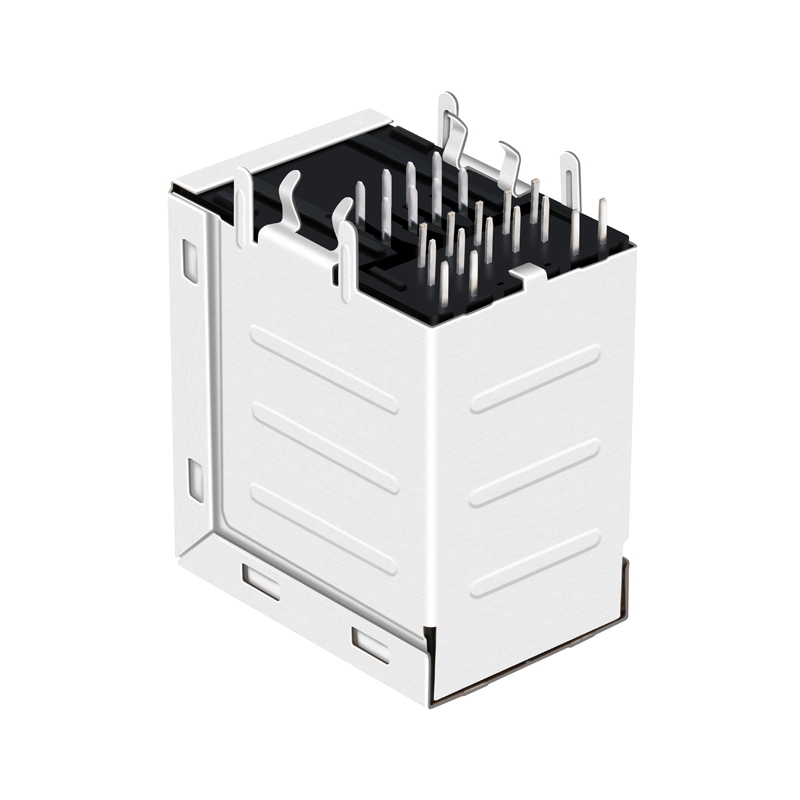

08C2-1X1T-03 08C2-1X1T-03-F 100 Base-T Single Port RJ45 Female Jack WITH Dual USB

Product Description

Product Image
Product Specification

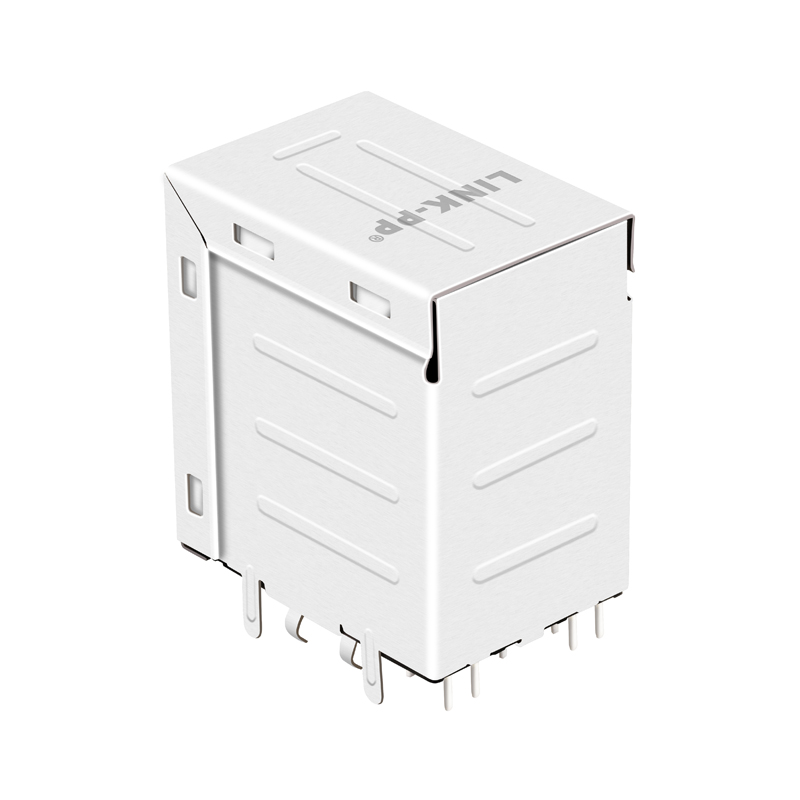

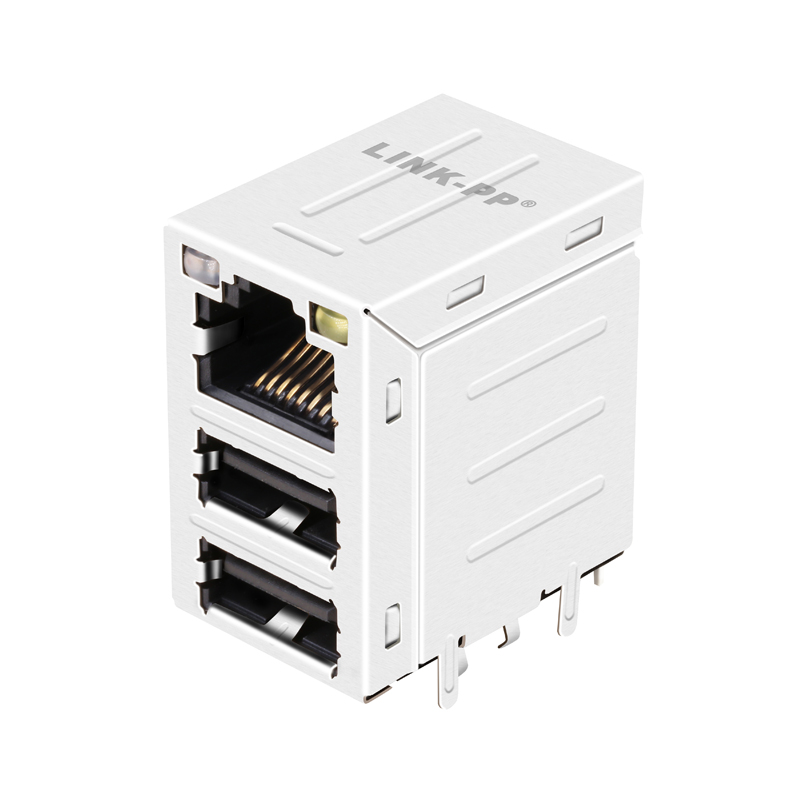

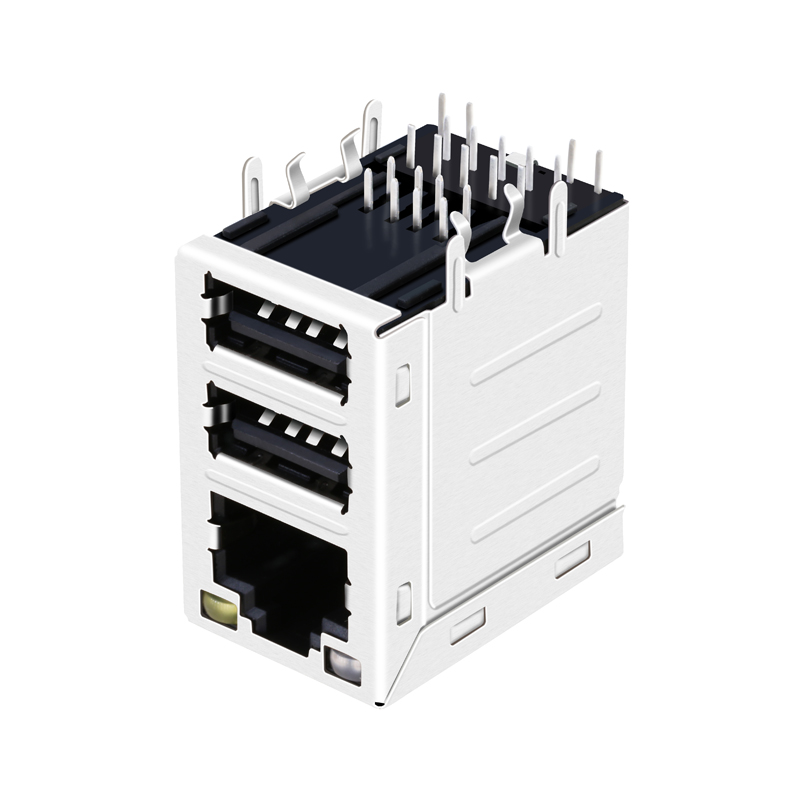

08C2-1X1T-03 08C2-1X1T-03-F 100 Base-T Single Port RJ45 Female Jack WITH Dual USB
Products Description
Item RJ45 Female Connector
Link-PP Part Number LPJU4101AONL
Bothhand Part Number JY0-0016NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Variations
LAN Transformer Overview

Send Inquiry To Get Latest Price List

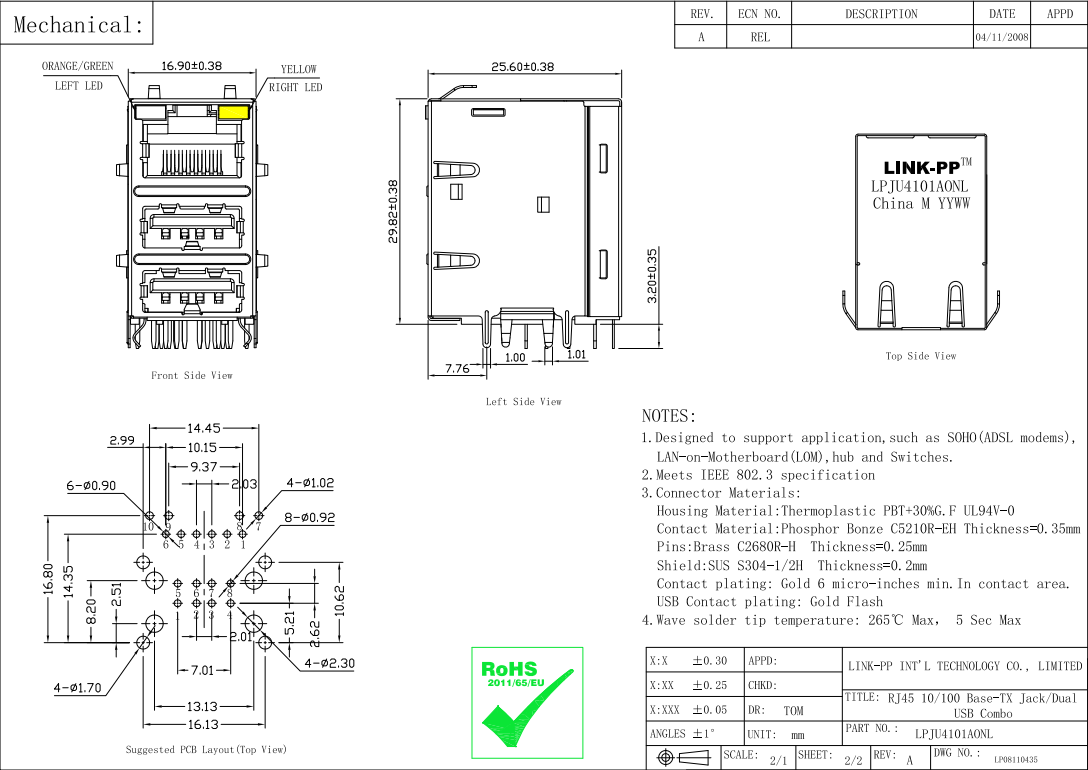

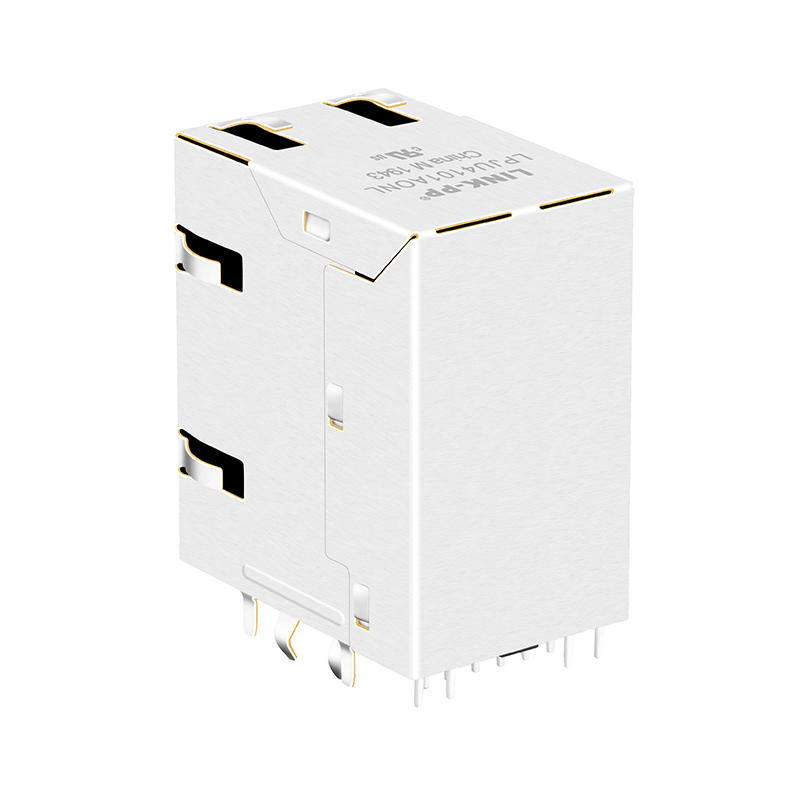

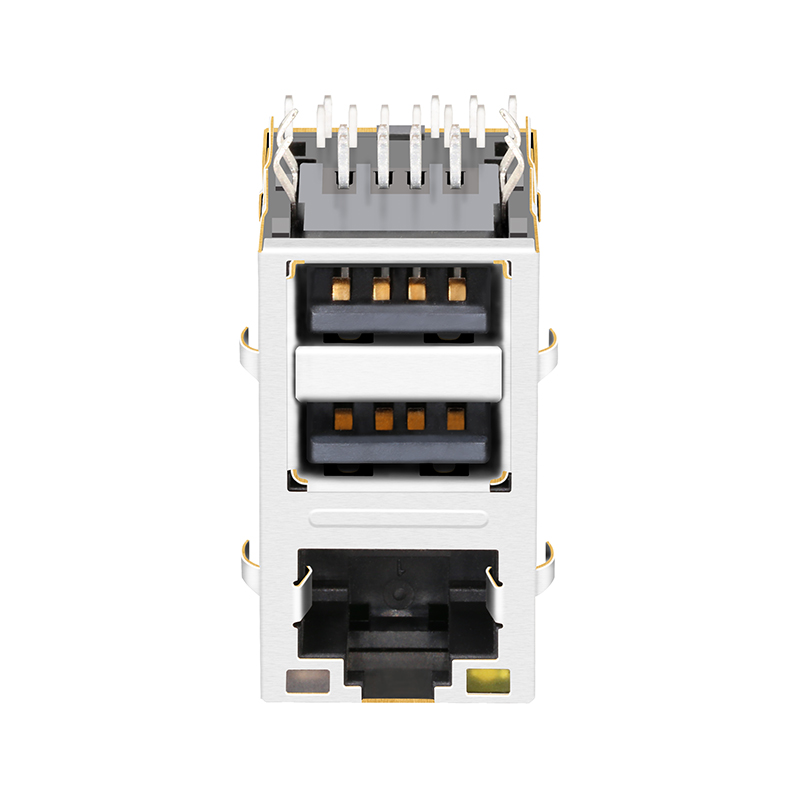

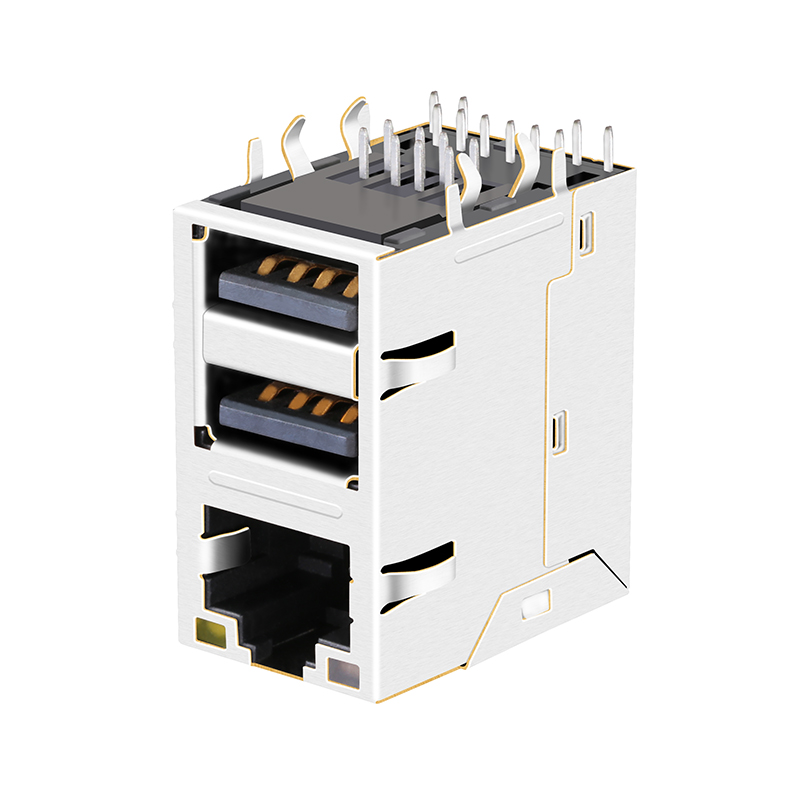

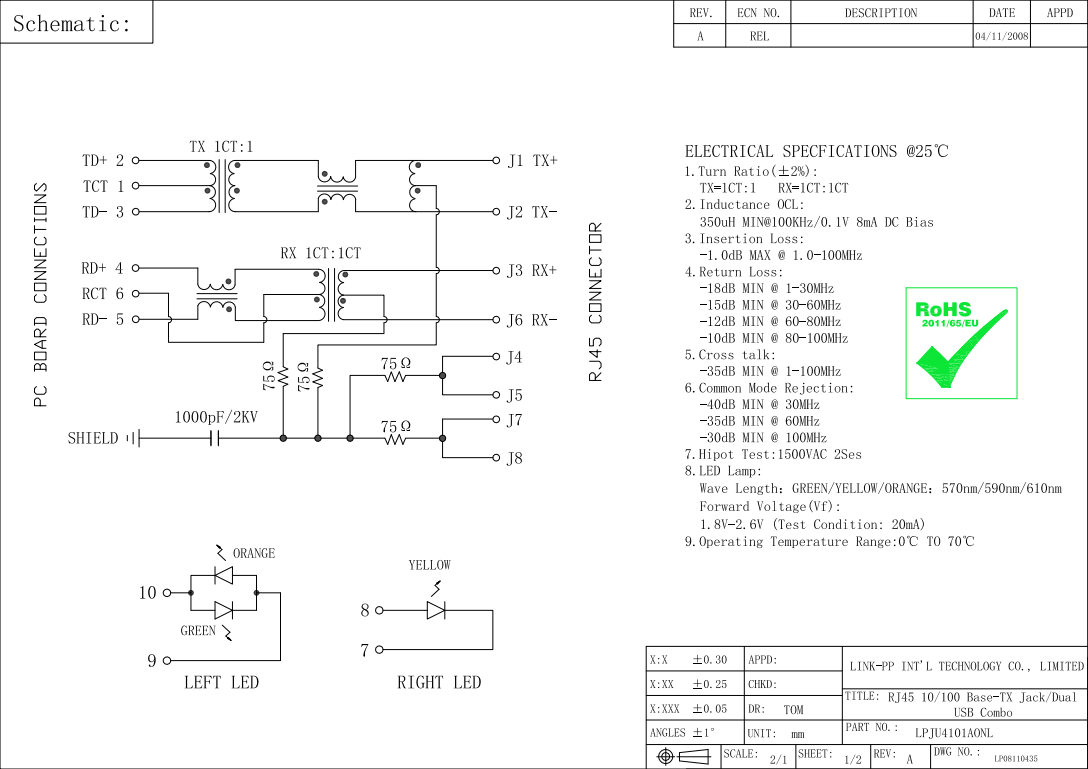

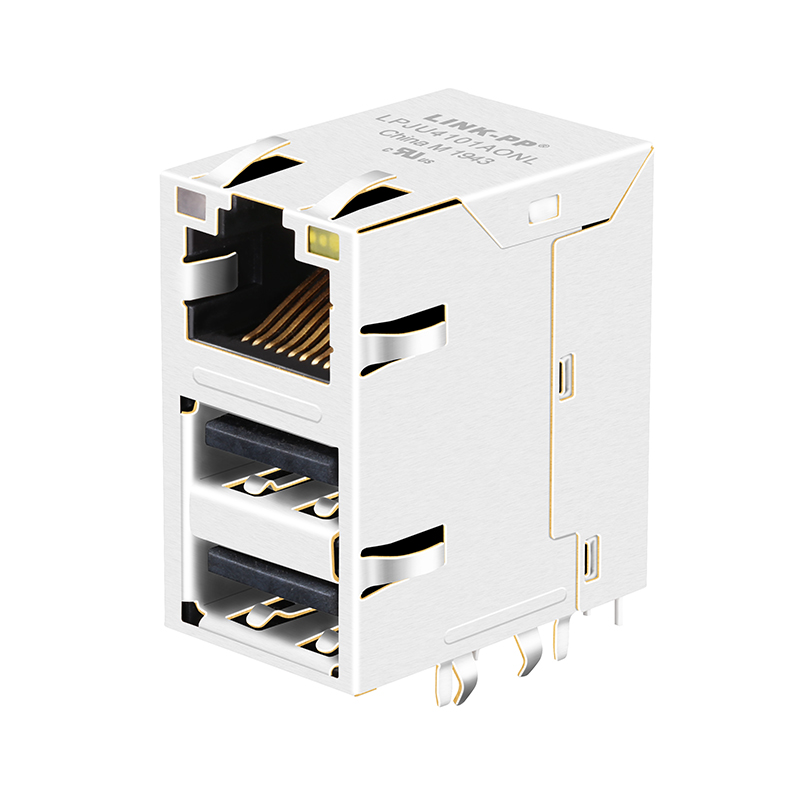

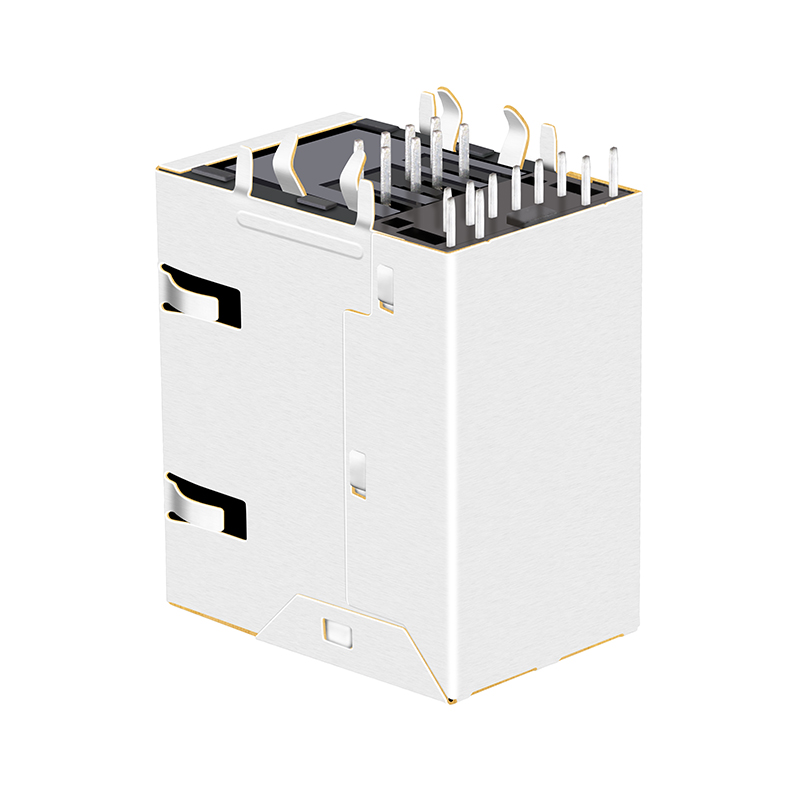

Product Display 1 Product Display 2 Product Display 3 Product Display 4 Product Display 5 Product Display 6 Product Display 7 Product Display 8 Product Display 9
Manufacturing Detail
Why Choose Us
Quality Standard Technical Support Testing Process Global Delivery
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. The enterprise owns advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short timeframe. Moreover, we can provide professional complete solutions for magnetic components alongside strong technical support.

Our main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, covering major markets in Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to establish a long-term partnership with us.
Factory Environment 1 Factory Environment 2 Manufacturing Line 1 Manufacturing Line 2
FAQ

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, with the shipping cost covered by the buyer.

What is your delivery time?

Ready-to-ship items are dispatched quickly from stock, while mass production typically takes 15-30 days.

What after-sales service do you offer?

We provide a one-year warranty period and offer 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, we support customization. Please send us your requirements to discuss the details.

What is your advantage?

We have over 19 years of production experience and have partnered with leading international technology enterprises for many years.
