Tab Down Rj45 Magnetic Power Socket 8 Pin PCB Modular Jack Cat 6 Rj45 Female Connector With USB

Product Description

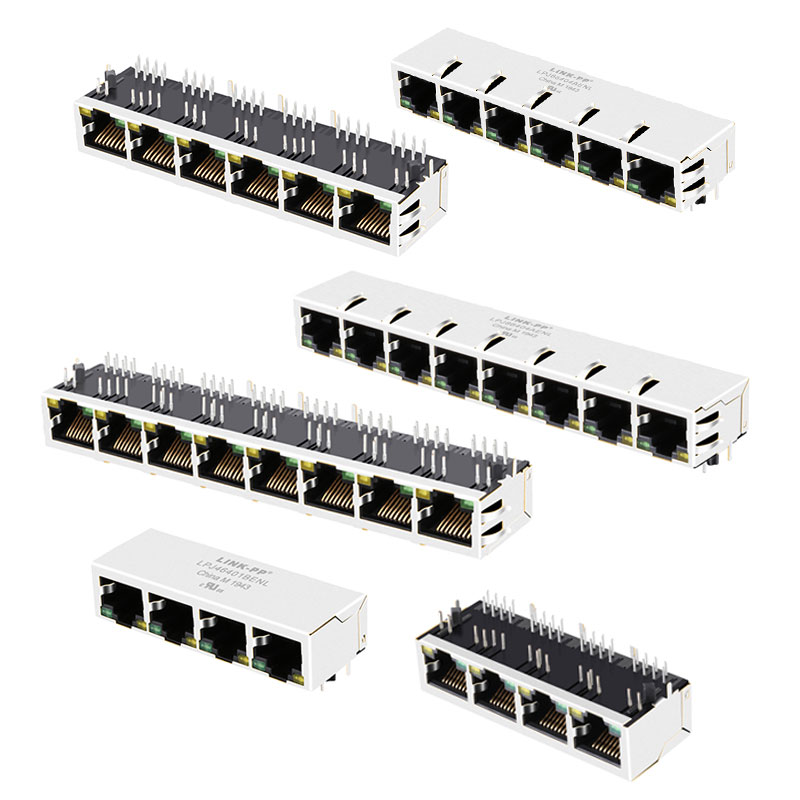

Product Image 1

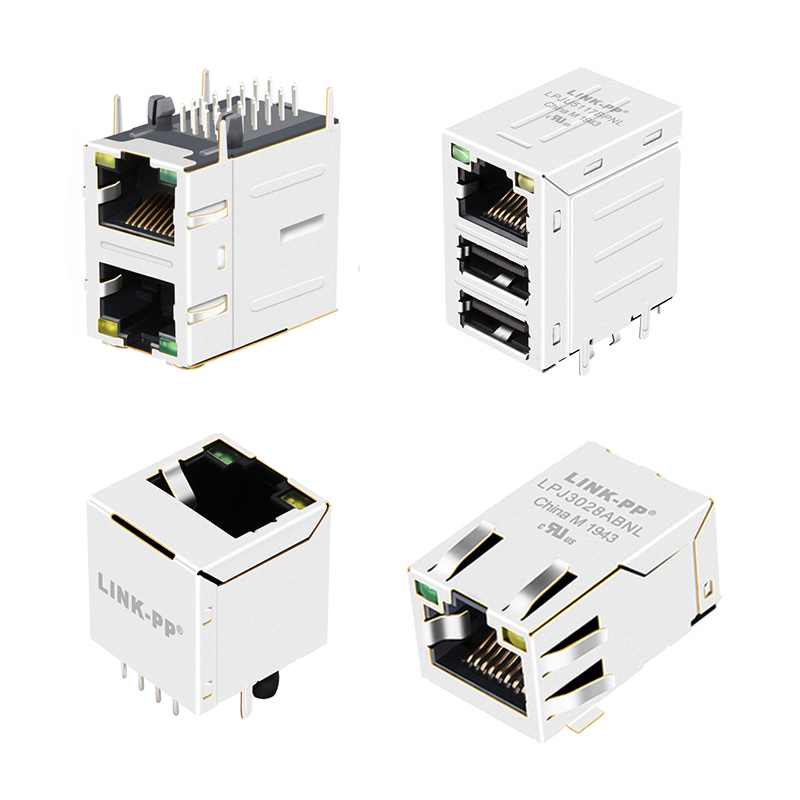

Product Image 2
Tab Down Rj45 Magnetic Power Socket 8 Pin PCB Modular Jack Cat 6 Rj45 Female Connector With USB
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Poe/Non Poe)
Number of Ports Single Port, 1xN Port, 2xN Port
Speed 100/1000/2.5G/5G/10G Base-T
Latch Down/Up
Cores per Port 4/6/8/10/12
Orientation 90° / 180°
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without / With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Diagram
Product Categories Overview
Product Categories Grid

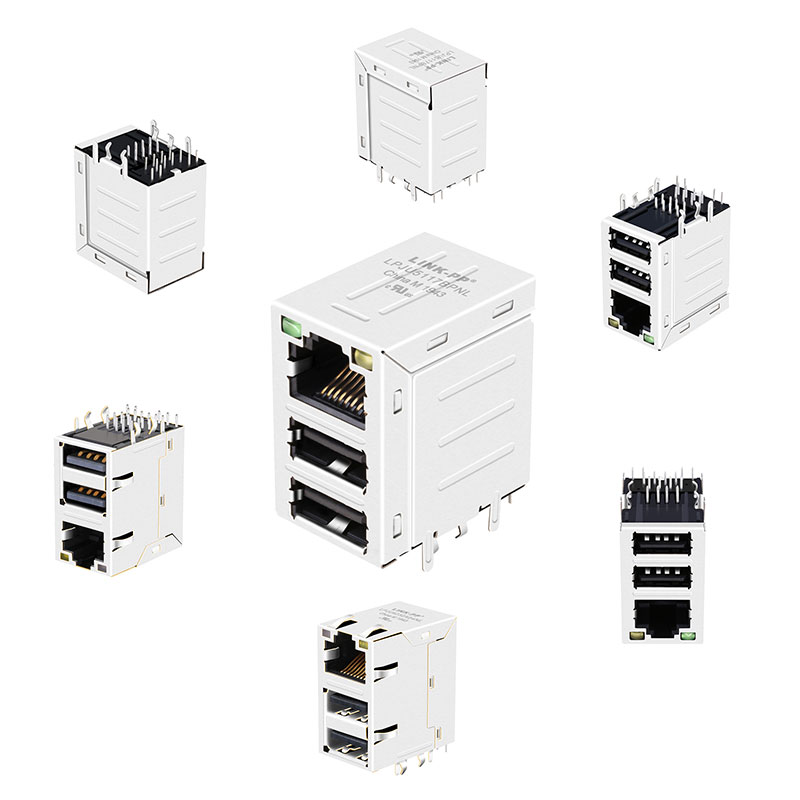

Detail Image 1

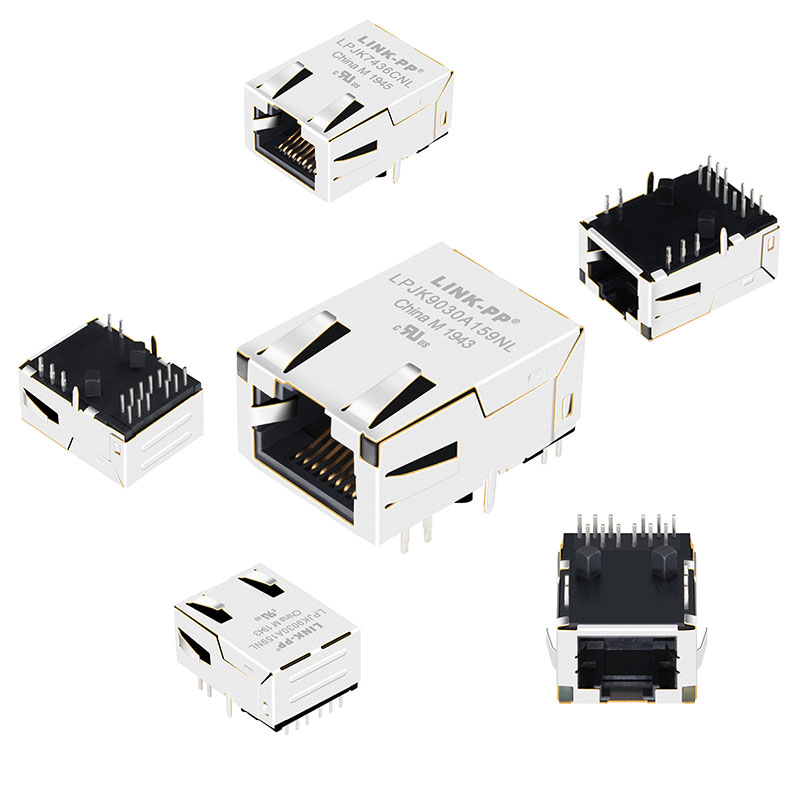

Detail Image 2
Why Choose Us
Quality Certificate
Manufacturing Capability
Testing Equipment
R&D Capacity
Global Supply Chain
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. Our facilities own advanced manufacturing equipment and test instruments imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short lead time. Moreover, we provide professional complete solutions for magnetic components along with strong technical support. Our main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported products to more than 30 countries and regions globally, serving clients across Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering team is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will build long-term partnerships.
Factory Workshop 1
Factory Workshop 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be paid by your side.
What is your delivery time?
Ready-to-ship products are dispatched immediately from stock. For mass production, the delivery time is generally between 15-30 days.
What after-sales service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your details and requirements to us so that we can have a detailed discussion.
What is your advantage?
We bring over 19 years of professional manufacturing experience and have partnered with leading global technology brands for many years.
