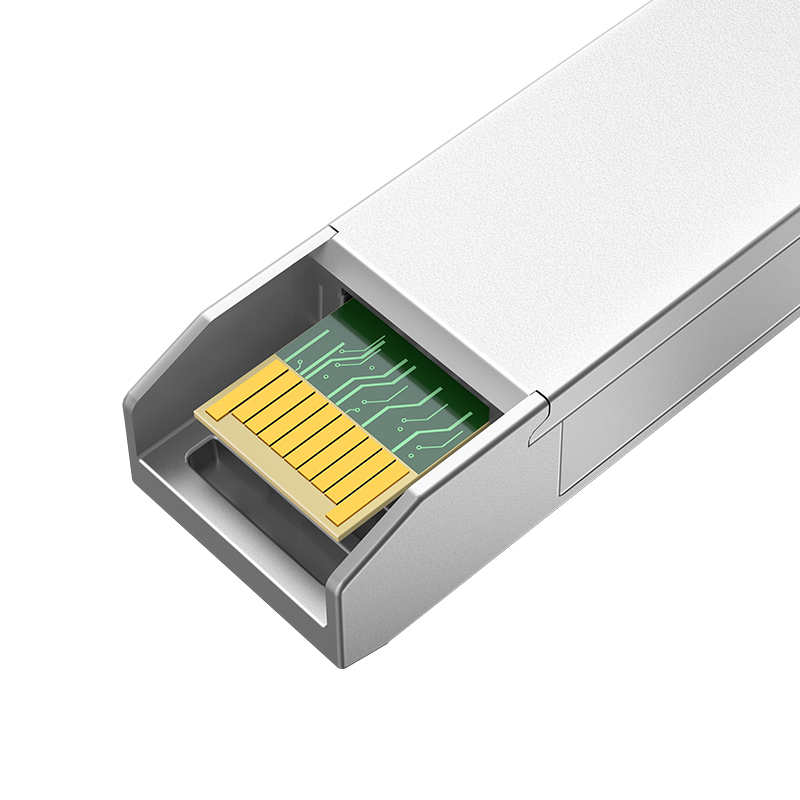

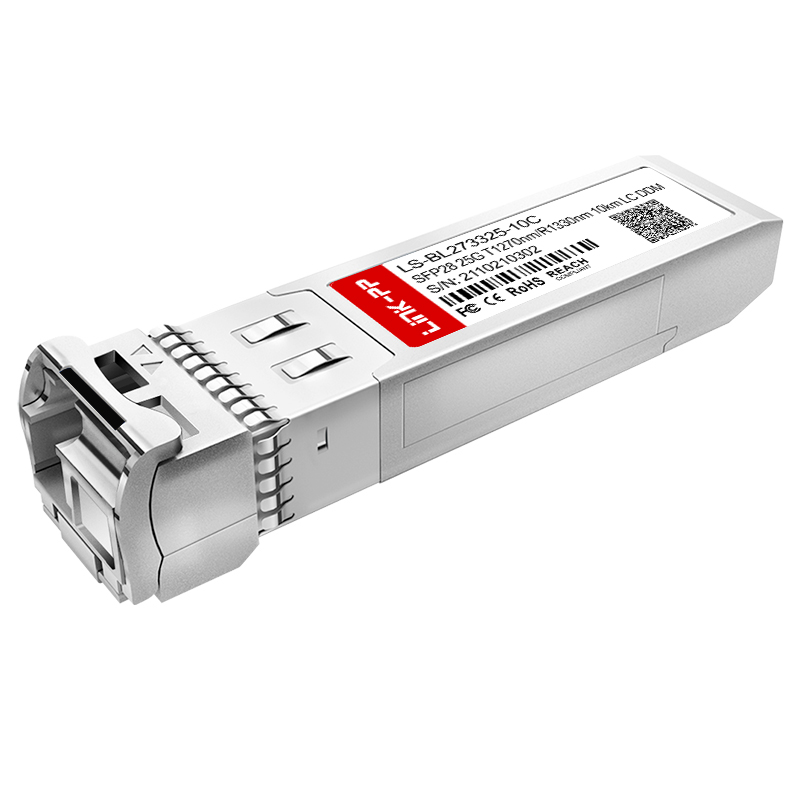

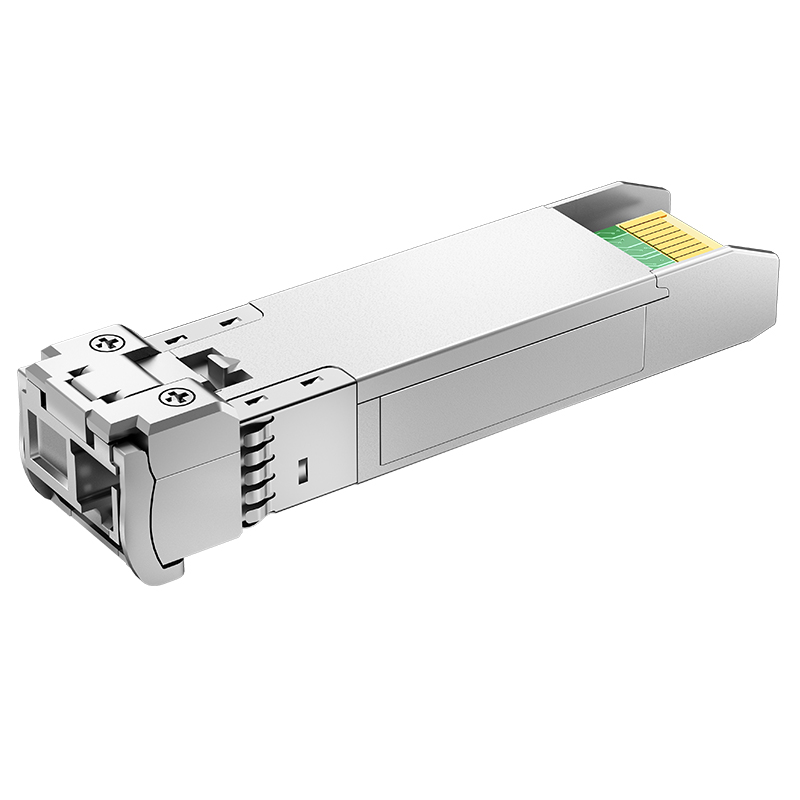

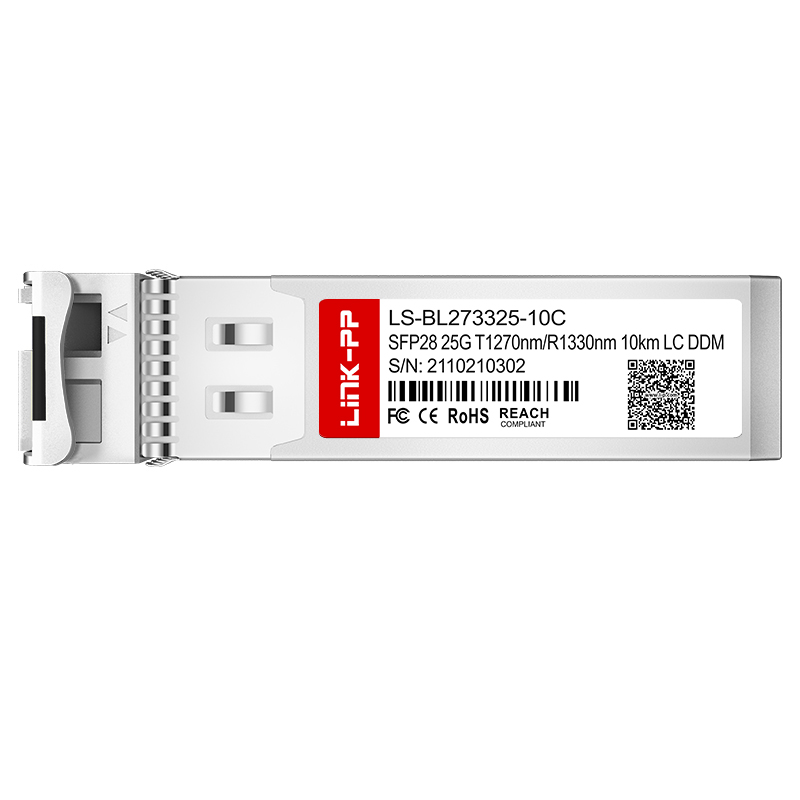

| Item | 25G SFP28 Transceiver |
| Part No. | LS-BL273325-10C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1270nm-TX/1330nm-RX |
| Max Cable Distance | 10km |
| Media | SMF |
| Connector | Simplex LC |
| Optical Component | DFB/PIN |
| TX Power | -2~4dBm |
| Receiver Sensitivity | <-13dBm |
| Receiver Overload | 2dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
