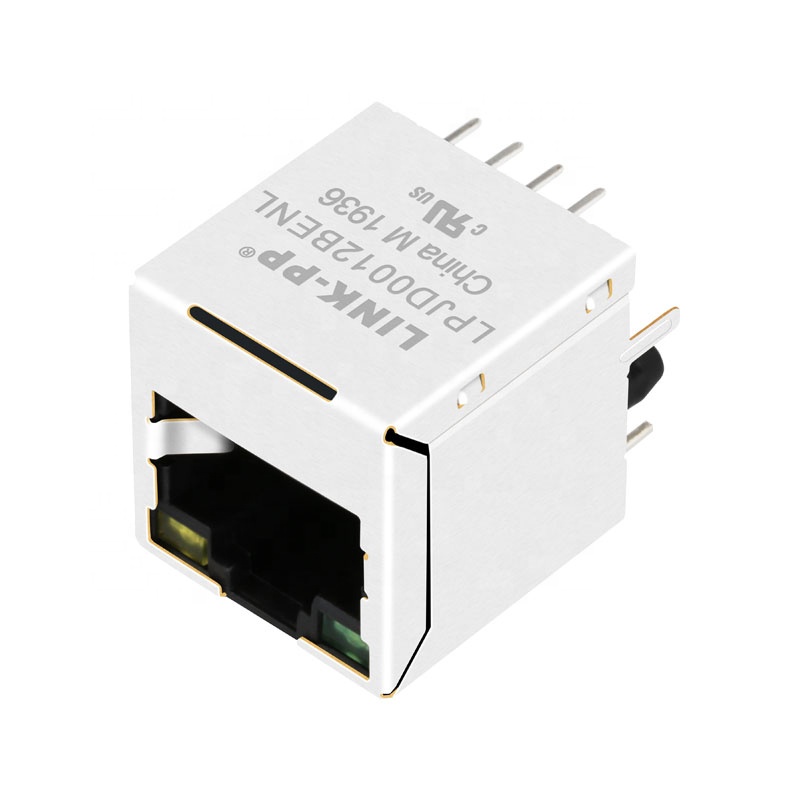

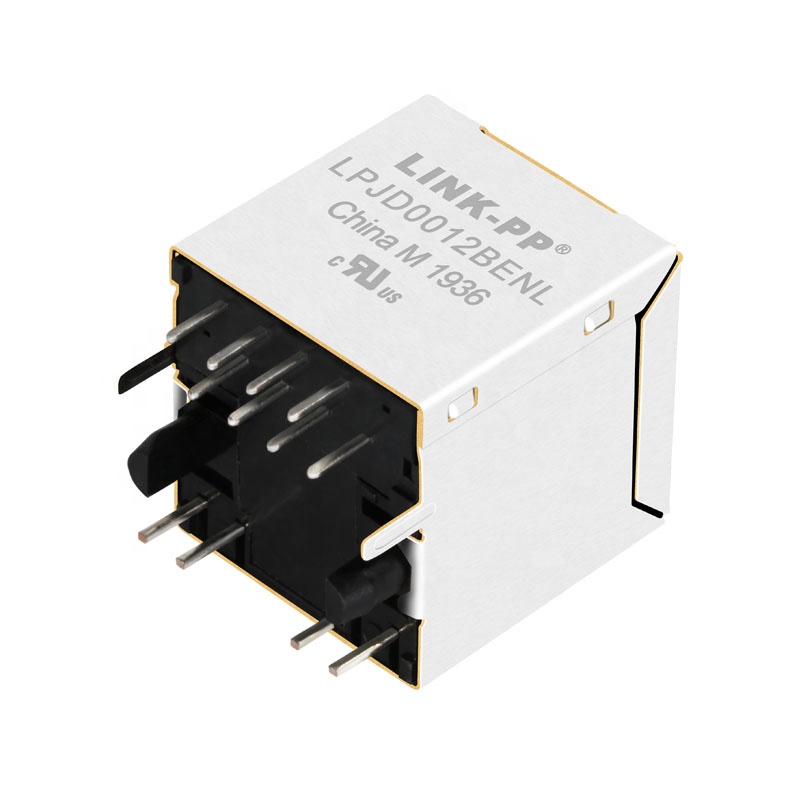

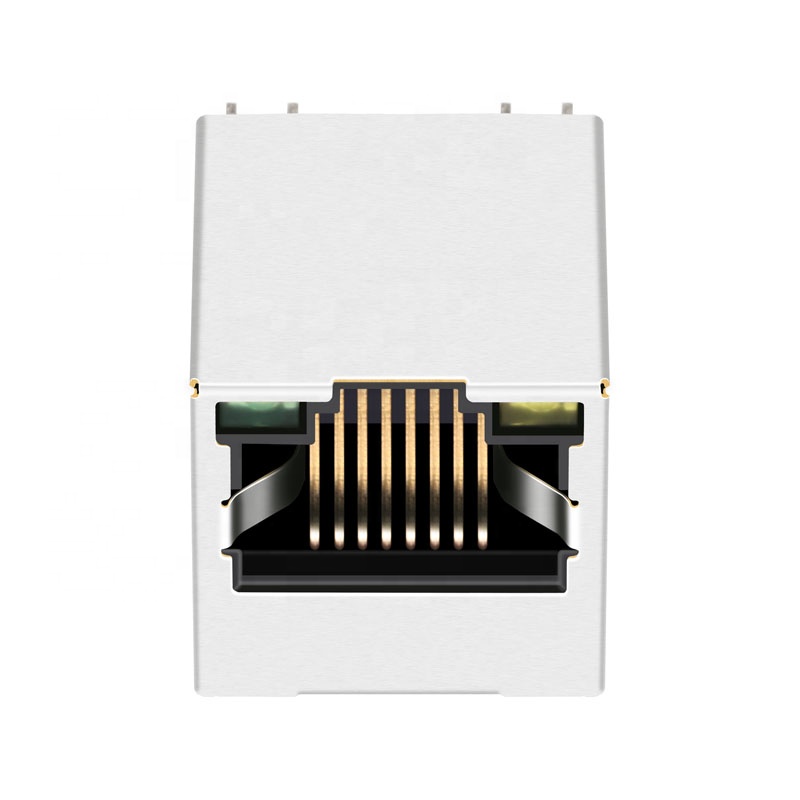

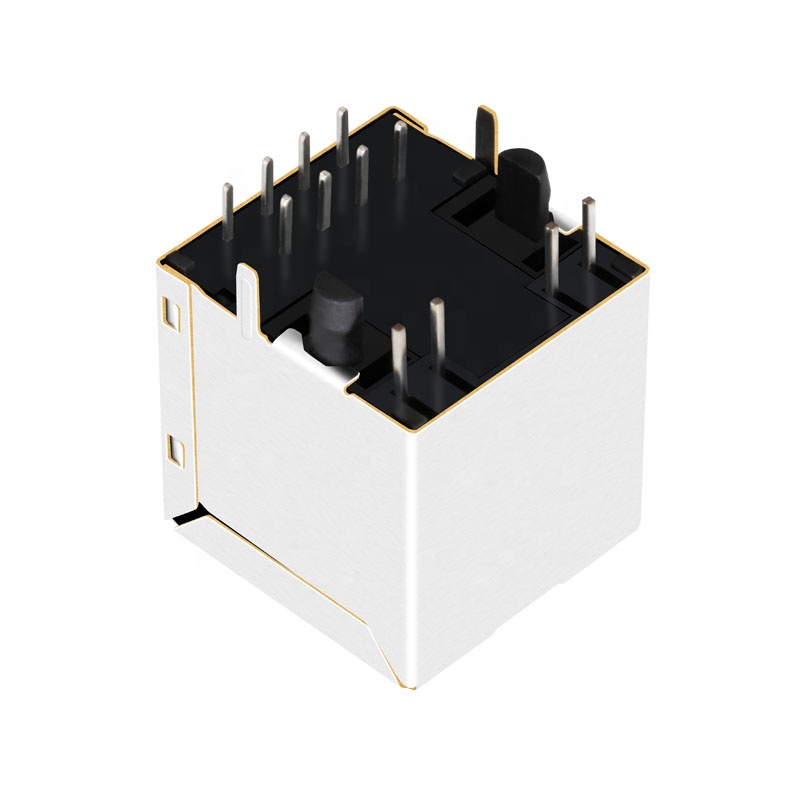

51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
1 / 5
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector

51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector

Send Inquiry

Product Description

51F-1203GYD2NL Single Port 10/100 Base-T 8 Pin Vertical RJ45 Connector
Single Port RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJD0012BENL
Compatible With 51F-1203GYD2NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Overview
Connector Options
Dimensions Drawing
Circuit Diagram
Side View Schematic
PCB Layout Recommendation
Production Standards
Quality Certification
Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to providing top-quality Ethernet RJ45 connectors and LAN transformers worldwide.
Manufacturing Workshop
Testing Equipment
Quality Inspection Center
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the customer is responsible for the shipping fee.
What is your delivery time?
We are ready to ship immediately for stock items, and have a 15-30 day lead time for mass production.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can proceed with a detailed discussion regarding your specific design needs.
What is your advantage?
We bring over 19 years of manufacturing experience to the industry and have established long-term partnerships with leading global technology brands.
