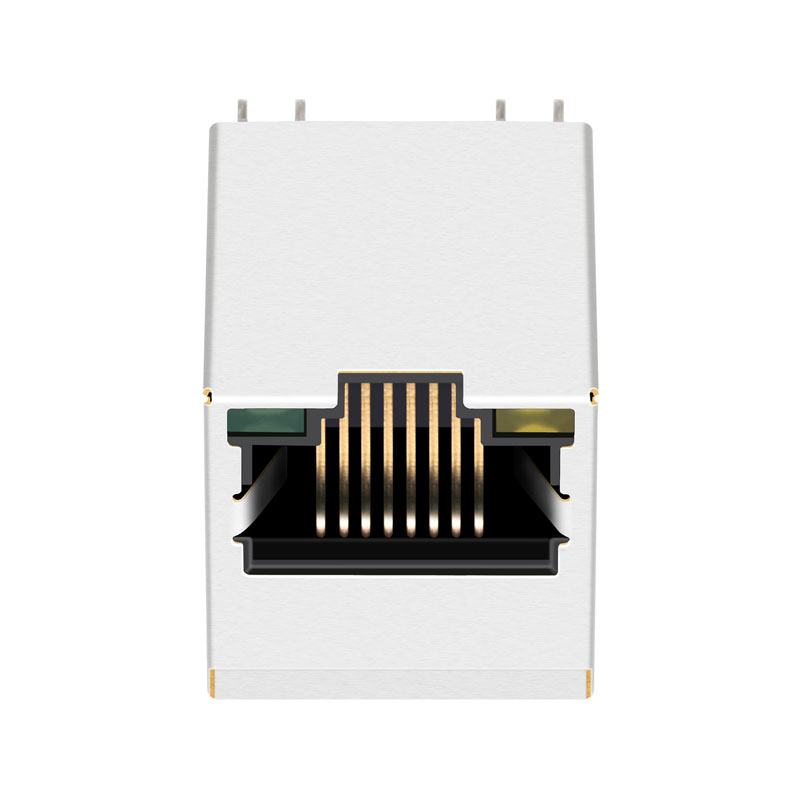

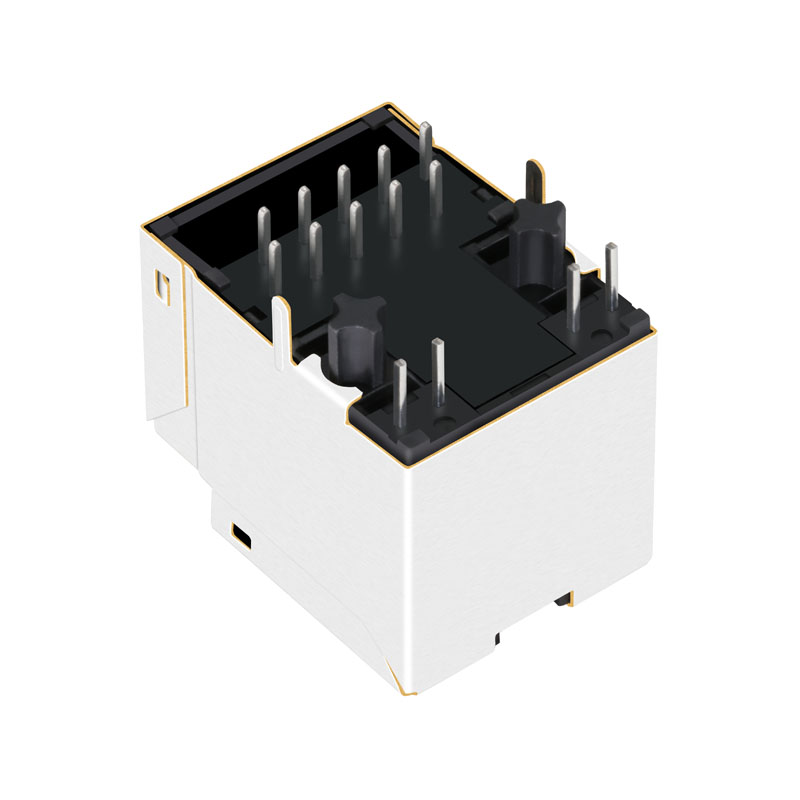

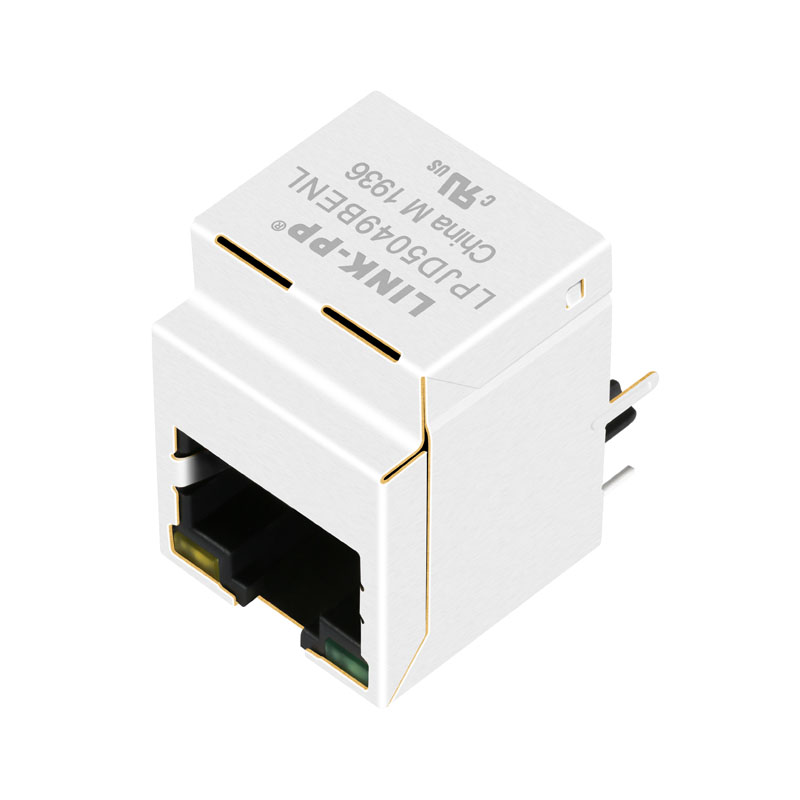

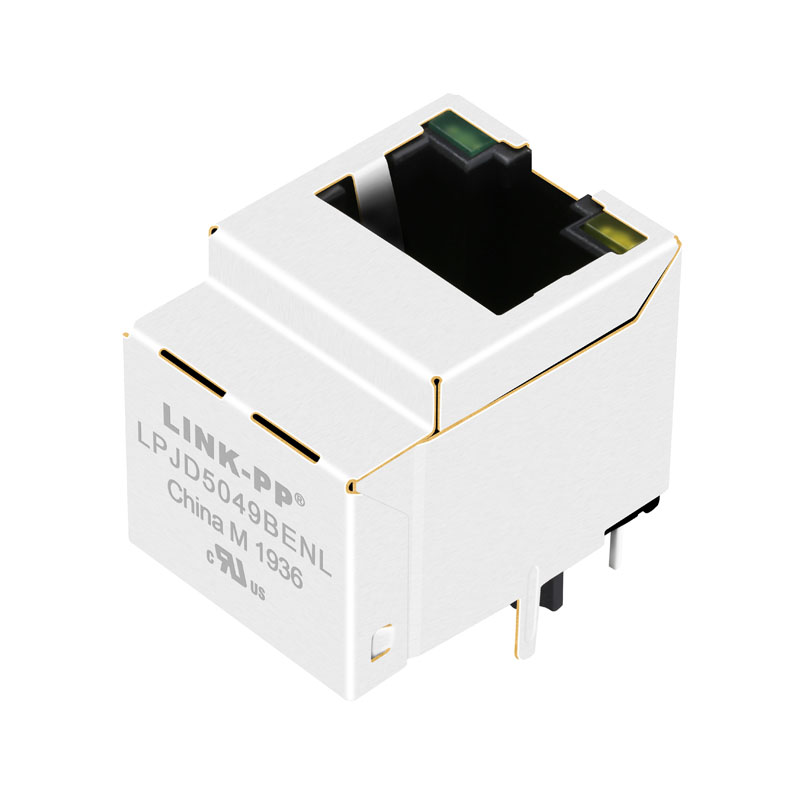

MIC66611-5171T-LF3 7499210123 Vertical Top Entry 10/100 Base-t Ethernet Poe+ Magnetic RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Status Active

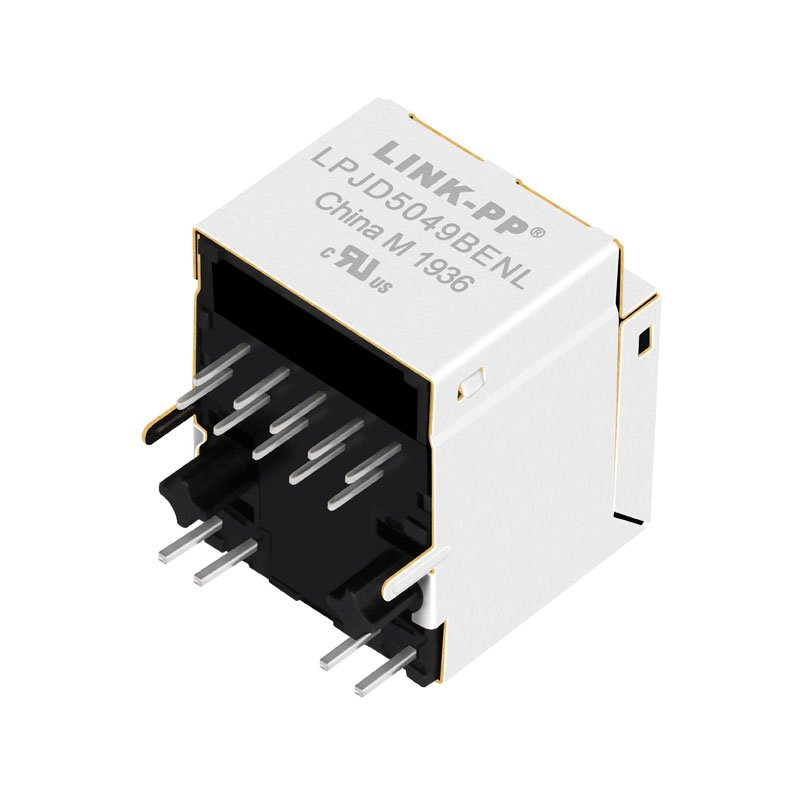

Part Number LPJD5049BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(PoE+)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram Details
Refer to the Product Selection Guide Below
Product Family Matrix
Connector Specifications 1
Connector Specifications 2
Connector Specifications 3
Mechanical Dimensions 1
Mechanical Dimensions 2
Circuit Schematic 1
Circuit Schematic 2
Company Profile
Established in 1997, this professional designer and manufacturer specializes in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we supply more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Production Workshop
Testing Equipment
Warehouse and Logistics
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is to be paid by the customer.
3. What is your delivery time?
We have ready-to-ship items in stock, and the lead time is 15-30 days for mass production orders.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please submit your inquiry so we can discuss the detailed requirements.
6. What is your advantage?
We have 19 years of manufacturing experience and have partnered with major industry leaders (such as Intel and Jabil) for many years.
