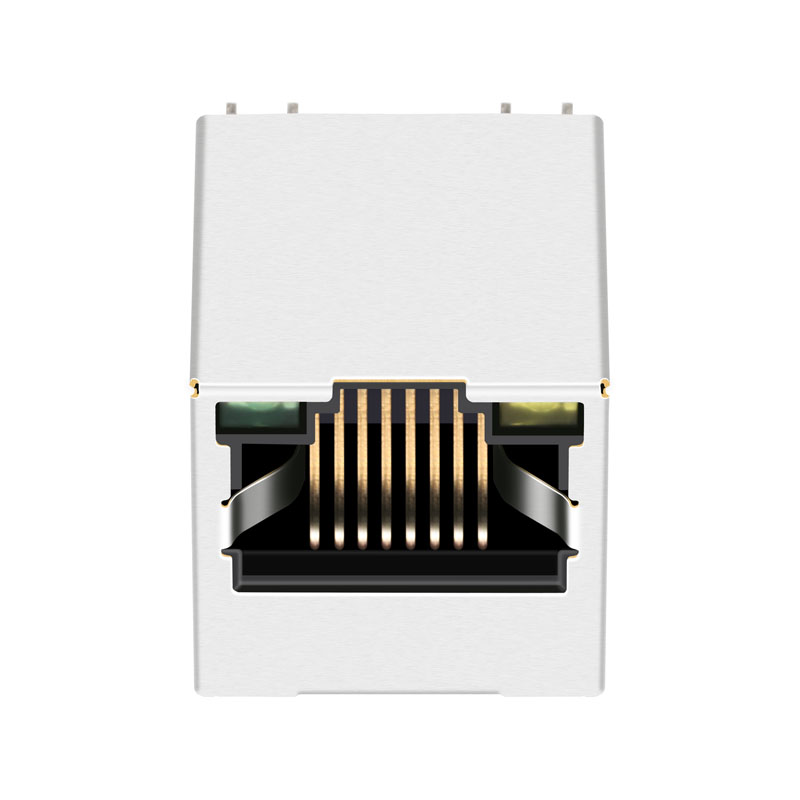

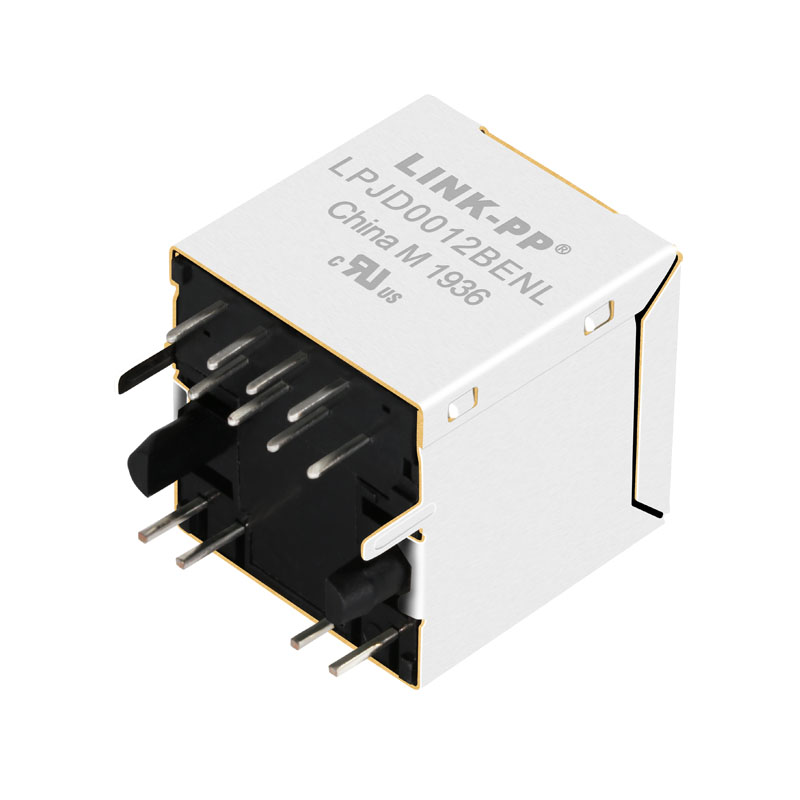

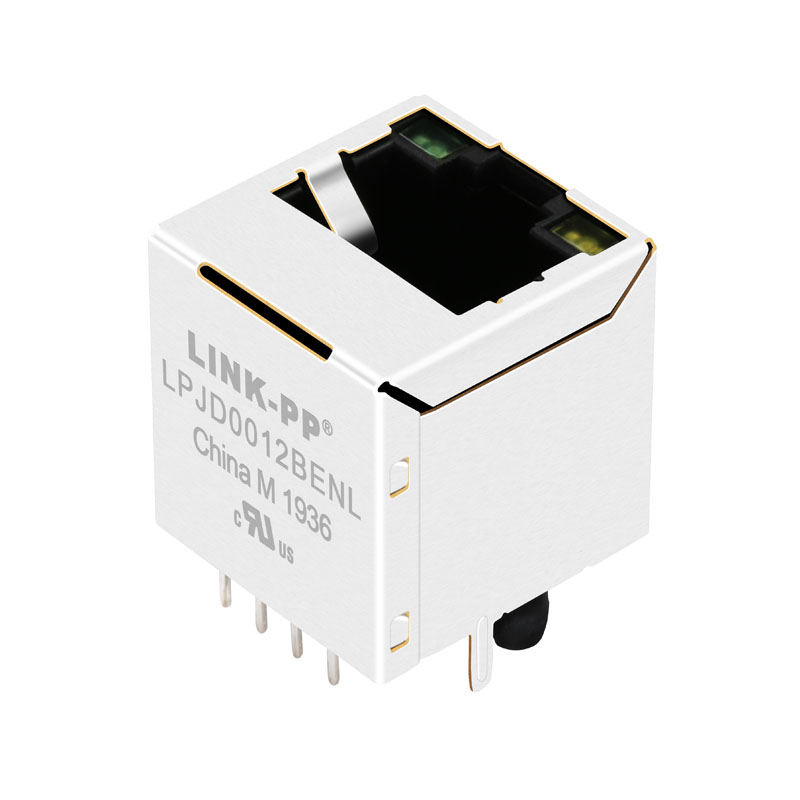

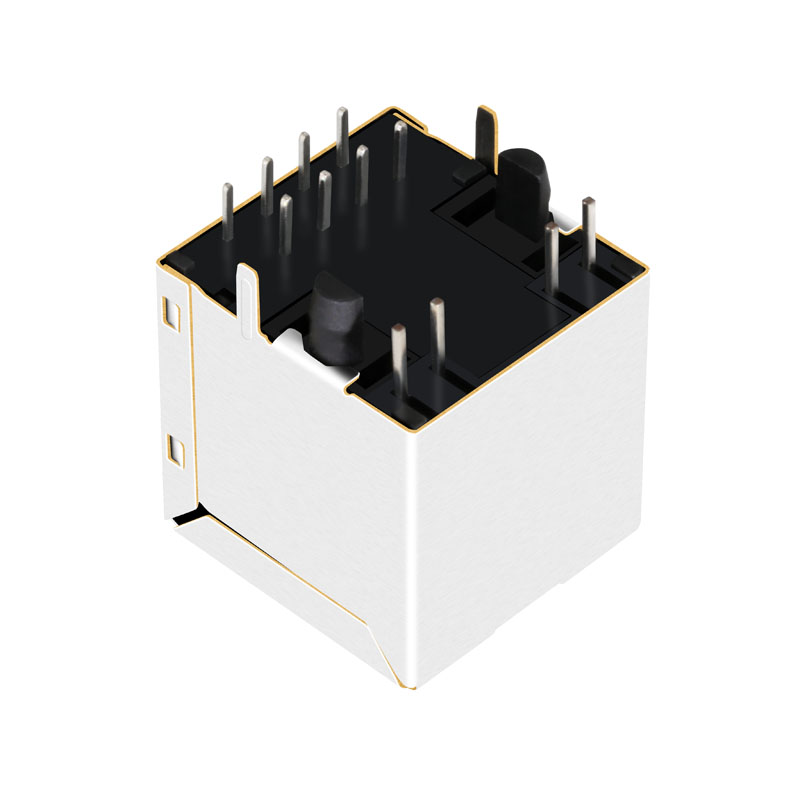

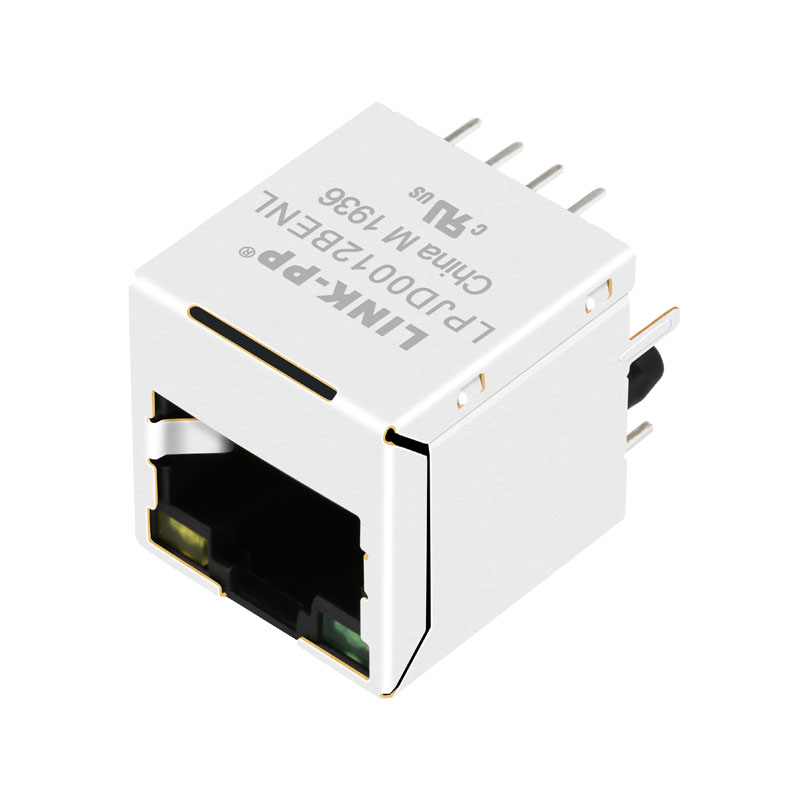

| Item | RJ45 Female Connector |
| Part Status | Active |
| Part Number | LPJD0012BENL |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Cores per Port | 4 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without |
| LED Option | With |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, with shipping costs covered by the buyer.
Ready-to-ship options are available for stock products, and delivery takes 15–30 days for mass production.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiry to us so we can discuss the details of your request.
We have 19 years of production experience and have partnered with global industry leaders for many years.
