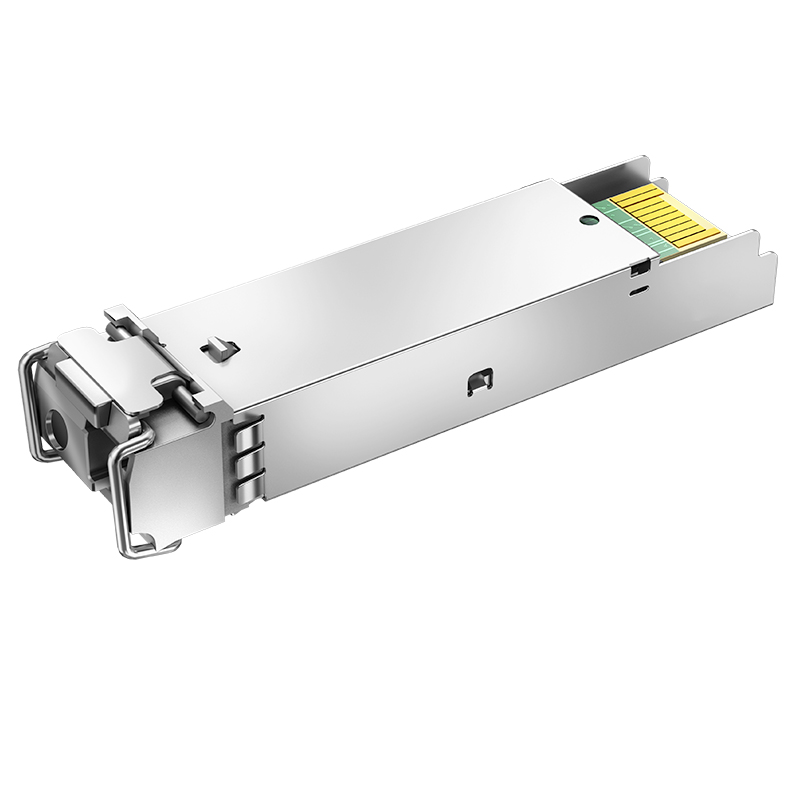

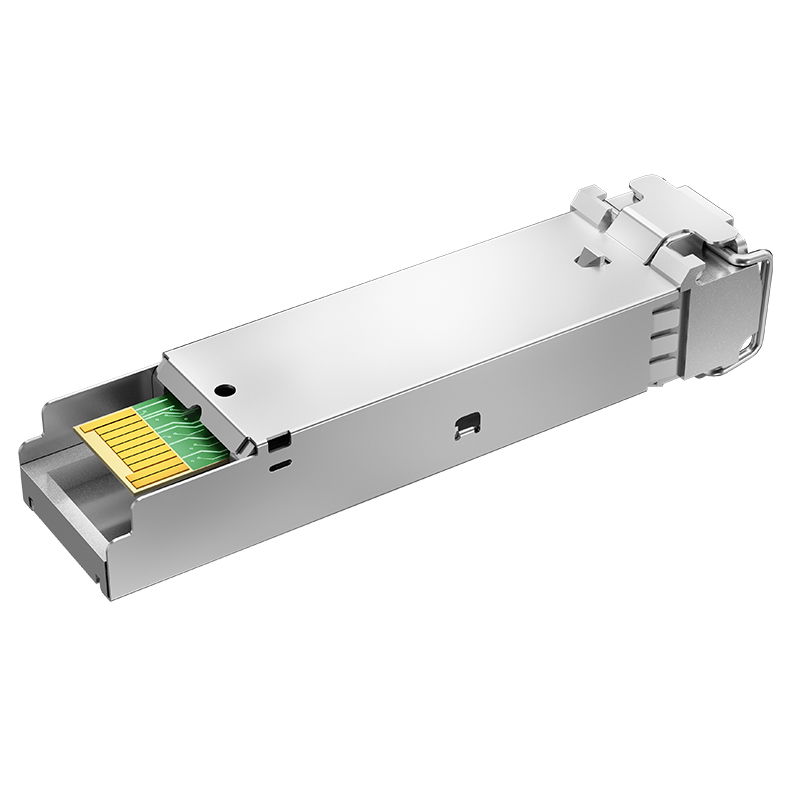

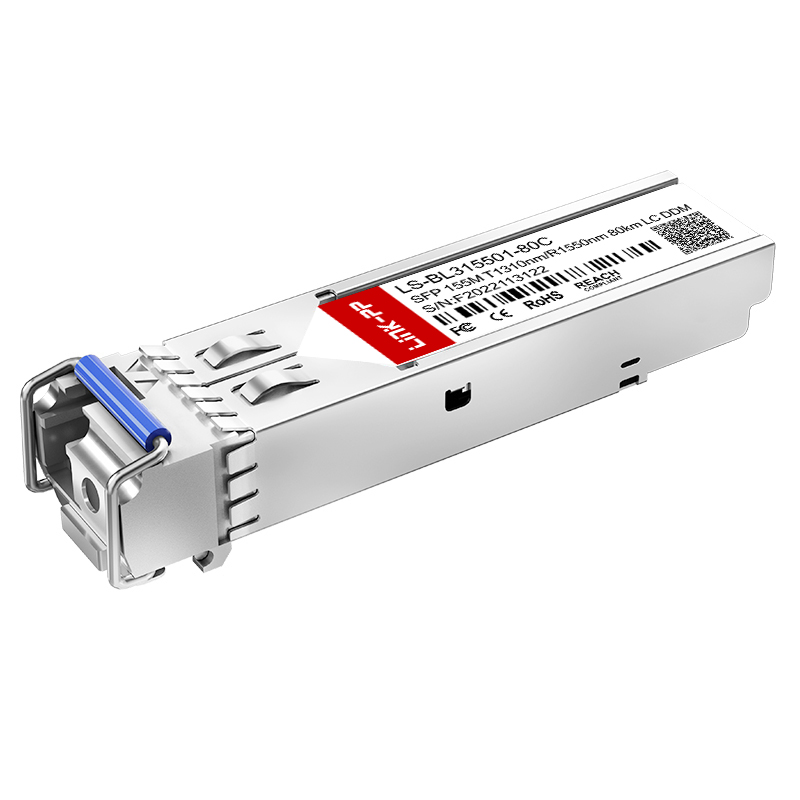

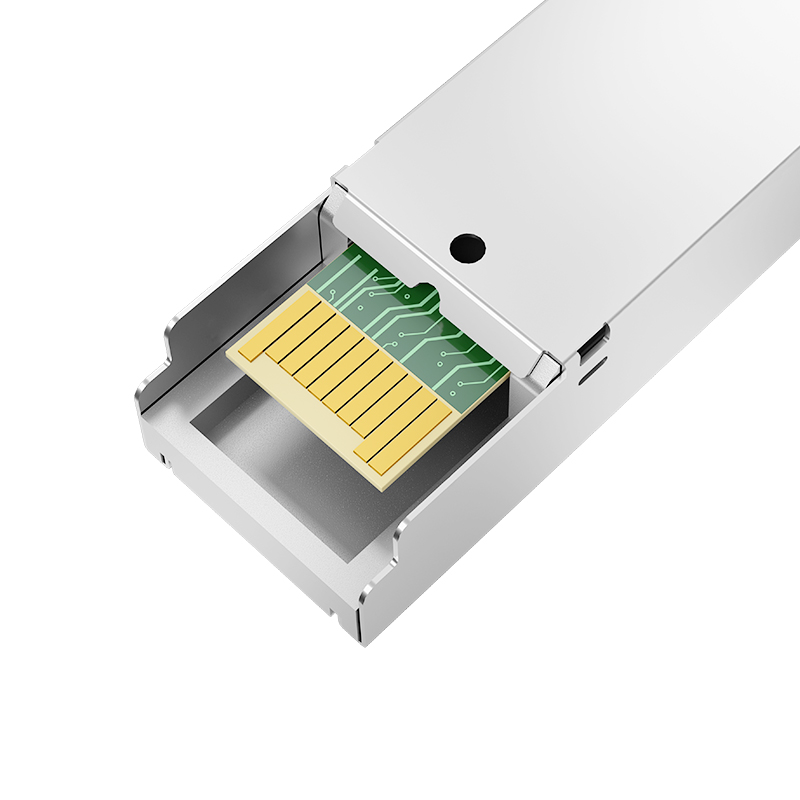

1310nm-TX/1550nm-RX Single Mode SFP 155M Bidi 80km LC Optical Transceiver Module

1 / 5

1310nm-TX/1550nm-RX Single Mode SFP 155M Bidi 80km LC Optical Transceiver Module

Send Inquiry

Product Description

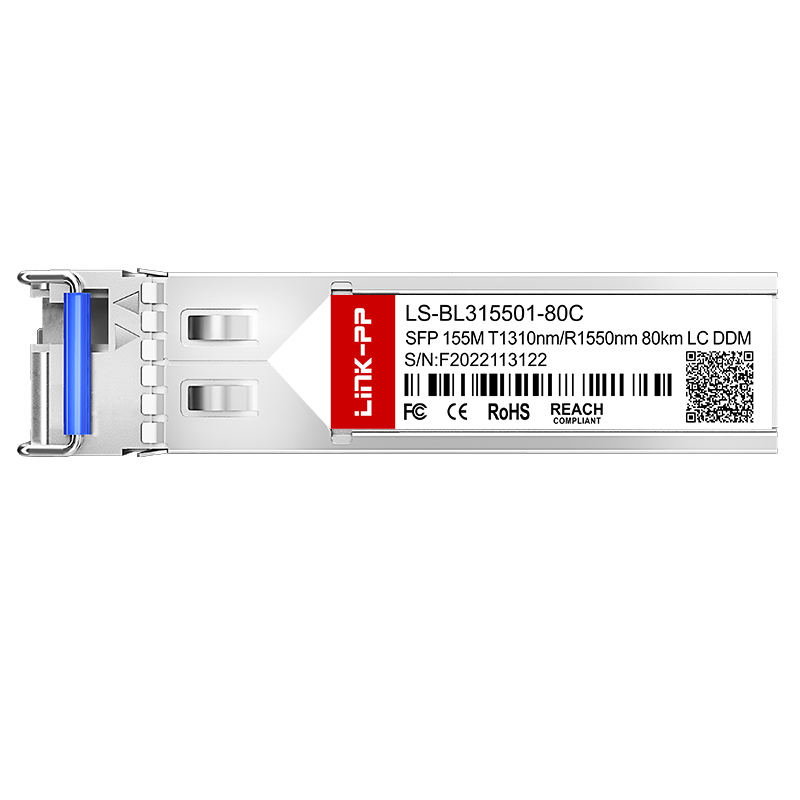

Part Number	LS-BL315501-80C
Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1310nm-TX/1550nm-RX
Max Cable Distance	80km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-5 ~ 2dBm
Receiver Sensitivity	< -32dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	SFP MSA and SFF-8472
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 155M BiDi SFP

Part Number	Data Rate	Wavelength	Distance	Components	DDM
LS-BL315501-10C	155Mbps	1310nm-TX/1550nm-RX	10km	FP/PIN	Yes
LS-BL553101-10C	155Mbps	1550nm-TX/1310nm-RX	10km	FP/PIN	Yes
LS-BL315501-15C	155Mbps	1310nm-TX/1550nm-RX	15km	FP/PIN	Yes
LS-BL553101-15C	155Mbps	1550nm-TX/1310nm-RX	15km	FP/PIN	Yes
LS-BL315501-20C	155Mbps	1310nm-TX/1550nm-RX	20km	FP/PIN	Yes
LS-BL553101-20C	155Mbps	1550nm-TX/1310nm-RX	20km	FP/PIN	Yes
LS-BL315501-40C	155Mbps	1310nm-TX/1550nm-RX	40km	FP/PIN	Yes
LS-BL553101-40C	155Mbps	1550nm-TX/1310nm-RX	40km	FP/PIN	Yes
LS-BL315501-80C	155Mbps	1310nm-TX/1550nm-RX	80km	FP/PIN	Yes
LS-BL553101-80C	155Mbps	1550nm-TX/1310nm-RX	80km	FP/PIN	Yes
LS-BL495501-80C	155Mbps	1490nm-TX/1550nm-RX	80km	DFB/PIN	Yes
LS-BL554901-80C	155Mbps	1550nm-TX/1490nm-RX	80km	DFB/PIN	Yes

Applications & Scenarios

Optical Transport Networks

We provide end-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructers, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

Manufacturing and Quality Control

FAQ

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, but you are responsible for the shipping fee.

What is your delivery time?

Items currently in stock are ready to ship immediately. For mass production, delivery takes approximately 15-30 days.

What after-sales service do you offer?

We provide a one-year warranty period along with online technical support.

Can you accept OEM/ODM orders?

Yes, please send your inquiries to us so we can discuss the details of your project.

What is your key advantage?

With extensive production experience, we have maintained reliable partnerships with leading global technology firms for many years.
