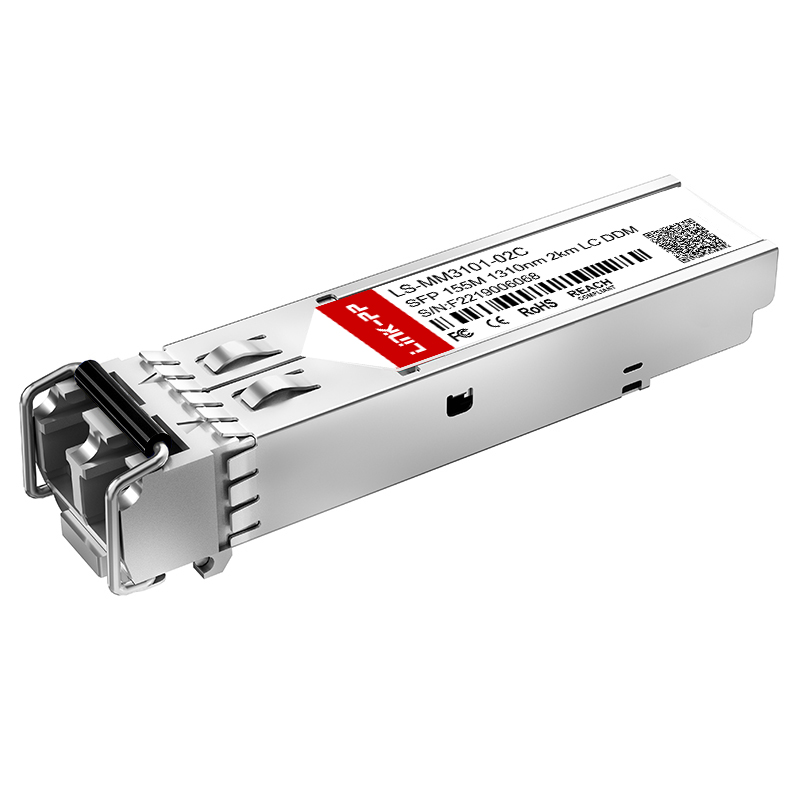

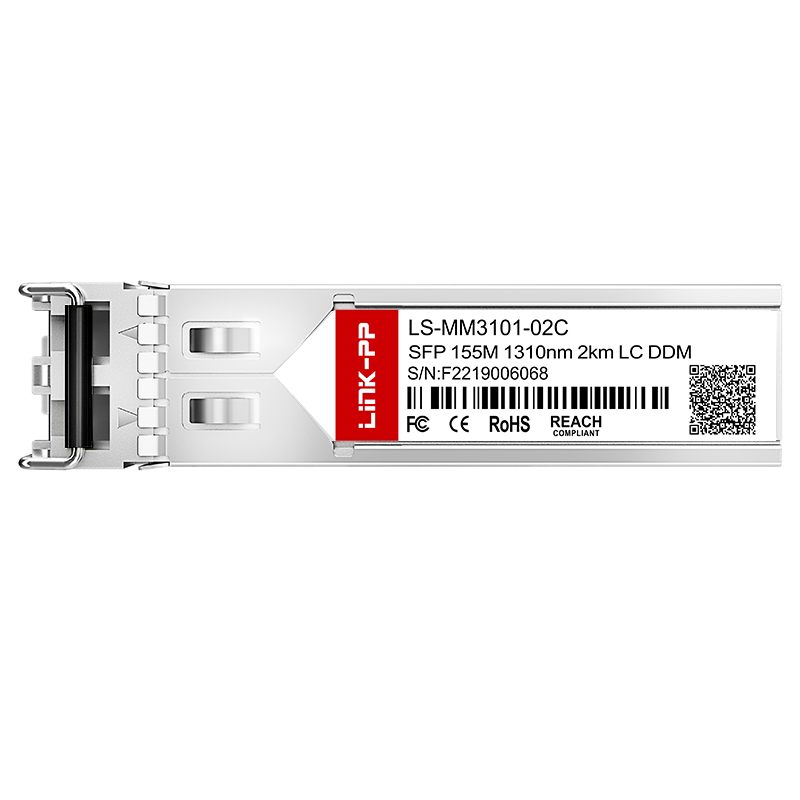

Hirschmann SFP-FAST-MM/LC-EEC Compatible MMF 1310nm 155M SFP Module 2km Multimode LC Optical Transceiver

1 / 5

Hirschmann SFP-FAST-MM/LC-EEC Compatible MMF 1310nm 155M SFP Module 2km Multimode LC Optical Transceiver

Send Inquiry

Product Description

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Compatible MMF 1310nm 155M SFP Module Specifications

Hirschmann SFP-FAST-MM/LC-EEC Compatible MMF 1310nm 155M SFP Module 2km Multimode LC Optical Transceiver

Vendor Name	Compatible
Part No.	LS-MM3101-02C
Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1310nm
Max Cable Distance	2km
Connector	Duplex LC
Media	MMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-15 ~ -8dBm
Receiver Sensitivity	< -32dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	IEEE802.3U, GR-468, MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

100M (155M) SFP Ordering Information

Part Number	Description
LS-MM8501-S5C	SFP 155M, 850nm, 550m, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-MM8501-02C	SFP 155M, 850nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-MM3101-02C	SFP 155M, 1310nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-10C	SFP 155M, 1310nm, 10km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-15C	SFP 155M, 1310nm, 15km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-20C	SFP 155M, 1310nm, 20km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-40C	SFP 155M, 1310nm, 40km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM5501-80C	SFP 155M, 1550nm, 80km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM5501-A2C	SFP 155M, 1550nm, 120km, LC, DDM, 0°C-70°C (-40°C-85°C)
