Transolix
1 / 5
| Parameter | Specification |
|---|---|

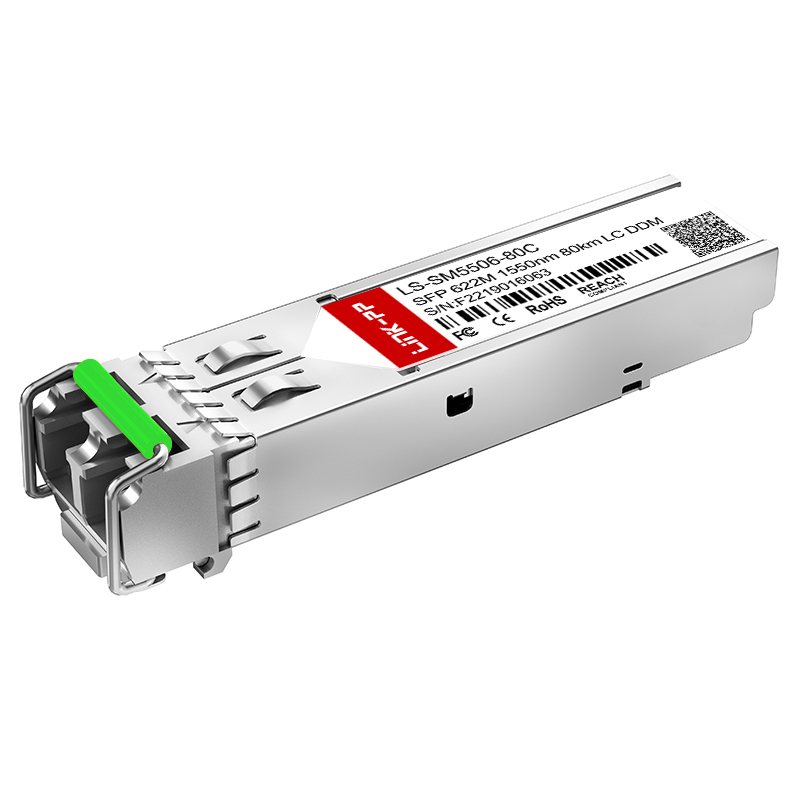

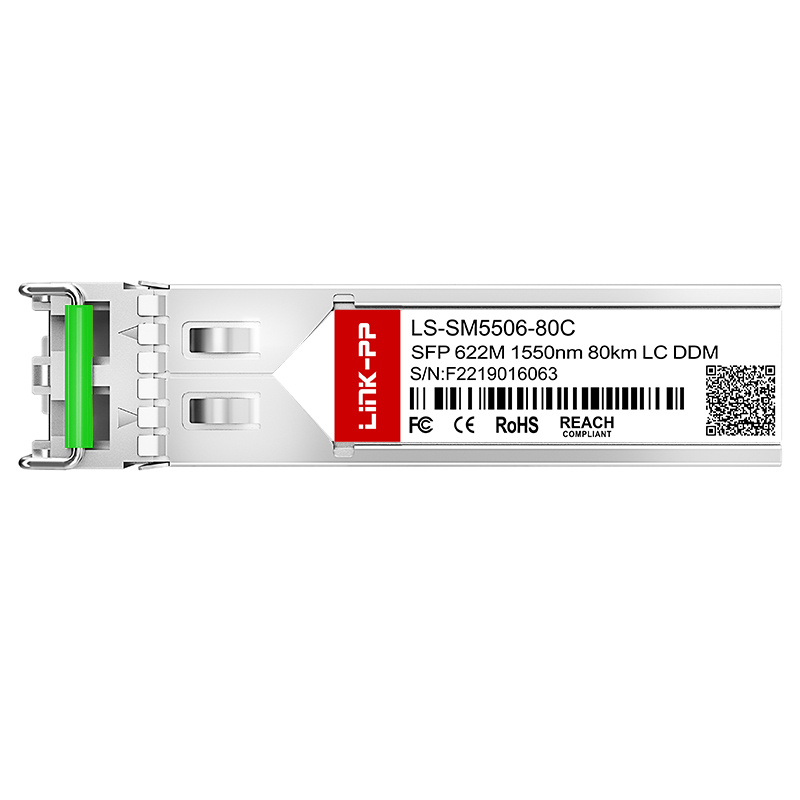

| Part Number | LS-SM5506-80C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1550nm |
| Max Cable Distance | 80km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide highly reliable and high-performance products using mature and efficient lasers alongside mainstream chip solutions to our customers around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting the requirements of various 4G/5G scenarios.
Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions covering all-optical or combined optical-copper access products and systems.
To ensure the normal operation of communication lines, we provide optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM).
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE, and UL, equipped with advanced manufacturing and foreign-imported testing machinery. Established in 1997, we currently support a large team of approximately 2000 employees. Backed by a monthly production capacity of 3000K, we consistently deliver projects within short turnaround times.
Additionally, we offer a comprehensive lineup of optical modules designed for fixed access, wireless networks, carrier Ethernet, WDM, and data center facilities, as well as ultra-broadband interconnect solutions. Applying state-of-the-art optoelectronic technologies, we design, build, and deliver high-performance parts to buyers worldwide.
