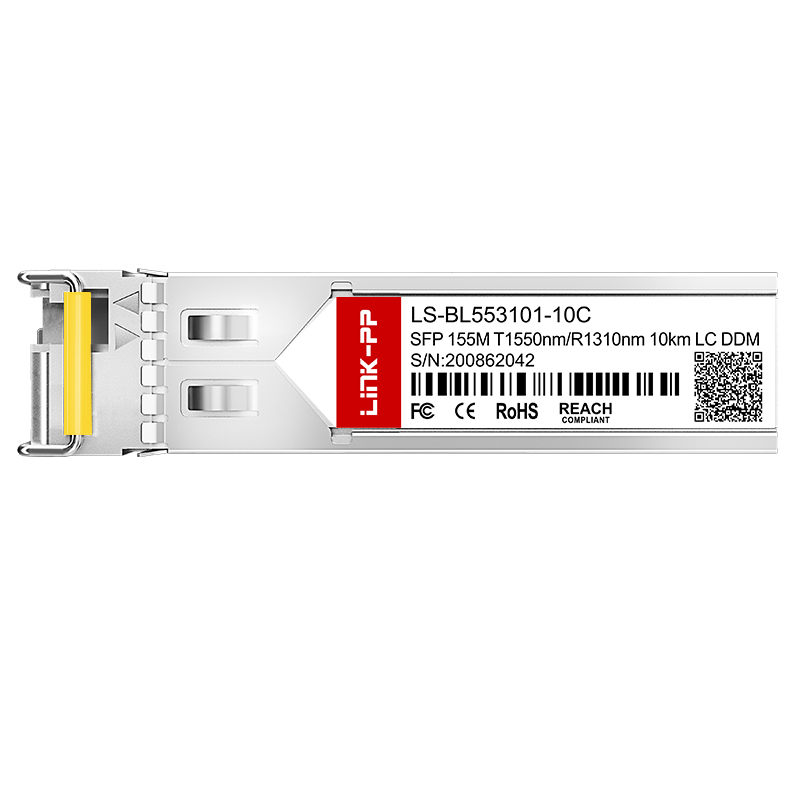

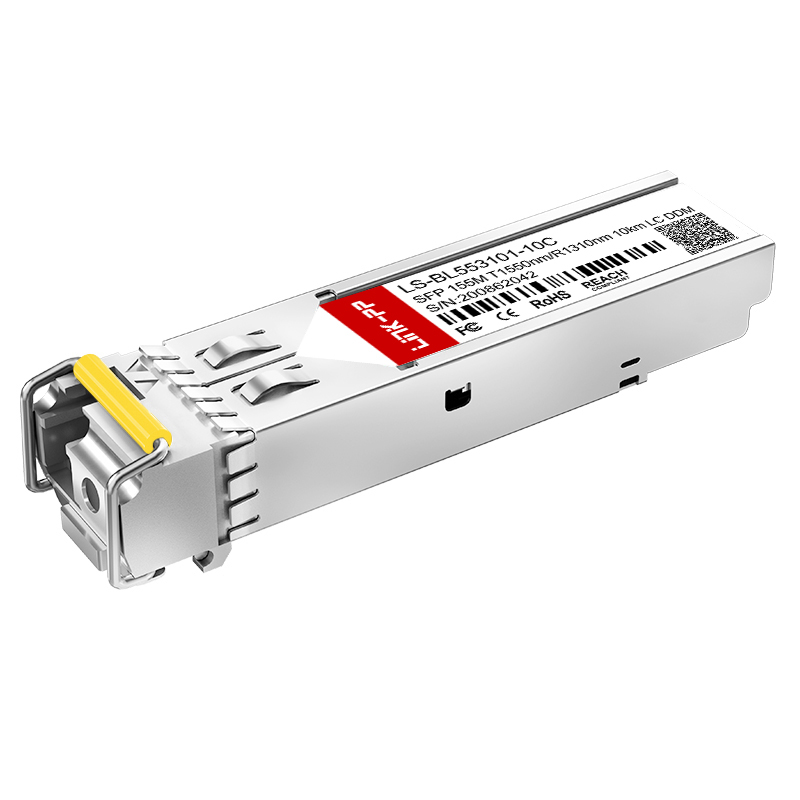

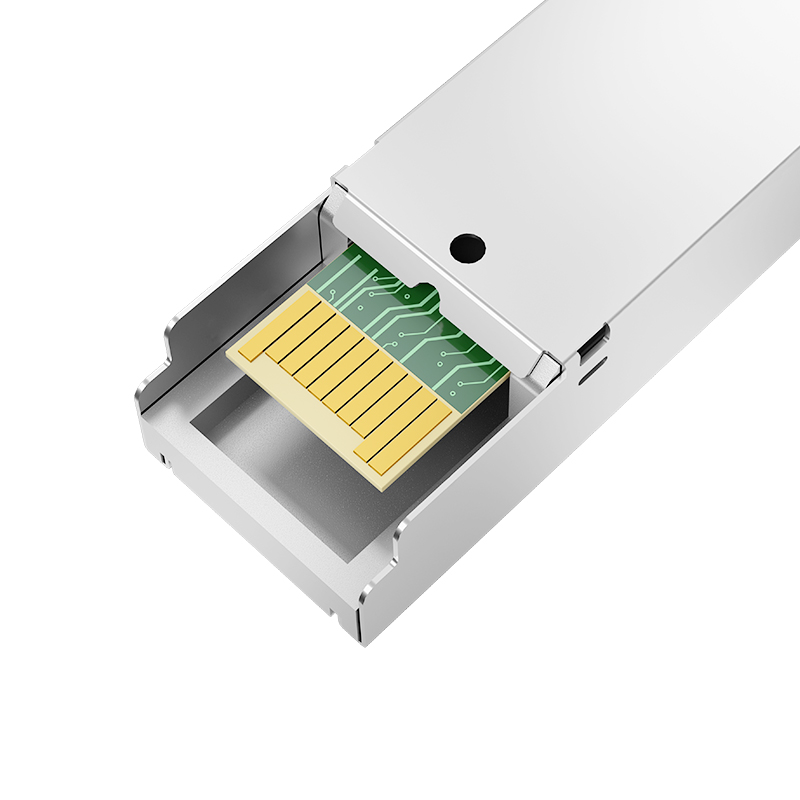

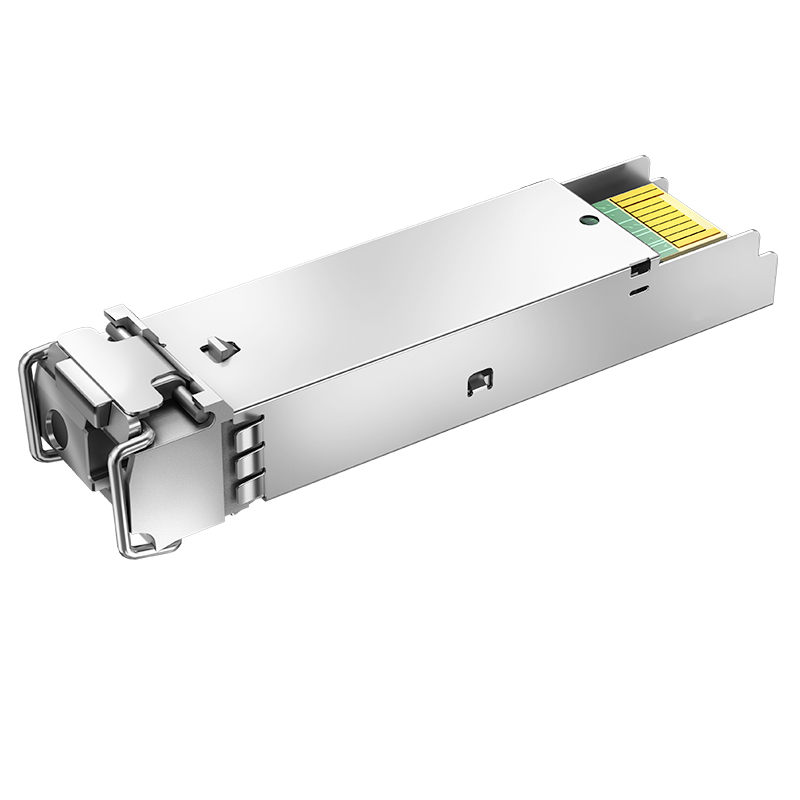

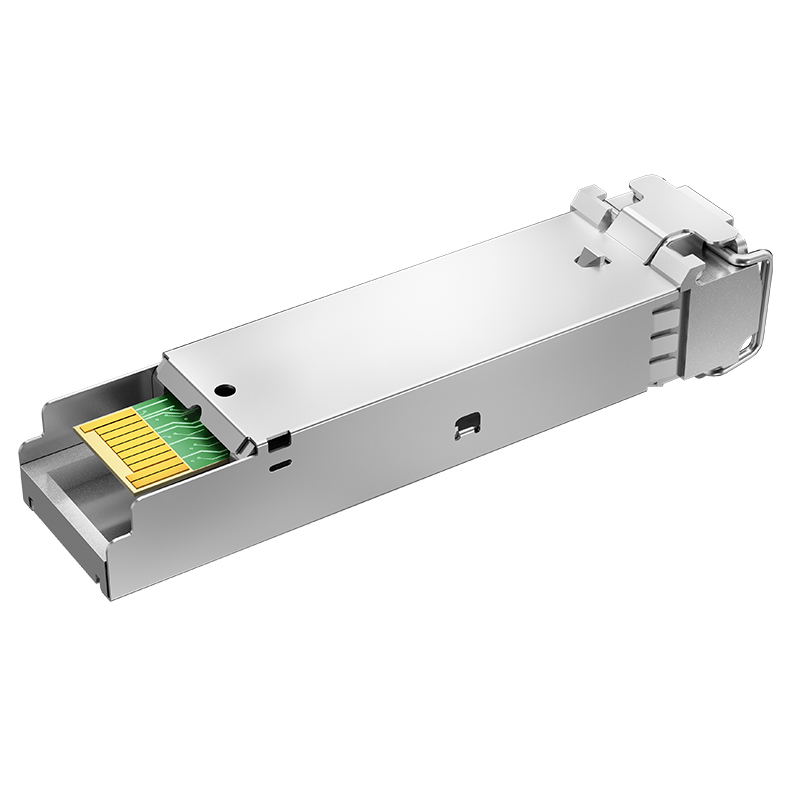

1550nm-TX/1310nm-RX Bidirectional SMF SFP 155M Bidi 10km LC Optic Transceiver Module
| Part No. |
LS-BL553101-10C |
| Form Factor |
SFP |
| Max Data Rate |
155Mbps |
| Wavelength |
1550nm-TX/1310nm-RX |
| Max Cable Distance |
10km |
| Connector |
Simplex LC |
| Media |
SMF |
| Transmitter Type |
FP |
| Receiver Type |
PIN |
| TX Power |
-14 ~ -8dBm |
| Receiver Sensitivity |
< -30dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 155M BiDi SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Components |
DDM |
| LS-BL315501-10C |
155Mbps |
1310nm-TX/1550nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL553101-10C |
155Mbps |
1550nm-TX/1310nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL315501-15C |
155Mbps |
1310nm-TX/1550nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL553101-15C |
155Mbps |
1550nm-TX/1310nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL315501-20C |
155Mbps |
1310nm-TX/1550nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL553101-20C |
155Mbps |
1550nm-TX/1310nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL315501-40C |
155Mbps |
1310nm-TX/1550nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL553101-40C |
155Mbps |
1550nm-TX/1310nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL315501-80C |
155Mbps |
1310nm-TX/1550nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL553101-80C |
155Mbps |
1550nm-TX/1310nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL495501-80C |
155Mbps |
1490nm-TX/1550nm-RX |
80km |
DFB/PIN |
Yes |
| LS-BL554901-80C |
155Mbps |
1550nm-TX/1490nm-RX |
80km |
DFB/PIN |
Yes |
