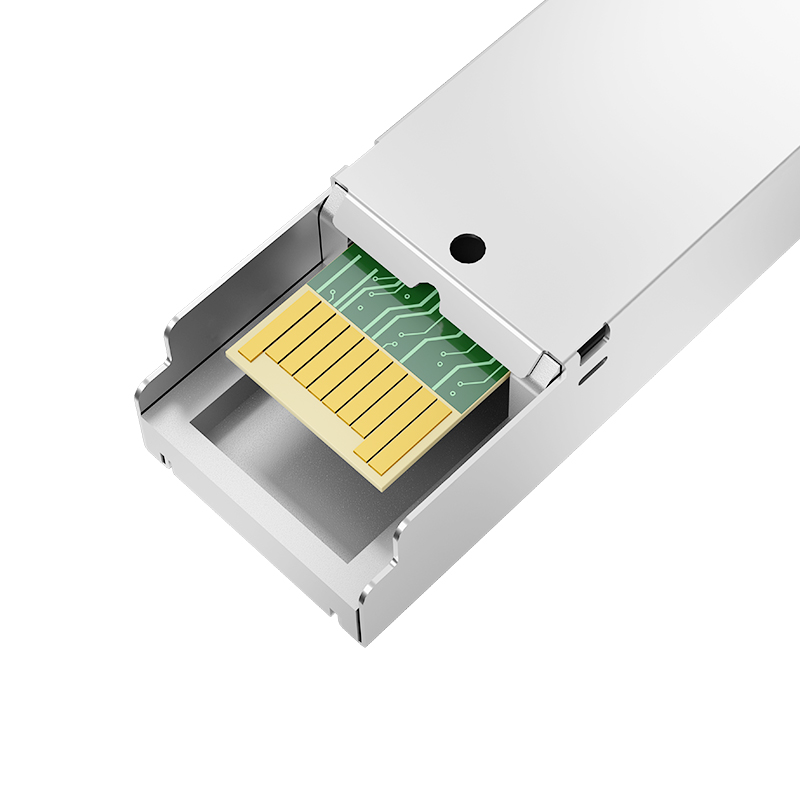

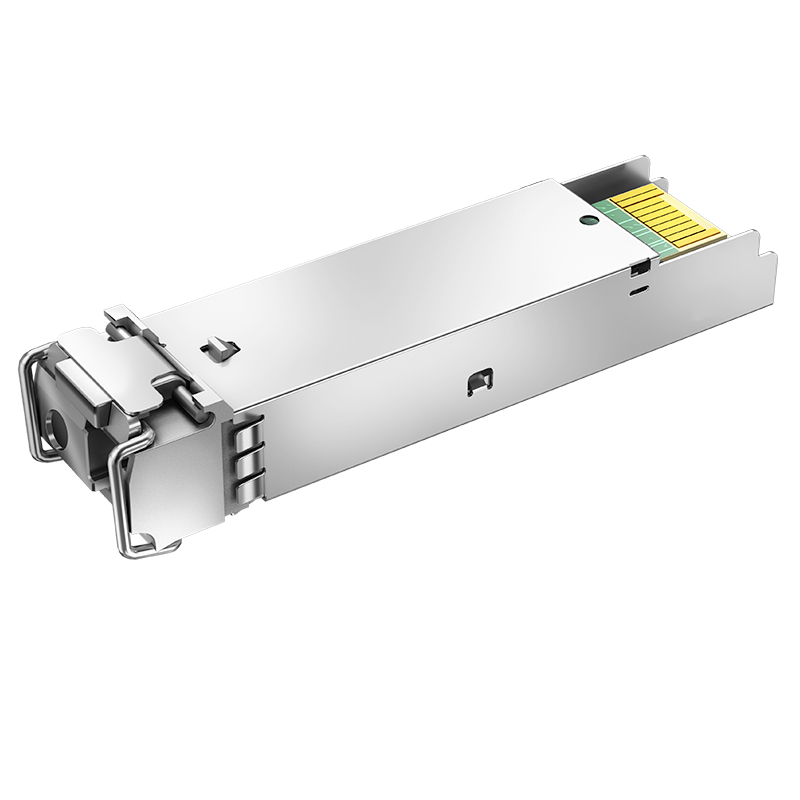

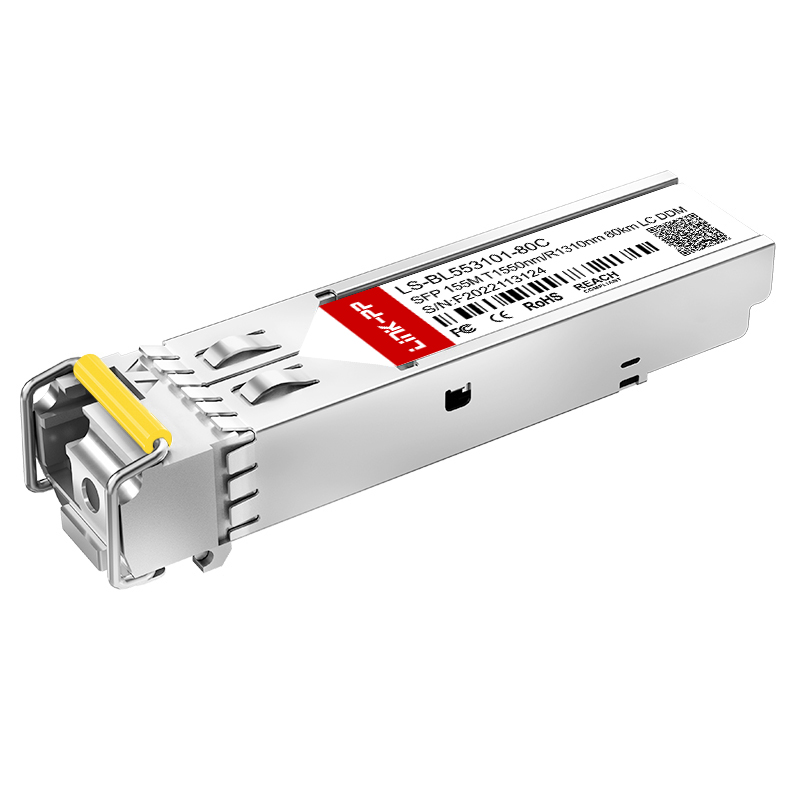

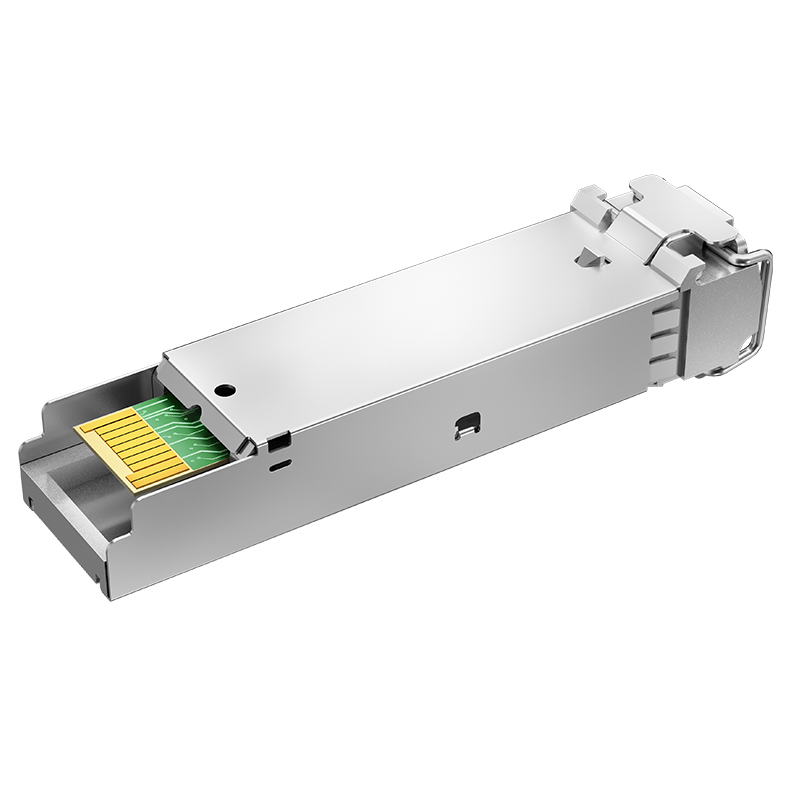

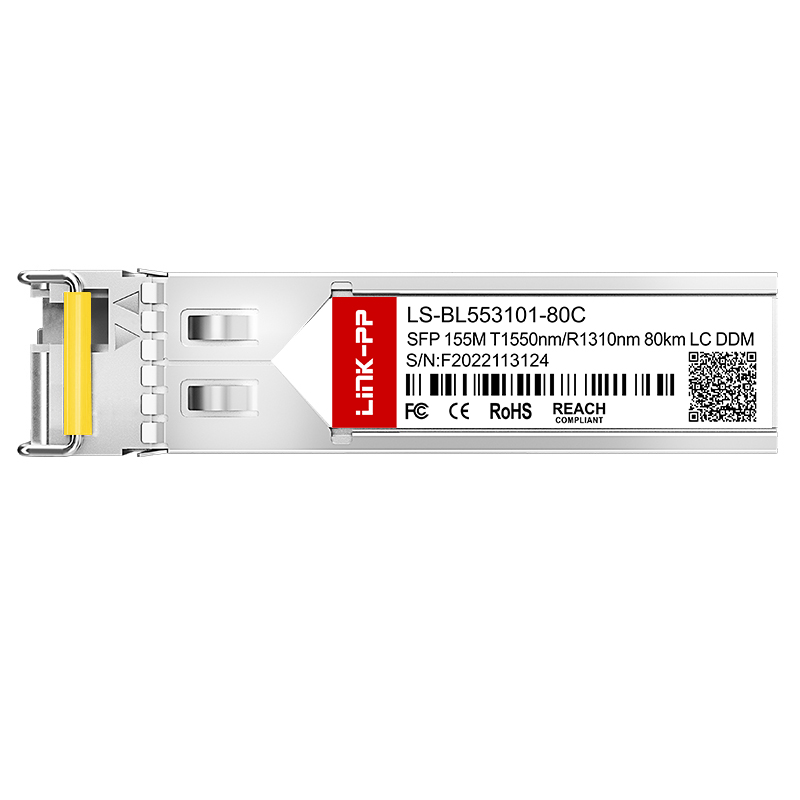

| Part Number | LS-BL553101-80C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1550nm-TX/1310nm-RX |
| Max Cable Distance | 80km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -5 ~ 2dBm |
| Receiver Sensitivity | < -32dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | SFP MSA and SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Wavelength | Distance | Components | DDM |
|---|---|---|---|---|---|
| LS-BL315501-10C | 155Mbps | 1310nm-TX/1550nm-RX | 10km | FP/PIN | Yes |
| LS-BL553101-10C | 155Mbps | 1550nm-TX/1310nm-RX | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310nm-TX/1550nm-RX | 15km | FP/PIN | Yes |
| LS-BL553101-15C | 155Mbps | 1550nm-TX/1310nm-RX | 15km | FP/PIN | Yes |
| LS-BL315501-20C | 155Mbps | 1310nm-TX/1550nm-RX | 20km | FP/PIN | Yes |
| LS-BL553101-20C | 155Mbps | 1550nm-TX/1310nm-RX | 20km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310nm-TX/1550nm-RX | 40km | FP/PIN | Yes |
| LS-BL553101-40C | 155Mbps | 1550nm-TX/1310nm-RX | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310nm-TX/1550nm-RX | 80km | FP/PIN | Yes |
| LS-BL553101-80C | 155Mbps | 1550nm-TX/1310nm-RX | 80km | FP/PIN | Yes |
| LS-BL495501-80C | 155Mbps | 1490nm-TX/1550nm-RX | 80km | DFB/PIN | Yes |
| LS-BL554901-80C | 155Mbps | 1550nm-TX/1490nm-RX | 80km | DFB/PIN | Yes |
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we currently have about 2,000 employees. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short time.
In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.
