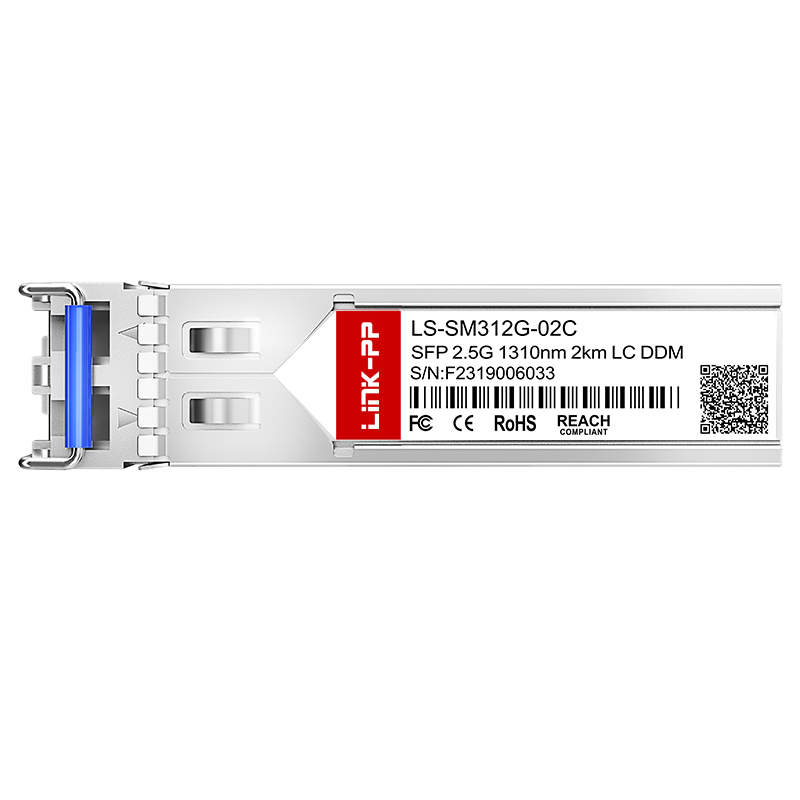

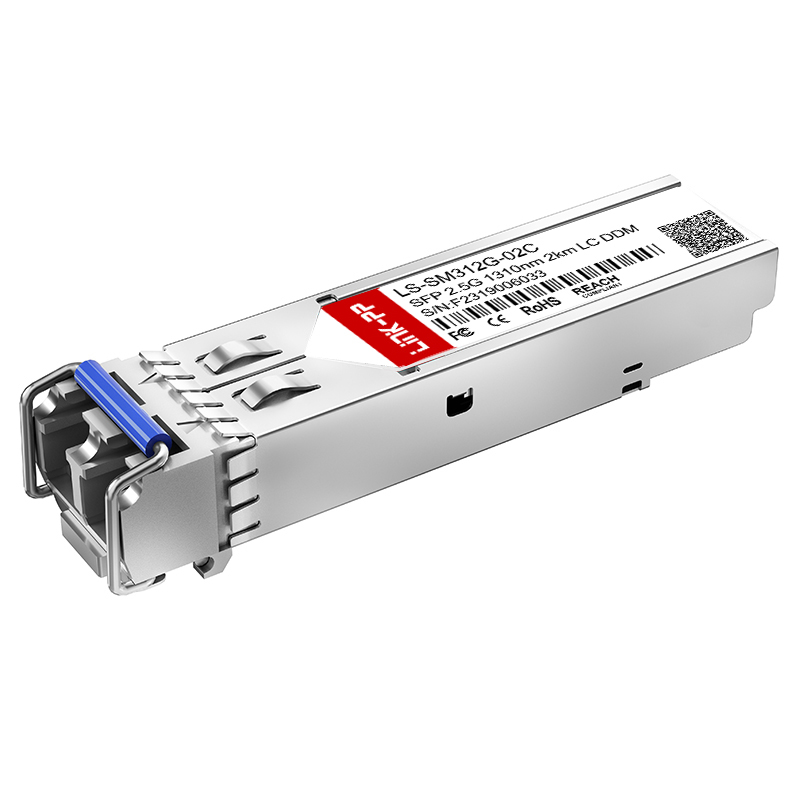

2.5GBASE-LX Single Mode 1310nm SFP 2.5G 2km Dual LC Optic Transceiver Module

Product Description

2.5GBASE-LX Single Mode 1310nm SFP 2.5G 2km Dual LC Optic Transceiver Module
Product Specifications
Part Number LS-SM312G-02C
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm
Max Cable Distance 2km
Connector Duplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
TX Power -10 ~ 3dBm
Receiver Sensitivity < -18dBm
Receiver Overload -3dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

2.5G SFP Solution
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C 2.5Gbps 850nm 300m Multi-mode Yes
LS-MM852G-S5C 2.5Gbps 850nm 550m Multi-mode Yes
LS-SM312G-02C 2.5Gbps 1310nm 2km Single Mode Yes
LS-SM312G-10C 2.5Gbps 1310nm 10km Single Mode Yes
LS-SM312G-15C 2.5Gbps 1310nm 15km Single Mode Yes
LS-SM312G-20C 2.5Gbps 1310nm 20km Single Mode Yes
LS-SM552G-20C 2.5Gbps 1550nm 20km Single Mode Yes
LS-SM312G-40C 2.5Gbps 1310nm 40km Single Mode Yes
LS-SM552G-40C 2.5Gbps 1550nm 40km Single Mode Yes
LS-SM552G-80C 2.5Gbps 1550nm 80km Single Mode Yes
Transceiver Module Quality
Product Categories Overview
Network Application Solutions
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with data rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for modern data centers.
Cloud and Enterprise
Wireless Solution
Wireless
We provide highly reliable and performant products built on mature, efficient lasers and mainstream chip solutions to global clients. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting the requirements of various 4G/5G scenarios.
FTTx
Aiming at global communication network constructors, we provide total FTTx optical fiber access solutions covering both all-optical and combined copper-optical access products.
FTTx Solution
Subsystems
Subsystems
To ensure the normal operation of communication lines, we provide optical cable operation & maintenance solutions integrating an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Quality Management
Testing Equipment
Production Capacity
Customer Support
Profile Overview

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we have about 2,000 employees at present. With the abundant production capacity of 3,000K per month, we are able to deliver products within a short turnaround time.

In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.

Manufacturing Center
Testing Facility
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are to be covered by the client.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders generally require 15 to 30 days.
What after-sales service do you offer?
We offer a one-year warranty period alongside 24-hour online technical support to assist with any product queries.
Can you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please submit your detailed requirements for further discussion.
What are your core advantages?
With over 19 years of professional production experience, we are certified to key international standards and supply top-tier global enterprise partners.
