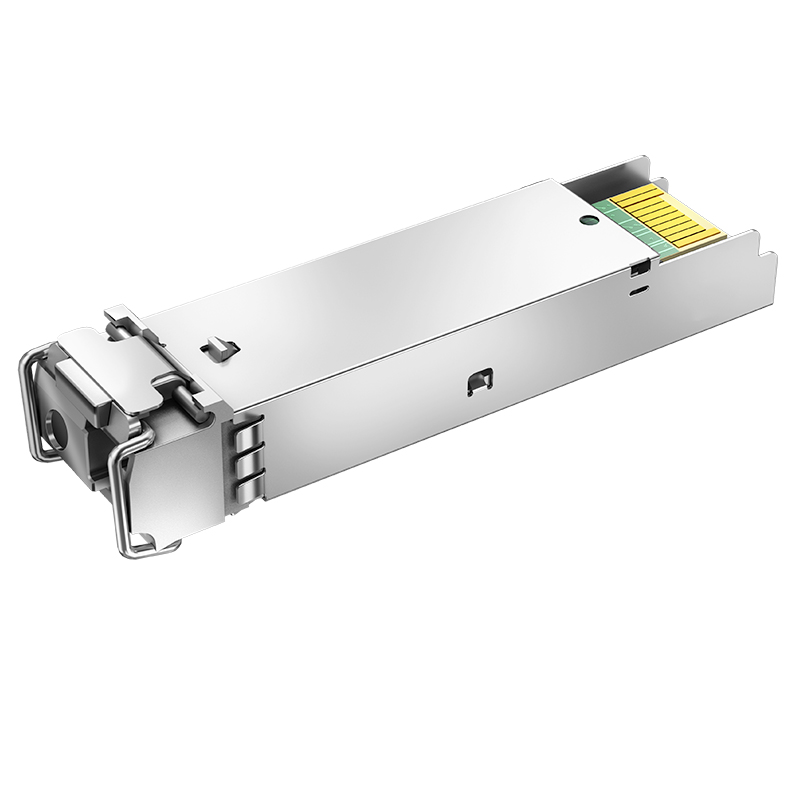

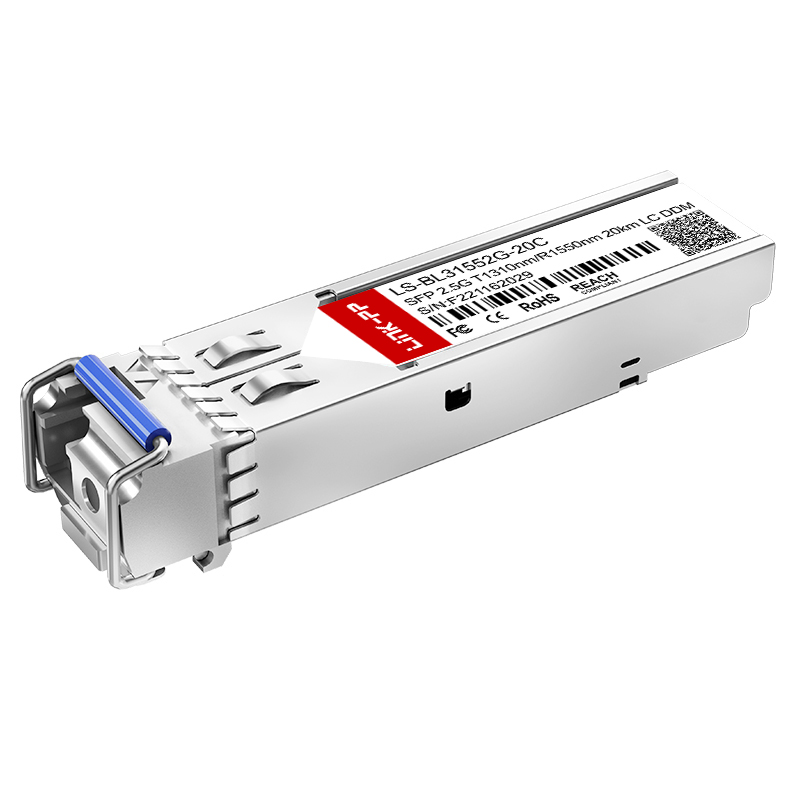

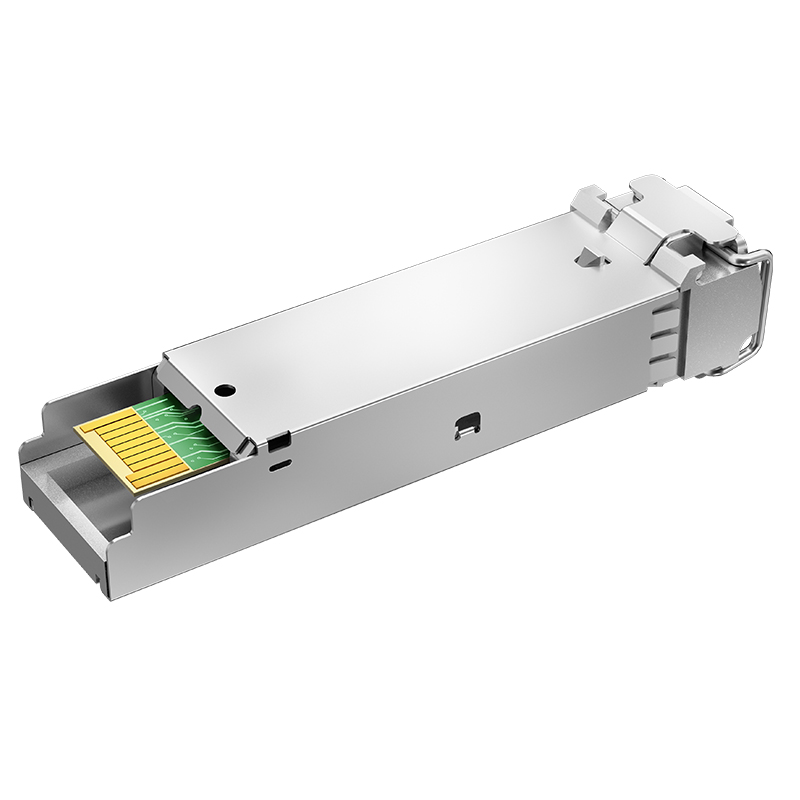

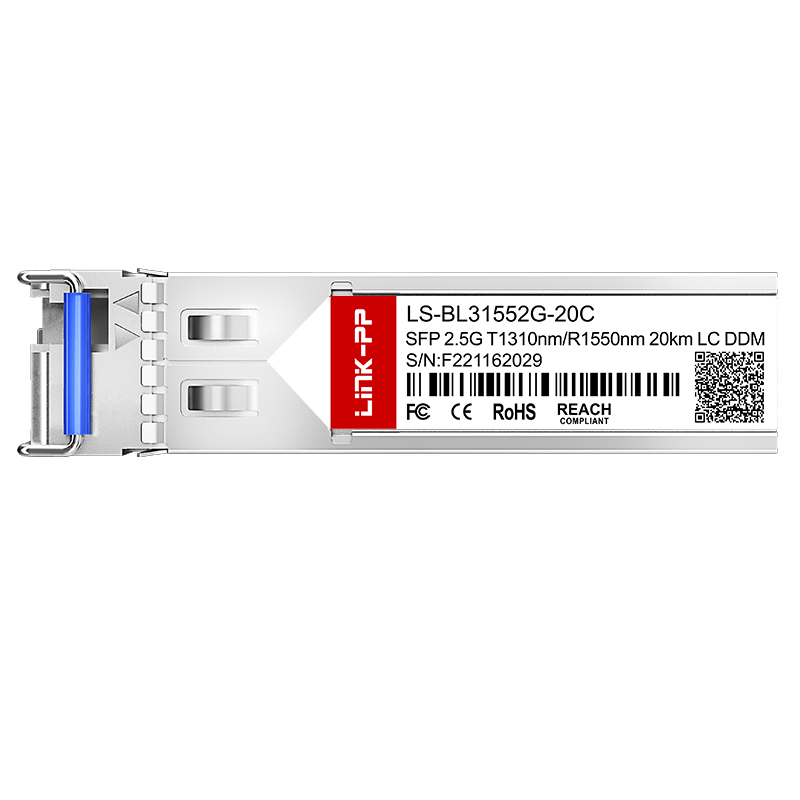

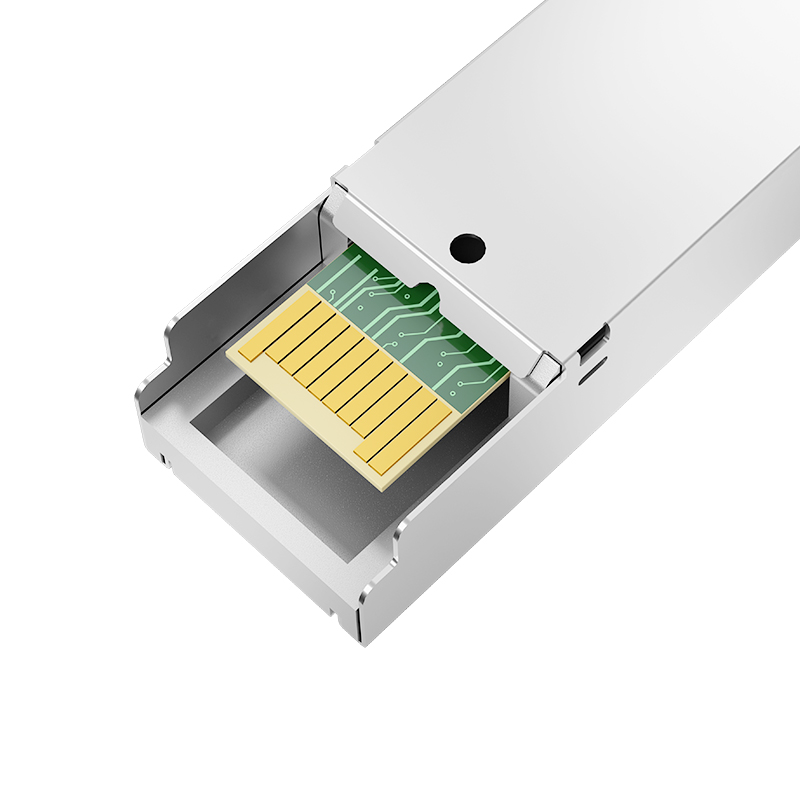

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 2.5G Bidi 20km LC Optical Transceiver Module

Product Description

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 2.5G Bidi 20km LC Optical Transceiver Module
Part No. LS-BL31552G-20C
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm-TX/1550nm-RX
Max Cable Distance 20km
Connector Simplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Module Solution
Support 1.25G BiDi SFP

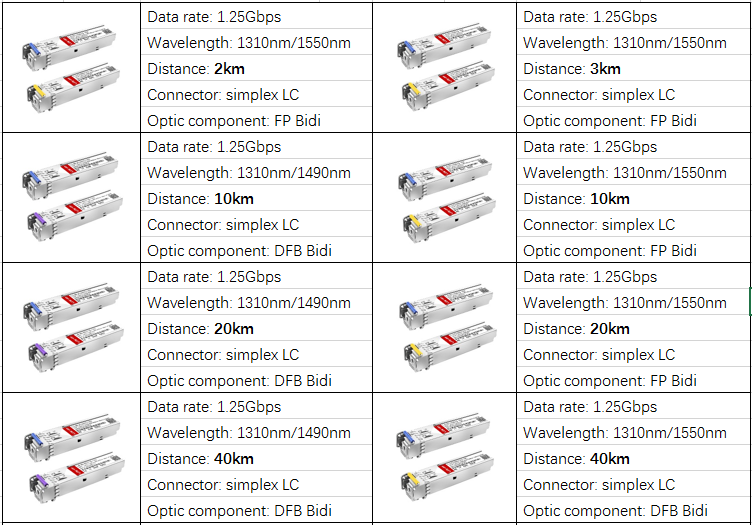

1.25G BiDi SFP Product Image 1

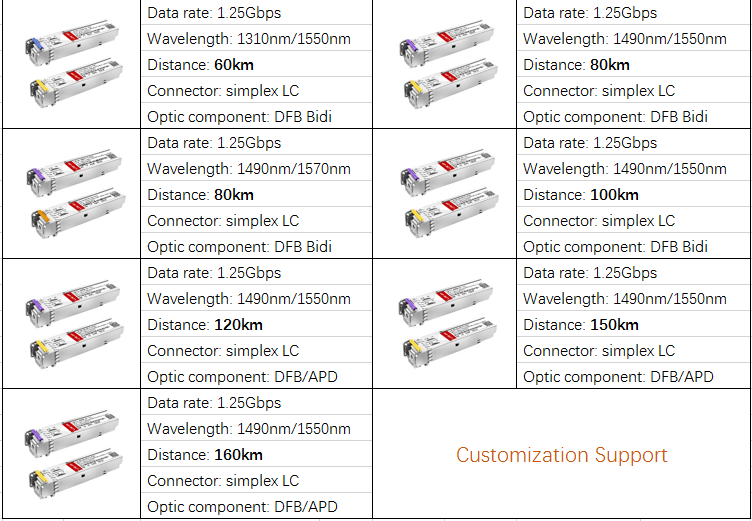

1.25G BiDi SFP Product Image 2
Support 10G/25G BiDi SFP
10G/25G BiDi SFP Product
Transceiver Products Grid
Various SFP Modules Types
Applications & Infrastructure
Optical Transport Networks
Optical Transport Networks
Can provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
Provides high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, total FTTx optical fiber access solutions are provided, covering all-optical or optical-copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, an optical cable O&M solution is provided which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
☞ Related Products SFP Cage ☞
Related SFP Cage Products
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
A specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, equipped with advanced manufacturing and testing equipment. Established in 1997, with approximately 2,000 employees. With an abundant monthly production capacity of 3,000K, fast delivery times are guaranteed. In addition, a complete series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Utilizing the latest optoelectronic technologies, products are designed, manufactured, and distributed globally.
Production Facility 1
Production Facility 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee must be covered.
What is your delivery time?
Ready-to-ship status for items in stock, and 15-30 days for mass production.
What after-service can you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can discuss the details.
What is your advantage?
We have 19 years of production experience and high manufacturing standards with advanced facilities.
