| Technical Specifications | |
|---|---|

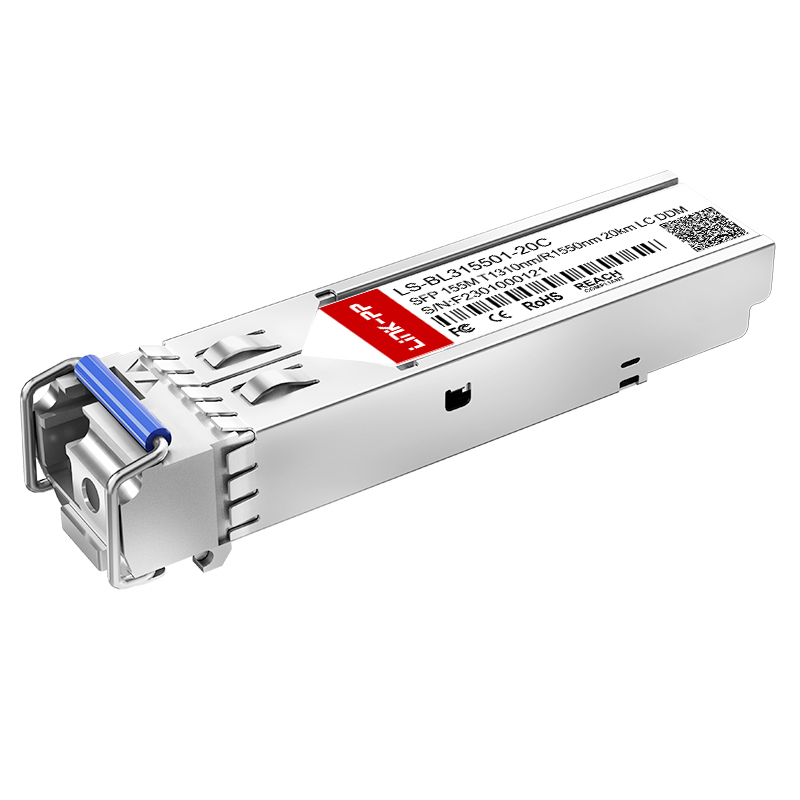

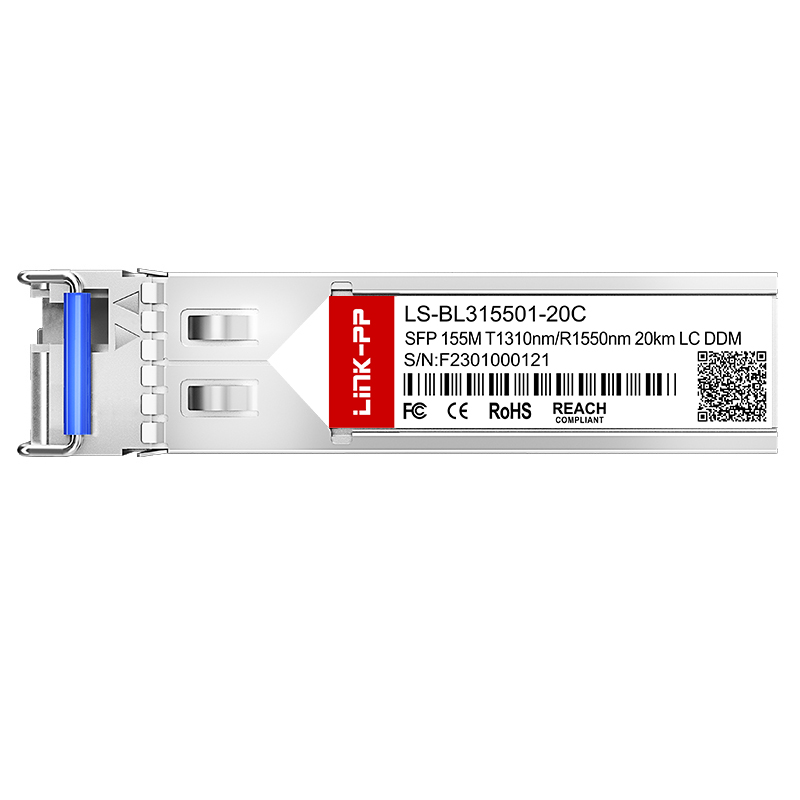

| Part Number | LS-BL315501-20C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 20km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -14 ~ -8dBm |
| Receiver Sensitivity | < -30dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Components | DDM |
|---|---|---|---|---|---|
| LS-BL315501-10C | 155Mbps | 1310nm-TX/1550nm-RX | 10km | FP/PIN | Yes |
| LS-BL553101-10C | 155Mbps | 1550nm-TX/1310nm-RX | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310nm-TX/1550nm-RX | 15km | FP/PIN | Yes |
| LS-BL553101-15C | 155Mbps | 1550nm-TX/1310nm-RX | 15km | FP/PIN | Yes |
| LS-BL315501-20C | 155Mbps | 1310nm-TX/1550nm-RX | 20km | FP/PIN | Yes |
| LS-BL553101-20C | 155Mbps | 1550nm-TX/1310nm-RX | 20km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310nm-TX/1550nm-RX | 40km | FP/PIN | Yes |
| LS-BL553101-40C | 155Mbps | 1550nm-TX/1310nm-RX | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310nm-TX/1550nm-RX | 80km | FP/PIN | Yes |
| LS-BL553101-80C | 155Mbps | 1550nm-TX/1310nm-RX | 80km | FP/PIN | Yes |
| LS-BL495501-80C | 155Mbps | 1490nm-TX/1550nm-RX | 80km | DFB/PIN | Yes |
| LS-BL554901-80C | 155Mbps | 1550nm-TX/1490nm-RX | 80km | DFB/PIN | Yes |
We provide end-to-end DWDM devices with almost all optical elements—from active modules to optical passive components. This comprehensive range includes optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR solutions.
To meet the demand of mass data transmission in modern data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for large-scale enterprise infrastructures.
We offer highly reliable, high-performance designs built on mature, efficient lasers and mainstream chipset architectures. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul configurations to cover 4G/5G deployment scenarios.
Designed for global communication network architectures, our solutions support FTTx optical fiber access infrastructure. These offerings cover all-optical configurations as well as combined copper/optical hybrid access nodes and related products.
To secure transmission performance along operational fiber spans, we provide complete operations and maintenance solutions. These platforms incorporate automated Optical Line Protection (OLP) systems alongside robust Optical Line Monitoring (OLM) engines.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE and UL. Our production lines feature advanced manufacturing and imported test equipment. Established in 1997, our team now consists of approximately 2000 employees. With a monthly production output of 3,000K units, we are equipped to support short lead times for high-volume orders.
Additionally, we supply comprehensive optical transceivers for carrier Ethernet, wireless networking, data center interconnects, and WDM paths. Utilizing state-of-the-art optoelectronic technologies, we design, manufacture, and distribute components to enterprise partners globally.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP transceivers.
Yes, we can provide samples for quality evaluation purposes, with shipping costs covered by the recipient.
In-stock components are ready to ship immediately. For mass production and customized builds, the lead time typically ranges between 15 and 30 days.
We provide a one-year warranty period across our components alongside 24/7 online technical support.
Yes, we support OEM/ODM projects. Please reach out with your detailed specifications for further analysis.
With over 19 years of dedicated manufacturing experience, we have established long-standing supply partnerships with global Tier-1 technology companies.
