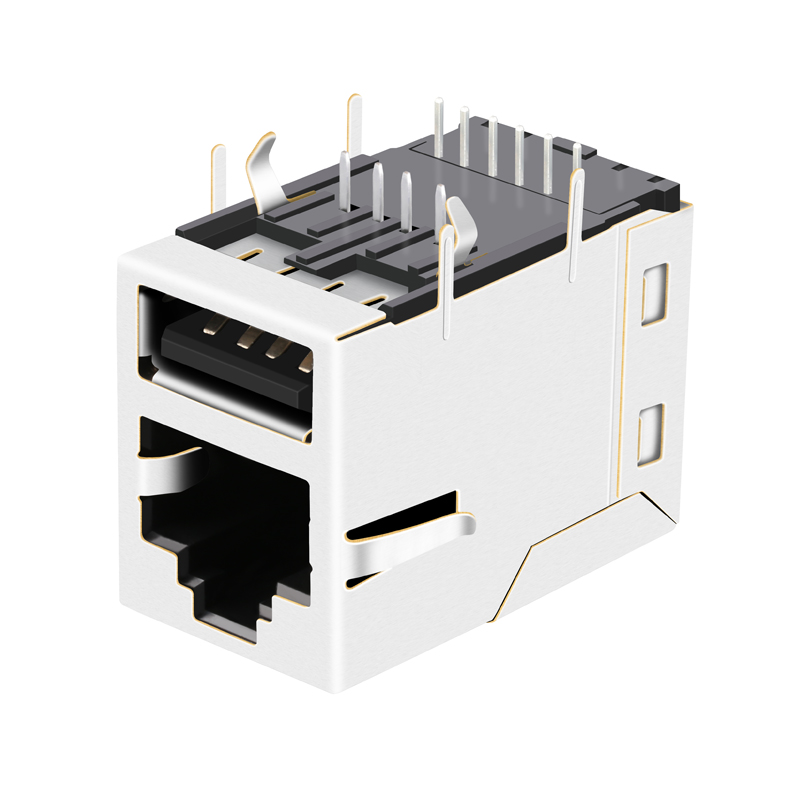

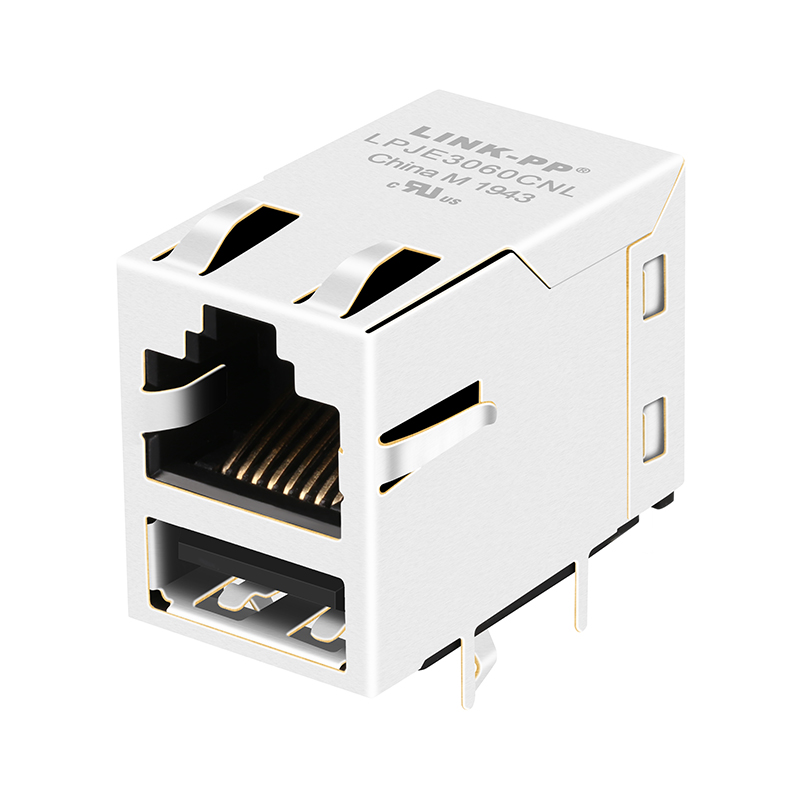

DIP Gold Pleated Network Ethernet PCB Shielded RJ45 Female Combo Jack With Single USB

Product Description

RJ45 Female Combo Jack with Single USB
DIP Gold Pleated Network Ethernet PCB Shielded RJ45 Female Combo Jack With Single USB
Products Description
Item RJ45 Connector Without Magnetics
Part Number LPJE3060CNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non Poe)
Number of Ports 1 Port with 1 usb
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without Led Light
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

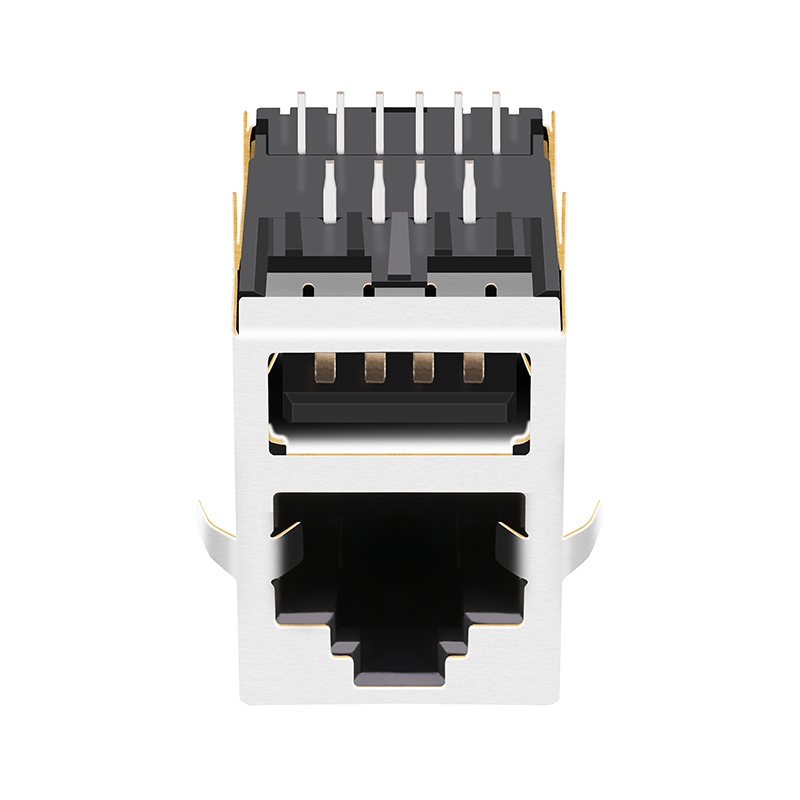

RJ45 Front View

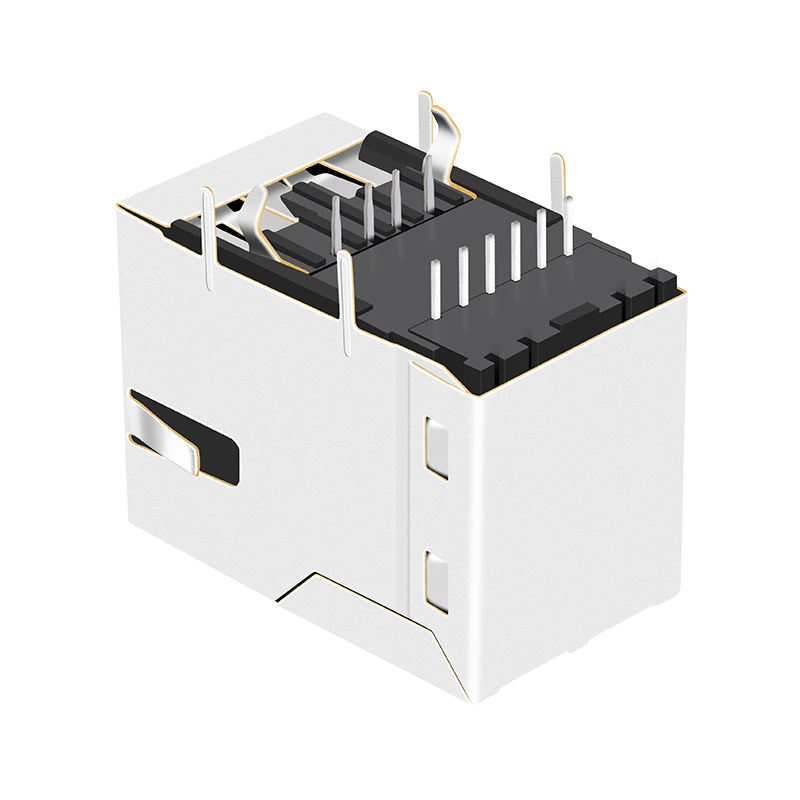

RJ45 Side View

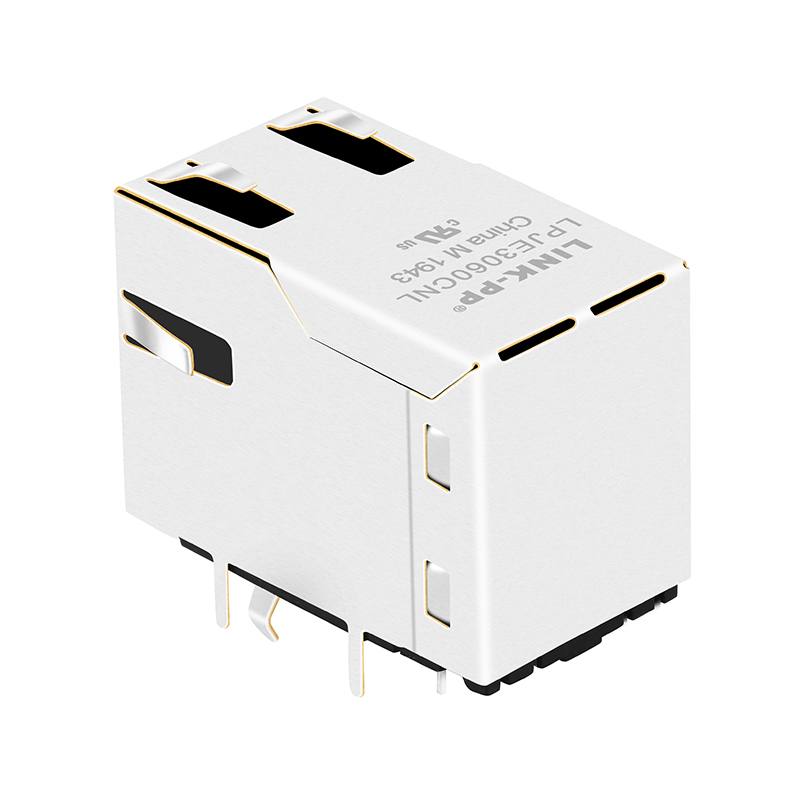

RJ45 Back View
Product Dimensional Drawing 1
Product Dimensional Drawing 2
Product Dimensional Drawing 3
Product Dimensional Drawing 4
