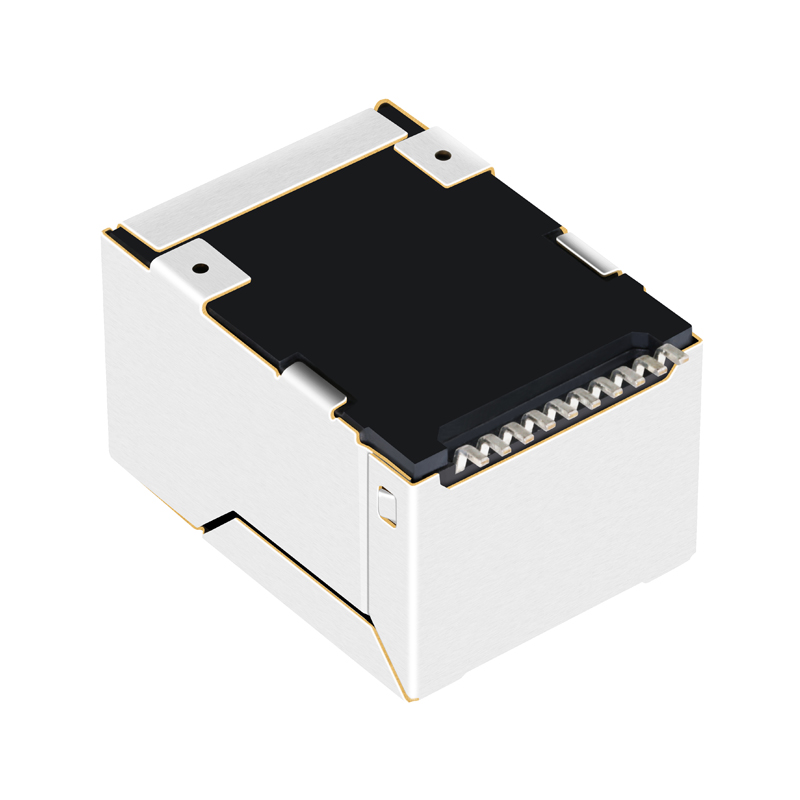

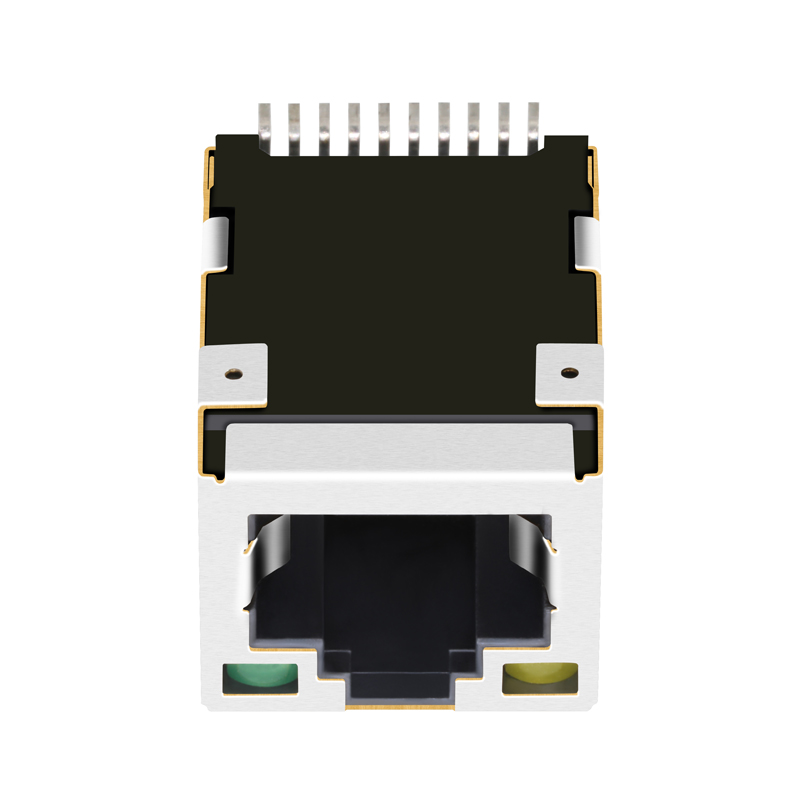

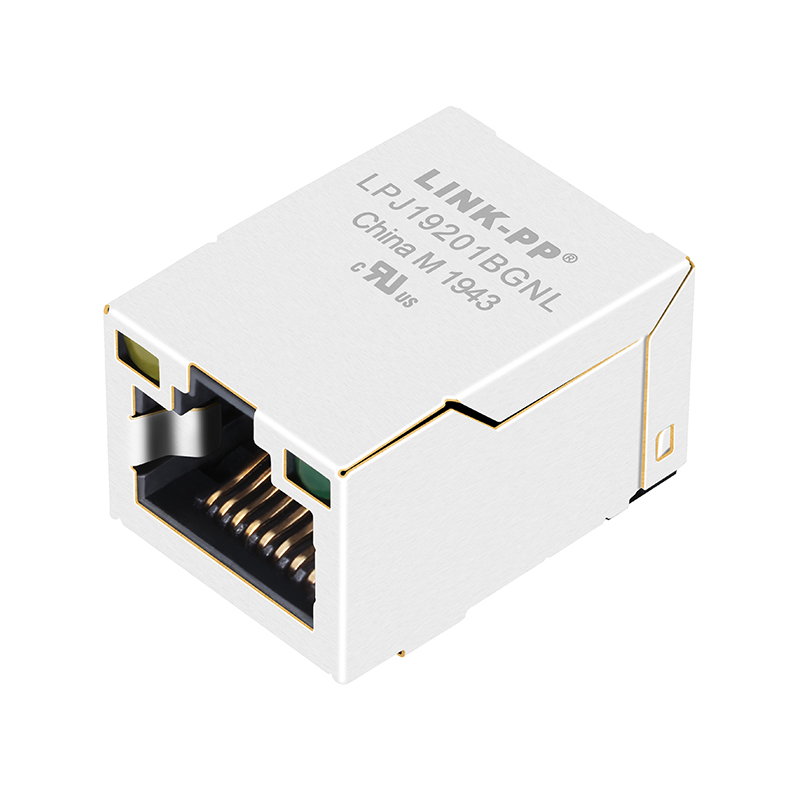

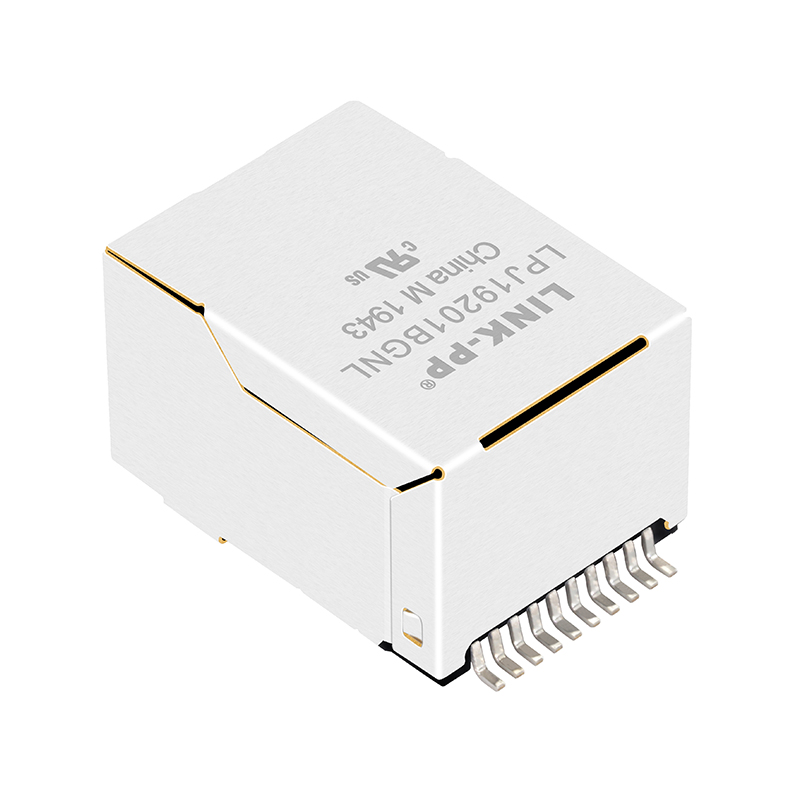

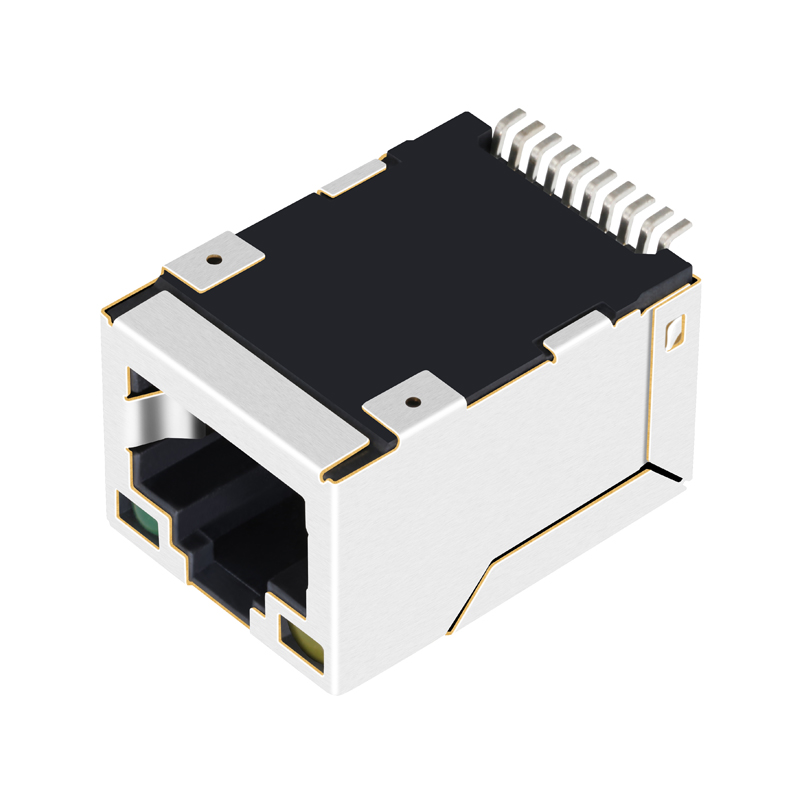

GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led

Product Description

GE5T3013-LC Tab Up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led

Ethernet RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ19201BGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector SMT Detail 1
RJ45 Connector SMT Detail 2
RJ45 Connector SMT Detail 3
RJ45 Connector SMT Detail 4
Product Range & Categories
Ethernet RJ45 Connector Categories
Manufacturing Facility 1
Manufacturing Facility 2
Quality Control Testing
Production Process
Precision Equipment
Automation Line
Profile
Established in 1997, the manufacturer is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Enterprise Assembly Line
Advanced Engineering Facility
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping fee covered by the buyer.
What is your delivery time?
We have ready-to-ship items in stock, and the delivery timeline for mass production is typically 15-30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your specific inquiry to us so we can proceed with a detailed discussion of your requirements.
What is your advantage?
We bring over 19 years of dedicated production experience and have maintained partnerships with leading global technology providers for many years.
