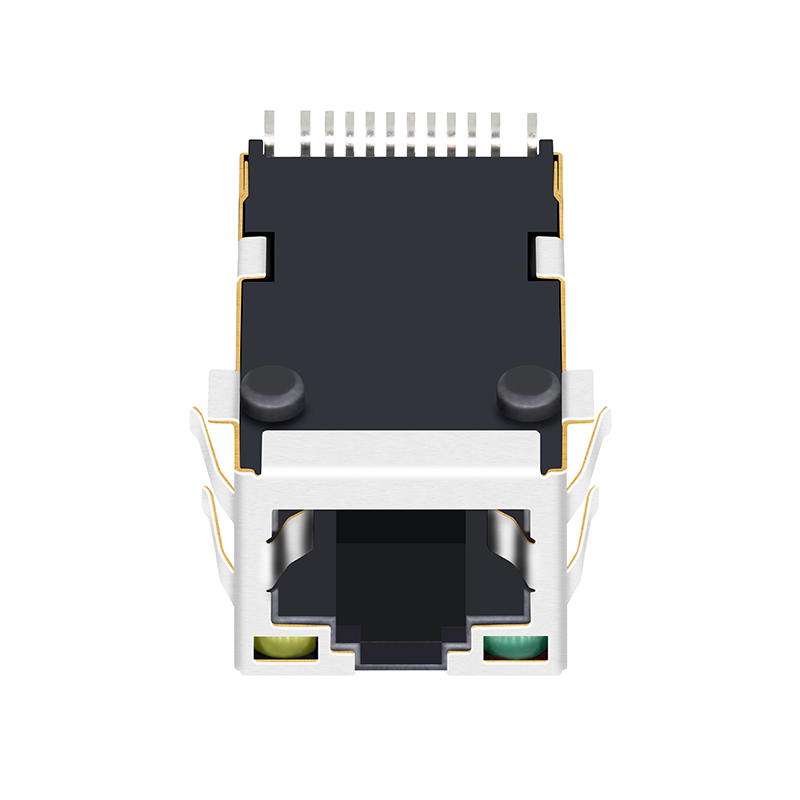

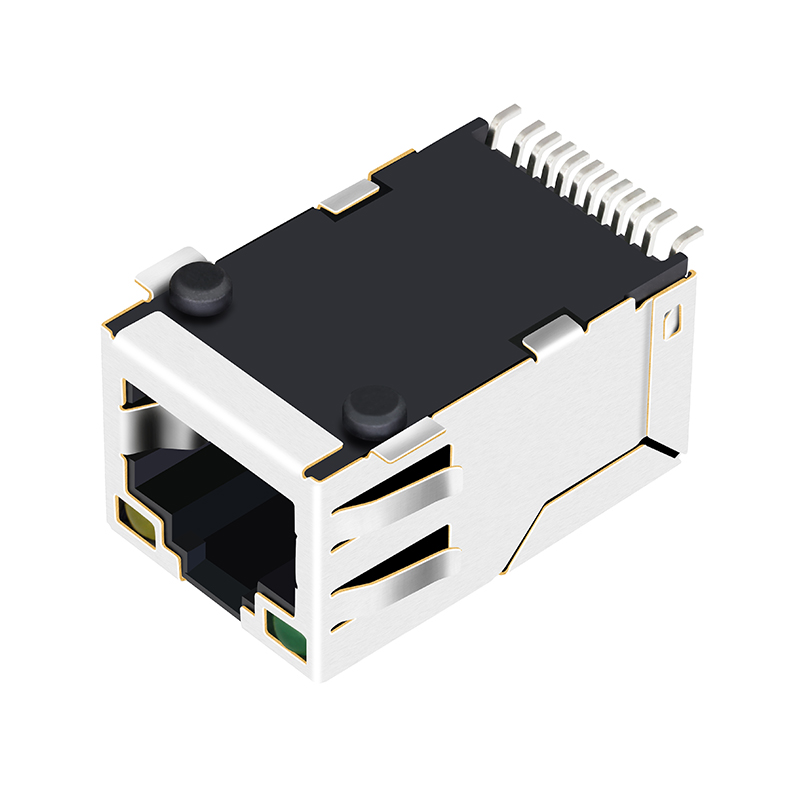

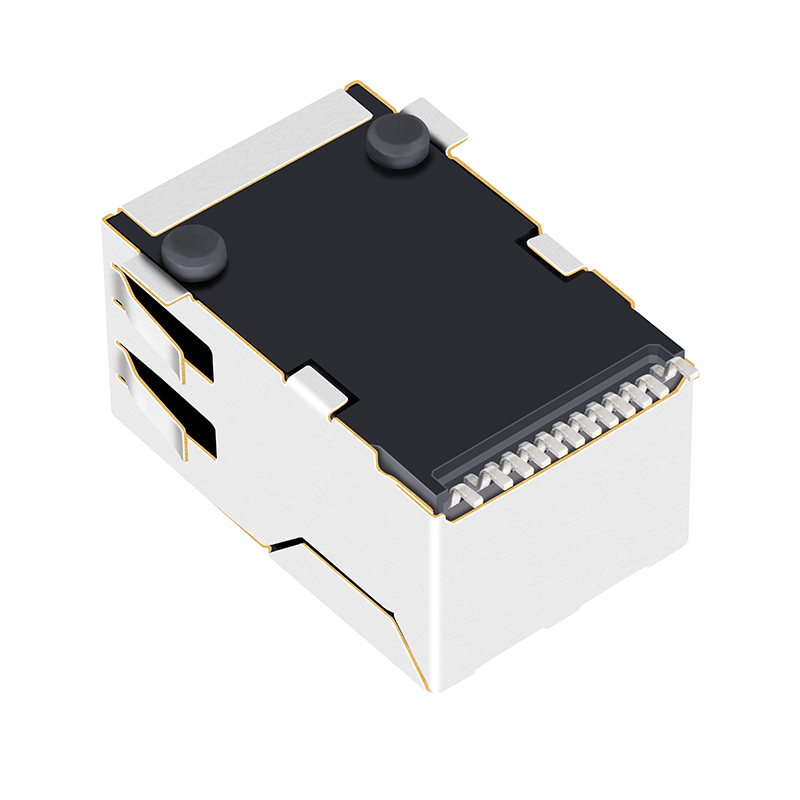

SMT RJ45 Jack With 10/100Base-T Magnetics Module HR961160C

Products Description

Item	RJ45 Female Connector
Part Number	HR961160C
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet (Non-PoE)
Number of Ports	1x1 Port
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0°C TO 70°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Frequently Asked Questions (FAQ)

Q Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, though shipping fees are to be covered by the recipient.

Q What is your delivery time?

We are ready to ship immediately for stock items, and the typical lead time for mass production ranges between 15-30 days.

Q What after-service support do you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Q Can you accept OEM/ODM orders?

Yes, we support OEM and ODM customizations. Please submit an inquiry with your specifications to discuss details.

Q What are your main advantages?

We possess over 19 years of manufacturing experience and maintain long-standing partnerships with leading global enterprises in the industry.
