JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

Product Description

RJ45 Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ3005ABNL
Cross Part Number JX30-0005NL 74980111211 J3011G21DNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

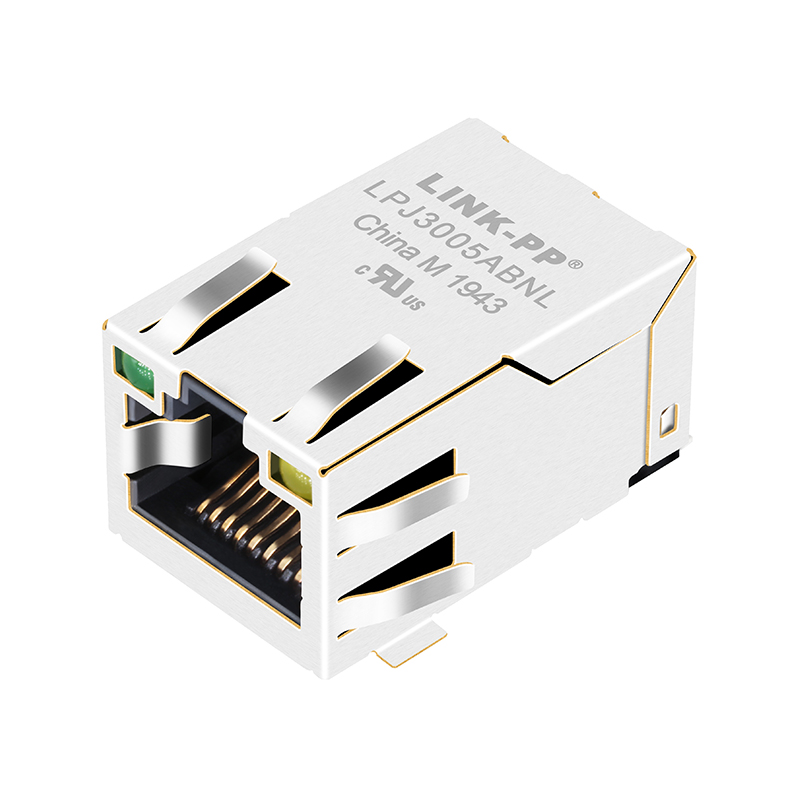

RJ45 Connector Detail View 1

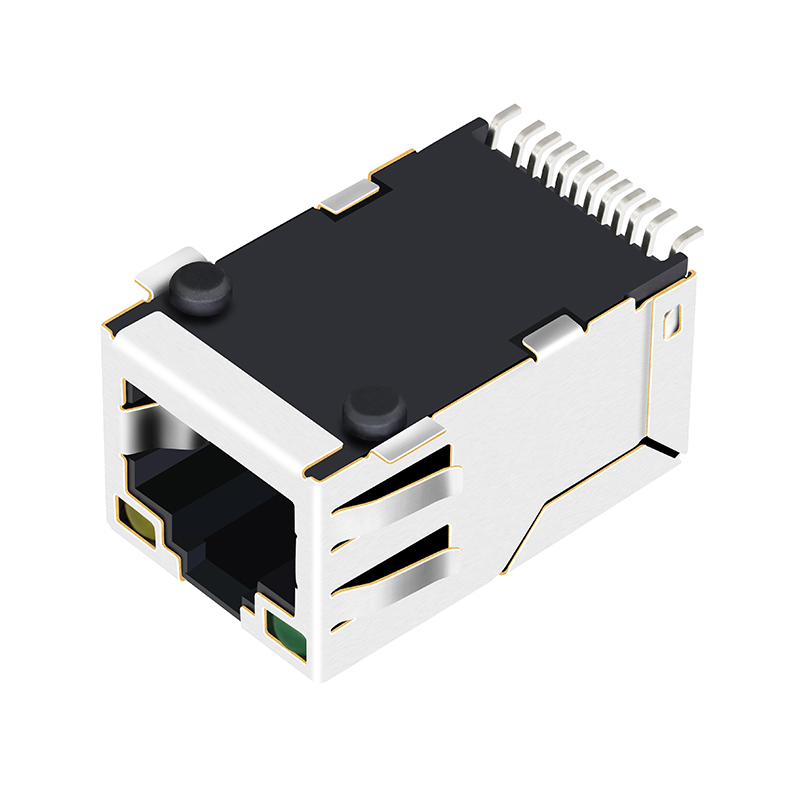

RJ45 Connector Detail View 2
Product Feature 1
Product Feature 2
Product Feature 3
Product Feature 4
Click Below Products Link To Get More
Product Options Grid
Product Inquiry Map
Certifications
Production Process
Quality Management
Testing Equipment
Storage and Logistics
Application Fields
Company Profile
Established in 1997, the company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom design capabilities, the company is a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Company Facility Overview
Office Environment
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you will need to cover the shipping cost.
Q What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically take 15-30 days.
Q What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send an inquiry to us with your requirements so that we can have a detailed discussion.
Q What is your main advantage?
We possess 19 years of professional production experience and have been a trusted partner to global technology industry leaders for many years.
