Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109

Send Inquiry

Product Description

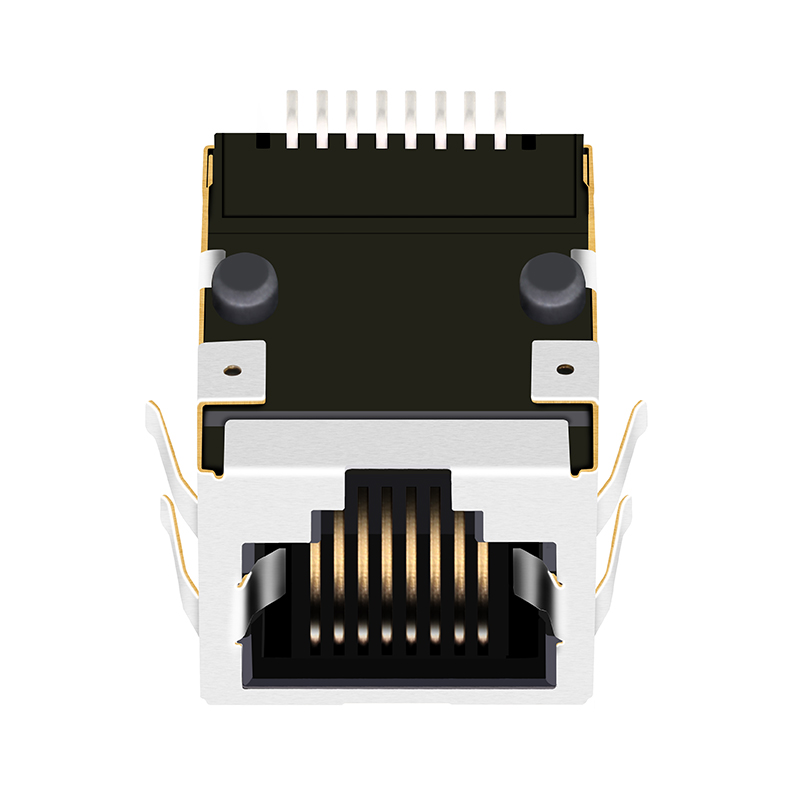

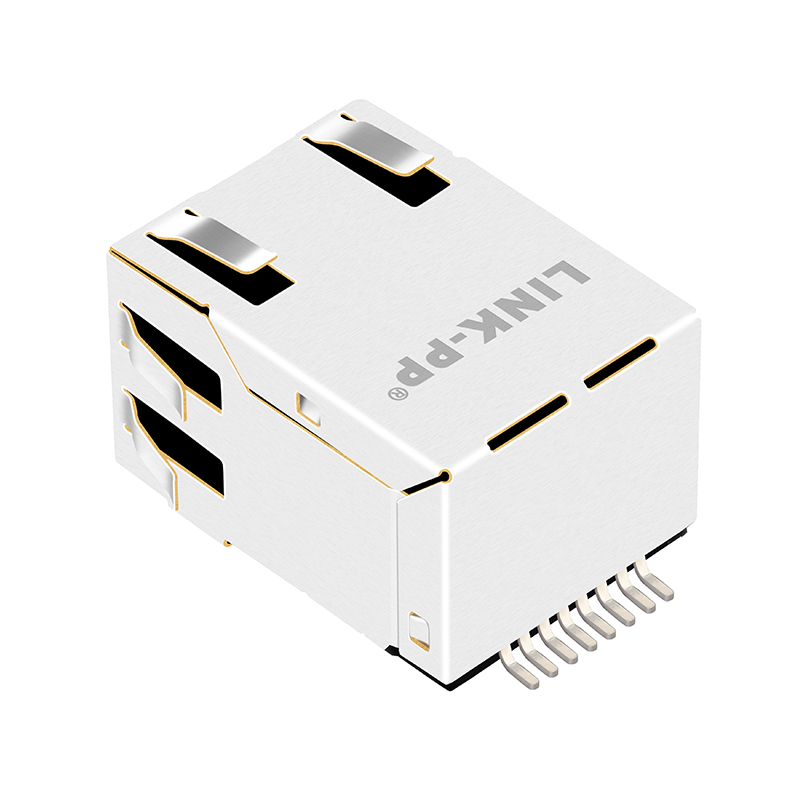

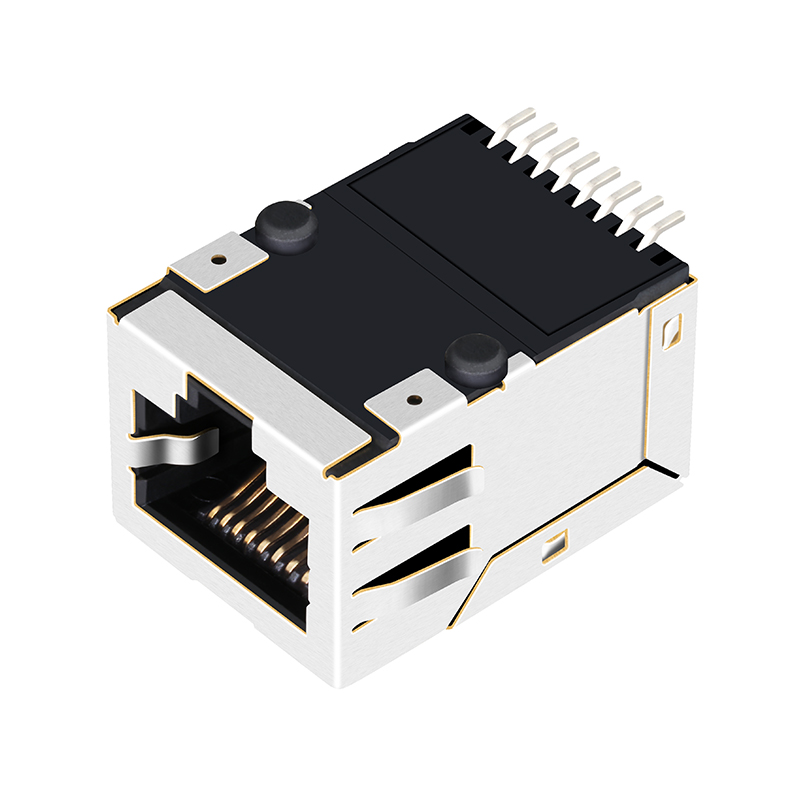

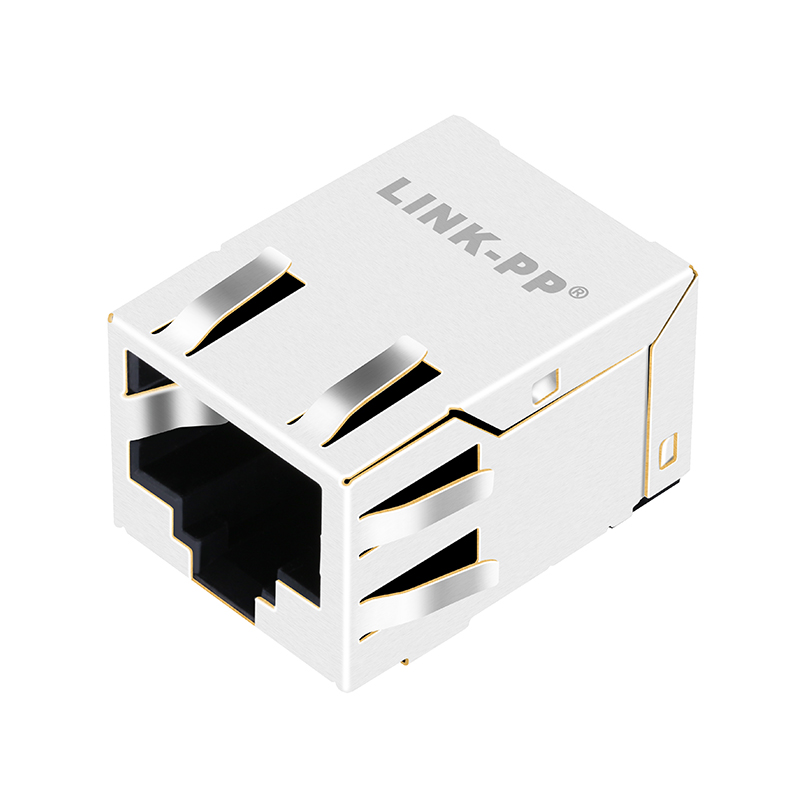

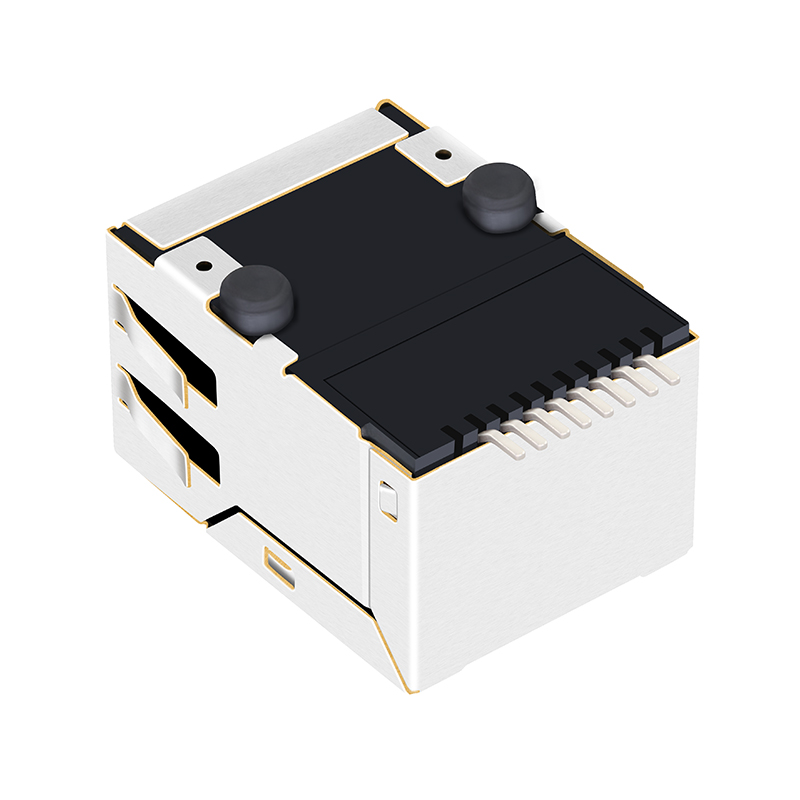

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109

Part Number	0855135109
Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH LEDS/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100/1000 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1
