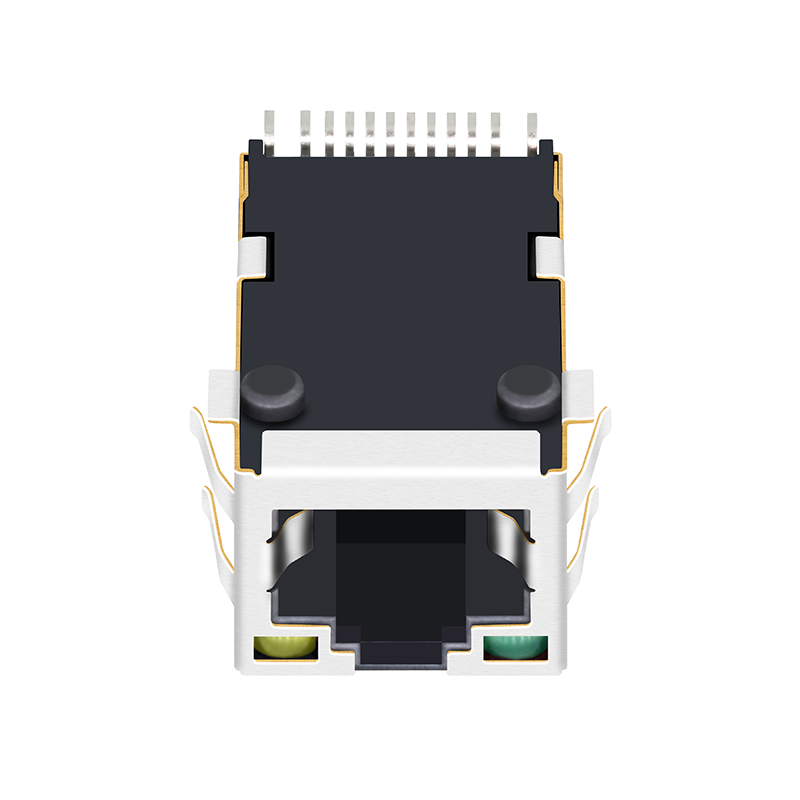

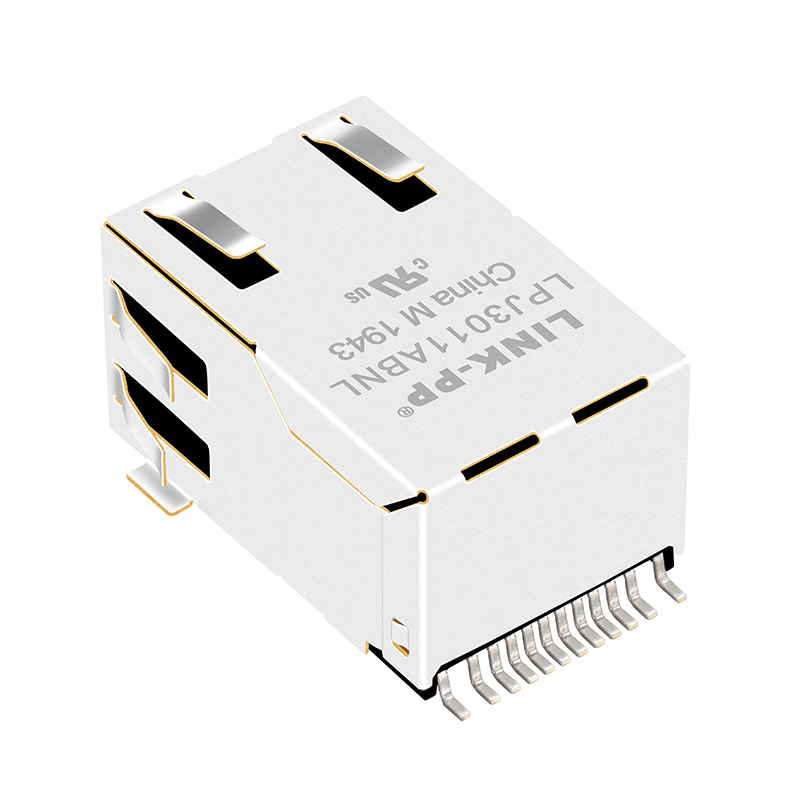

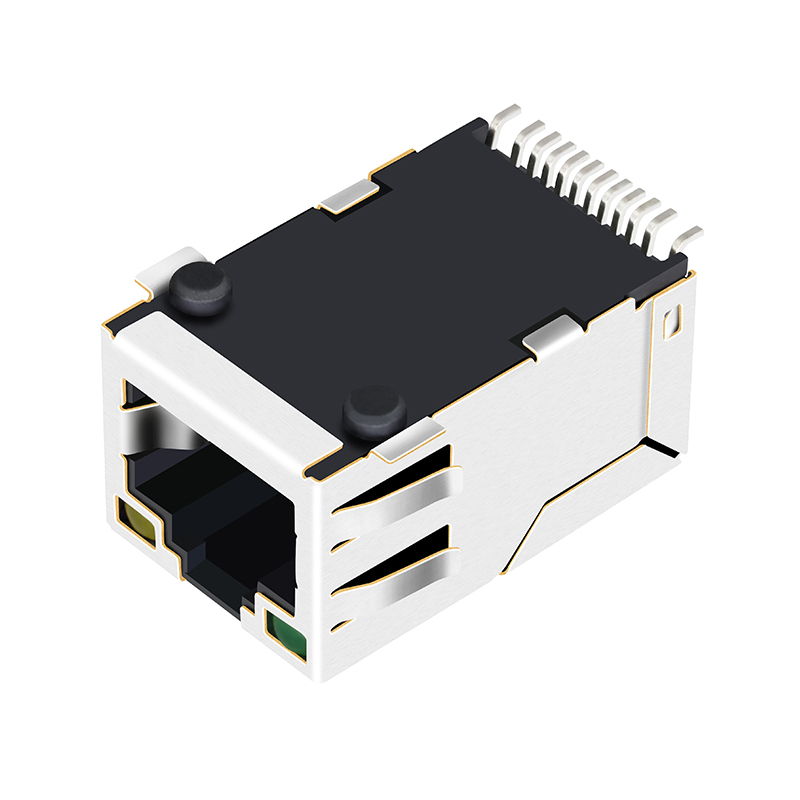

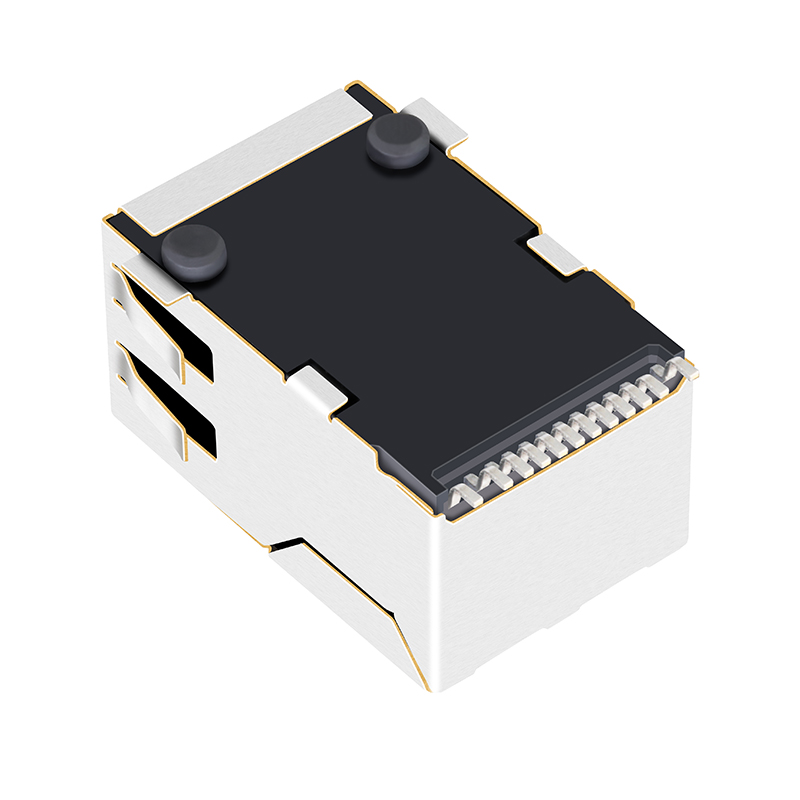

Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
1 / 5
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack
Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack

Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack

Send Inquiry

Product Description

SMT RJ45 Connector
Tab Up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack With Leds
📋 Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product View 1
Product View 2
Product View 3
Product View 4
🔍 Explore Product Range
Product Categories Overview
⚙️ Technical Specifications & Dimensions
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Diagram 1
Technical Diagram 2
Technical Diagram 3
Bottom Banner
❓ Frequently Asked Questions (FAQ)
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are to be covered by the customer.
Q What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
Q What after-sales service do you offer?
We provide a one-year warranty period alongside 24-hour online technical support.
Q Do you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please send us your requirements so we can proceed with a detailed discussion.
Q What are your main advantages?
We have 19 years of professional production experience and have established long-term partnerships with leading global technology brands.
