Product Description

Ethernet Connector Overview

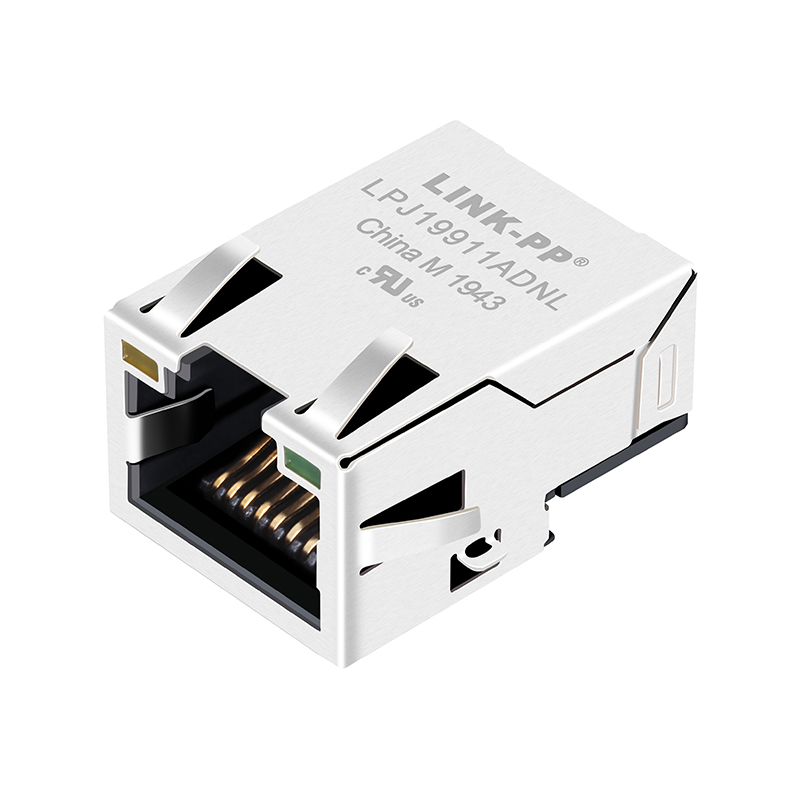

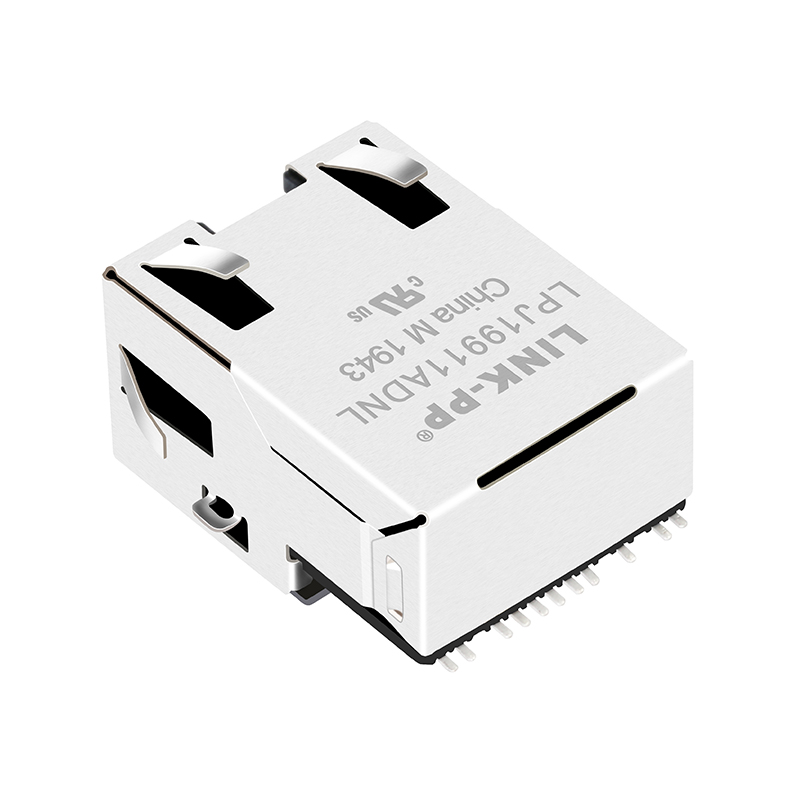

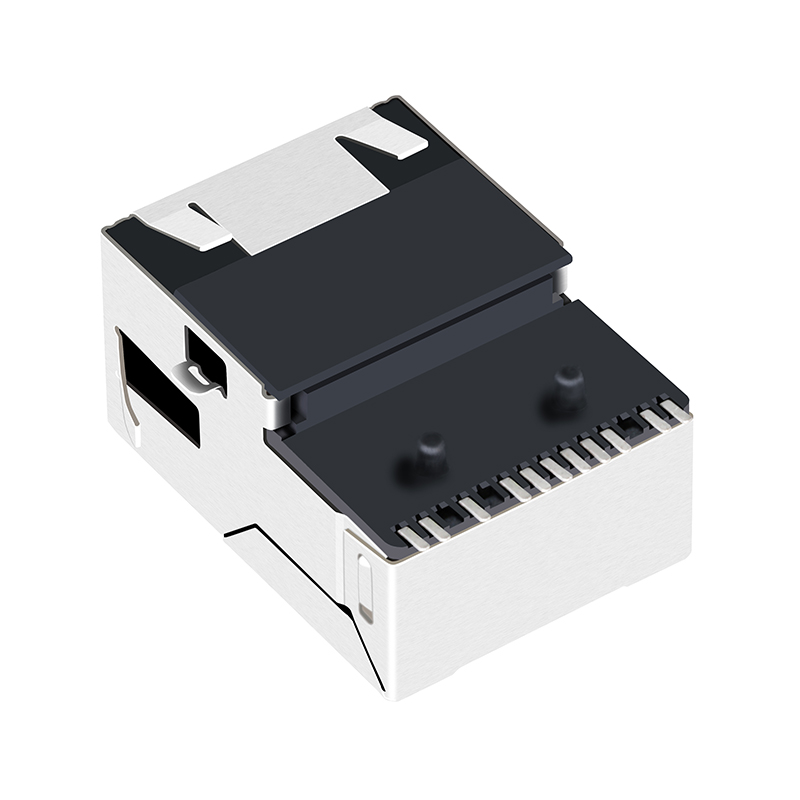

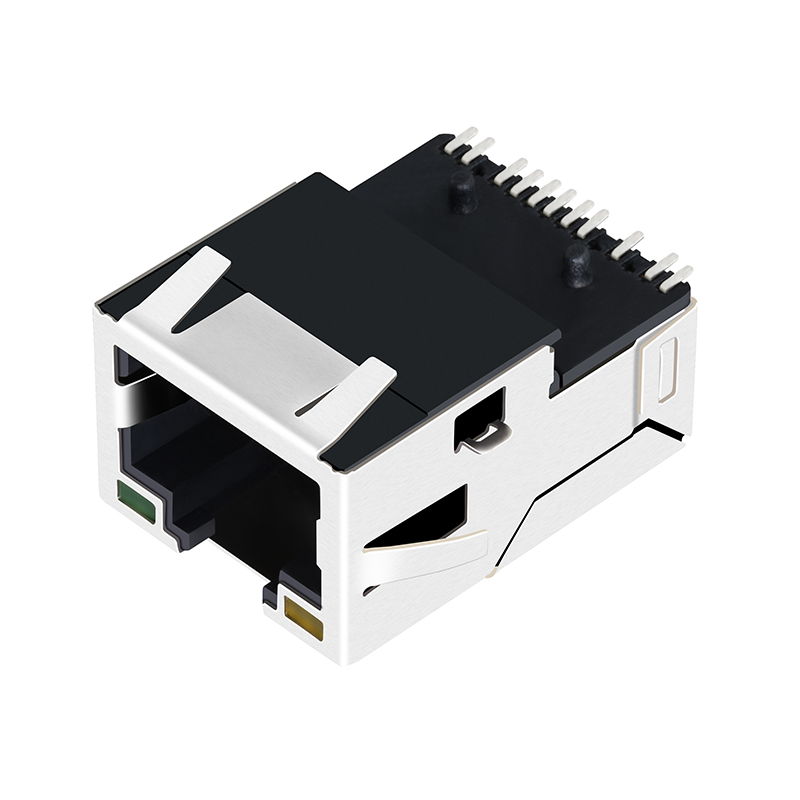

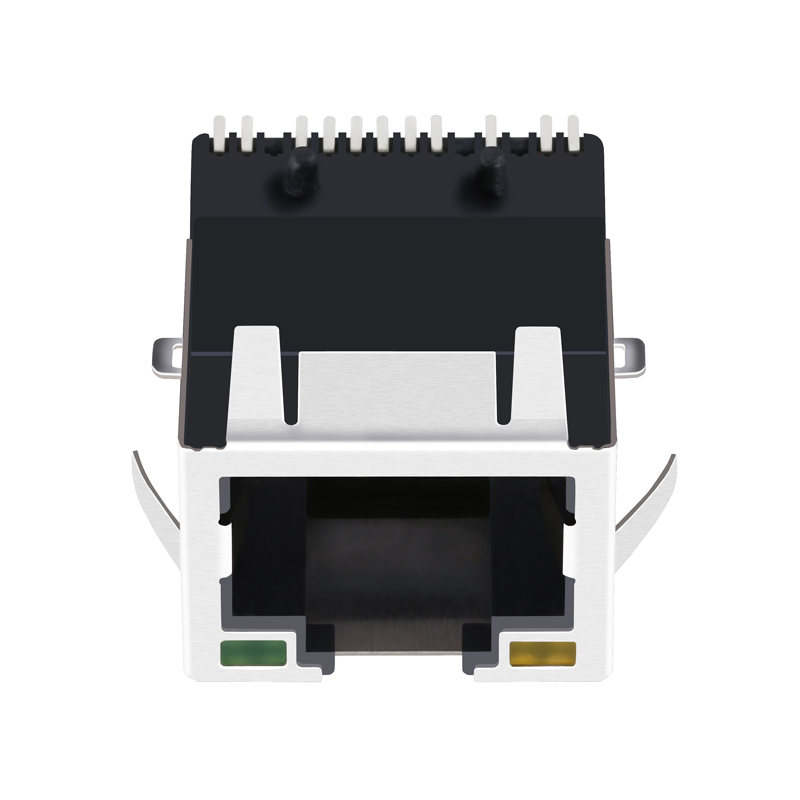

7498011122 7498011122AR Tab Up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds

Products Description

Item RJ45 Female Connector
Part Number LPJ19911ADNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 180° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
Auto-MDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
