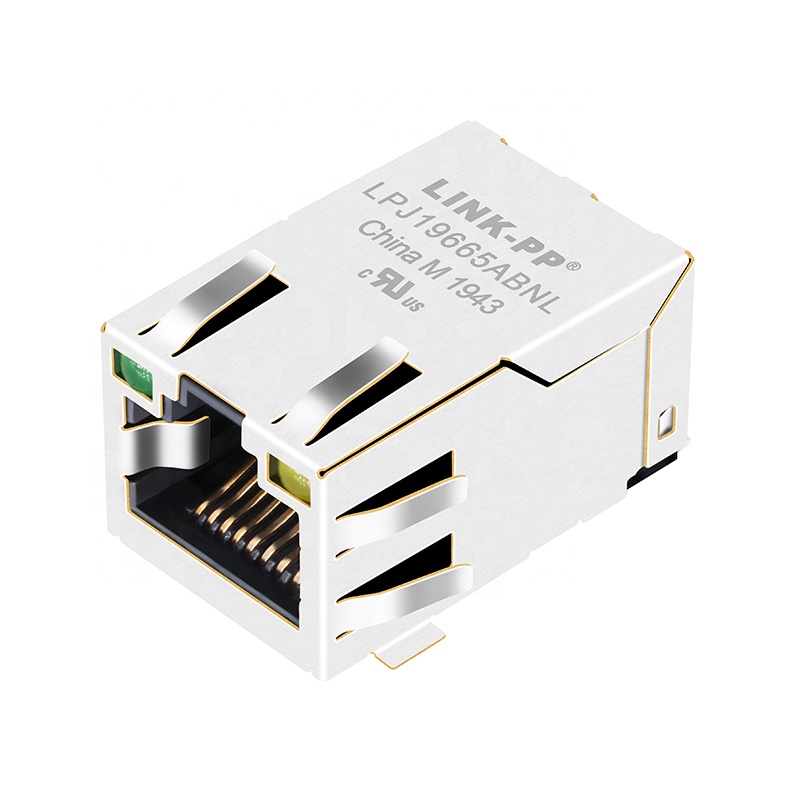

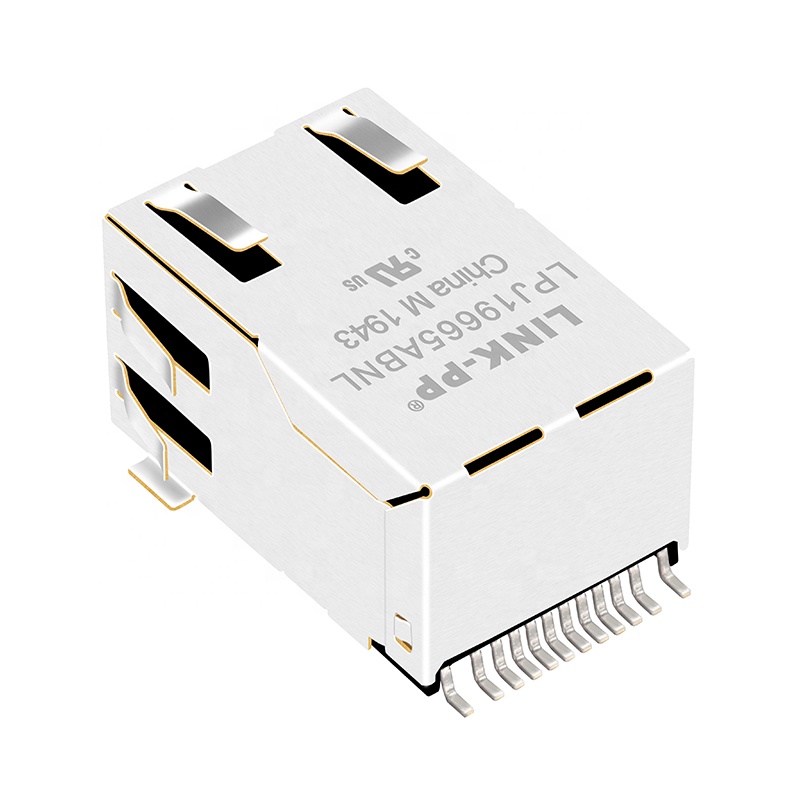

SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
1 / 5
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A

SMT RJ45 Male to Female Connector with LED 7498010210A

Send Inquiry

Product Description

SMT RJ45 Male to Female Connector with LED 7498010210A
RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Number LPJ19665ABNL
Reference Part Number 7498010210A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Detail View 1 Product Detail View 2
Product Specification Drawing 1 Product Specification Drawing 2 Product Specification Drawing 3 Product Specification Drawing 4
💡 Click Below Products Link To Get More
Related Products Selection
Production Process 1 Production Process 2 Production Process 3 Quality Inspection 1 Quality Inspection 2 Quality Inspection 3
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be covered by your side.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typical lead times range from 15 to 30 days.
What after-service can you offer?
We offer a one-year warranty period and provide 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can discuss your specific requirements in detail.
What is your advantage?
We have over 19 years of professional production experience and have partnered with global industry leaders for many years.
