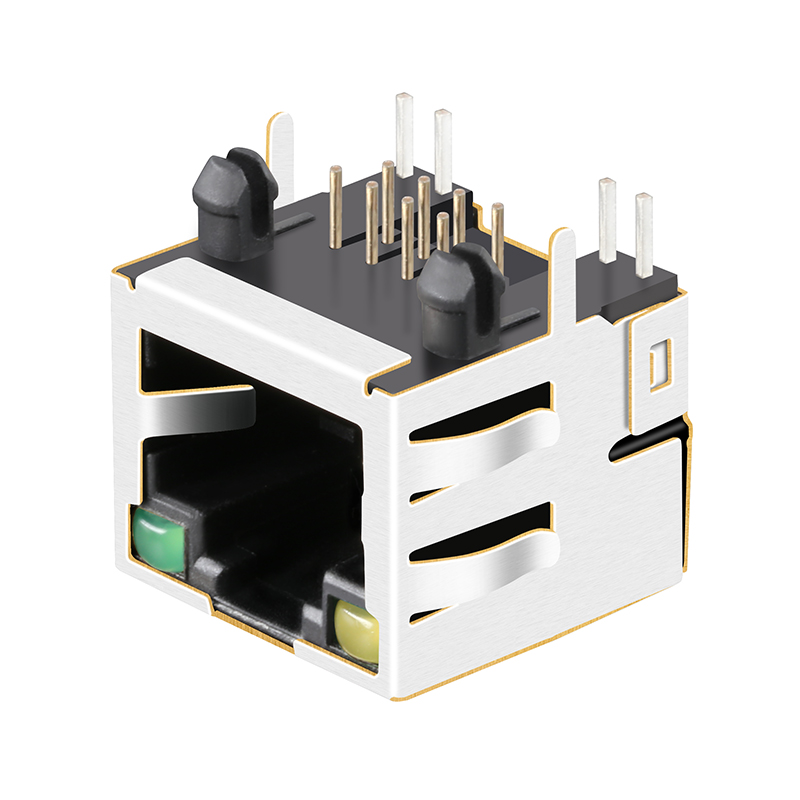

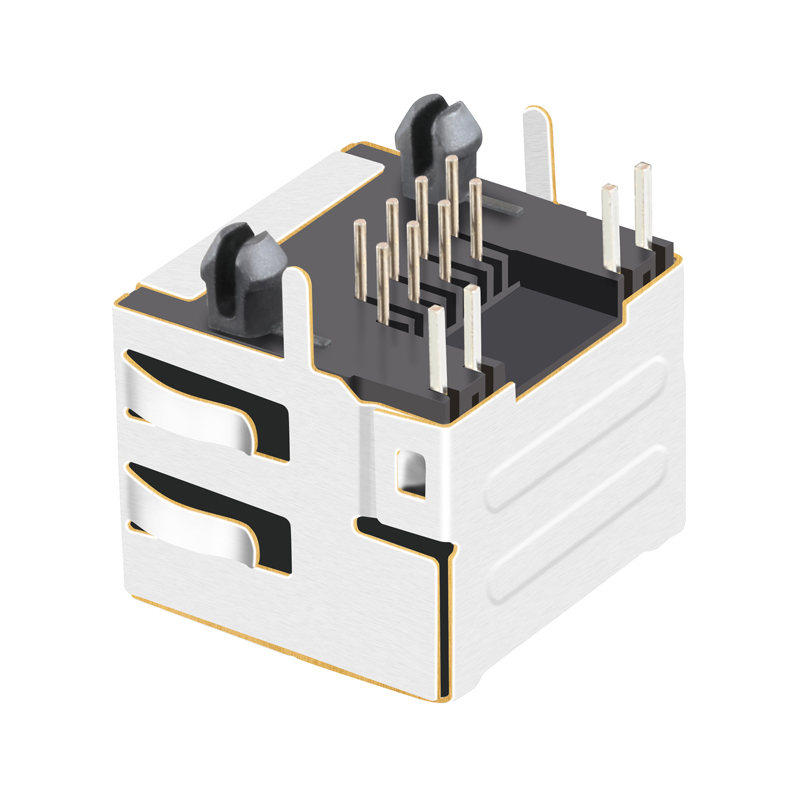

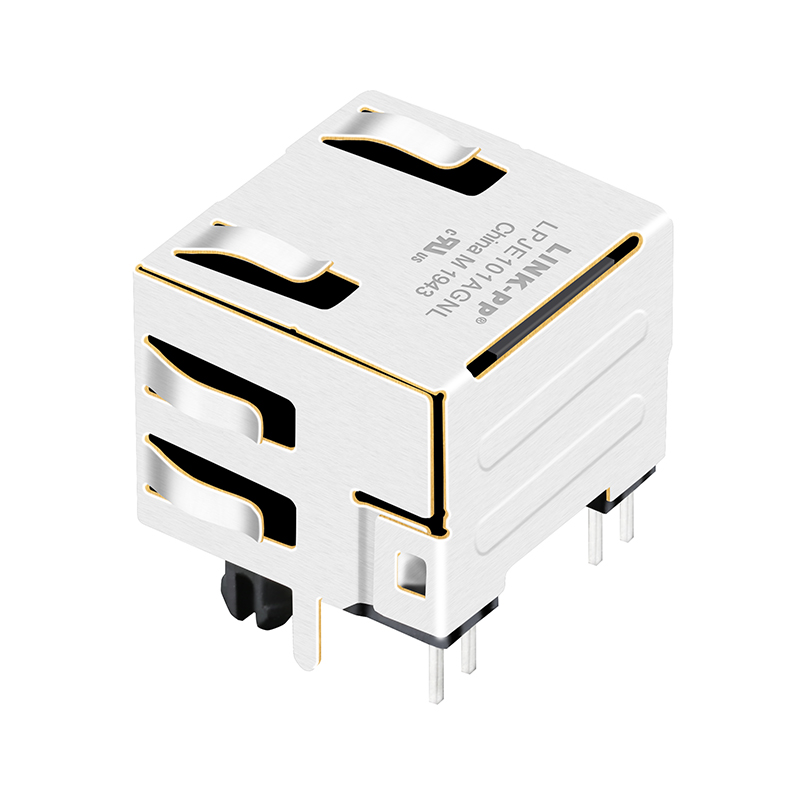

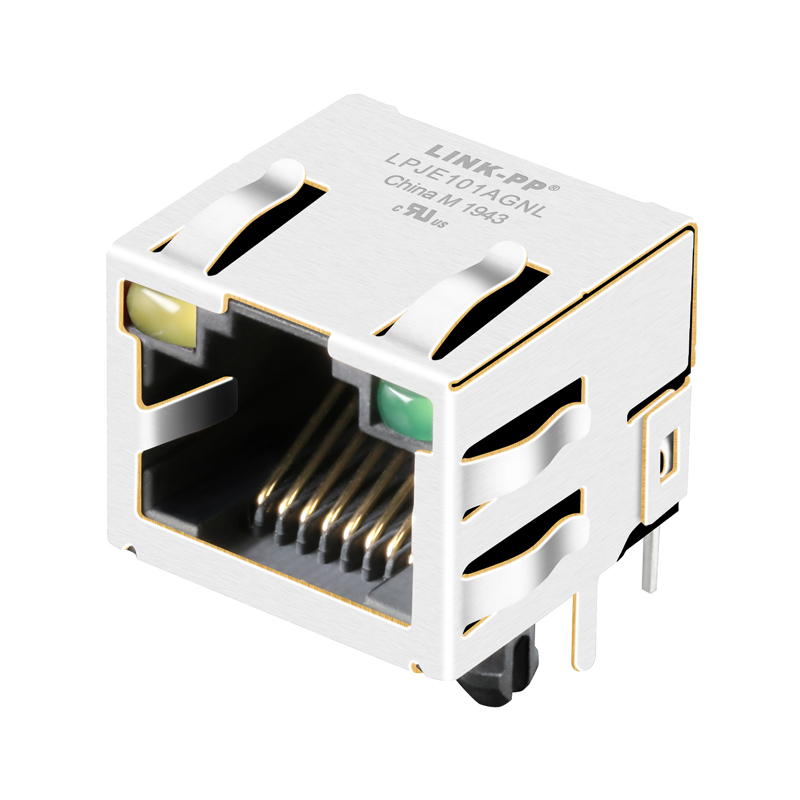

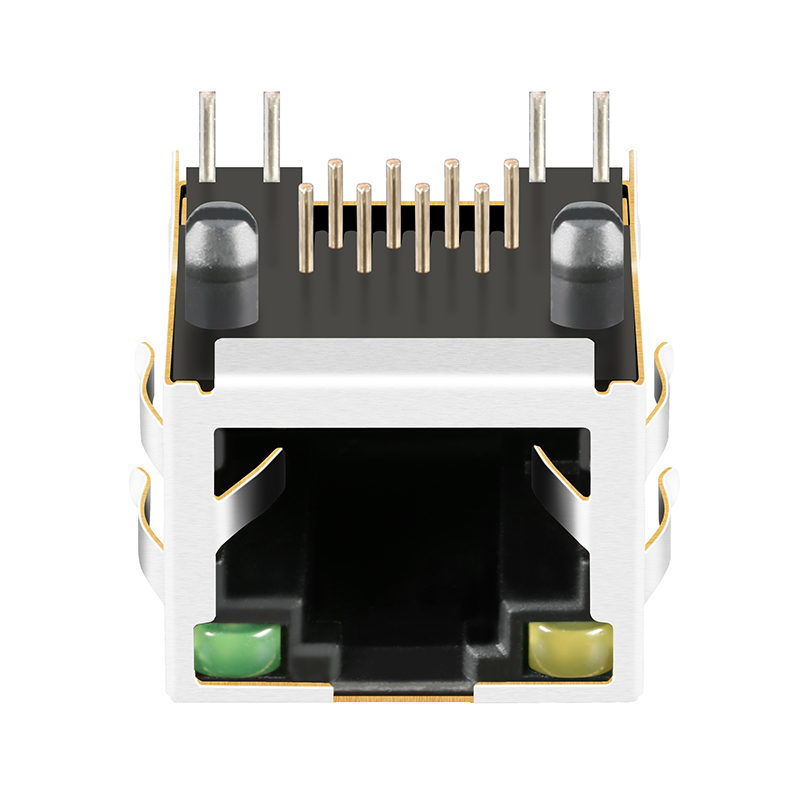

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Product Description

Specification

Item	Value
Model Number	LPJE101AGNL
Part Status	Active
Connector Type	RJ45
Applications-Lan	-
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green
Number of Cores per Jack	-
Shielding	Shielded
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	-40°C ~ 85°C

Packing & Delivery

Package Configuration: 100 pcs in 1 tray, 3000 trays in 1 carton.
Dimensions: 54.5 * 28.5 * 27 cm
Weight: 13.1 KGS per carton (3000 pcs)

Factory & Production Showcase

Characteristics

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Frequently Asked Questions

What components do you specialize in?

We supply high-quality RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

How is product quality guaranteed?

We strictly guarantee quality by providing a pre-production sample before starting mass production, followed by a thorough final inspection before all shipments.

What are your manufacturing capabilities and qualifications?

With over 19 years of dedicated manufacturing experience, we have a productive capacity of 30,000K units per week. Our products and processes are fully certified by SGS, ISO9001:2008, UL, REACH, and CE.

Which delivery terms do you accept?

We support a wide range of delivery methods including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.

What payment options do you support?

We accept multiple payment currencies (USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF) via various payment options, including T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.

What are the standard packaging specifications?

Standard packaging consists of 100 pcs per tray, and 3000 trays per carton. Outer carton dimensions are 54.5 * 28.5 * 27 cm, with a gross weight of approximately 13.1 KGS.
