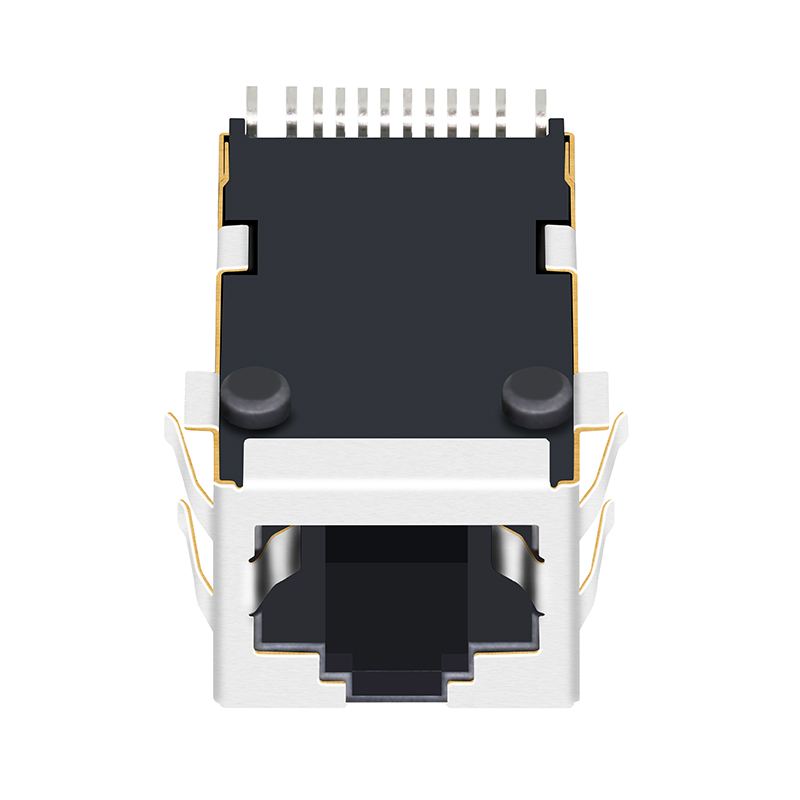

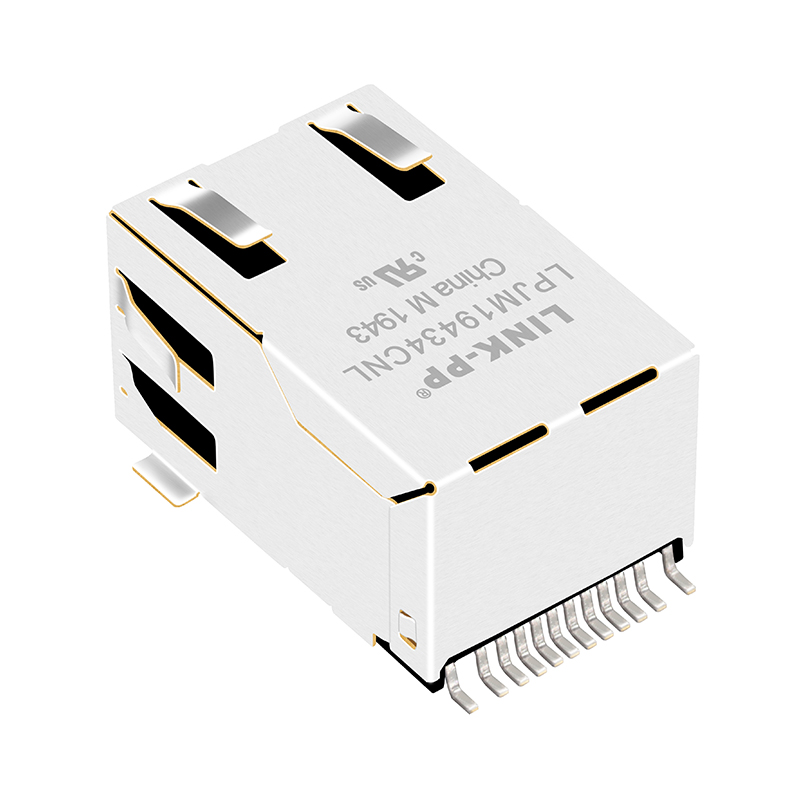

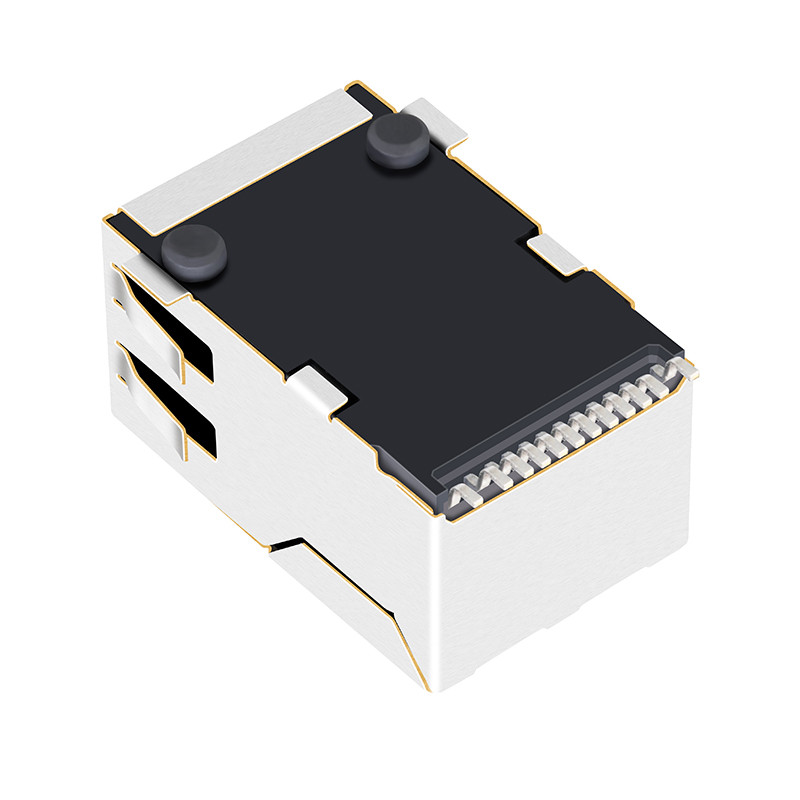

Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led

Product Description

RJ45 Female Connector Category
Tab Up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Products Description
Item RJ45 Female Connector
Part Number LPJM19434CNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port, SMT
Speed 2.5G Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs With
LED Option Without
PCB FR4
PCB Retaining Post T Post
Temperature -40°C to 85°C
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating Gold 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

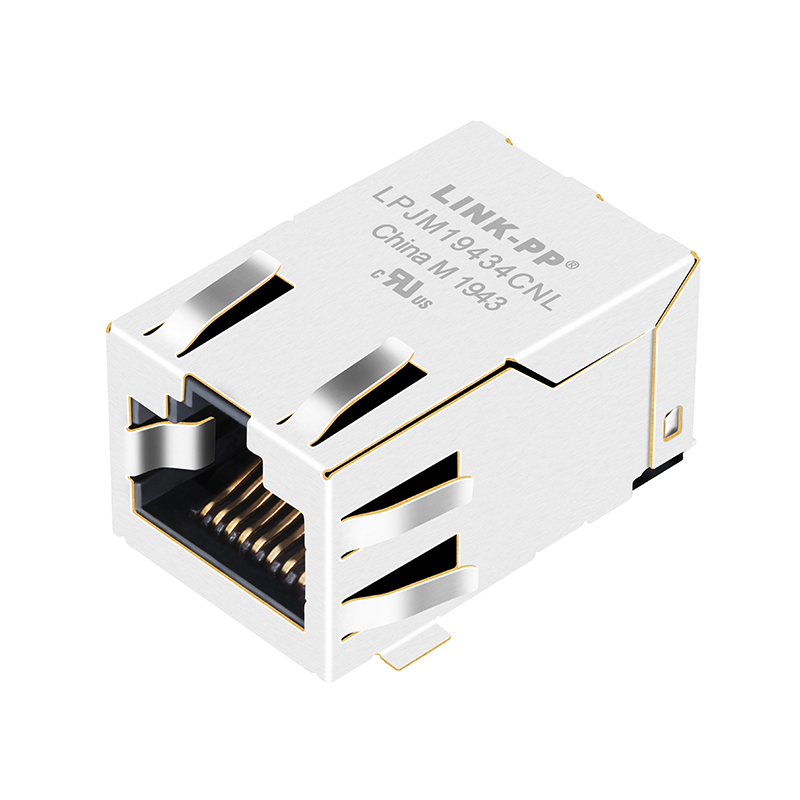

Product Perspective View 1

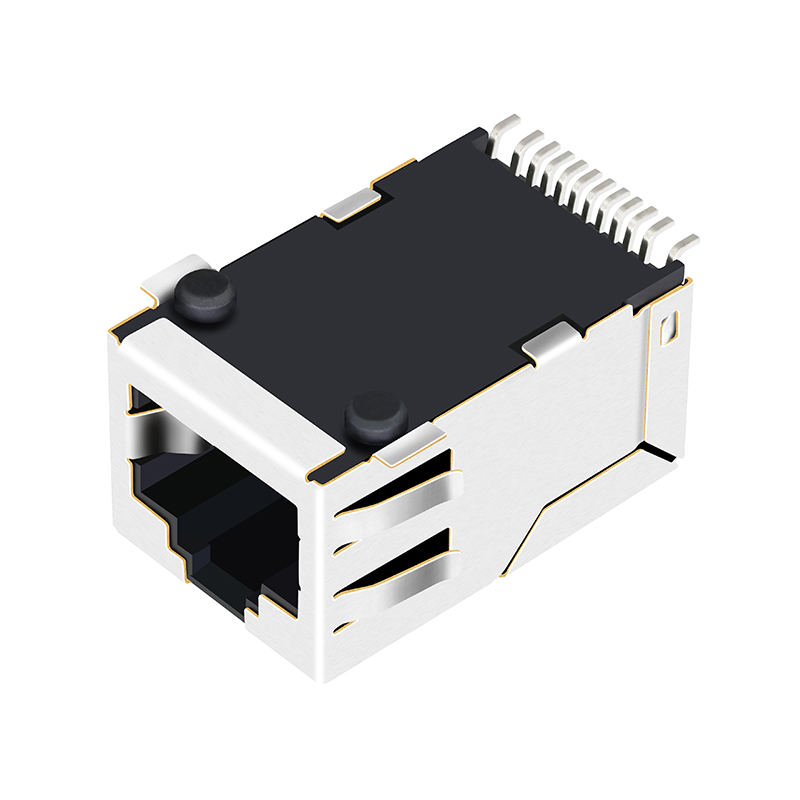

Product Perspective View 2
Technical Drawing Front
Technical Drawing Side
Technical Drawing Top
Technical Drawing Footprint
Explore Product Categories
Connector Category Mapping
Manufacturing Excellence & Quality Control
Production Facility 1
Production Facility 2
Testing Laboratory
Quality Assurance 1
Quality Assurance 2
Quality Assurance 3
Corporate Overview

Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. Offering an extensive line of state-of-the-art catalog products alongside custom design capabilities, we serve as a reliable global supplier for OEMs, contract manufacturers, and CEMs.

With thousands of active customers across more than 200 countries, we are committed to providing top-quality Ethernet RJ45 connectors and LAN transformers. By establishing efficient multi-warehouse systems in key regions and maintaining steady inventory levels, we ensure timely and stable delivery to meet global demands.

Production Line Workflow
Factory Warehouse
Frequently Asked Questions
QAre you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
QCan I get a sample before placing a mass production order?
Yes, we can provide free samples to test the quality, but shipping costs must be covered by the buyer.
QWhat is your typical delivery time?
In-stock items are ready to ship immediately, while mass production typically takes 15 to 30 days.
QWhat after-sales service and support do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
QCan you accept custom OEM or ODM orders?
Yes, we support both OEM and ODM orders. Please contact us with your specifications so we can discuss the requirements.
QWhat is your manufacturing advantage?
We possess over 19 years of dedicated production experience and maintain long-term partnerships with leading global enterprises in the electronics sector.
