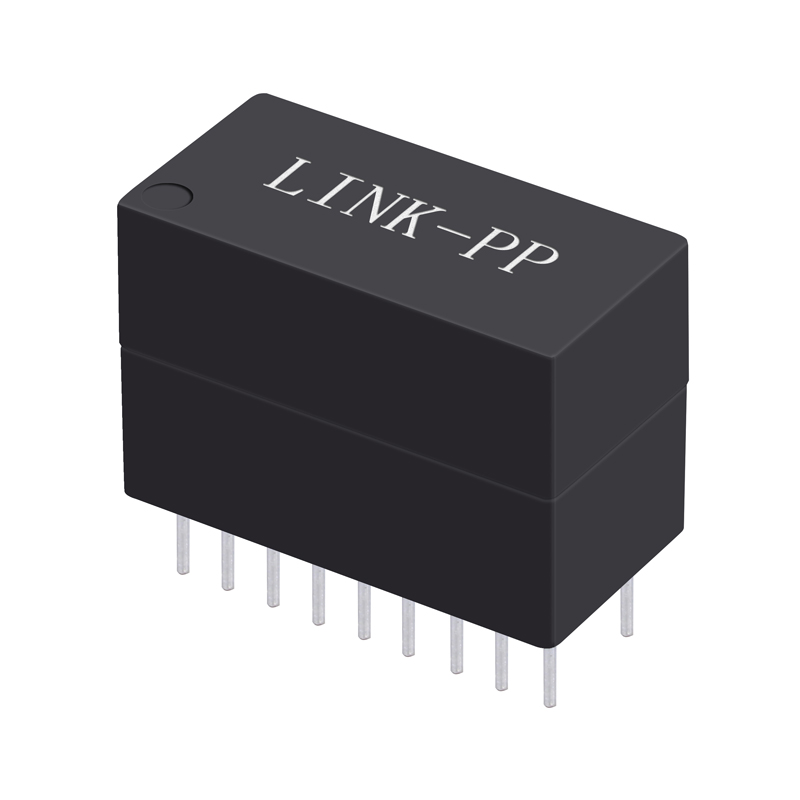

100 Base-T single port through hole Magnetics Transformer BD16A01
| Item |
Lan Transformer |
| Replaceable Brand Model |
BD16A01 |
| Part Status |
Active |
| Construction |
Open Frame |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1 Port |
| Speed |
100 Base-t |
| Cores per Port |
4 |
| Pin Number |
12 Pin |
| Mounting Type |
Dip |
| Temperature |
0℃ TO 70℃ |
| AutomDX |
YES |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C,S |
| Package |
Tape & Reel |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.
Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.
Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
Over 19 years of production experience, and partnering with major industry players like Intel and Jabil for many years.
