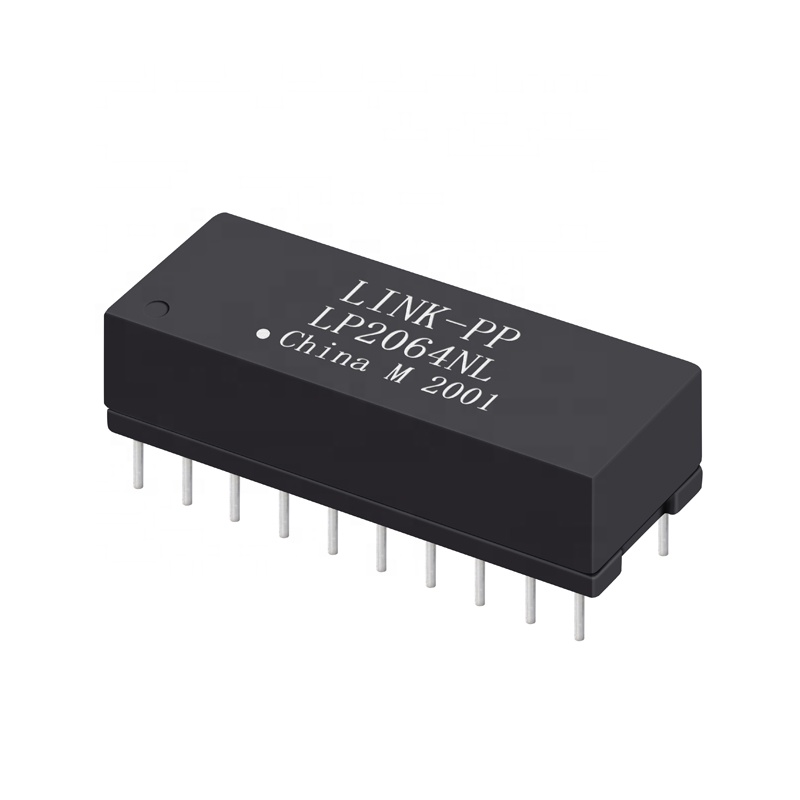

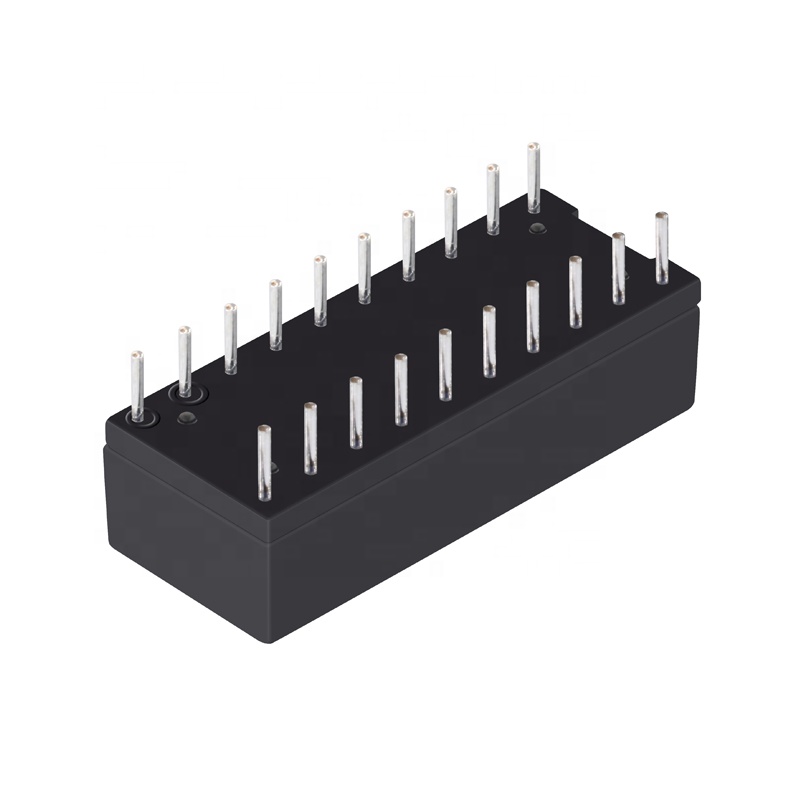

THT Dual Port 10/100 BASE-T Telecom Lan Transformer LP2064NL

Product Description

Telecom Lan Transformer Banner
THT Dual Port 10/100 BASE-T Telecom Lan Transformer LP2064NL
Products Description
Item Lan Transformer
Replaceable Brand Model LP2064NL
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Dual Port
Speed 100 Base-t
Cores per Port 8
Pin Number 20 Pin
Mounting Type THT
Temperature 0°C TO 70°C
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Lan Transformer Detail 1
Lan Transformer Detail 2
Lan Transformer Detail 3
Lan Transformer Structure
Lan Transformer Outline
Product Blueprint 1
Product Blueprint 2
Why Choose Us
Quality Assurance
Advanced Equipment
Global Delivery
Excellent Service
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Manufacturing Facility 1
Manufacturing Facility 2
Production Process
Testing Lab
Frequently Asked Questions
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to pay the shipping fee.
Q What is your delivery time?
We are ready to ship from stock, and it takes 15-30 days for mass production of non-stock items.
Q What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your specific needs.
Q What is your advantage?
We have 19 years of manufacturing and production experience, partnering with top global brands for many years.
