Product Description

LAN Transformer Overview
Product Feature 1
Product Feature 2
Product Feature 3

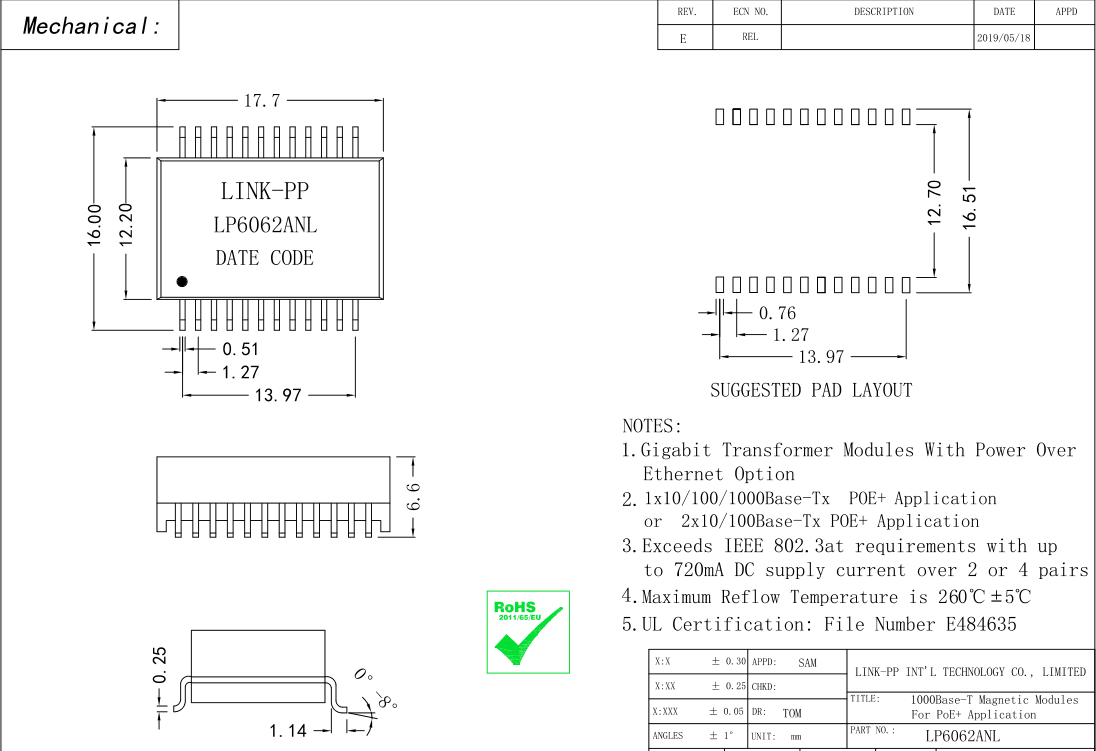

Technical Drawing
Product Specifications
Item Value
Place of Origin China
LINK-PP Part Number LP6062ANL
Halo Part Number TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40°C TO +85°C
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Component Showcase
Packaging Information
N.W / pcs 0.004 kg
Package Type Reel
SPQ 400 pcs
Qty / Carton 1600 pcs
Carton Size 37 * 37 * 25 cm
G.W / Carton 5.8 kg
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Manufacturing Details
Frequently Asked Questions
What is the application range of this LAN transformer?
This LAN transformer is designed for 10/100/1000 Base-T Ethernet setups and supports PoE+ (Power over Ethernet) configurations, making it suitable for standard and powered networking devices.
Is the LP6062ANL compatible with the Halo TG1G-S012NZRL?
Yes, the LP6062ANL is cross-referenced as an equivalent part number to the Halo TG1G-S012NZRL, offering matching footprint configurations and electrical parameters.
What are the key mounting specifications?
The component features a Surface Mount (SMD) design with 24 pins, engineered for automated pick-and-place board assembly processes.
What is the operational temperature range?
The transformer functions reliably under industrial-grade conditions, with an operating temperature window ranging from -40°C to +85°C.
How is this product packaged for shipment?
It is shipped in Tape & Reel format with a Standard Package Quantity (SPQ) of 400 pieces per reel, and 1,600 pieces stored per shipping carton.
What is the turn ratio and core layout structure?
It has a turns ratio of 1CT:1CT for both RX and TX channels, structured with 8 cores per port and configured using standard T, C, S (Transmitter, Center Tap, Shunt) configurations.
