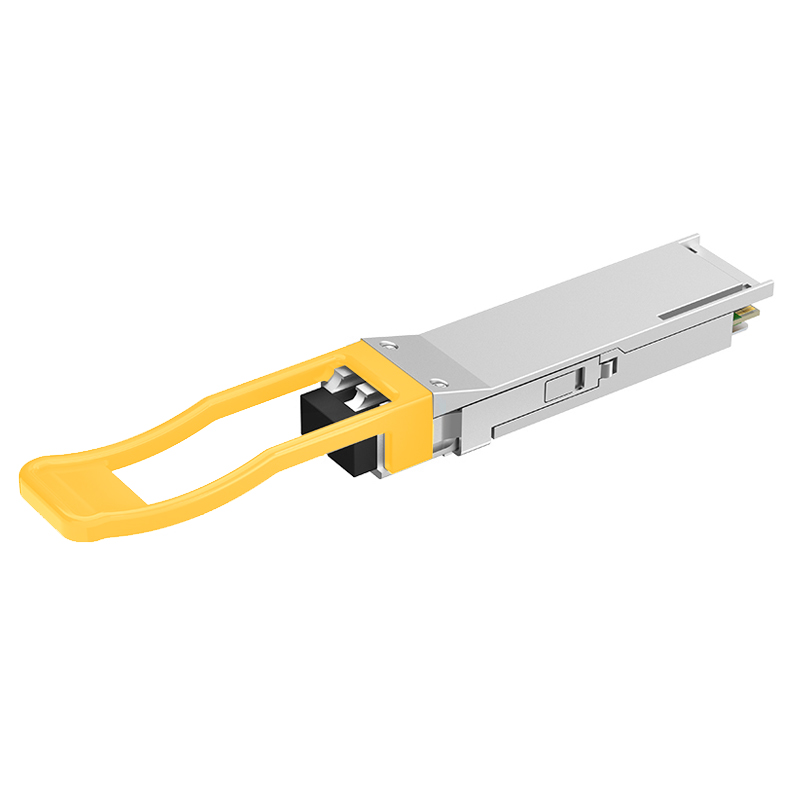

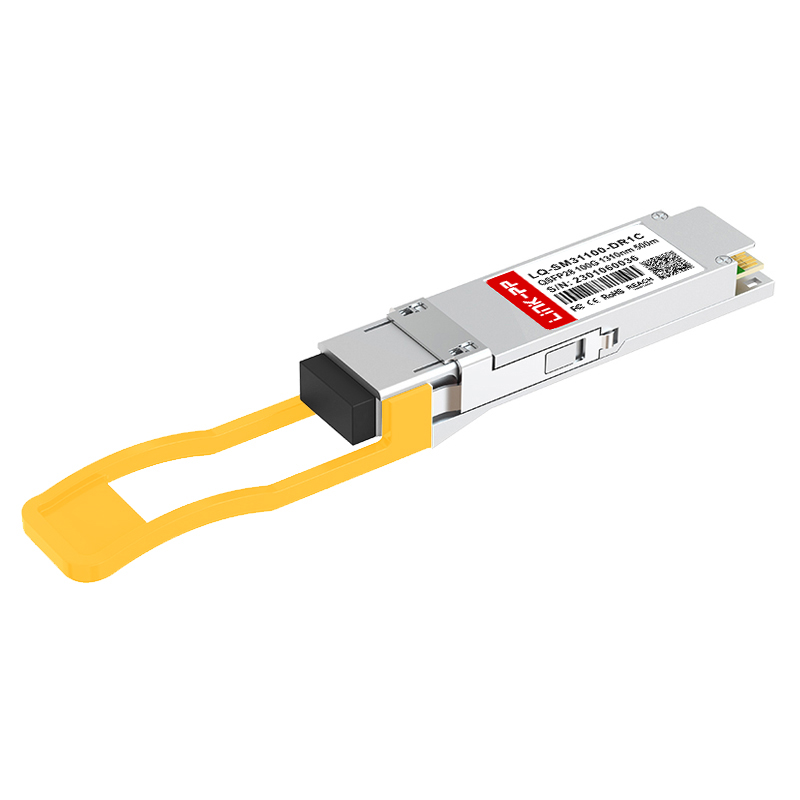

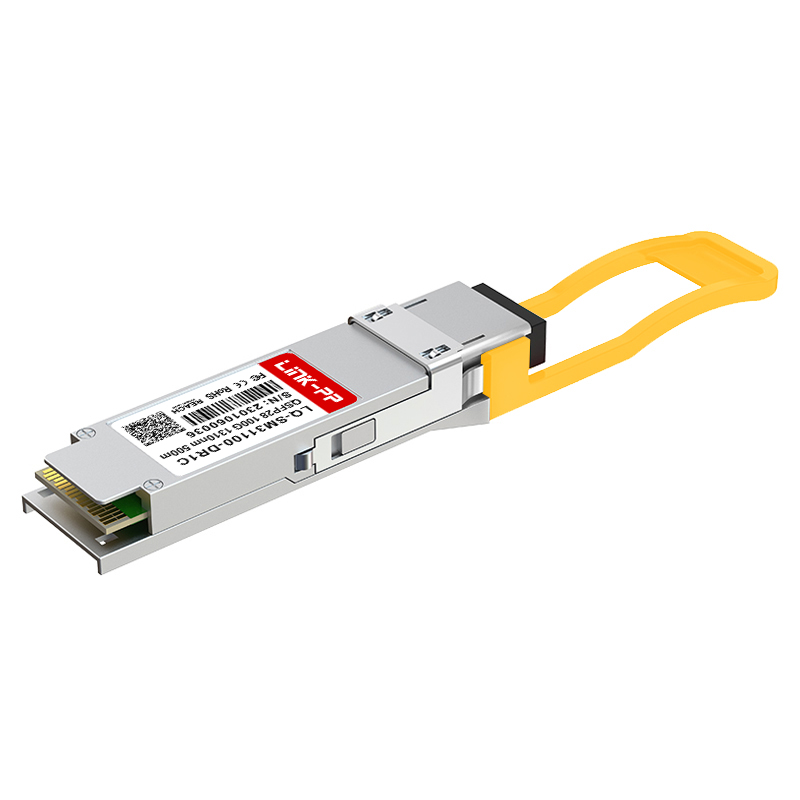

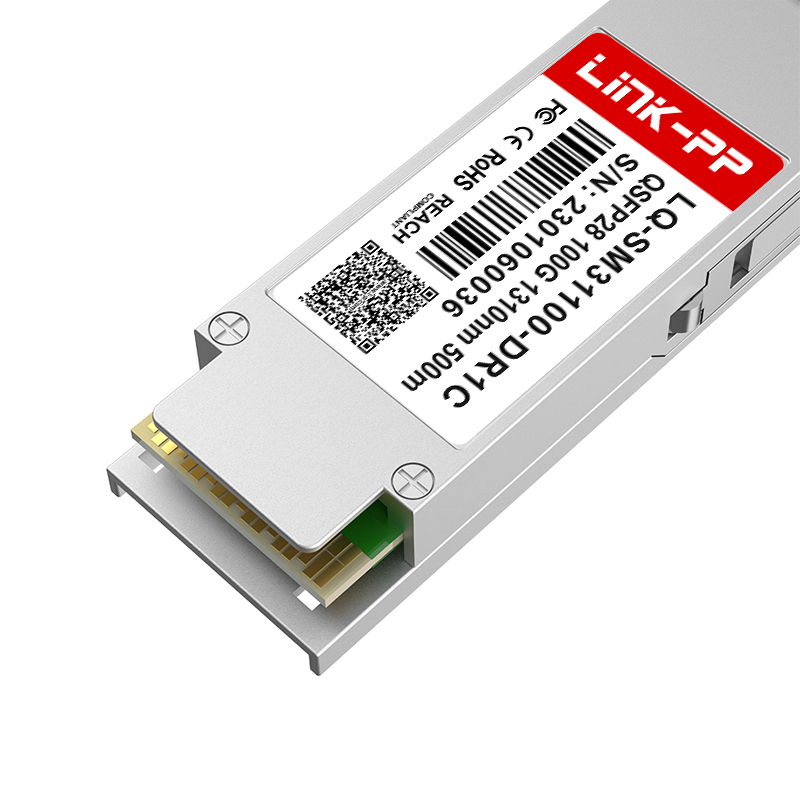

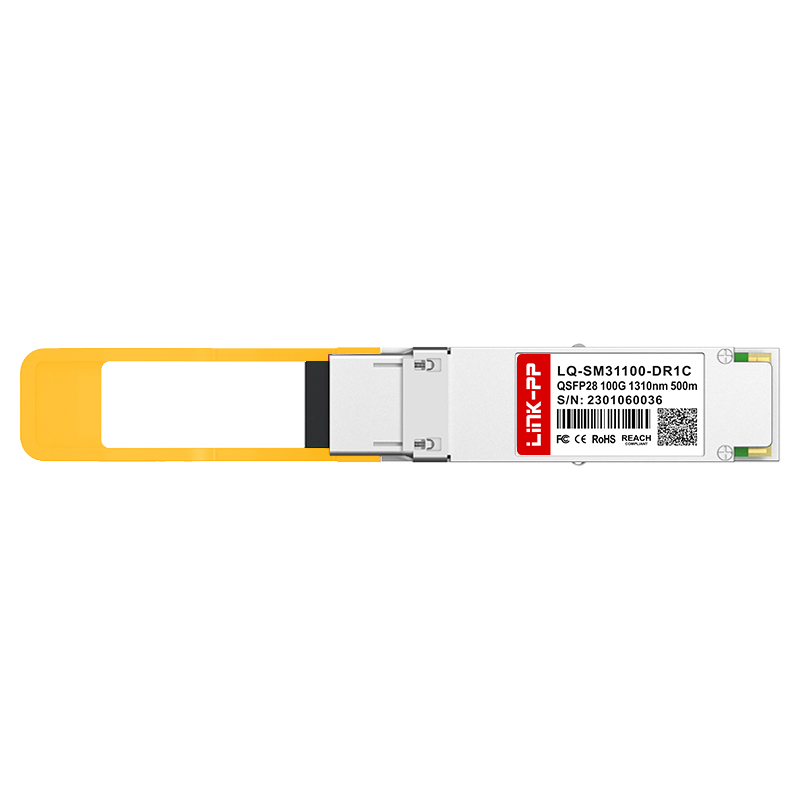

| Part No. | LQ-SM31100-DR1C |
| Form Factor | QSFP28 |
| Max Data Rate | 100Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 500m |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | EML |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | IEEE 802.3cd 100GBASE-DR Specification compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
