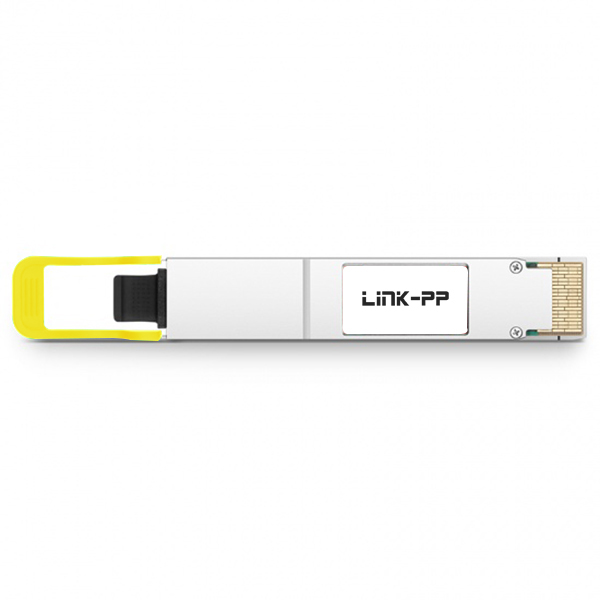

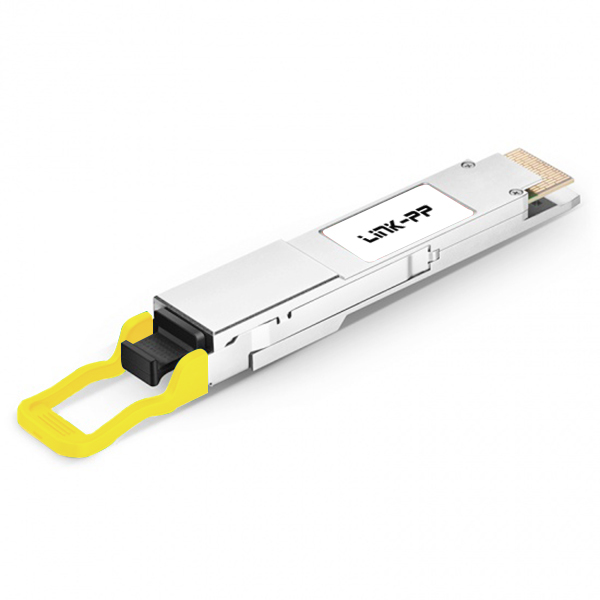

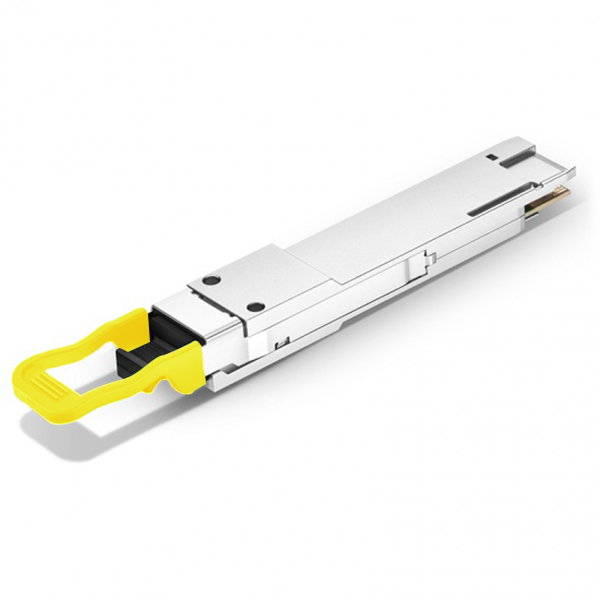

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module

Product Description

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 425Gbps (4x106.25Gb/s)
Max Cable Distance 500m
Wavelength 1310nm

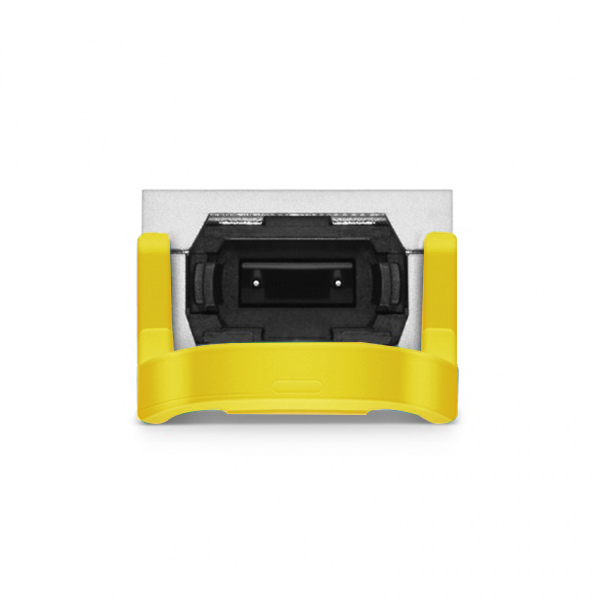

Connector MTP/MPO-12 APC
Media SMF
Optical Component DFB/PIN
TX Power -2.9~4dBm
RX Power -5.9~4.0dBm
Receiver Sensitivity -6.5dBm
Powerbudget 3dB
Power Consumption ≤10W
Extinction Ratio 3.5dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Solution 1
Optical Transceiver Solution 2
Optical Transceiver Solution 3
Optical Transceiver Solution 4
Optical Transceiver Layout
Product Performance
Product Manufacturing 1
Product Manufacturing 2
Related Products SFP Cage
Related Products SFP Cage
Why Choose Us
Why Choose Us Highlight 1
Why Choose Us Highlight 2
Why Choose Us Highlight 3
Why Choose Us Highlight 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. We own advanced manufacturing facilities and testing equipment imported from abroad.

Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K units per month, we are capable of delivering products in a short lead time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Utilizing the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.
Company Facility 1
Company Facility 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, with shipping costs covered by the buyer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typical takes 15-30 days.
What after-sales service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your requirements to us so we can discuss the details.
What is your advantage?
We have 19 years of manufacturing experience and have partnered with major global technology enterprises for many years.
