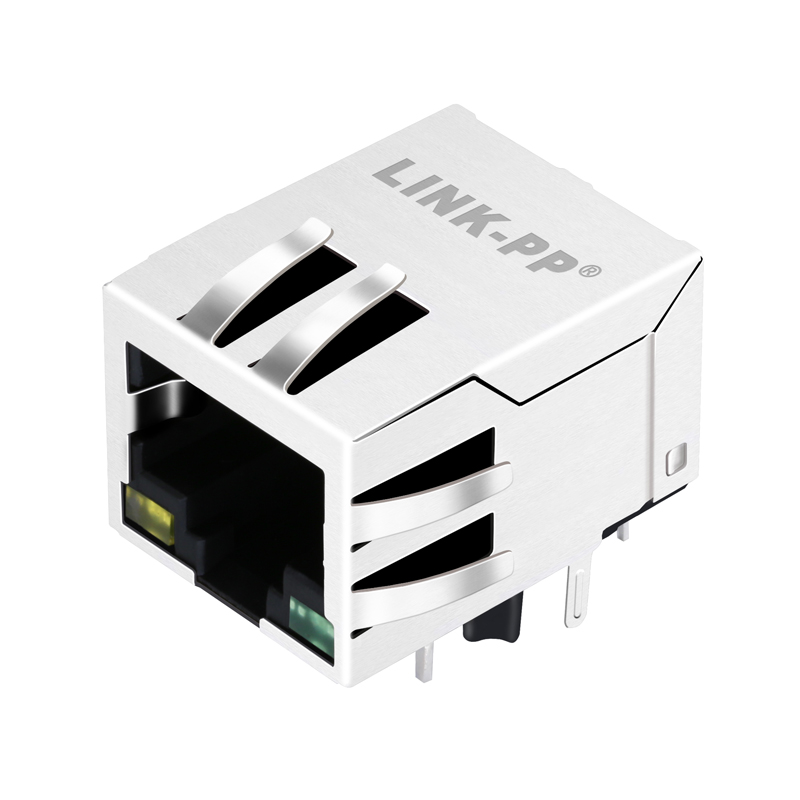

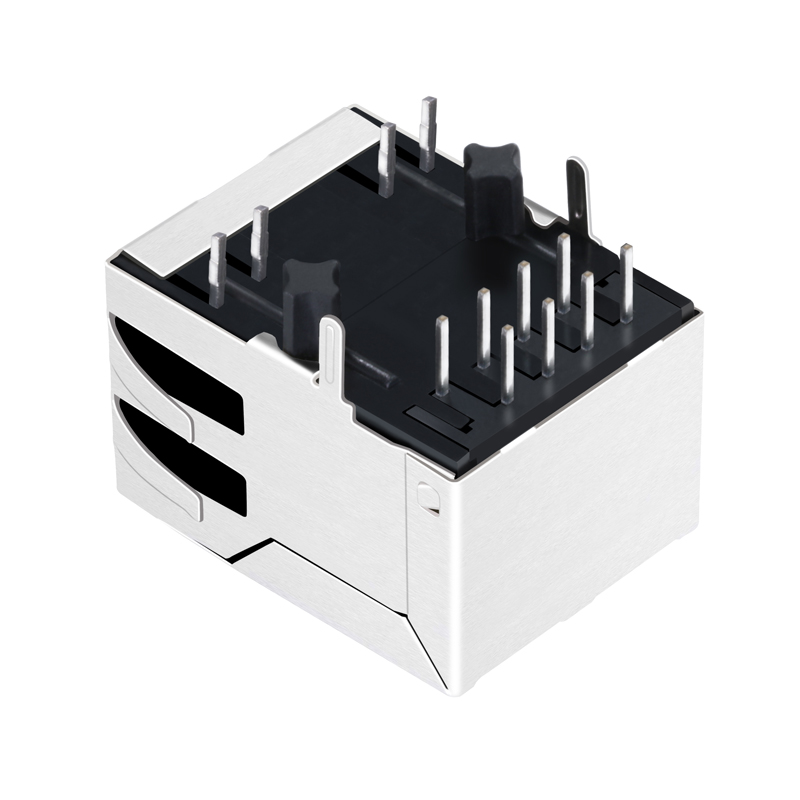

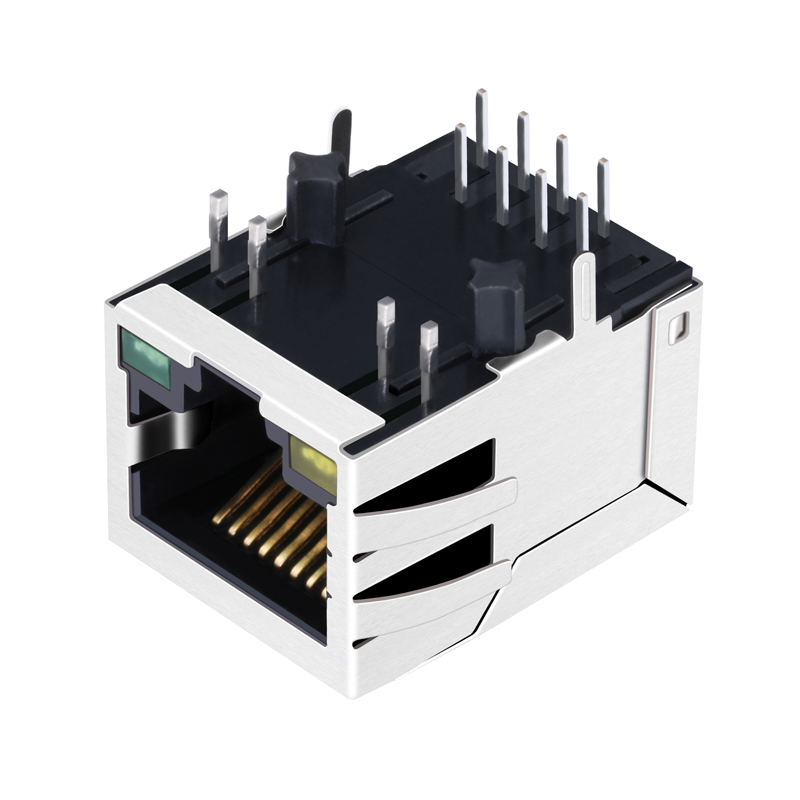

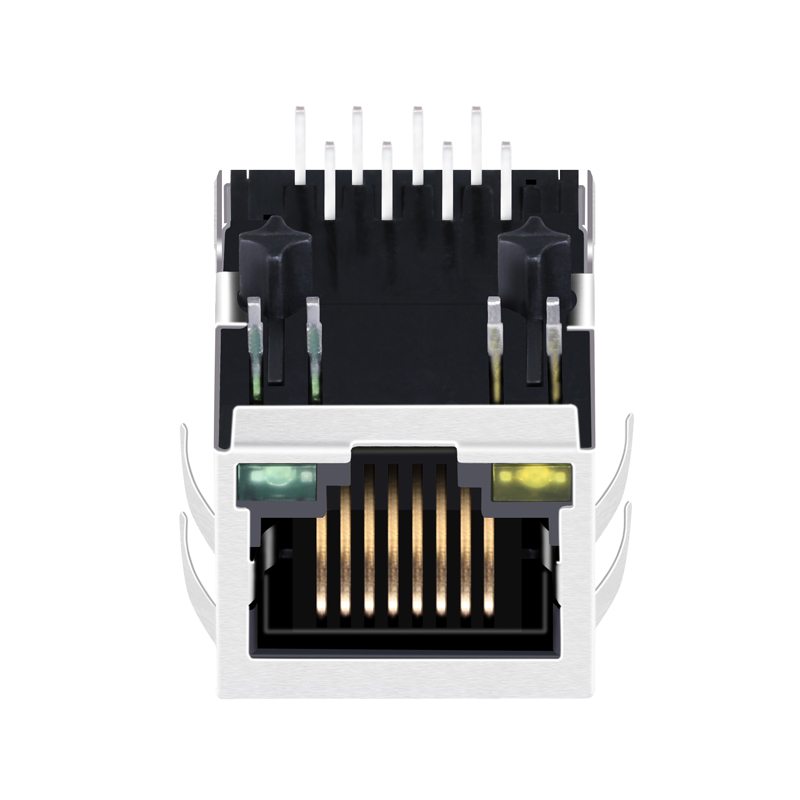

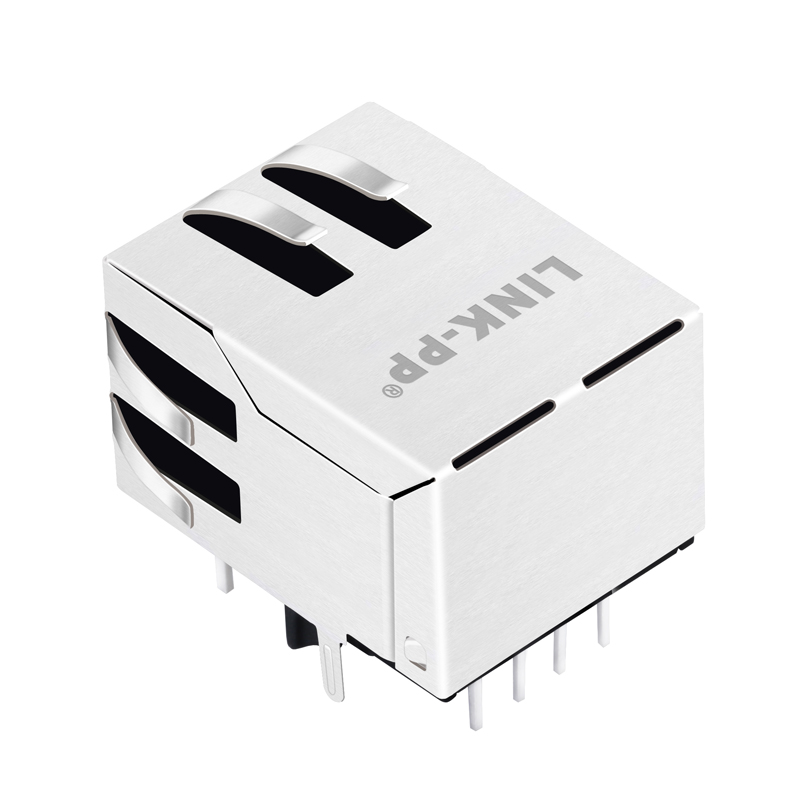

Female RJ45 for Internet Modular Plug TIC-L003-11
| Part Number |
TIC-L003-11 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WithOUT LEDS |
| Latch |
DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 With LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With OR WithOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- OEM Of TE (Tyco) For 9 Years
- Successful Customer: Texas Instruments, Samsung, Cisco, Siemens And Intel...
- Preferred Supplier Of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse, Tyco, Halo, Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX Or TNT
Corporate Policy
- Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
Preferred Supplier Of TI, Samsung, Cisco, Siemens...
Frequently Asked Questions
Q1: What are the key application specifications of the TIC-L003-11?
A: The TIC-L003-11 is a 1X1 single-port female RJ45 internet modular plug designed for 10/100 BASE-T speed, featuring side entry PCB mounting and THT solder pins.
Q2: Does this RJ45 connector include LED status lights or diodes?
A: No, this specific model (TIC-L003-11) is configured without LED lights and has no diodes.
Q3: What is the operating temperature range for the TIC-L003-11 modular plug?
A: The connector operates reliably across standard temperature ranges from 0 to 70°C and extended ranges from -40 to 85°C.
Q4: Is the TIC-L003-11 compliant with international environmental standards?
A: Yes, it is RoHS-5 compliant with a lead-in-solder exemption, and meets strict environmental policy standards.
Q5: What are the gold plating options available for the contact mating area?
A: The contact mating area features high-quality gold plating, available in thickness options of 6u", 15u", or 30u" depending on application requirements.
Q6: What materials and components are used in the manufacturing of this connector?
A: It is manufactured using premium FR4 PCB materials, features a T-post retaining design, and supports both with or without Shield EMI tabs.
