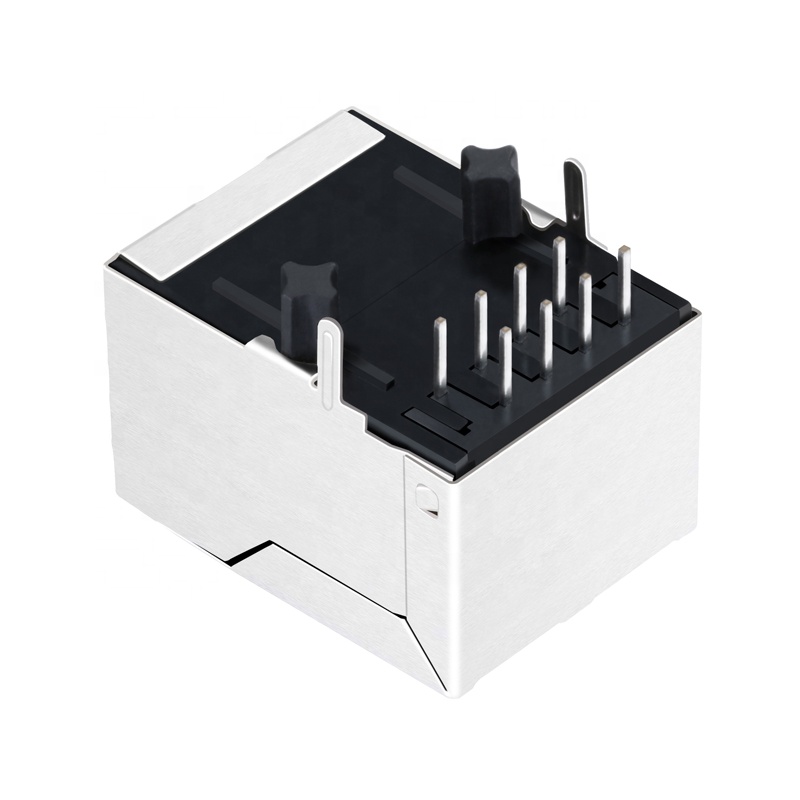

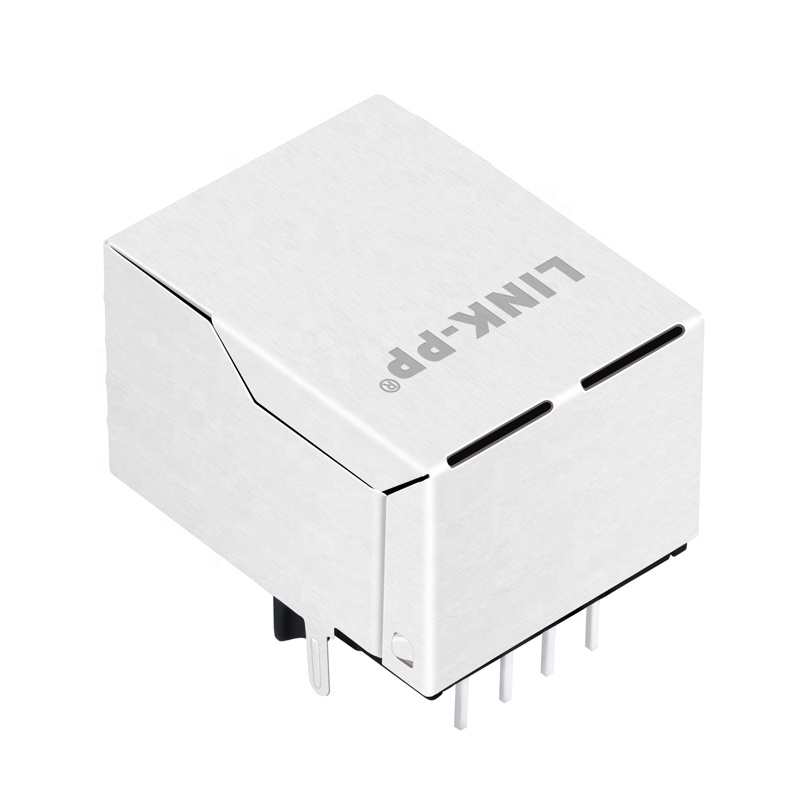

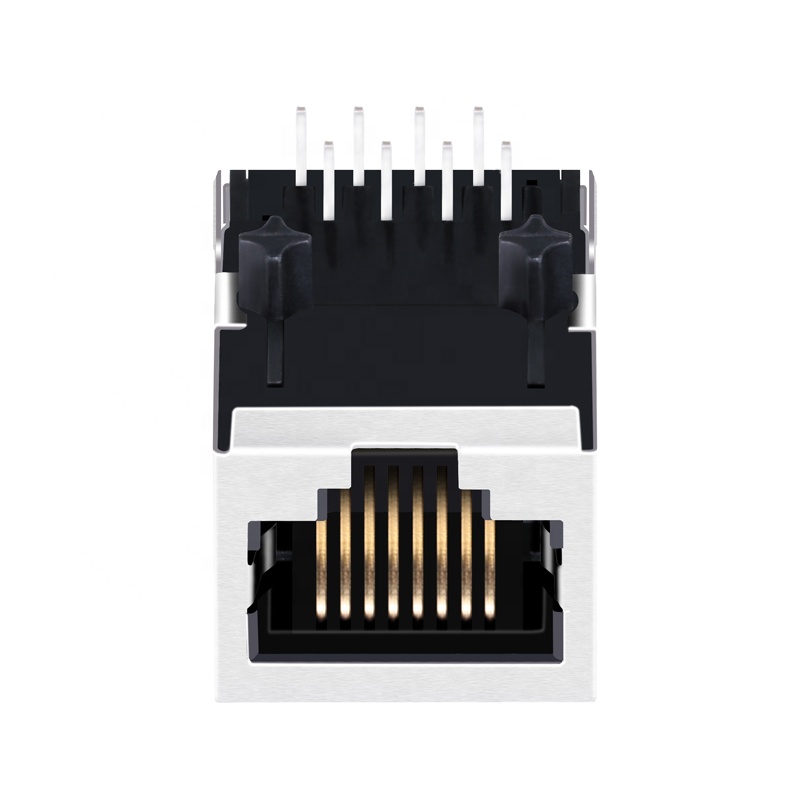

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1 / 5
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

Send Inquiry

Product Description

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
RJ45 Connector Overview
Products Description
⚙️ High-performance 10/100 Base-T Ethernet Connectivity
📐 Compact 90° Angle (Right) Orientation
🛡️ Integrated Magnetics for Signal Integrity
ItemRJ45 Female Connector
Part Number1470648-1
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchDown
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionWithout
PCB MaterialFR4
PCB Retaining PostT POST
Temperature Range0℃ TO 70℃
Bst CircuitYes
AutoMDIXYES
Contact PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT

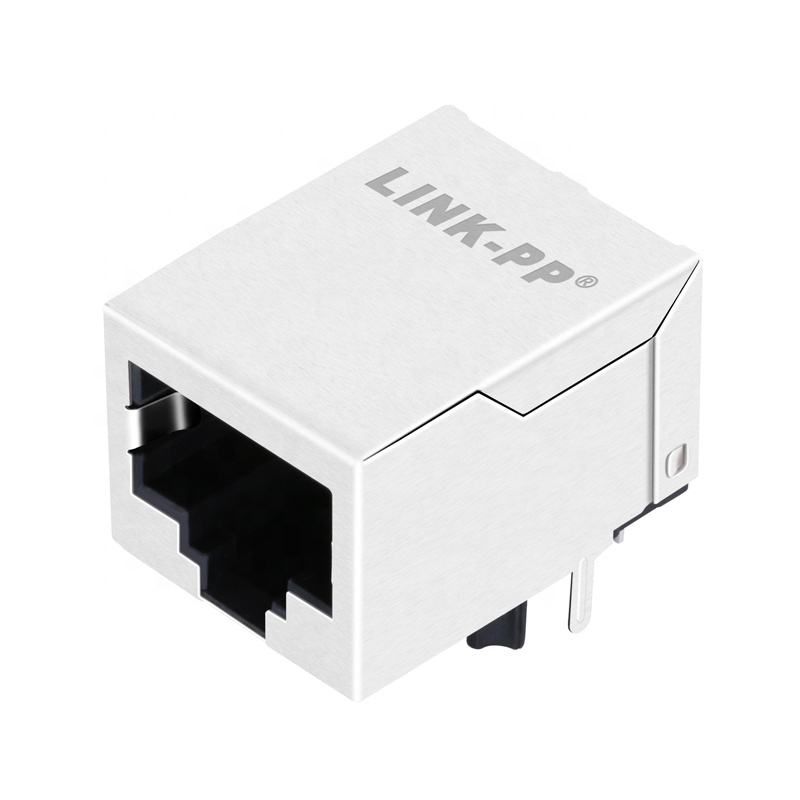

Product View 1

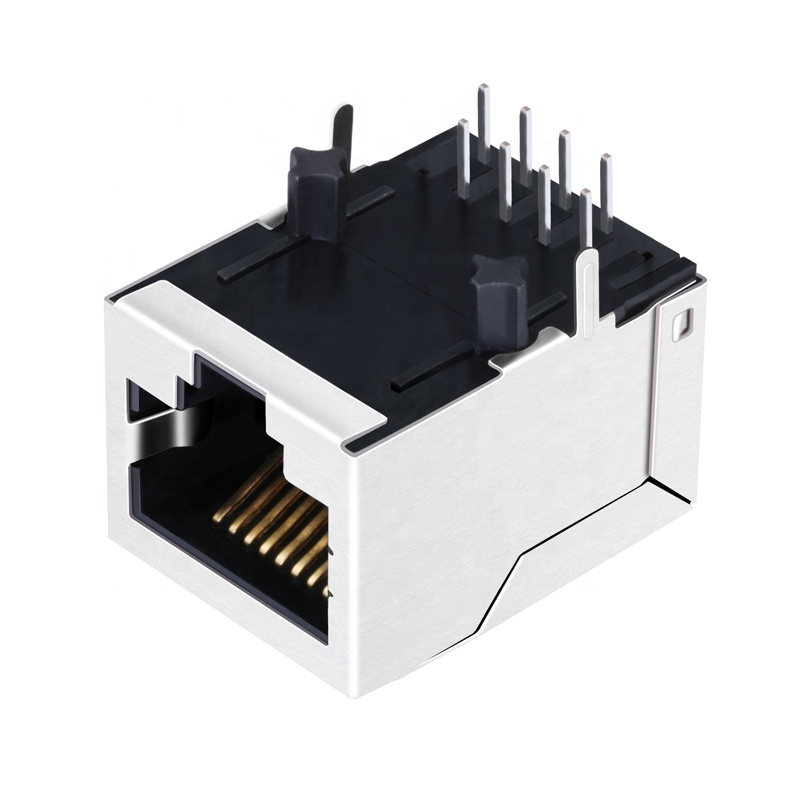

Product View 2
Detail 1
Detail 2
Detail 3
Product Categories
Category Overview
Technical Capabilities
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve a global market of OEMs, contract manufacturers, and CEMs across 200 countries. We are committed to being a leading provider of Ethernet RJ45 connectors and LAN transformers.
Manufacturing 1
Manufacturing 2
Quality Control 1
Quality Control 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your typical delivery time?
Stock items are ready to ship immediately. For mass production, the lead time is generally 15-30 days.
What kind of after-service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we accept OEM/ODM orders. Please contact us to discuss your specific requirements.
What are your manufacturing advantages?
With over 19 years of production experience, we have established long-term partnerships with major global technology leaders.
