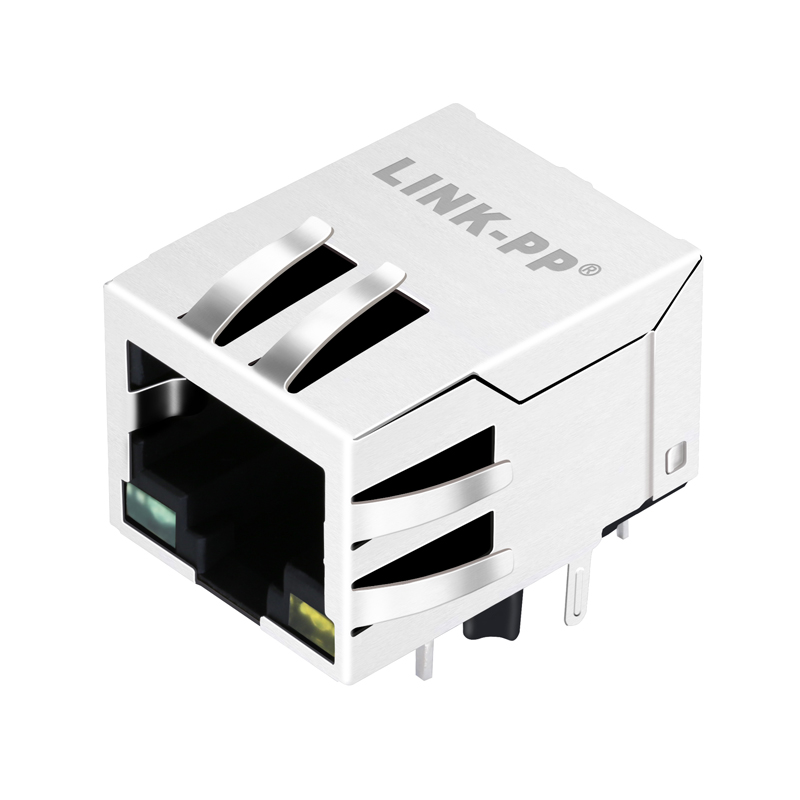

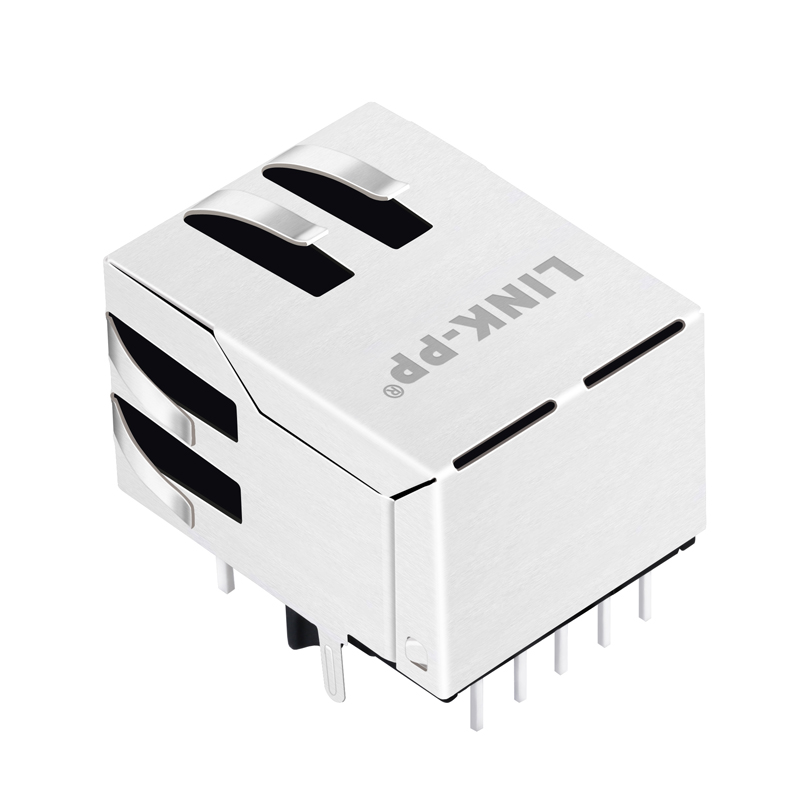

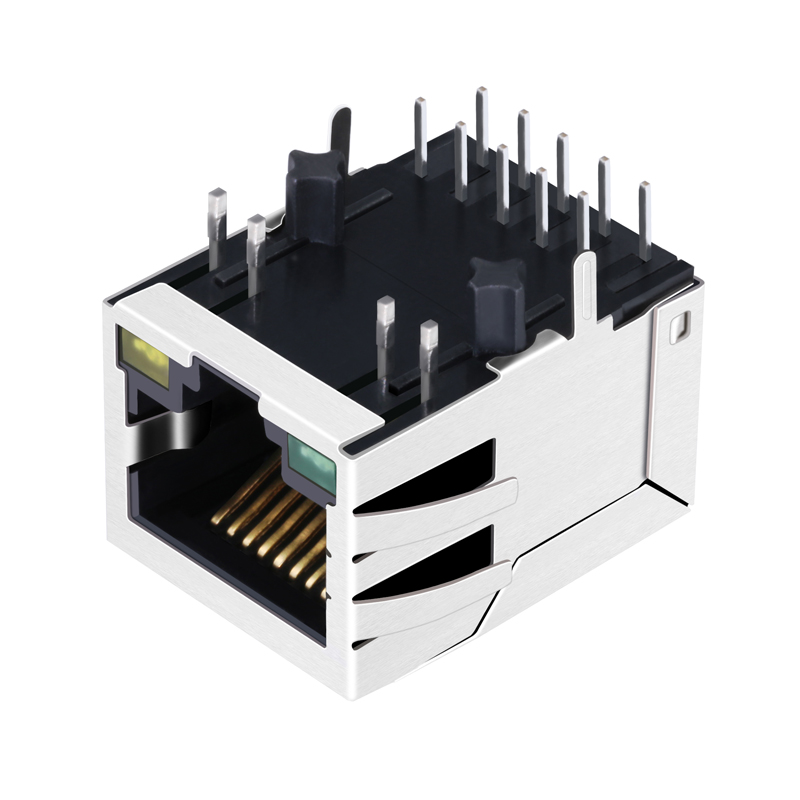

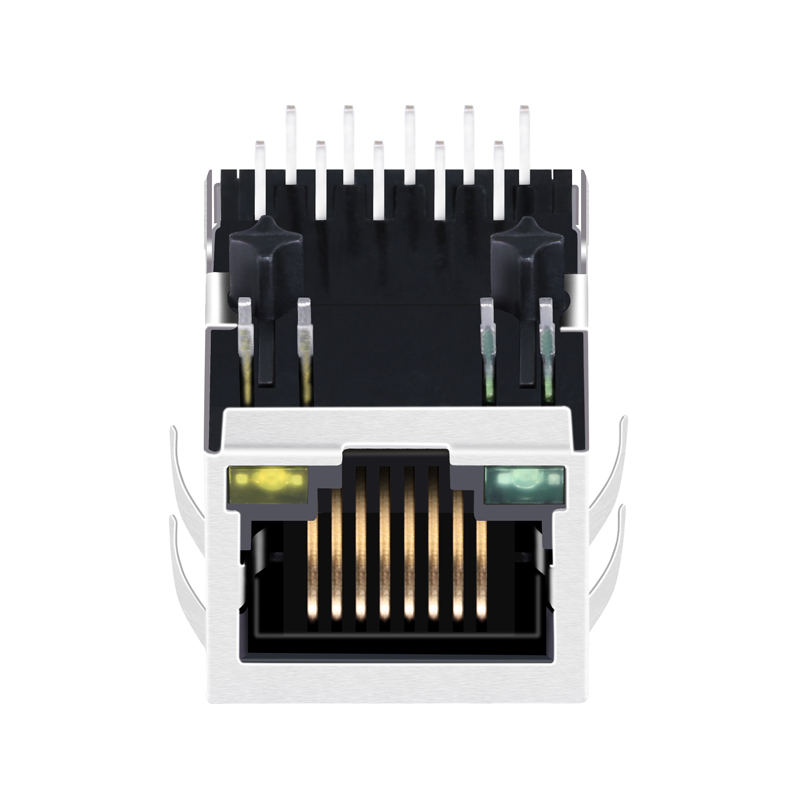

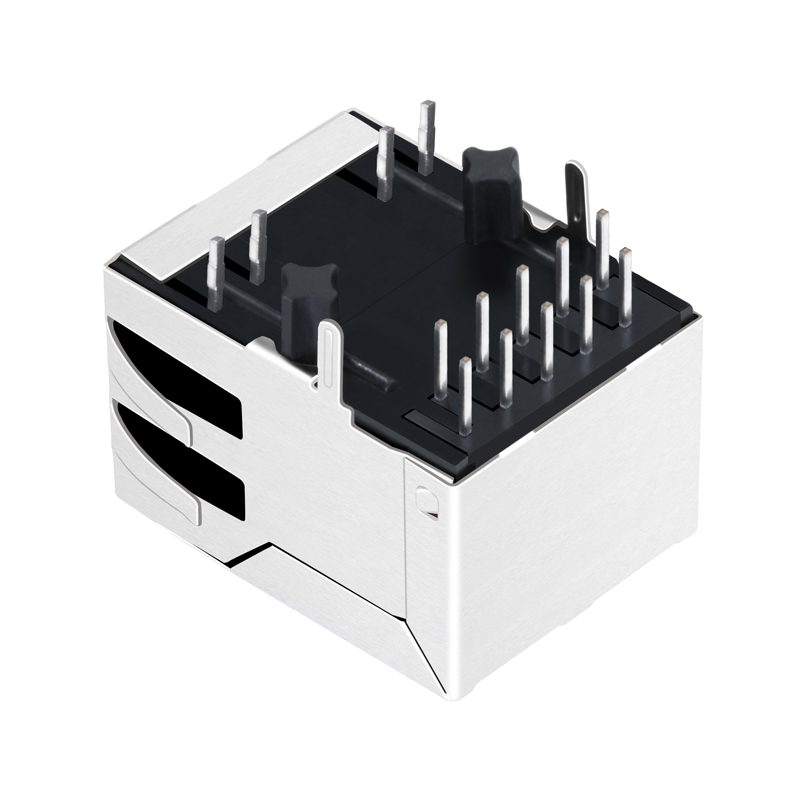

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534

Send Inquiry

Product Description

Part Number	ARJ11E-MCSS
AutoMDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	4
Diodes	NO DIDES41
LED Option	GREEN/RED
Latch	UP
Number of Ports	1X1
PCB Material	FR4
Mount Angle	SIDE ENTRY
Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	1000 BASE-T
Temperature	0 TO 70°C / -40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

◈ LINK-PP Is The Preferred Supplier Of TI Samsung Cisco Siemens

◈ Welcome To Visit The TI Website Tools BeagleBone Board

◈ You Will Look At Our Logo "LINK-PP" On BeagleBone Board

World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

1. What is the maximum speed supported by the ARJ11E-MCSS connector?

This connector supports 1000 BASE-T speeds, making it ideal for Gigabit Ethernet applications.

2. Is the ARJ11E-MCSS compatible with Power over Ethernet (PoE)?

Yes, this RJ45 Ethernet jack is designed specifically to work with PoE applications.

3. What are the operating temperature options for this component?

It is available in two temperature ranges: Standard (0 to 70°C) and Industrial (-40 to 85°C).

4. Does the connector come with built-in LED indicators?

Yes, it features a Green/Red LED option to indicate link status and activity.

5. Is this product RoHS compliant?

Yes, it is RoHS compliant (RoHS-5) with standard lead-in-solder exemptions.

6. What is the plating material for the contact mating area?

The contact mating area is plated with Gold, available in thicknesses of 6u", 15u", 30u", or 50u" depending on requirements.
