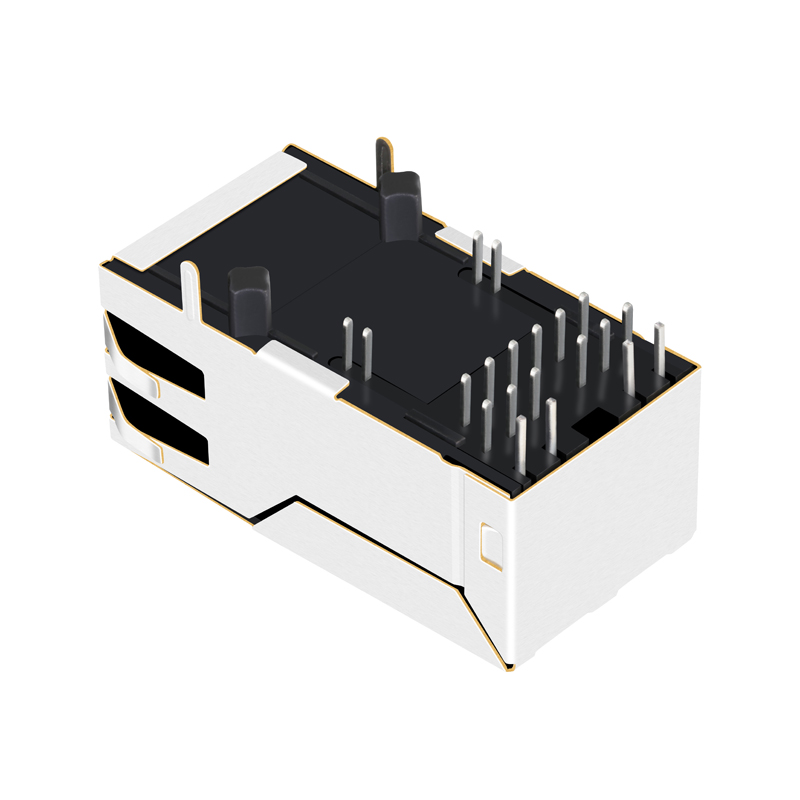

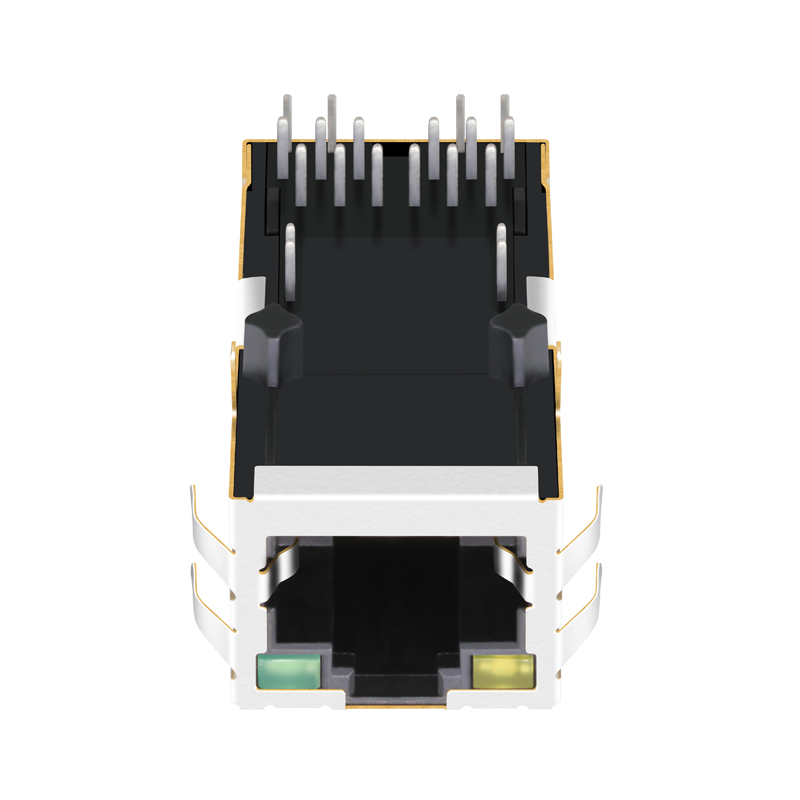

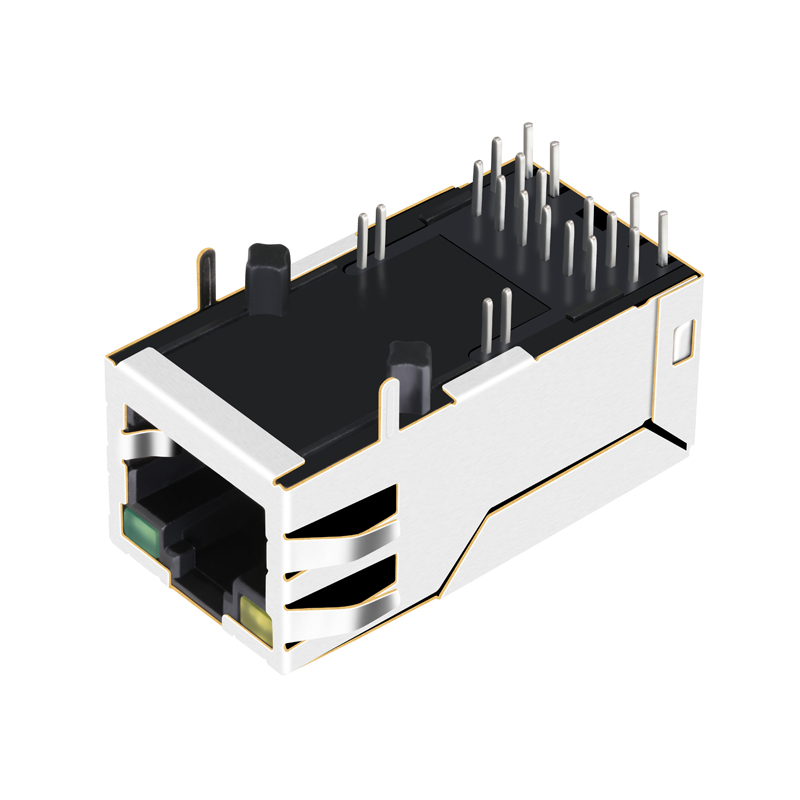

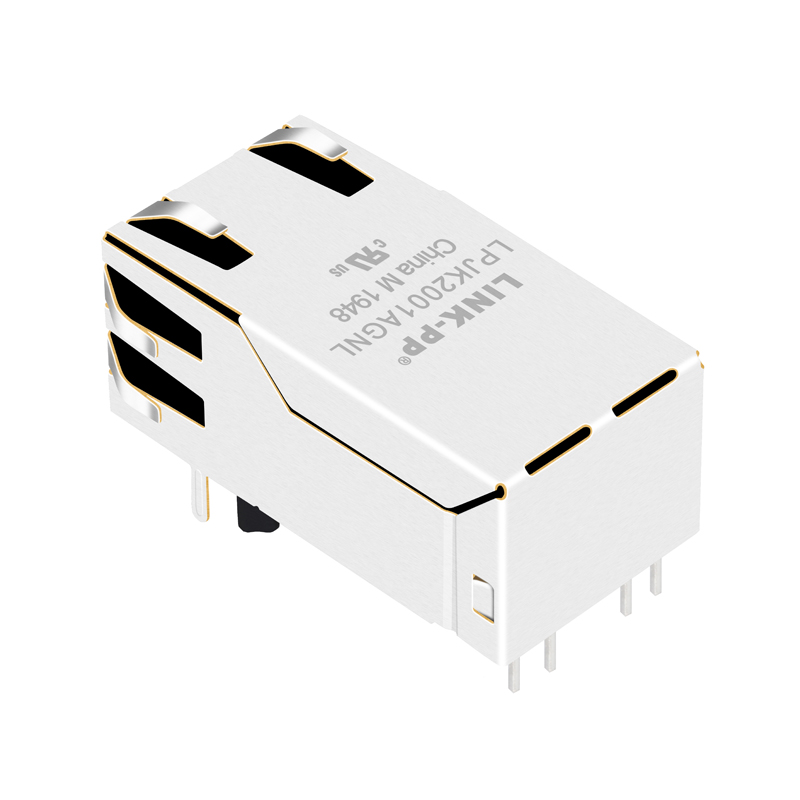

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
1 / 5
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

Send Inquiry

Product Description

Magnetic RJ45 Connector
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
Products Description
Item RJ45 Female Connector
Part Number HR851140A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

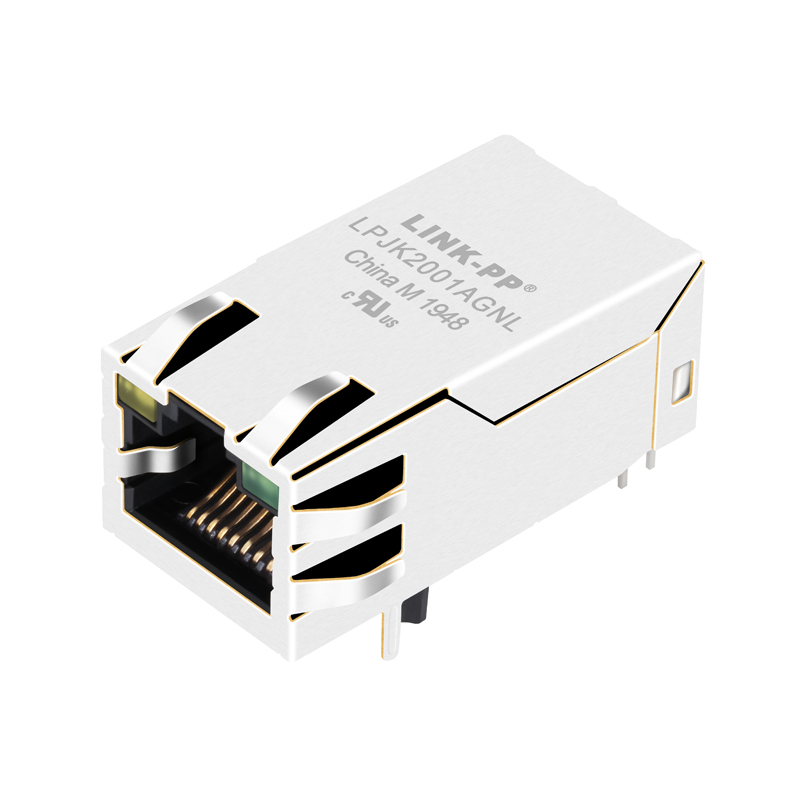

RJ45 Connector Detail View 1 RJ45 Connector Detail View 2
Modular Jack Application 1 Modular Jack Application 2 Modular Jack Application 3 Modular Jack Application 4
Product Categorization Map
Testing Equipment Manufacturing Line Quality Inspection
Production Facility 1 Production Facility 2 Warehouse and Logistics
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Office Environment Workshop Assembly Area
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you will need to cover the shipping fee.
What is your delivery time?
We are ready to ship immediately for in-stock items, and the lead time is 15-30 days for mass production.
What after-sales service can you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can proceed with a detailed discussion regarding your custom specifications.
What is your advantage?
We offer 19 years of professional production experience and have been a trusted partner for global industry leaders for many years.
