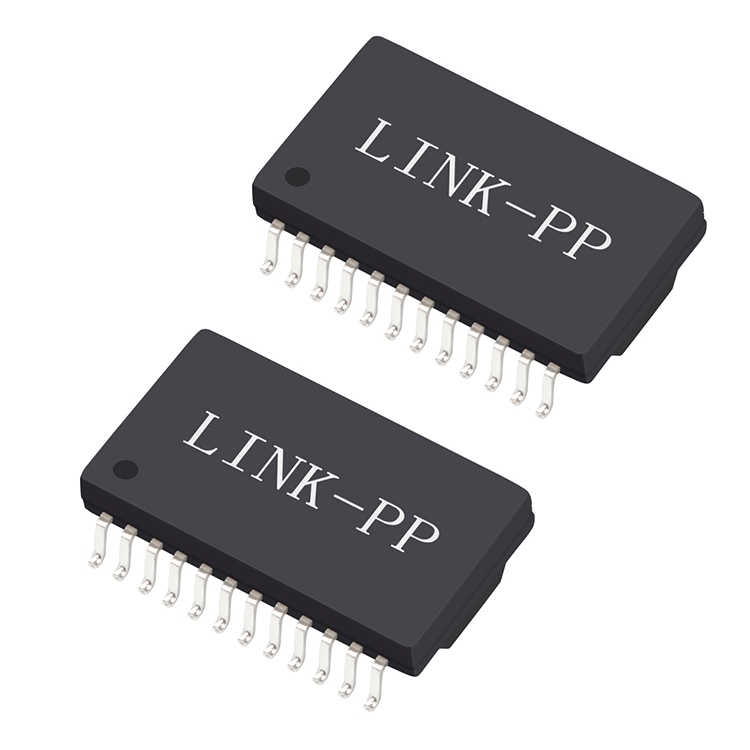

IEEE 802.3 1000BASE-TX PoE Telecom Transformer HST-24030SXR / HST-24077SXCR

Product Description

Telecom Transformer Overview
IEEE 802.3 1000BASE-TX PoE Telecom Transformer HST-24030SXR / HST-24077SXCR
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24030SXR / HST-24077SXCR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Cores per Port 8
Pin Number 24 Pin
Mounting Type SMT
Temperature 0°C TO 70°C
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Telecom Transformer Detail 1
Telecom Transformer Detail 2
Telecom Transformer Detail 3
Telecom Transformer Detail 4
Telecom Transformer Detail 5
Technical Drawing 1
Technical Drawing 2
Why Choose Us
Quality Standard Certificate
Advanced Equipment
Production Capacity
Testing Process
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
Manufacturing Facility
Quality Management
Warehouse and Shipping
Enterprise Honors
FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, but you should pay the shipping fee.

3. What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production.

4. What after-service can you offer?

We offer a one-year guarantee period and provide 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send your inquiry to us so that we can have a detailed discussion.

6. What is your advantage?

We have 19 years of production experience and have been a trusted partner to leading global enterprises for many years.

Product Compliance and Certifications
