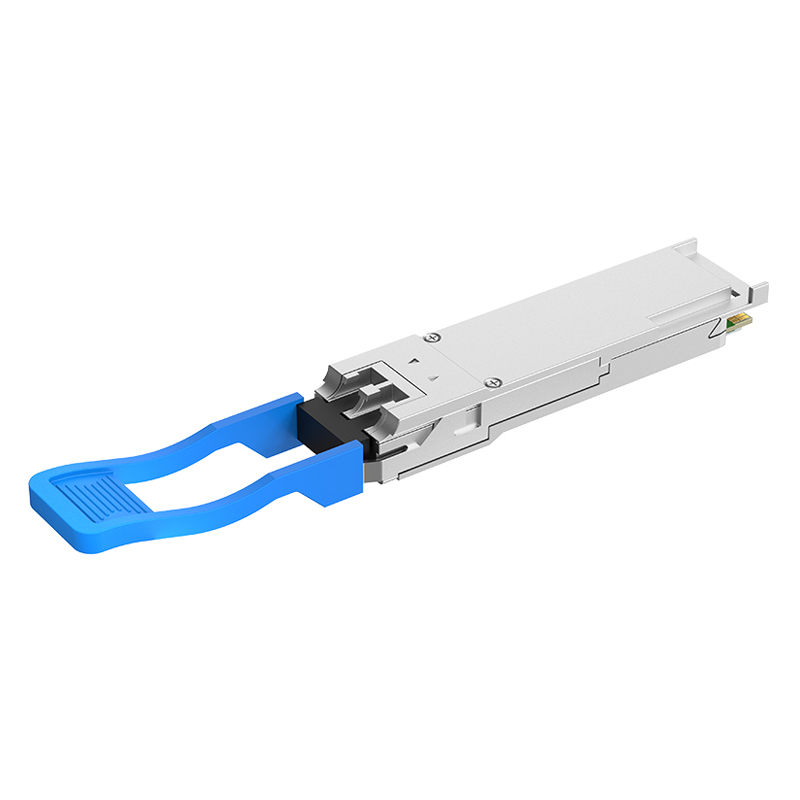

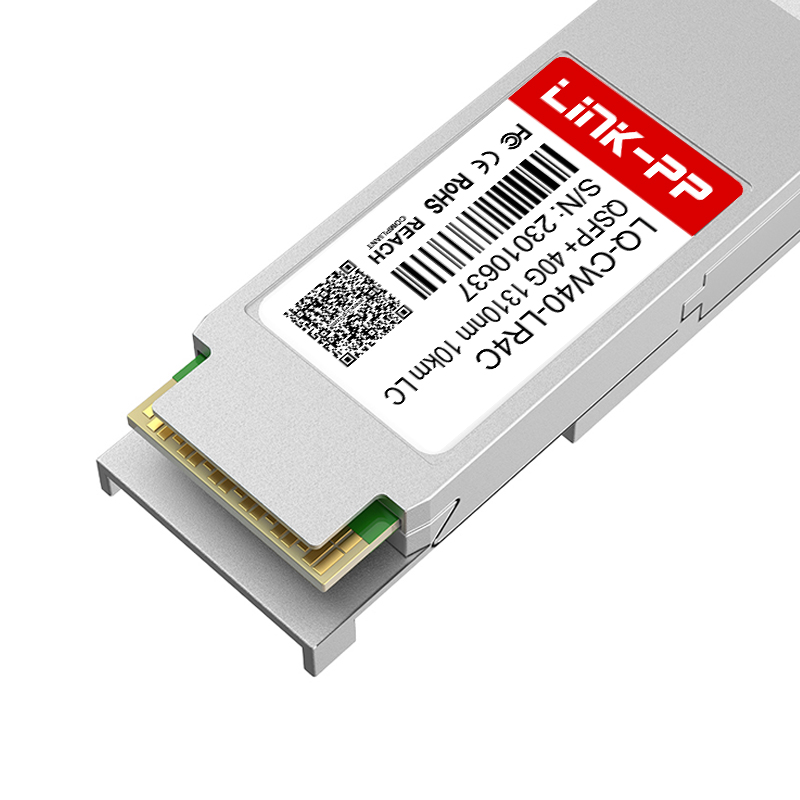

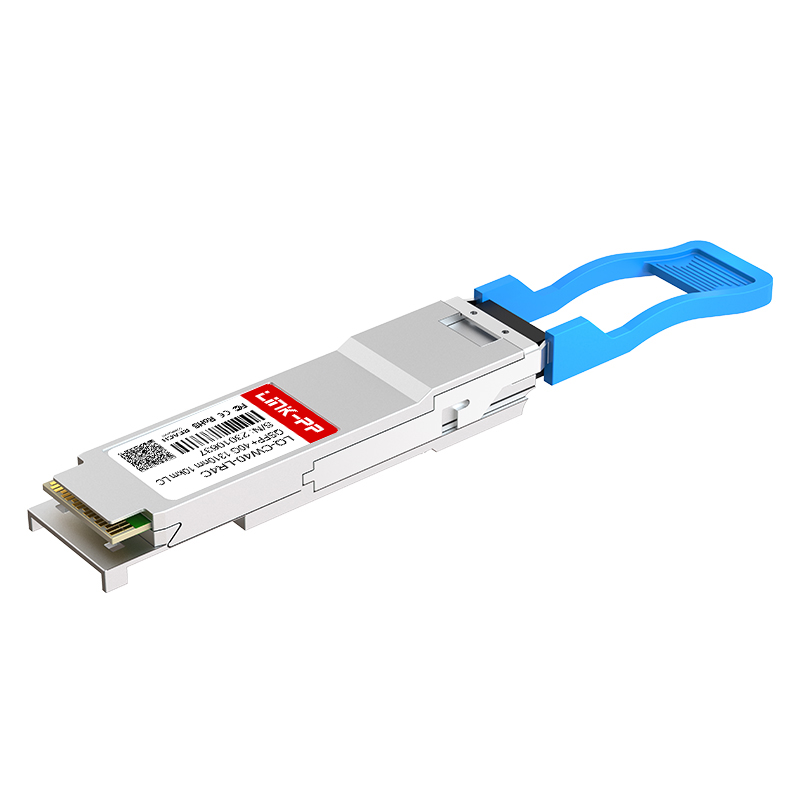

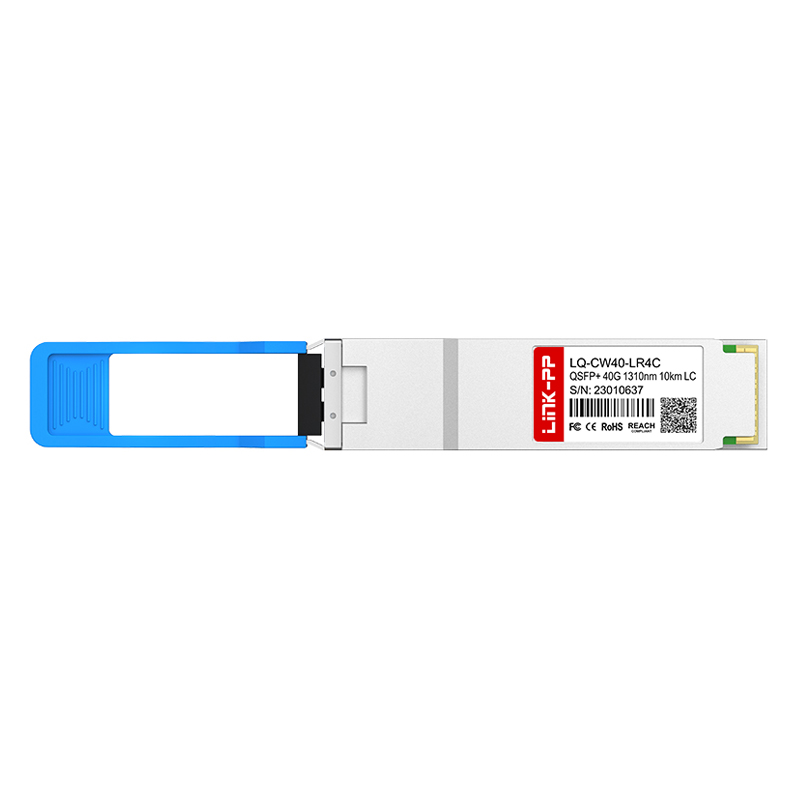

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | 10km |
| Wavelength | 1310nm |

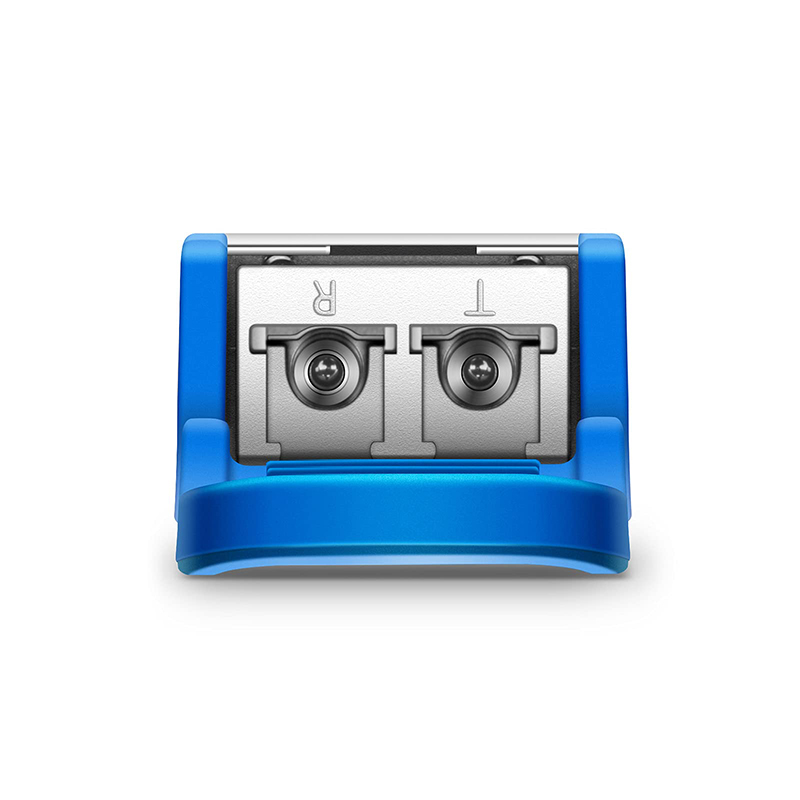

| Connector | Duplex LC |
| Media | SMF |
| Optical Component | DFB/PIN |
| TX Power | -7~2.3dBm |
| Receiver Sensitivity | <-11dBm |
| Receiver Overload | 2.4dBm |
| Powerbudget | 4dB |
| Power Consumption | ≤3.5W |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We can provide end-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand for mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test the quality, but shipping fees apply.
Items currently in stock are ready to ship. For mass production orders, the delivery time is 15-30 days.
We offer a one-year warranty period and provide 24-hour online technical support.
Yes, please contact us with your specifications so we can discuss the details of your project.
We have over 19 years of manufacturing experience and have partnered with major industry leaders globally for many years.
