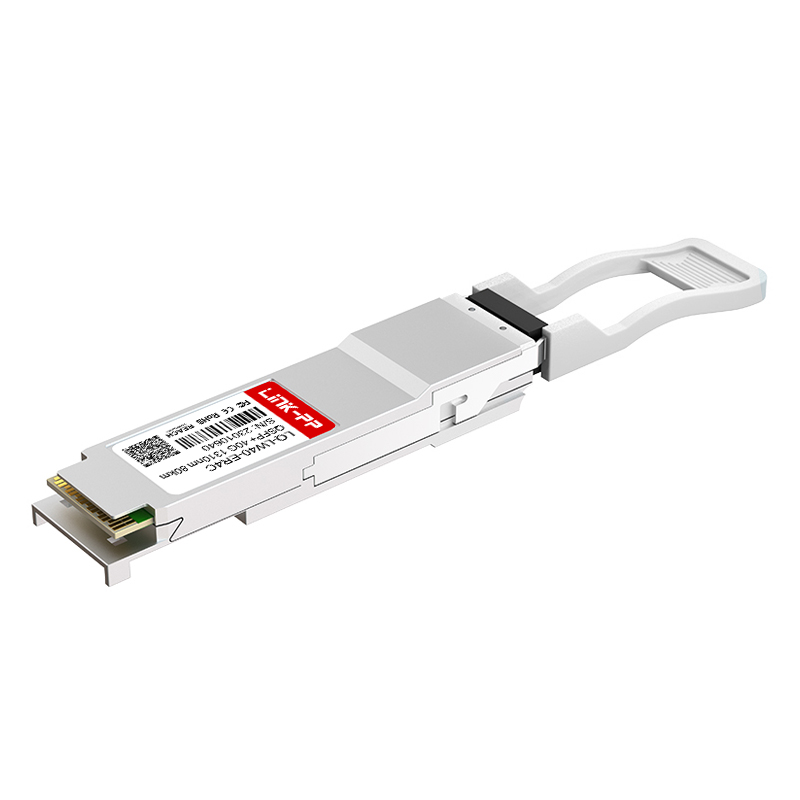

Single Mode Fiber Optic Transceiver Module Duplex LC 1310nm SMF QSFP+ 40G 80km

Product Description

Single Mode Fiber Optic Transceiver Module Duplex LC 1310nm SMF QSFP+ 40G 80km
Products Description
Item 40G QSFP+ Module
Part Status Active
Form Factor QSFP+
Max Data Rate 40G
Wavelength 1310nm
Max Cable Distance 80KM
Connector Duplex LC
Media SMF
Optical Component EML/PIN
TX Power 1~6dBm
Receiver Sensitivity <-25dBm
Receiver Overload -8dBm
Power Consumption ≤4.5W
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols QSFP+ MSA, IEEE 802.3ba Compliant
Warranty 5 Years
Sample Available
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution details
Module design

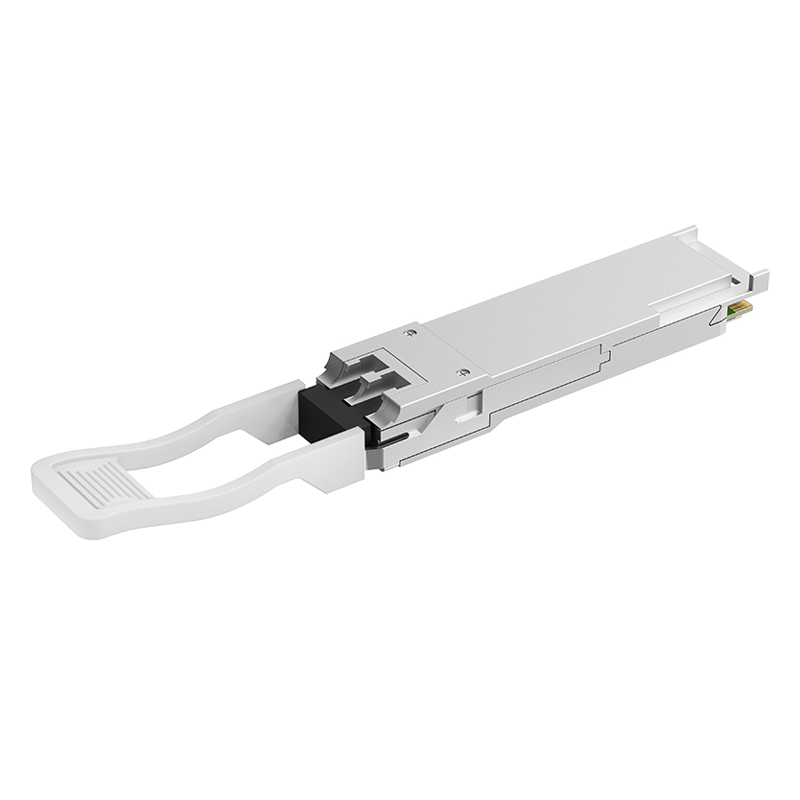

Module backview

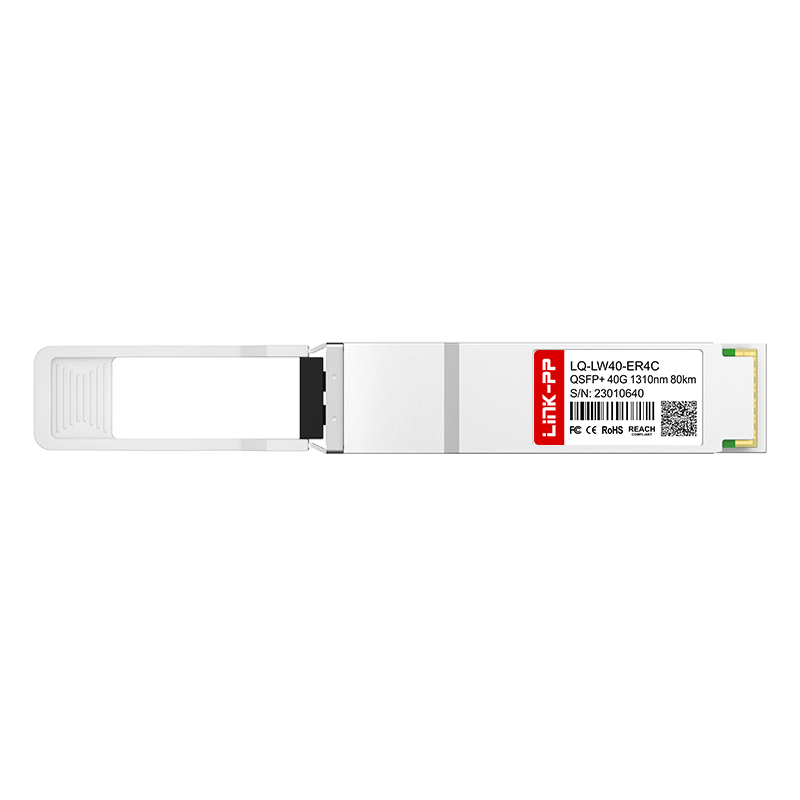

Product dimensions
Product category map
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise Solutions
Wireless Solution
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
FTTx setup
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Production details
Assembly process
SFP Cage details
Why Choose Us
Certificates
Machinery
Precision testing
Warehouse
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL, and own advanced manufacturing facilities and test equipment. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver products within a short time.

Moreover, we can provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Office view
Factory line
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping cost.
3. What is your delivery time?
Ready to ship items are dispatched immediately from stock. Mass production usually takes 15-30 days.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please contact us directly so we can have a detailed discussion about your custom requirements.
6. What is your advantage?
We have 19 years of manufacturing and design experience, serving as a trusted supplier for major global technology brands.
