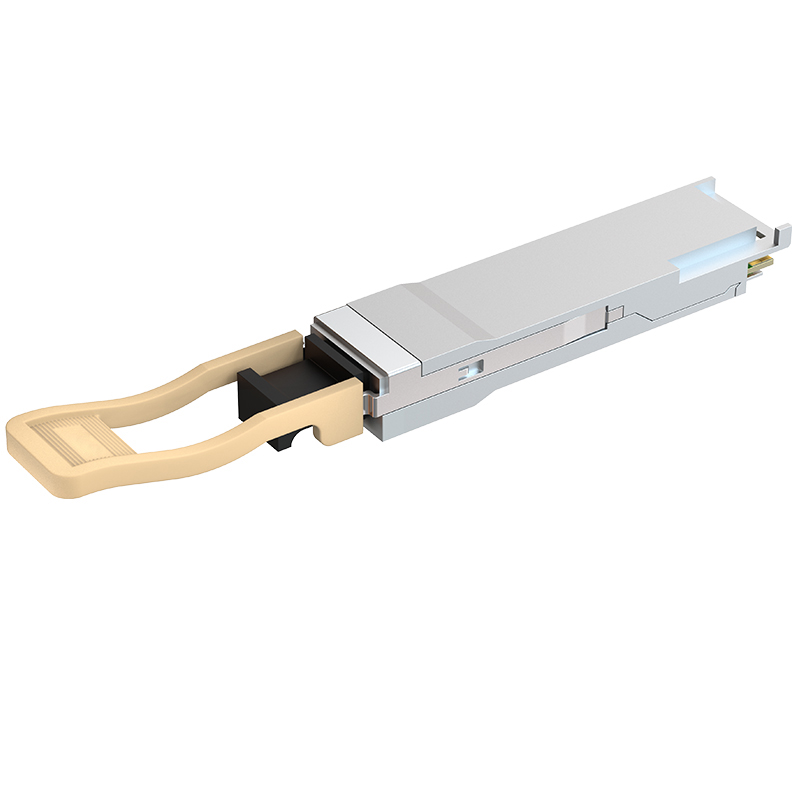

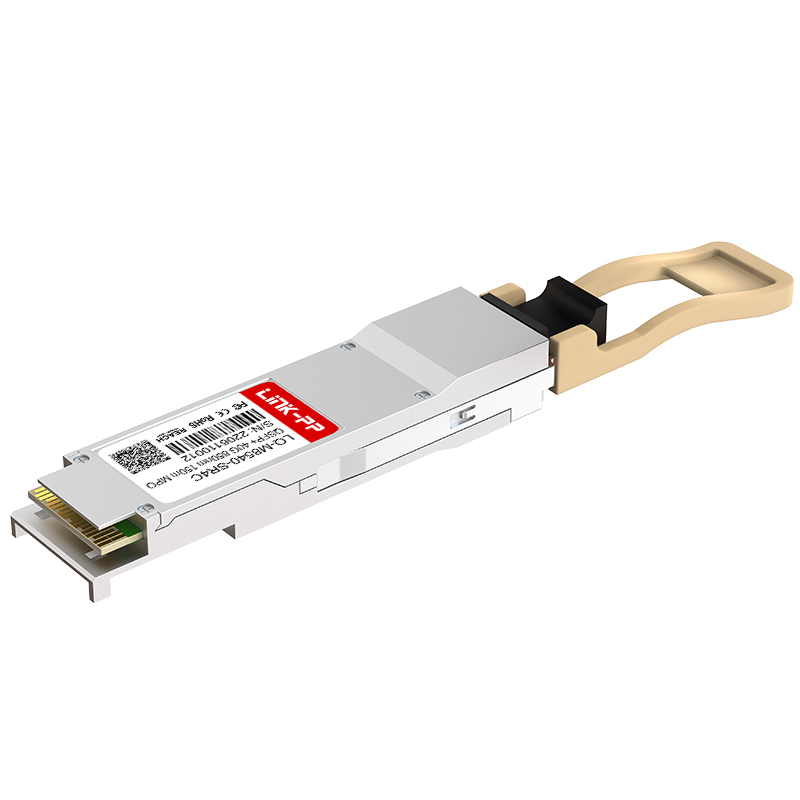

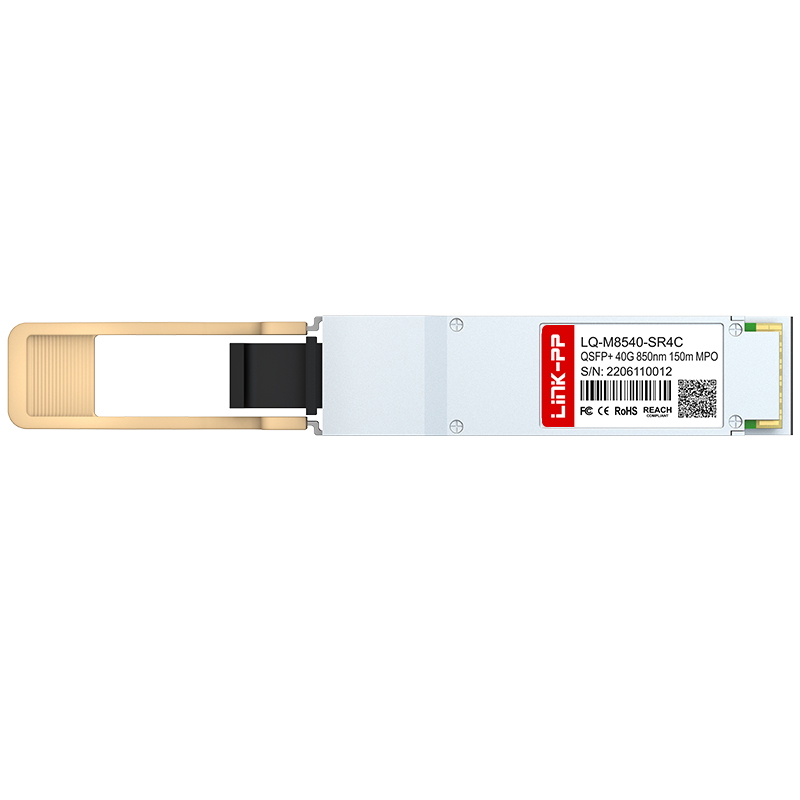

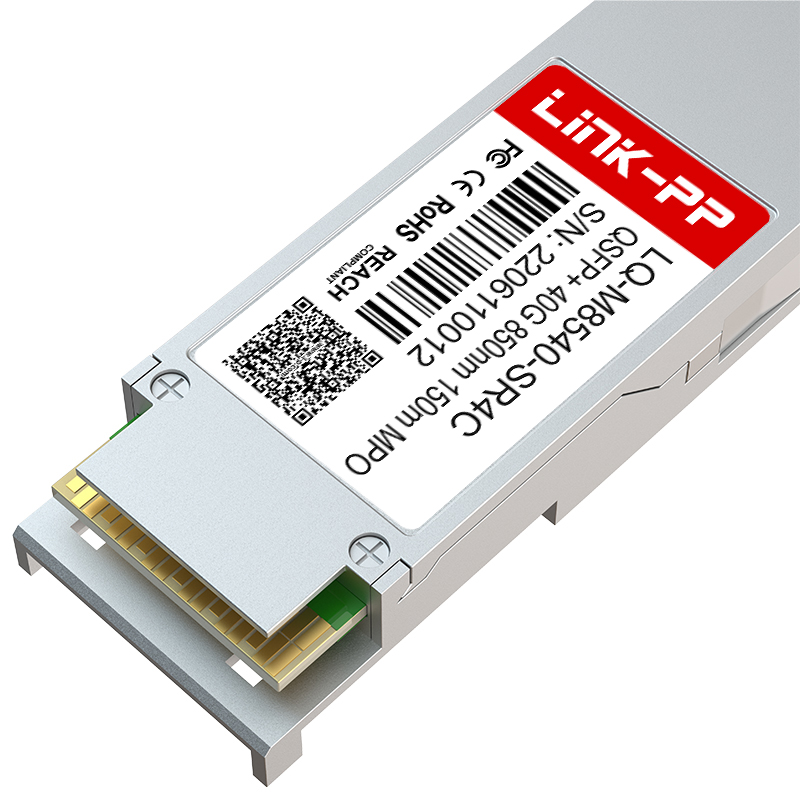

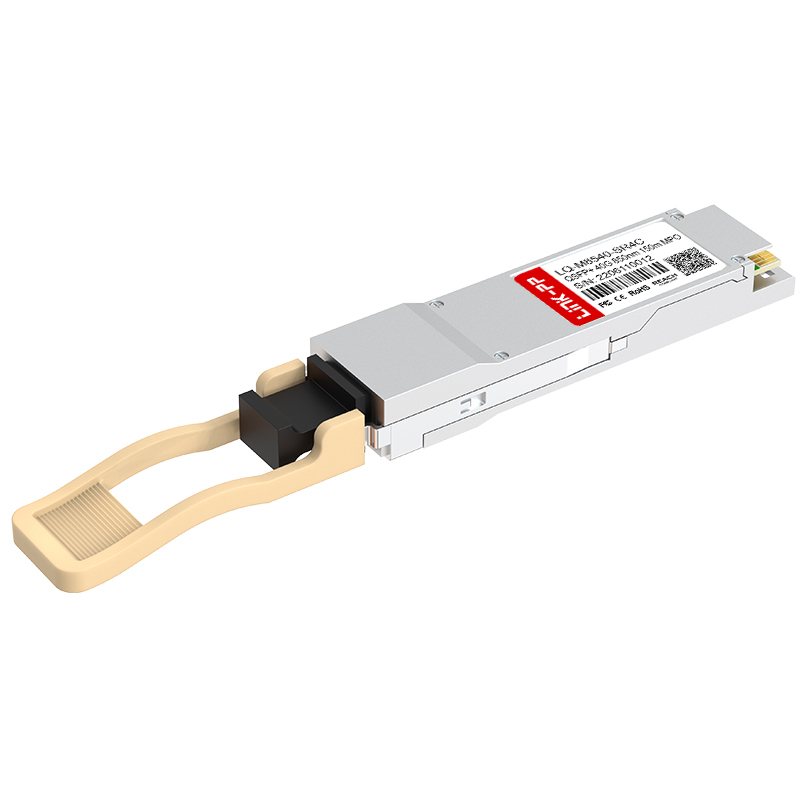

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
1 / 5
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m

Send Inquiry

Product Description

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
Products Description
Item 40G Optical Modules
Replaceable Part Cisco, HW, Arista, Juniper, Brocade, Intel, etc
Part Status Active
Form Factor QSFP+
Max Data Rate 41.25Gbps (4x 10.3125Gbps)
Wavelength 850nm
Max Cable Distance 150m@OM4/100m@OM3
Media MMF
Connector MTP/MPO-12 Male
Optical Component VCSEL/PIN
TX Power -7.1~1.9dBm
Receiver Sensitivity < -10.3dBm
Powerbudget 3.5dB
Receiver Overload 2.4dBm
Power Consumption ≤1.5W
Extinction Ratio >3dB
DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module Solution
Optical Transceiver Detail View
Optical Transceiver Front View
Optical Module Interface
Optical Transceiver Products Family Map
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Solution
Wireless
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Solution
FTTx
Aiming at global communication network constructers, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems Solution
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Product Quality Testing
Transceiver Assembly Workshop
★ Related Products SFP Cage ★
Related SFP Cage Products
Why Choose Us
Testing Equipment Capability
Advanced Assembly Line
Quality Management System
Testing and Qualification Center
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders typically take 15-30 days.
Q What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, OEM/ODM orders are accepted. Please send us your detailed inquiry to discuss specifications.
Q What is your advantage?
We have over 19 years of professional production experience delivering high-performance network connectivity solutions globally.
