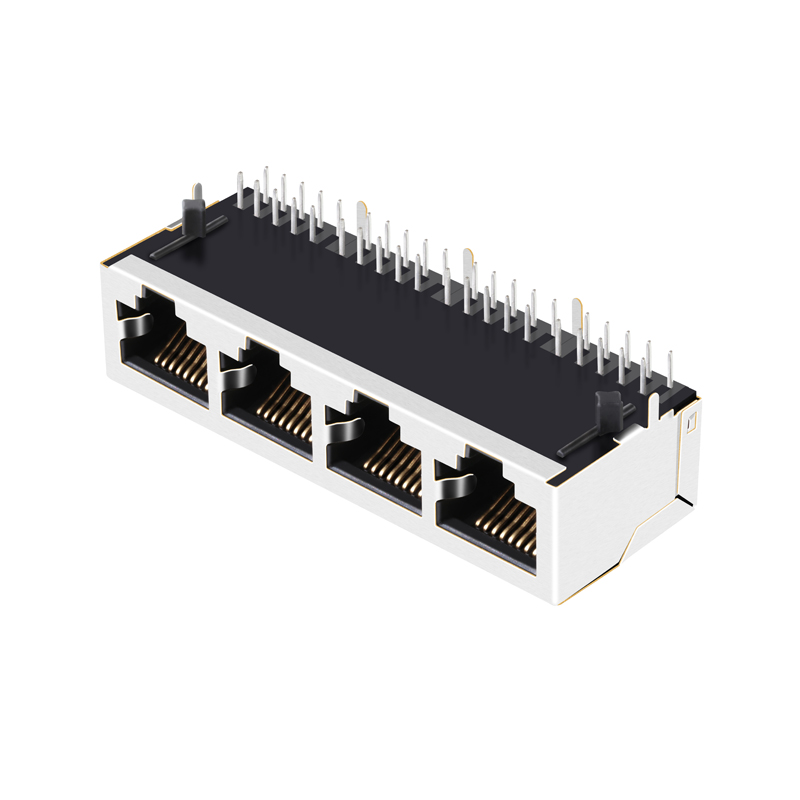

64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led

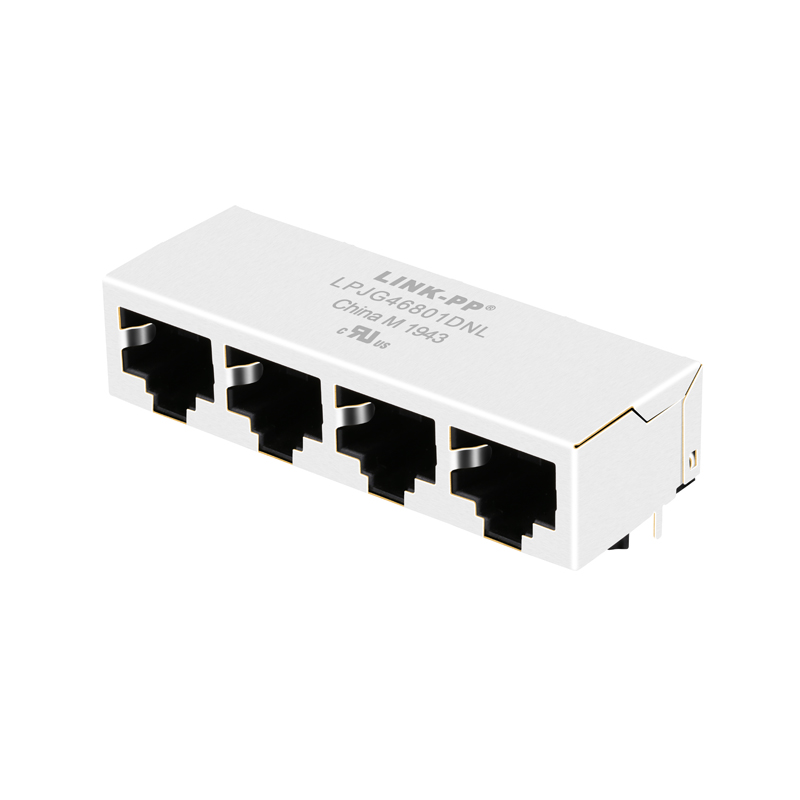

64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led

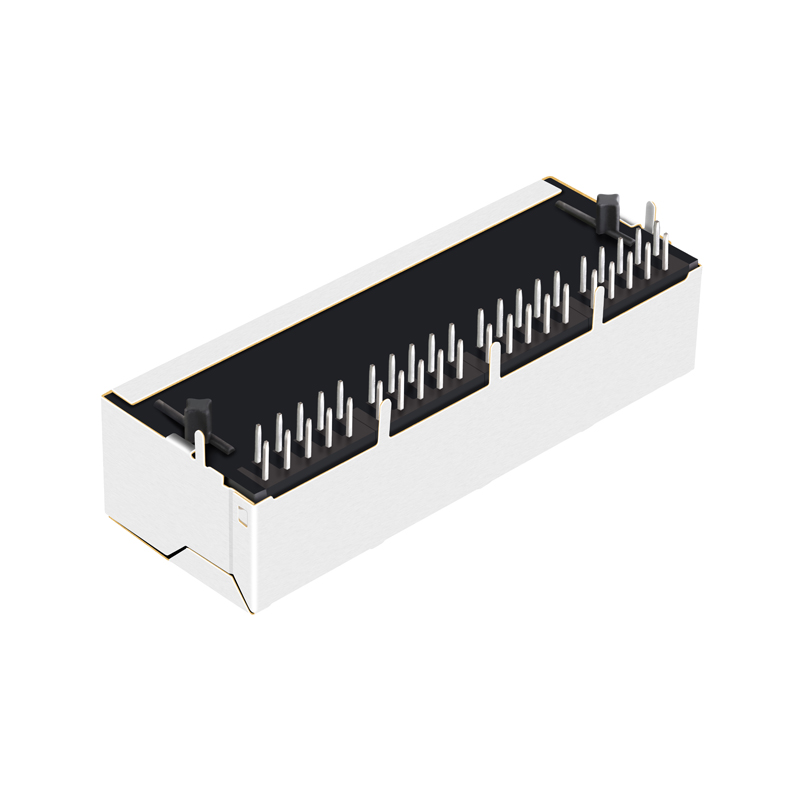

64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led

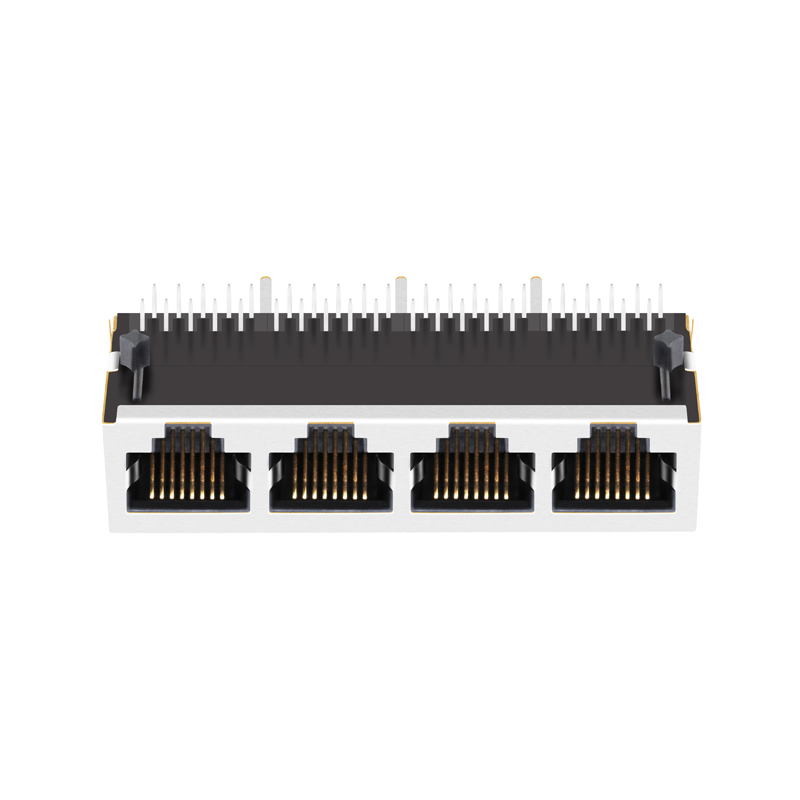

64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led
1 / 5
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led

64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led

Send Inquiry

Product Description

Ethernet RJ45 Connector
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led
📋 Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x4 Port
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specifications
✨ Click Below Products Link To Get More
Product Series Overview
Connector Dimensions
Technical Drawing
Schematic Diagram
PCB Layout Design
Ethernet Jack Side View
Connector Back View
🏢 Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Workshop
Testing Equipment
Quality Control Process
❓ FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for standard mass production.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your specific inquiry to us so that we can have a detailed discussion on your requirements.
6. What is your advantage?
We bring over 19 years of dedicated production experience in the networking components industry.
