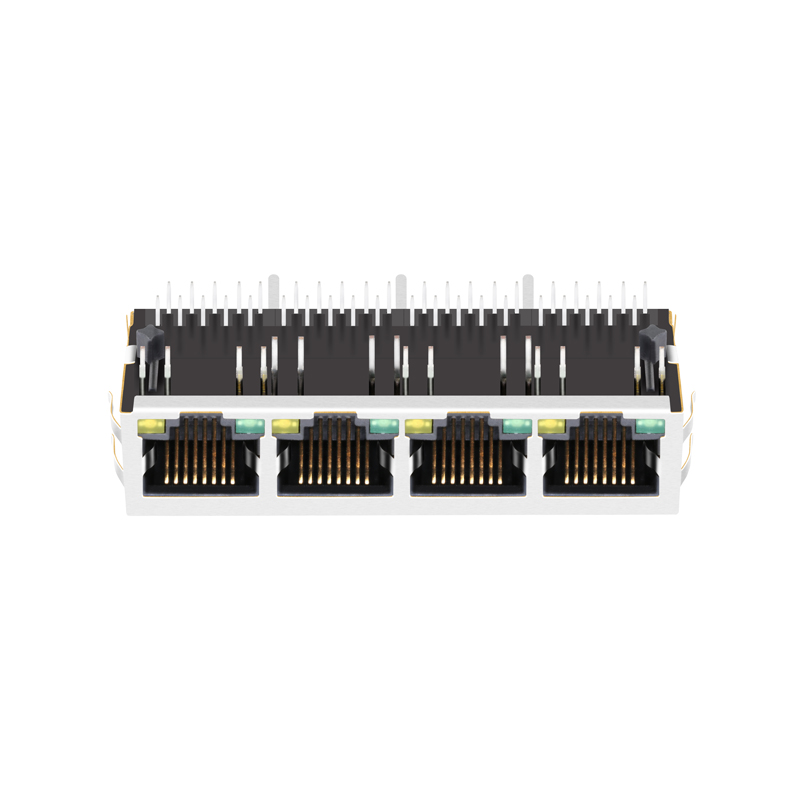

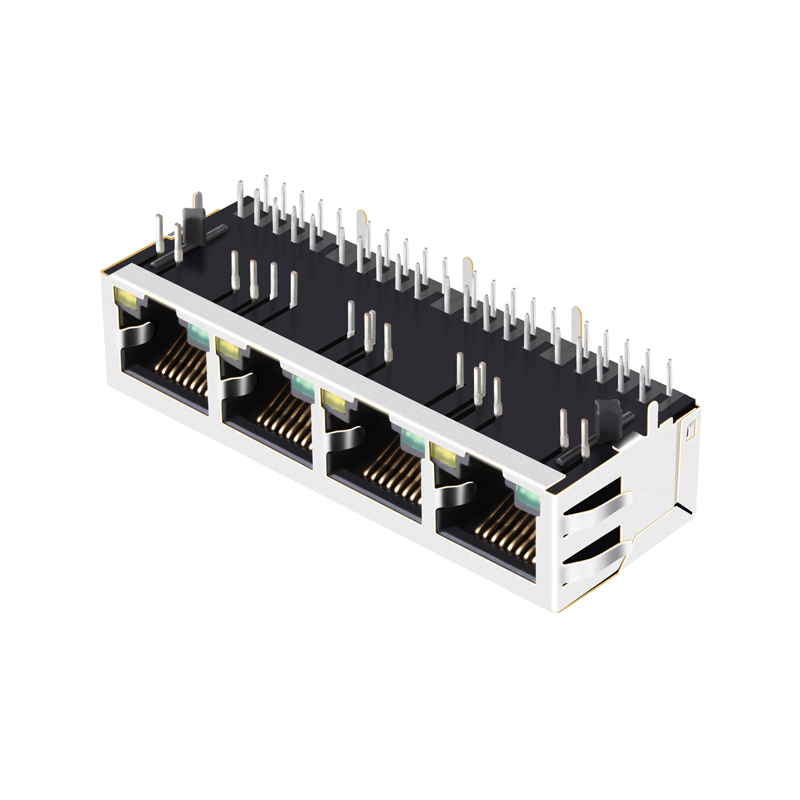

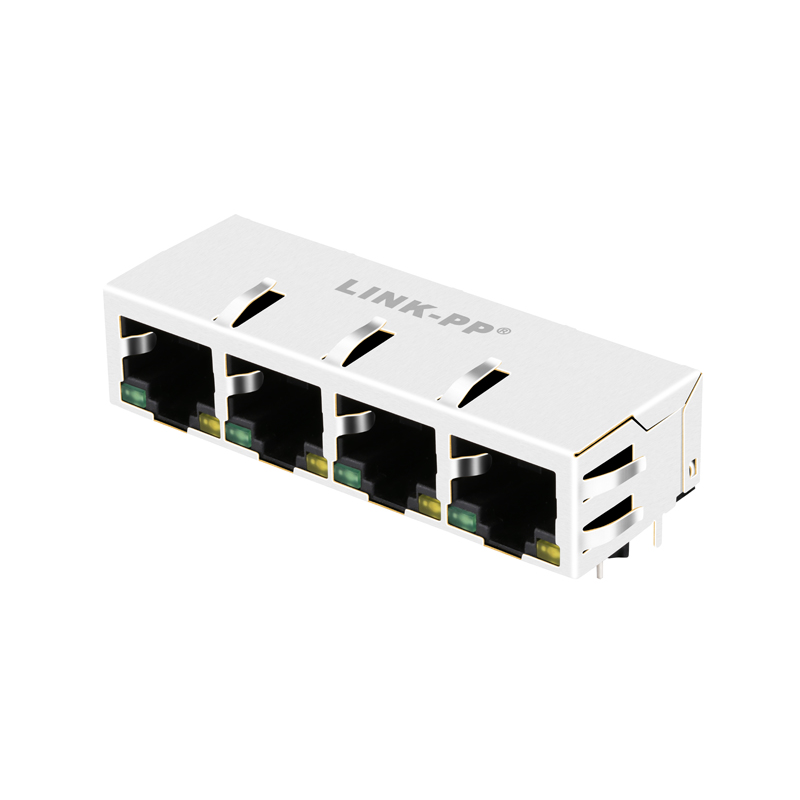

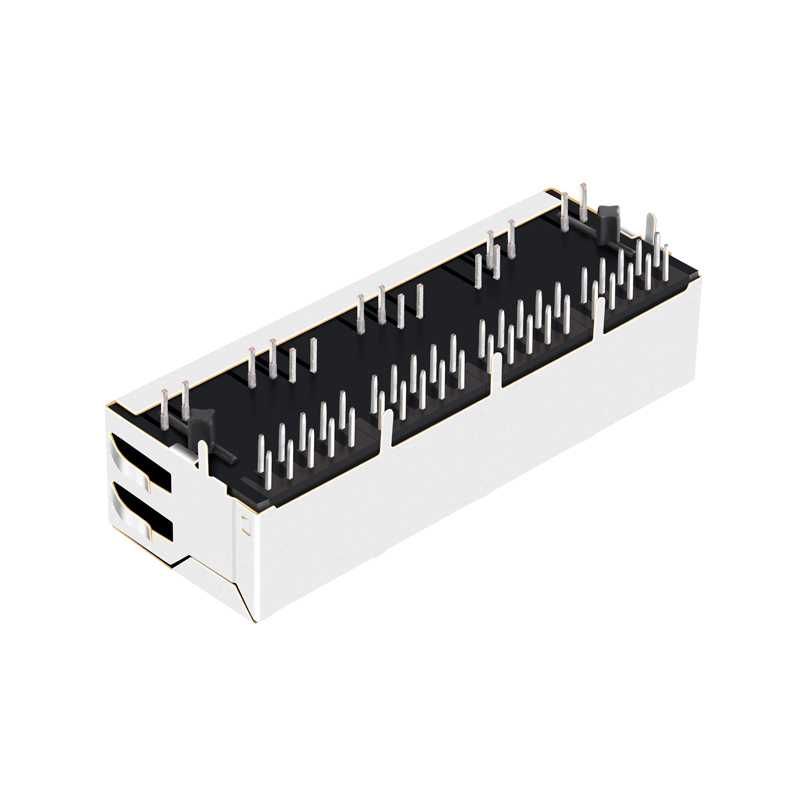

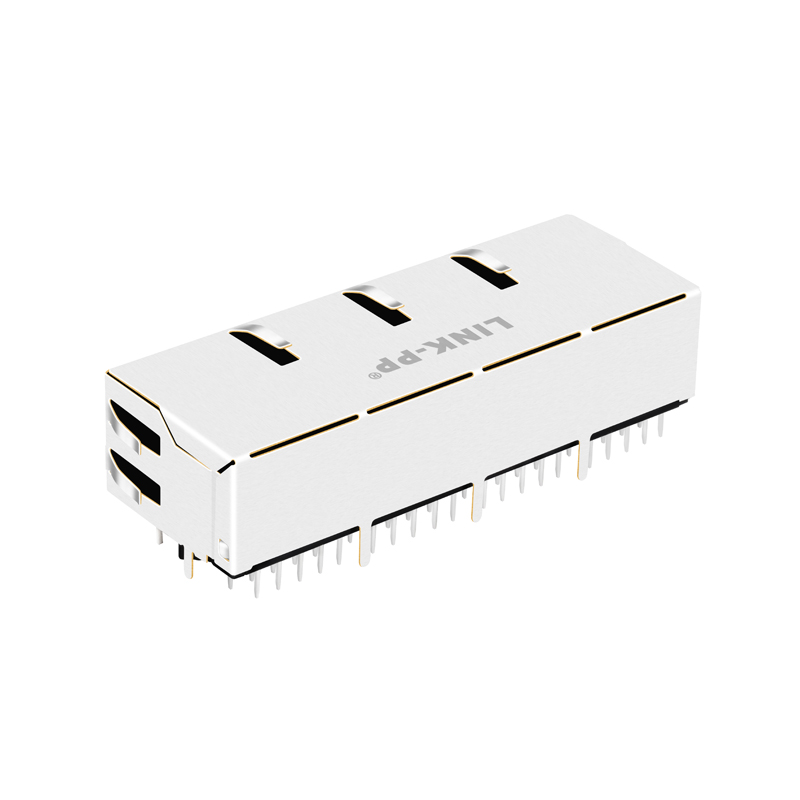

| Item | RJ45 Female Connector |
| Part Number | LPJG49811AENL |
| Compatible With | JFM3841-GPON-4F |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
