| Item | Value |
|---|---|

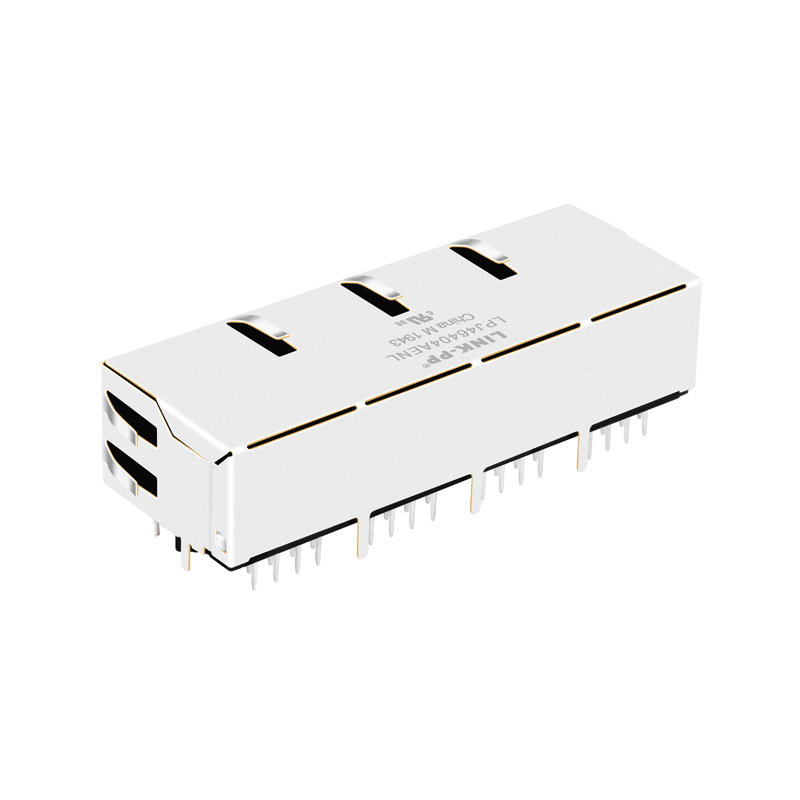

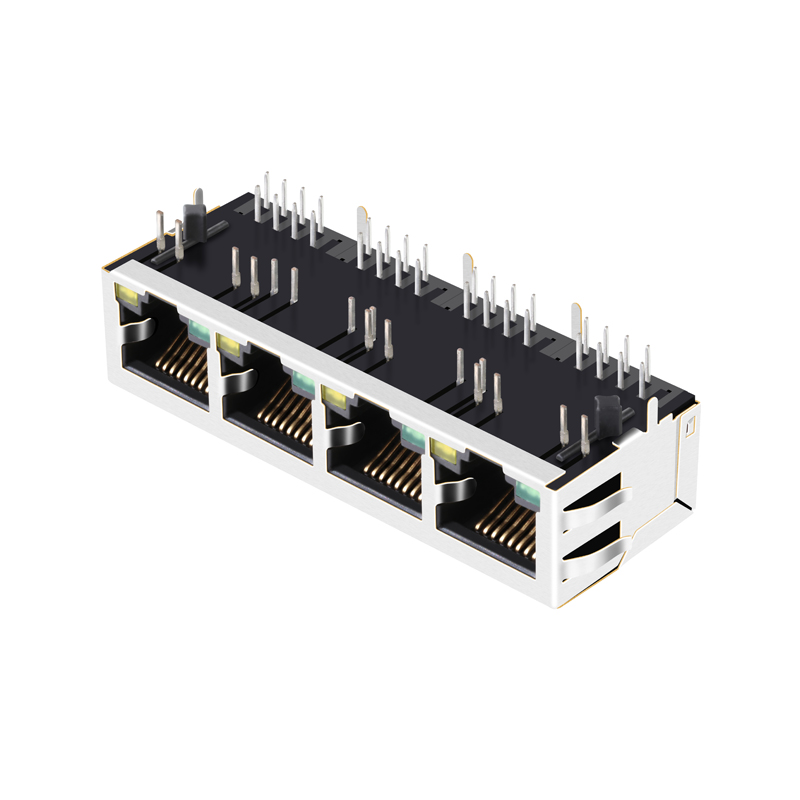

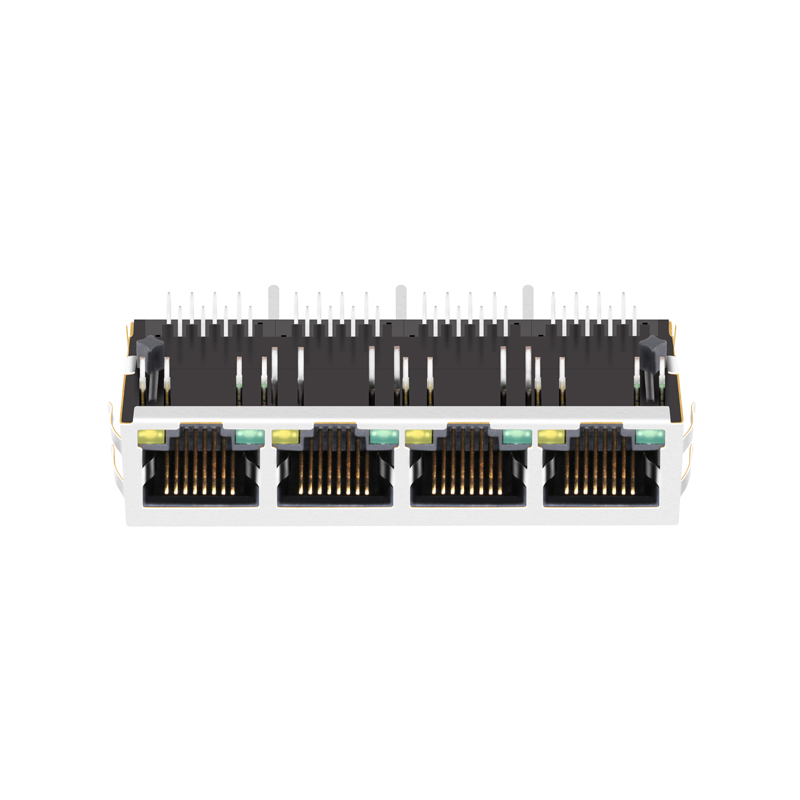

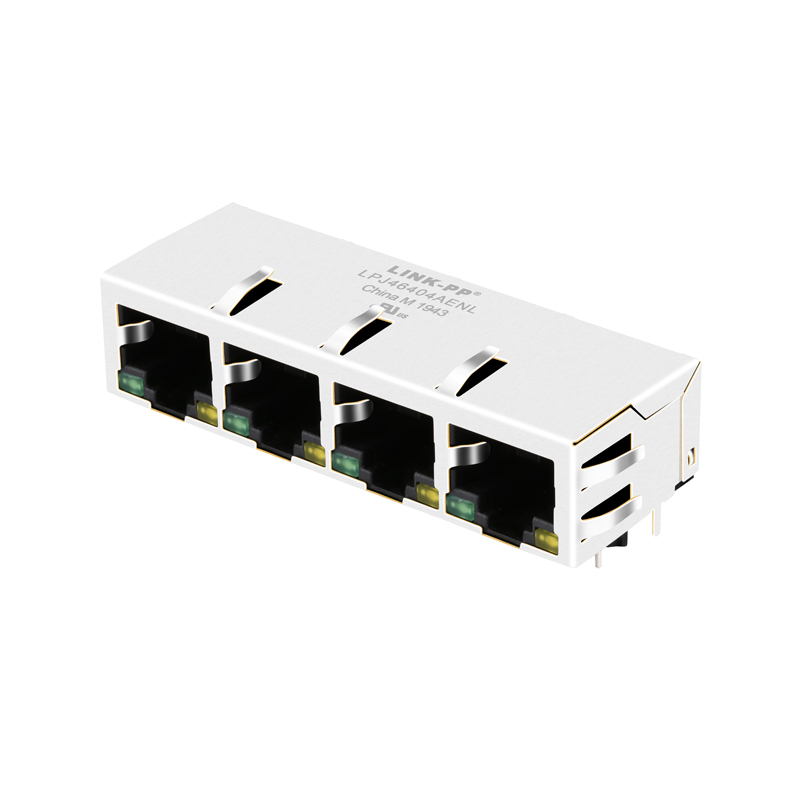

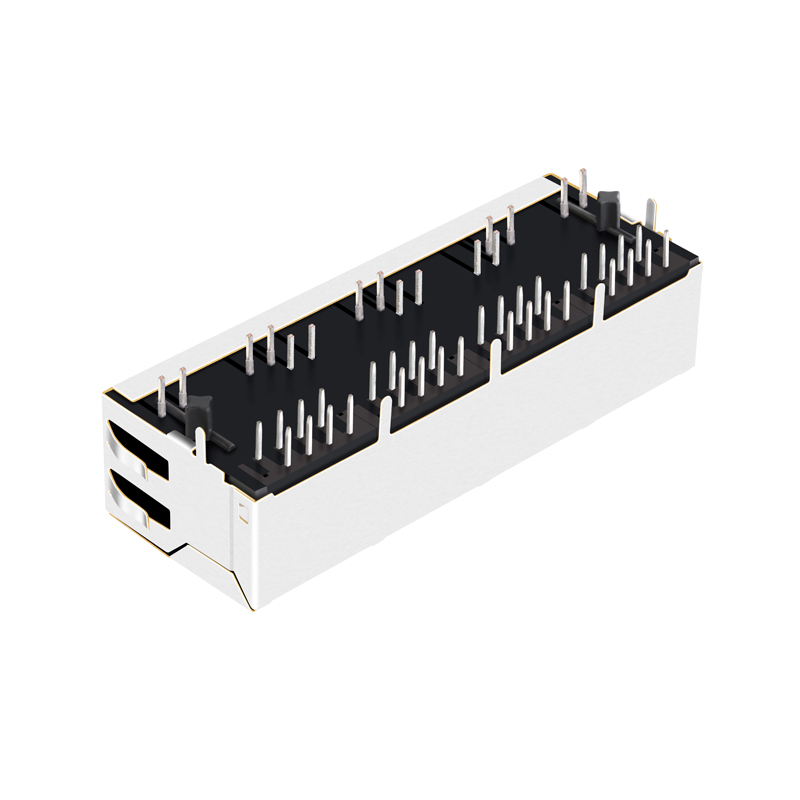

| LINK-PP Part Number | LPJ46404AENL |
| Pulse Part Number | JXD0-4005NL / JX80-0033NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet(Non_PoE) |
| Speed | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green/Yellow Led |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | 1x4 Port |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | -40°C ~ 85°C |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. The facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, the company maintains a robust staff and abundant production capacity to ensure short delivery times. Furthermore, we provide professional complete solutions for magnetic components alongside strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
