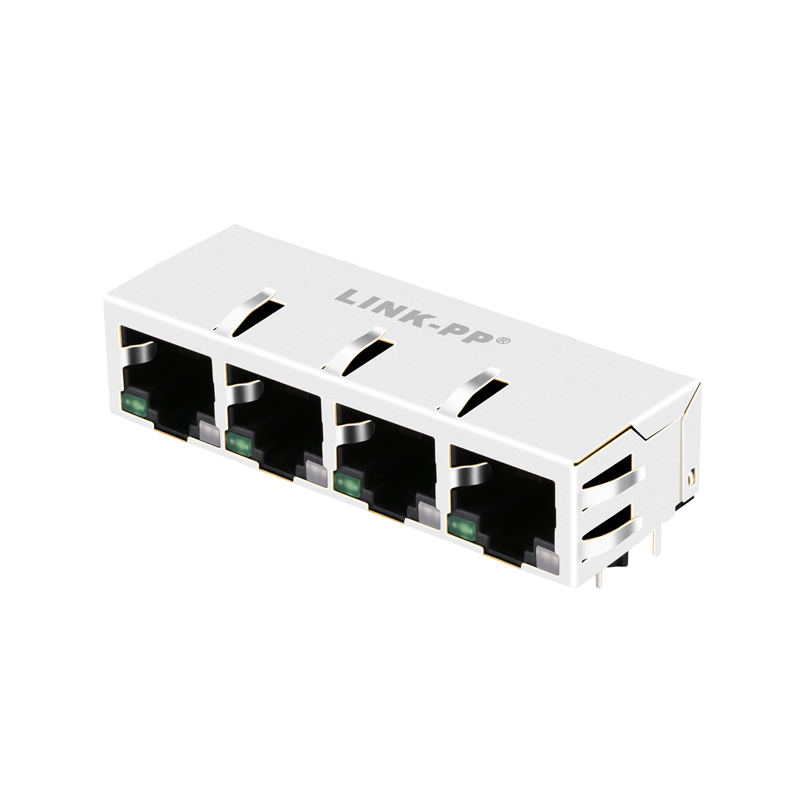

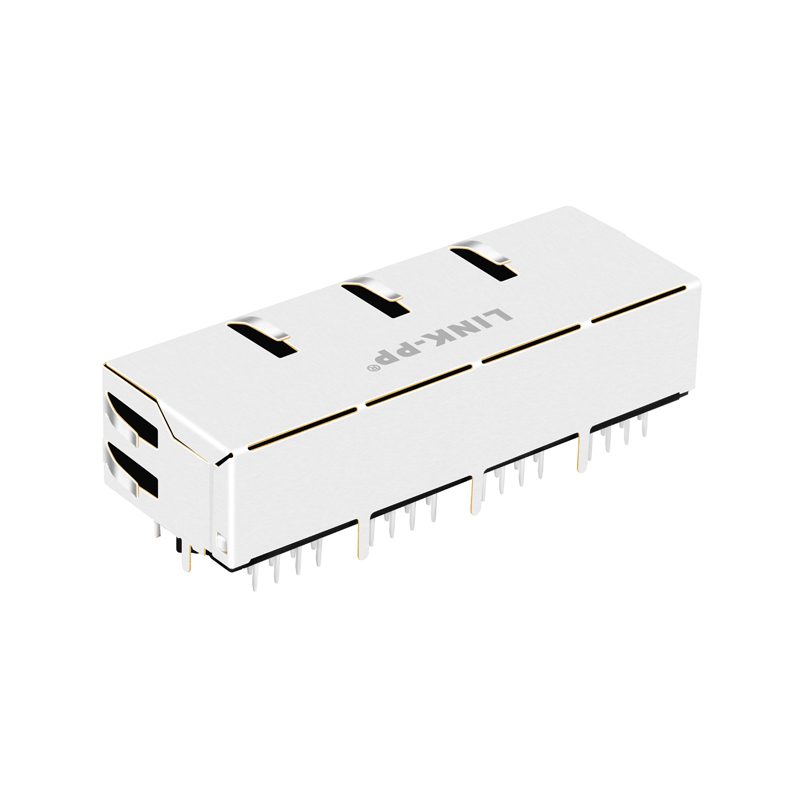

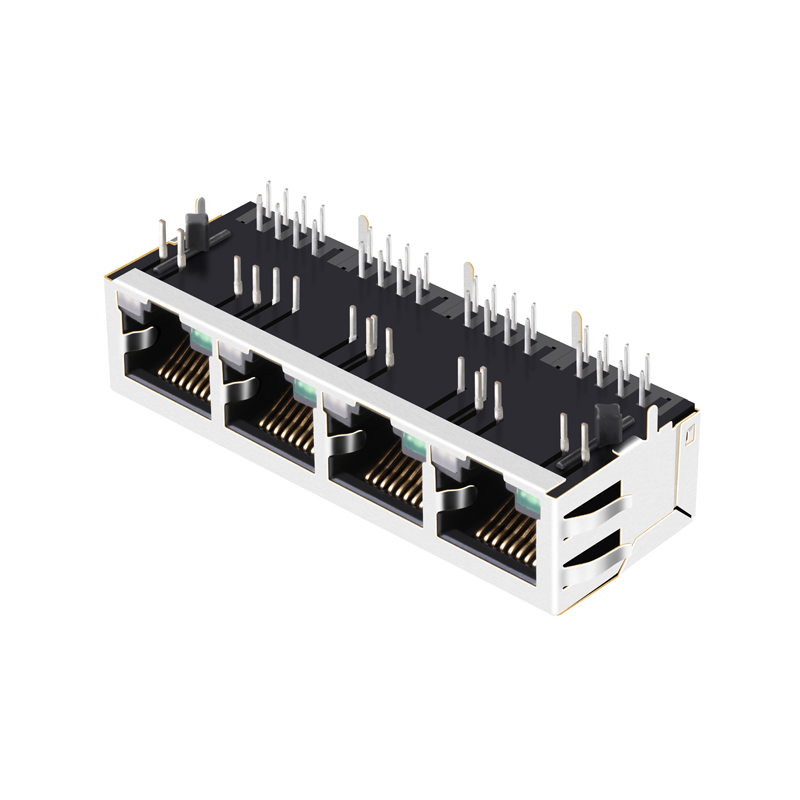

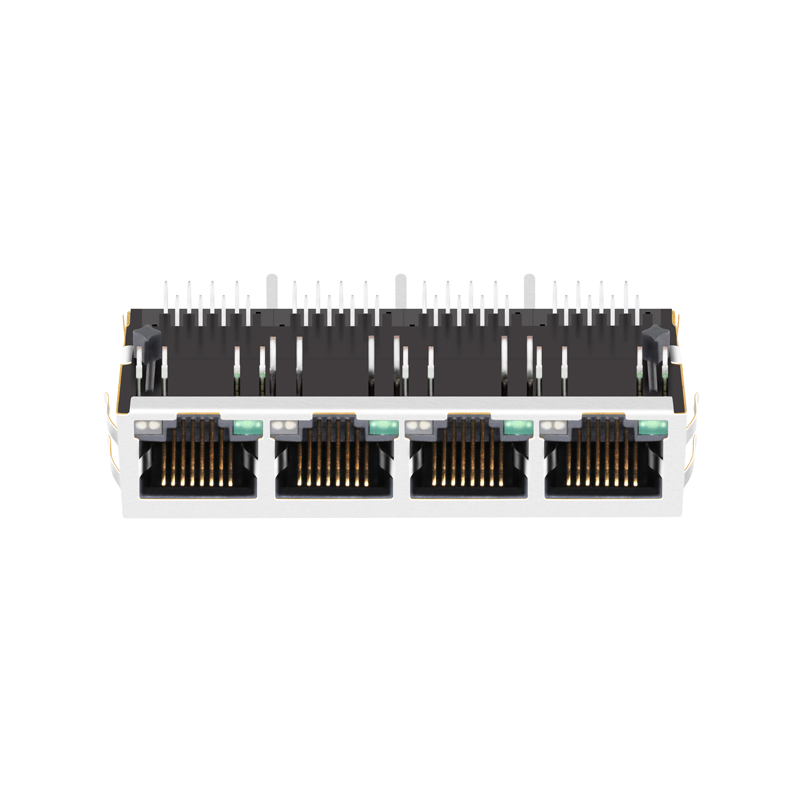

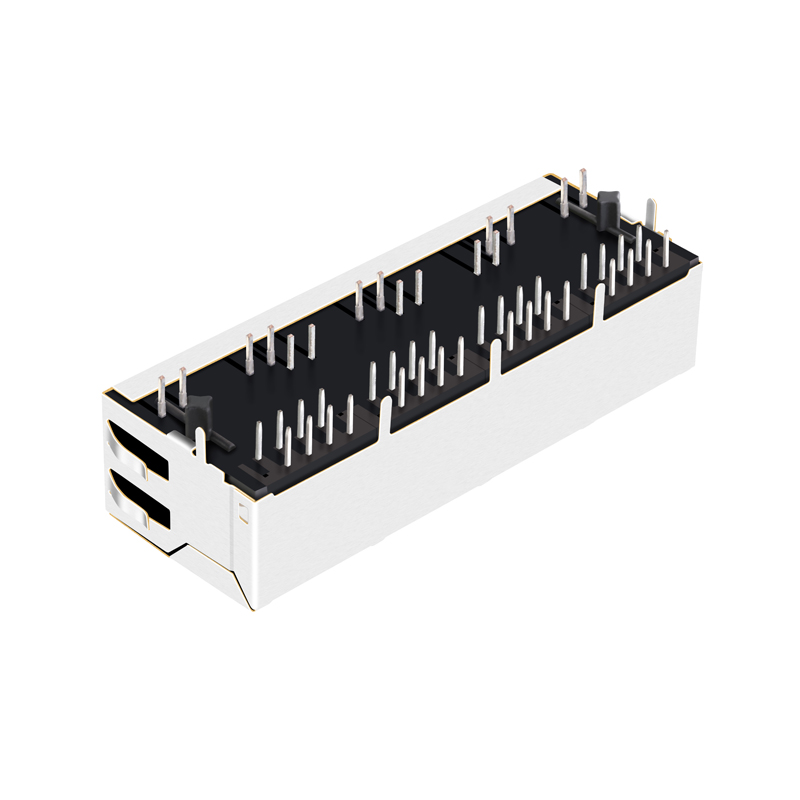

0826-1G4L-43M-F RJ45 Connector Magjack 1000 Base-T 1X4 RJ45

Product Description

Product Categories Overview
0826-1G4L-43M-F RJ45 Connector Magjack 1000 Base-T 1X4 RJ45

Products Description

Item RJ45 Female Connector
Compatible With 0826-1G4L-43M-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x4 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C/-40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Showcase Detail
Products Catalog Overview
Full Product Portfolio
Technical Specifications Drawing
Interface Configuration Detail
Dimensional Blueprint Detail
Schematic Diagram Detail
Product Mechanical Drawing 1
Product Mechanical Drawing 2

Company Profile

Established in 1997, the manufacturer is a professional designer and manufacturer in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. The company is a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, the company is committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Facility 1
Manufacturing Facility 2
Quality Inspection Center

FAQ

Q1: Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be covered by your side.
Q3: What is your delivery time?
Ready to ship from stock for standard items, and 15-30 days for customized mass production.
Q4: What after-sales service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
Q5: Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so that we can have a detailed discussion about your requirements.
Q6: What is your advantage?
We have 19 years of professional production experience and have been a trusted manufacturing partner for top-tier global technology companies for many years.
